30. Camshaft Intermediate Drive Shaft Removal



Camshaft Intermediate Drive Shaft Removal

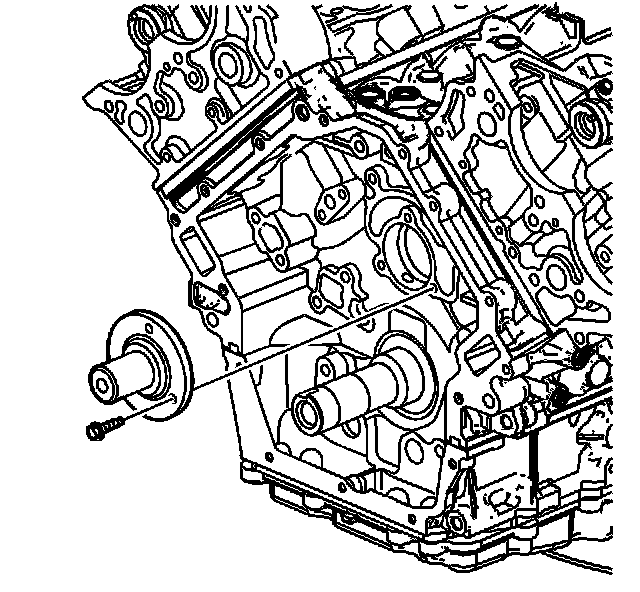

1. Remove the intermediate sprocket shaft retaining bolts.
2. Remove the intermediate sprocket shaft.
