126. Oil Level Indicator and Tube Installation



Oil Level Indicator and Tube Installation

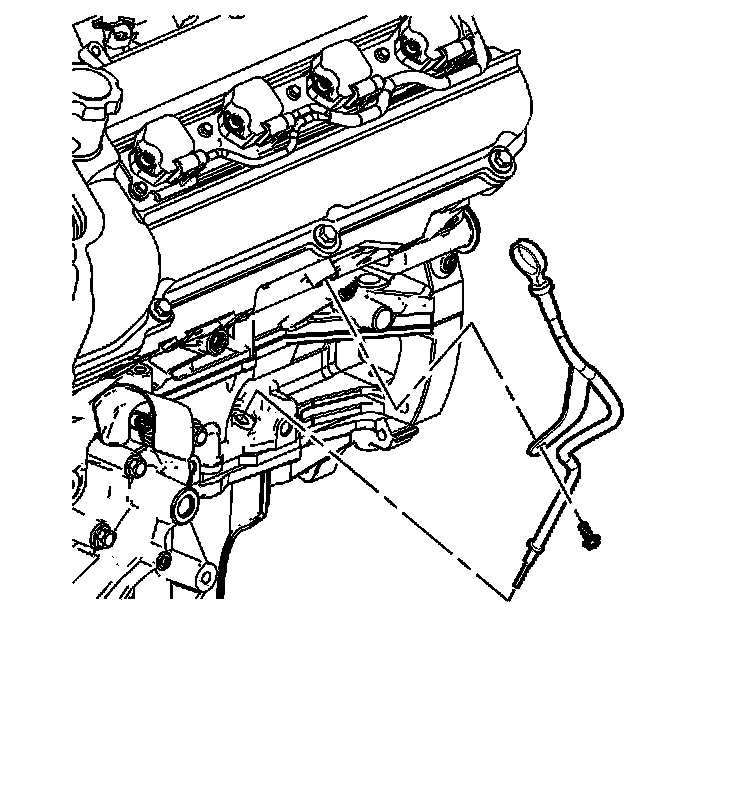

1. Install the NEW O-ring on the oil level indicator tube.




2. Install the oil level indicator tube.





Notice: Refer to Fastener Notice (Fastener Notice) .

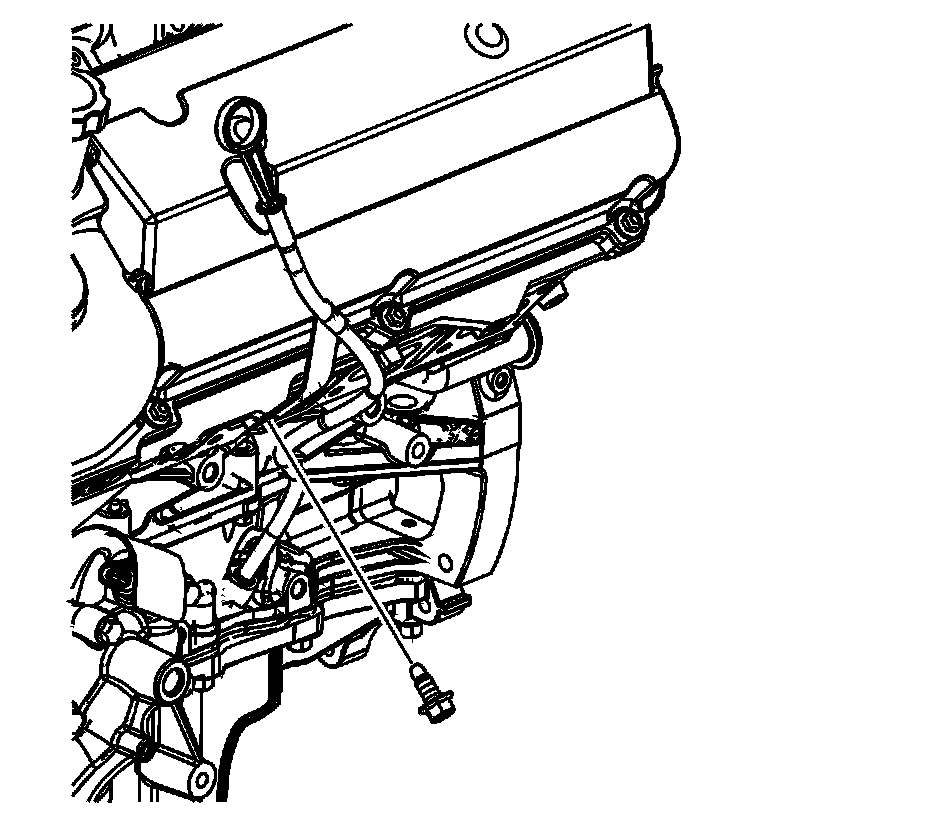

3. Install the oil level indicator tube nut.

Tighten the oil level indicator tube nut to 10 N.m (89 lb in).
