121. Ignition Coil Module Installation - Right Side

Ignition Coil Module Installation - Right Side






Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the right spark plugs.

Tighten the spark plugs to 15 N.m (11 lb ft).





2. Apply a small amount of dielectric grease GM P/N 12345579, (Canadian P/N 1974984), to each spark plug boot (1) of the ignition coil assembly.

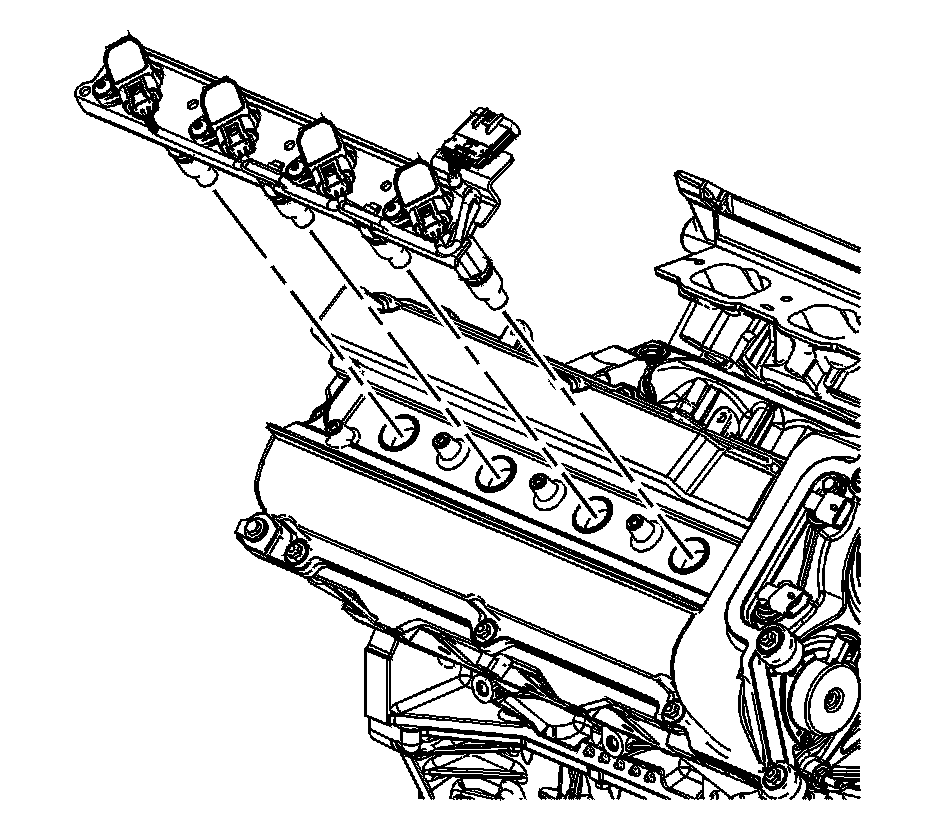

3. Carefully, install the right ignition coil assembly.

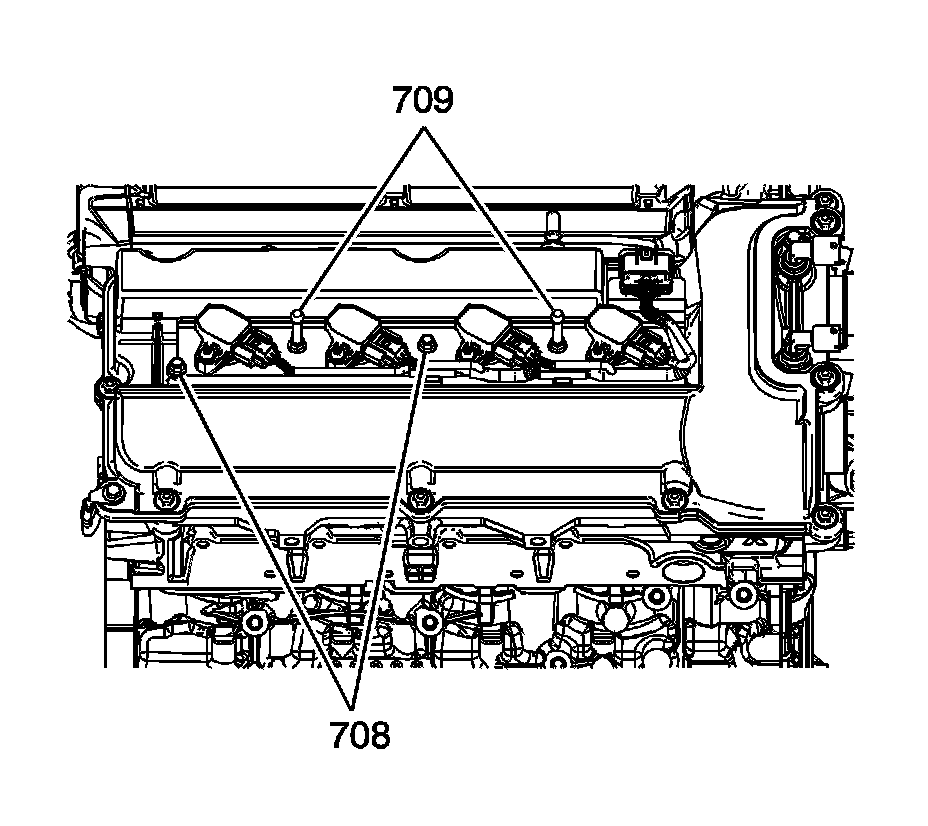

4. Install the ignition coil assembly bolts (708) and ball studs (709).

Tighten the right ignition cassette bolts and ball studs to 10 N.m (89 lb in).





5. Install the right ignition coil assembly cover.
