Power Seat Switch: Diagrams



Component Connector End Views

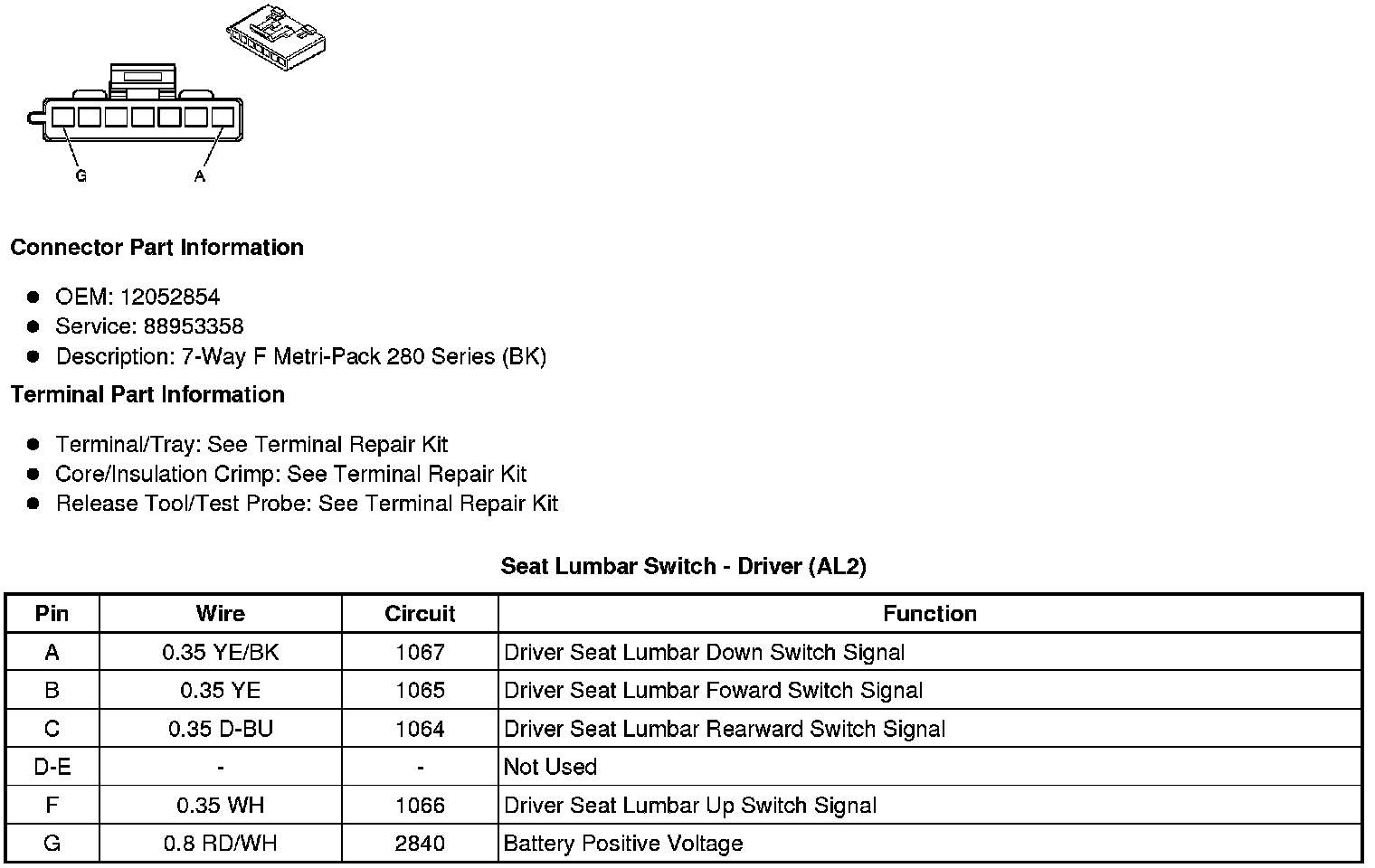

Seat Lumbar Switch - Driver (AL2)

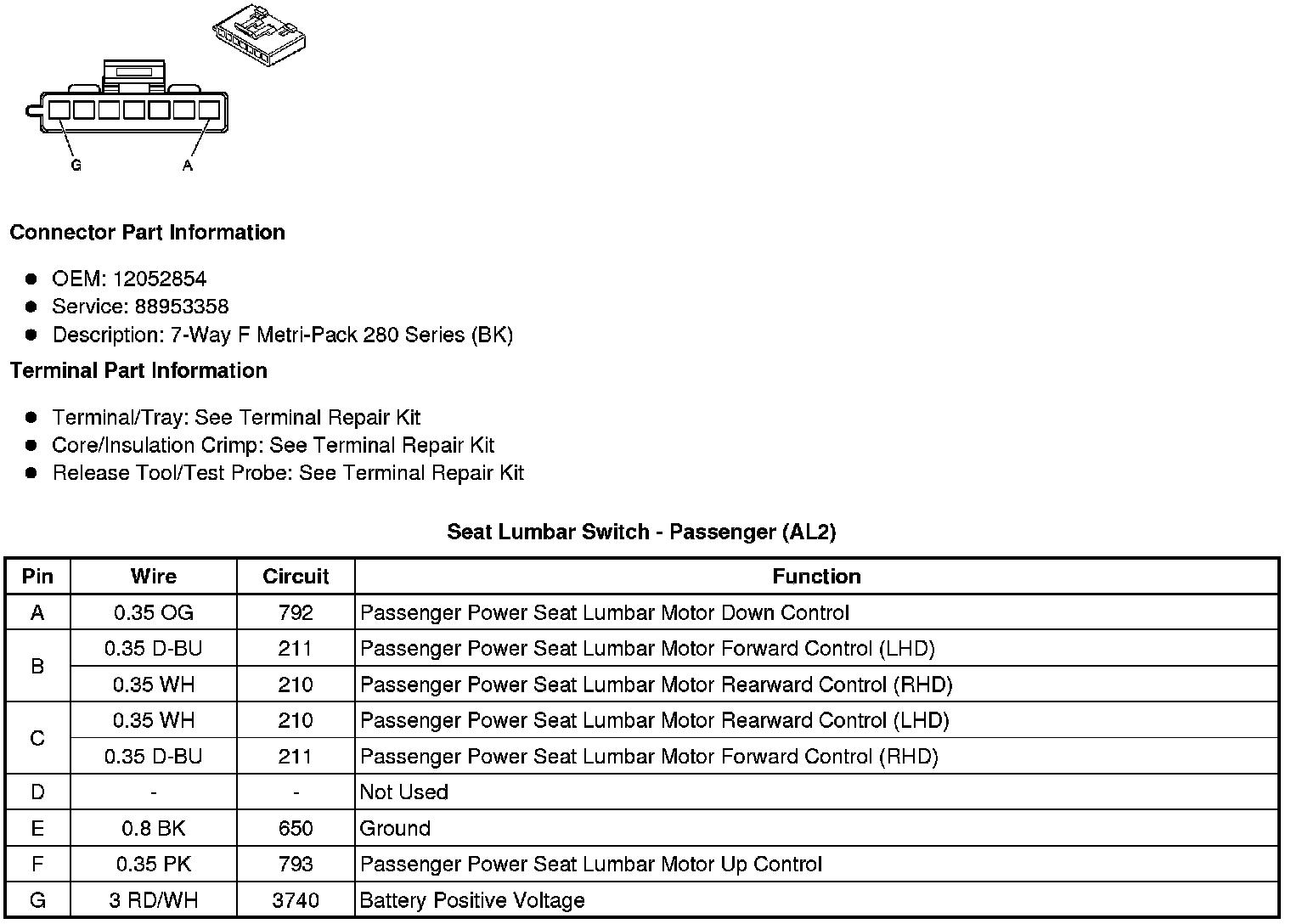

Seat Lumbar Switch - Passenger (AL2)

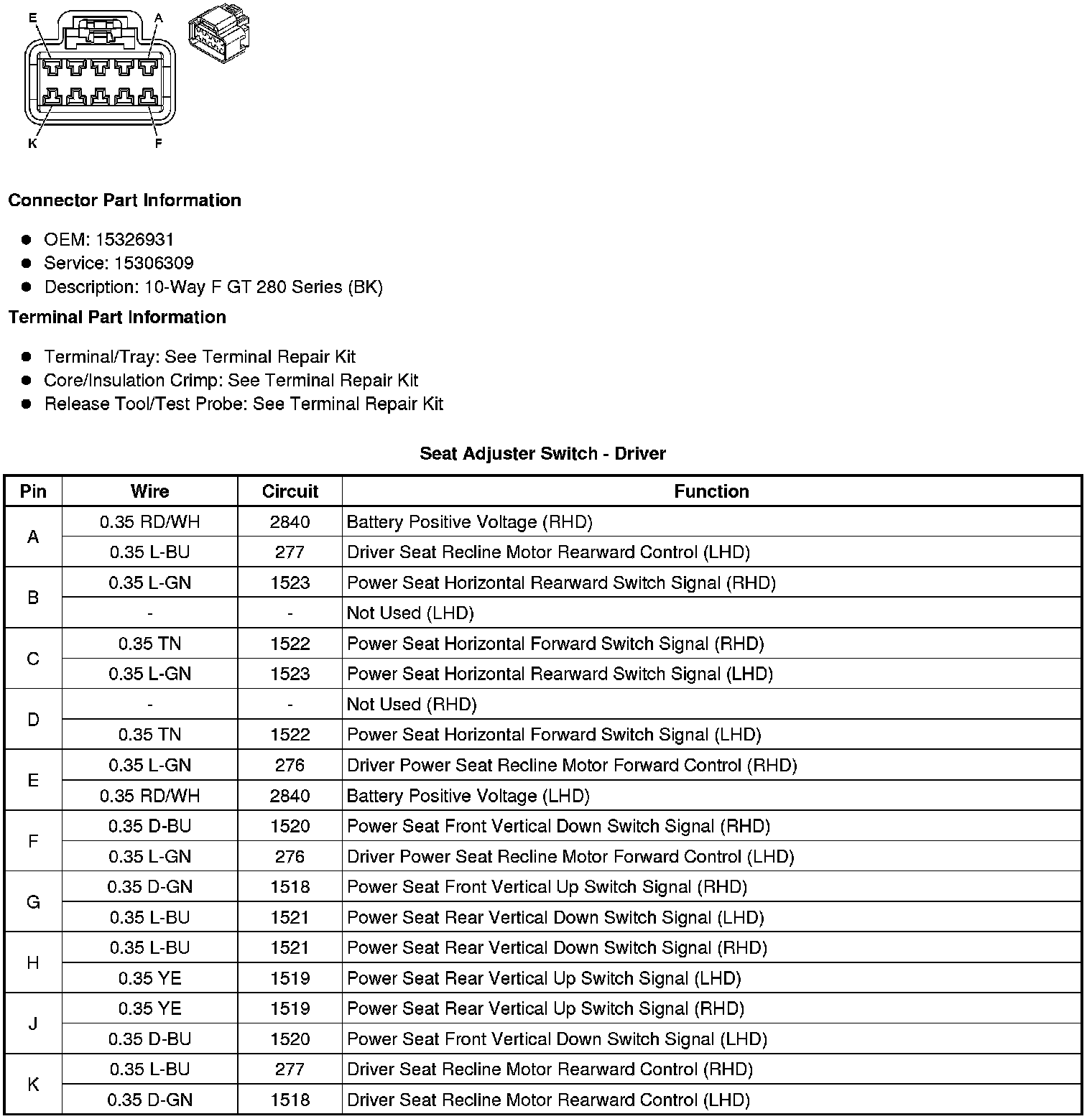

Seat Adjuster Switch - Driver

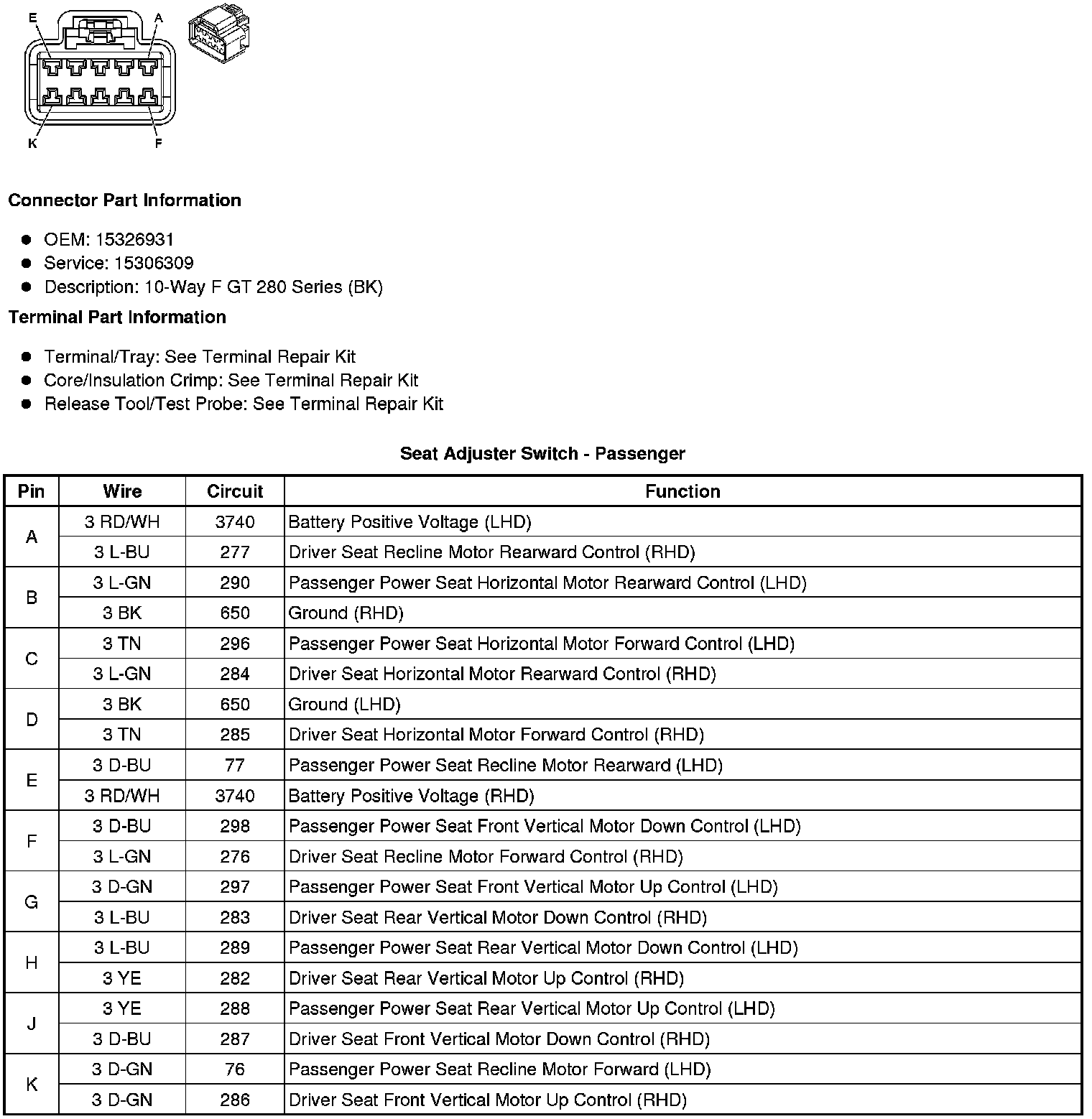

Seat Adjuster Switch - Passenger
