Connector Views



Component Connector End Views

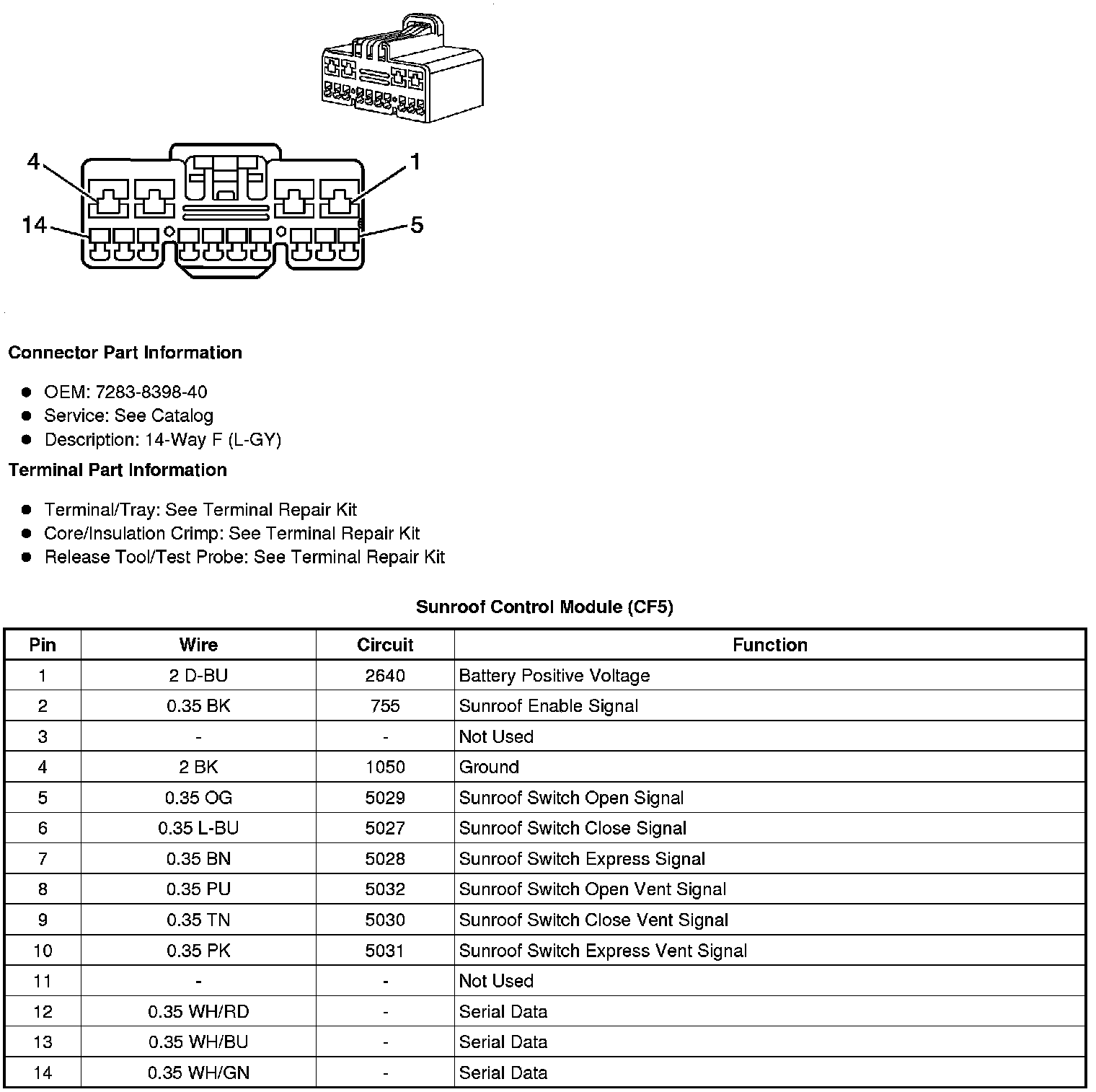

Sunroof Control Module (CF5)

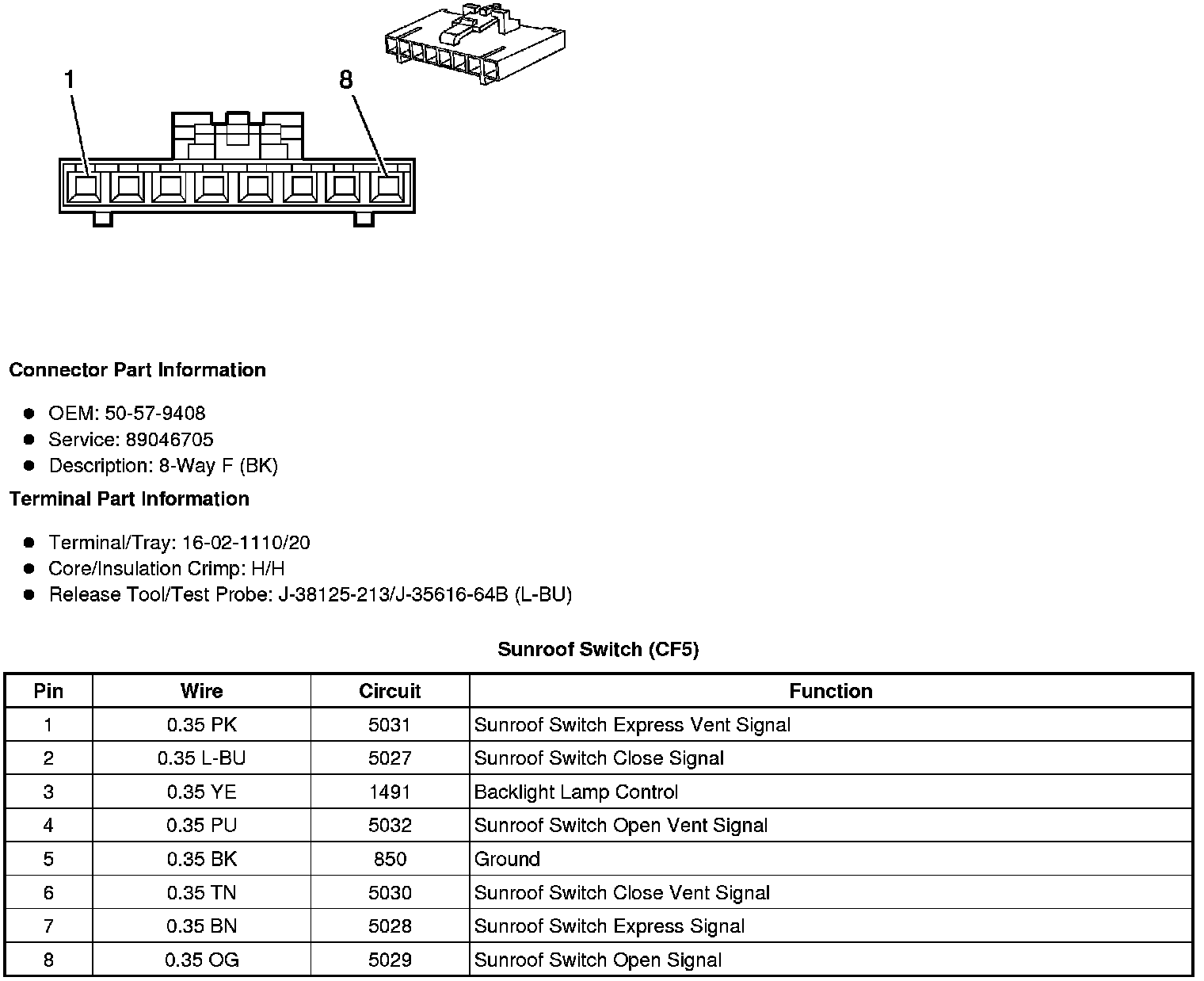

Sunroof Switch (CF5)






Sunshade - Left






Sunshade - Right
