83. Intake Manifold Disassemble - RPO LLT

Intake Manifold Disassemble (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)





1. Remove the throttle body bolts.

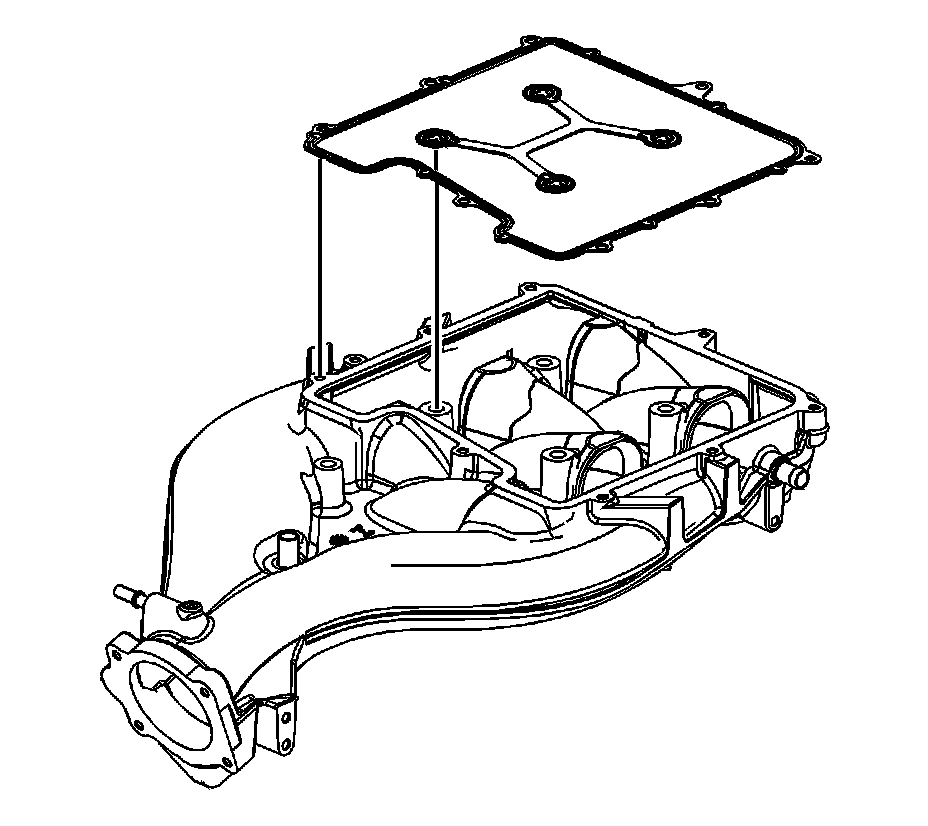

2. Remove the throttle body.
3. Remove and discard the throttle body gasket.




4. Remove the intake manifold cover bolts.
5. Remove the intake manifold cover.




6. Remove and discard the intake manifold cover gaskets.
