139. Drive Belt Tensioner Installation - Left Side



Drive Belt Tensioner Installation - Left Side

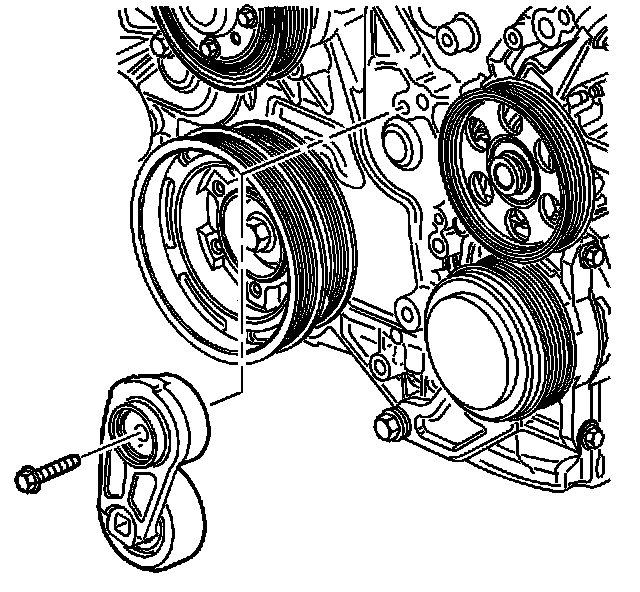

1. Place the left drive belt tensioner in position to the engine front cover.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the left drive belt tensioner bolt.

Tighten the left drive belt tensioner bolt to 50 N.m (37 lb ft).
