135. Oil Level Indicator and Tube Installation

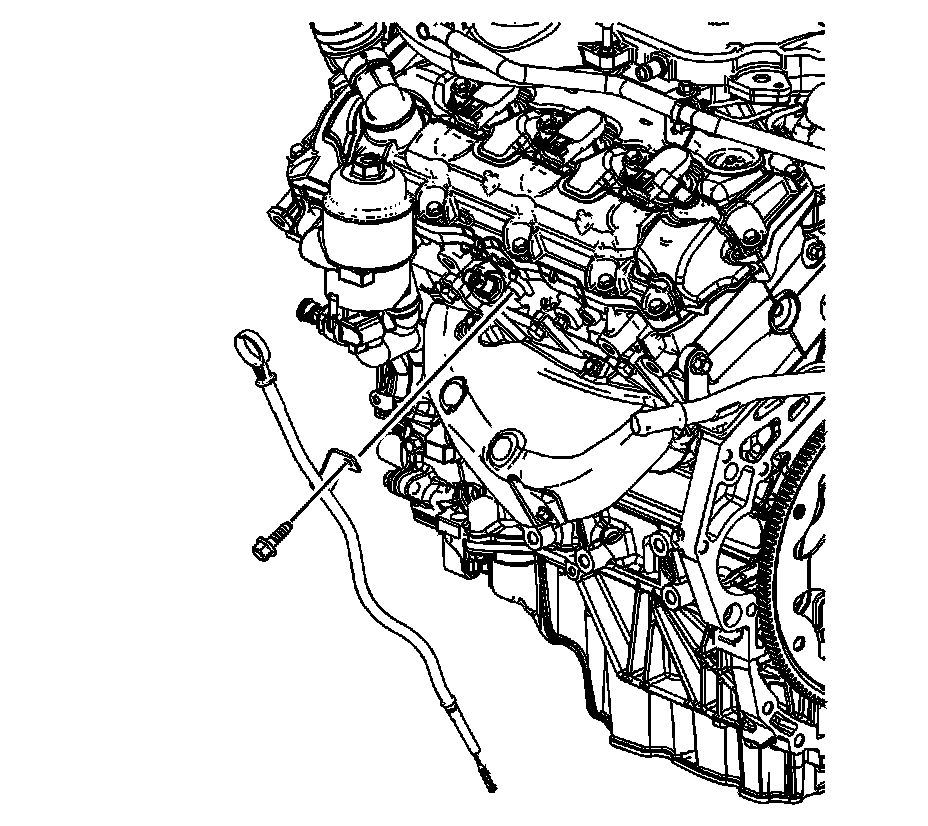

Oil Level Indicator and Tube Installation





1. Install a NEW O-ring on the oil level indicator tube.




2. Install the oil level indicator and tube by sliding the tube down through the lower crankcase hole.

Notice: Refer to Fastener Notice (Fastener Notice) .

3. Install the oil level indicator tube bracket bolt.

Tighten the oil level indicator tube bracket bolt to 10 N.m (89 lb in).
