12. Camshaft Cover Removal - Left Side - RPO LLT

Camshaft Cover Removal - Left Side (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)

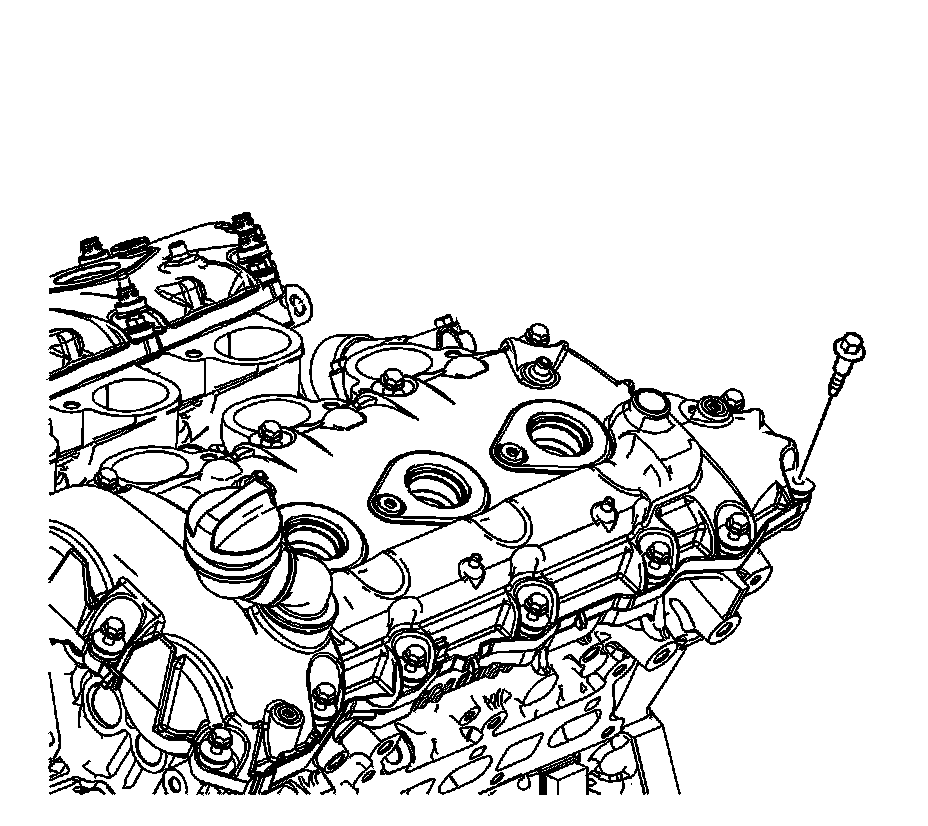

1. Remove the ignition coil bolts.




2. Remove the ignition coils.




3. Remove the left camshaft cover bolts.

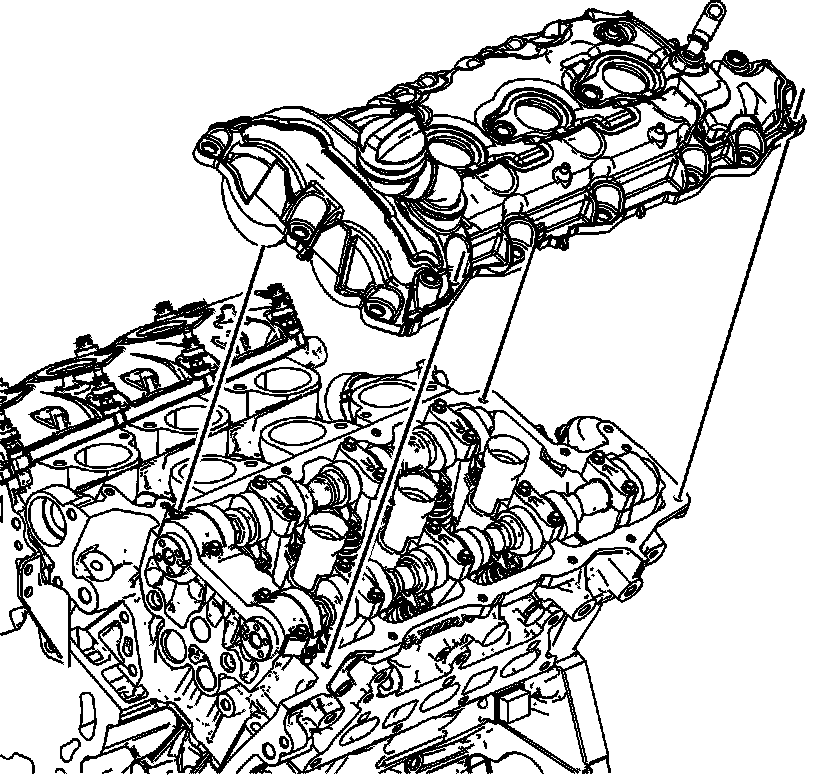

4. Remove the left camshaft cover from the left cylinder head.
