101. Fuel Feed Pipe Installation

Fuel Feed Pipe Installation (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)






Notice: Refer to Fastener Notice (Fastener Notice) .

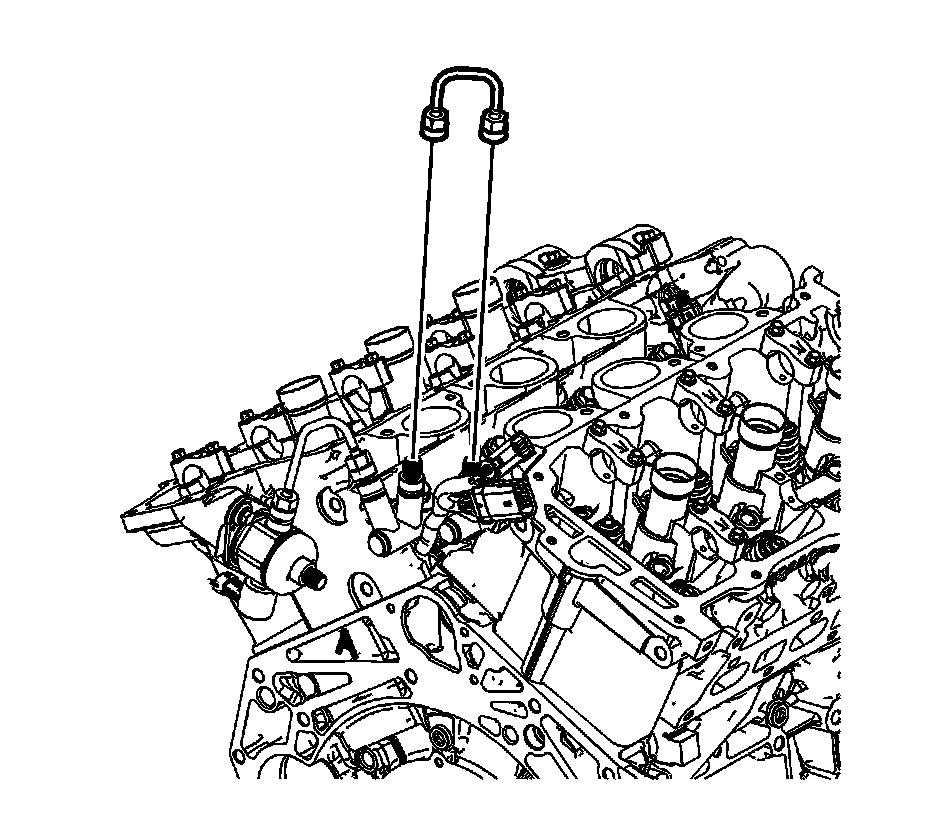

1. Install the LH to RH fuel rail crossover pipe.

Tighten the fuel rail crossover pipe fittings to 30 N.m (22 lb ft).

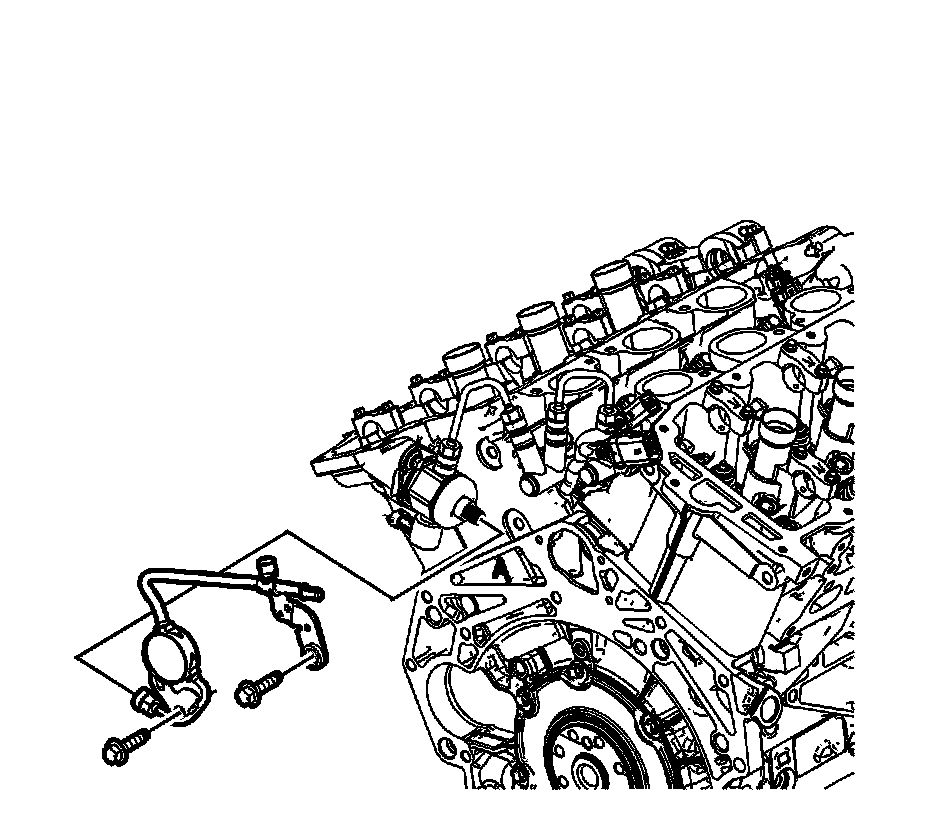

2. Install the fuel feed pipe.
3. Install the fuel feed pipe bolts.

Tighten the fuel feed pipe bolts to 10 N.m (89 lb in).

4. Install the fuel rail wiring connectors to the fuel feed pipe bracket.

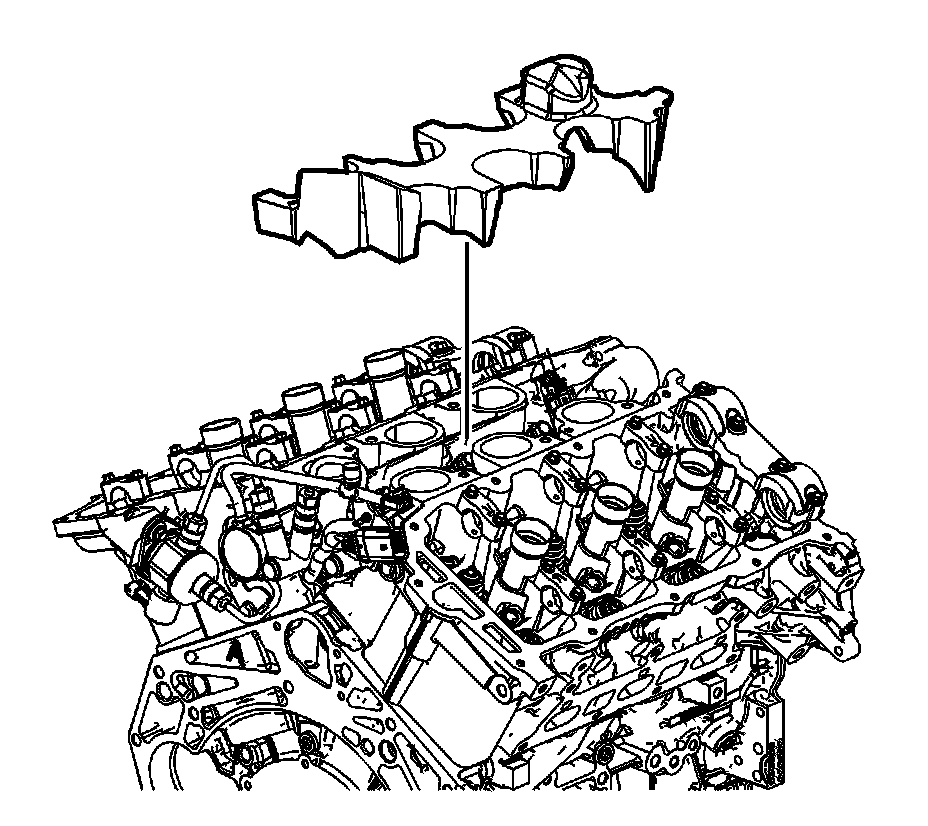

5. Install the fuel rail noise shield.
