Radiator Cooling Fan: Diagrams



Component Connector End Views

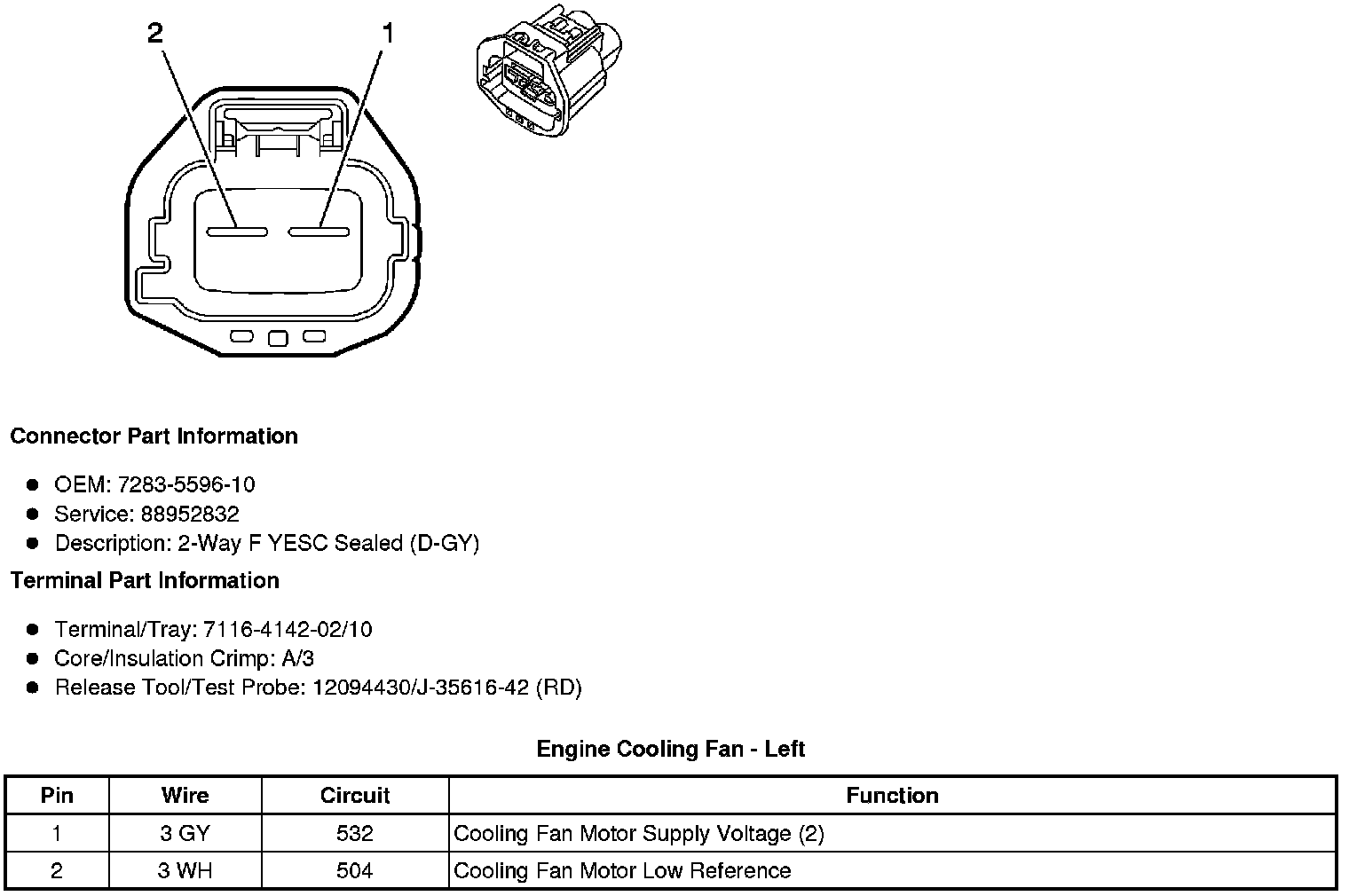

Engine Cooling Fan - Left

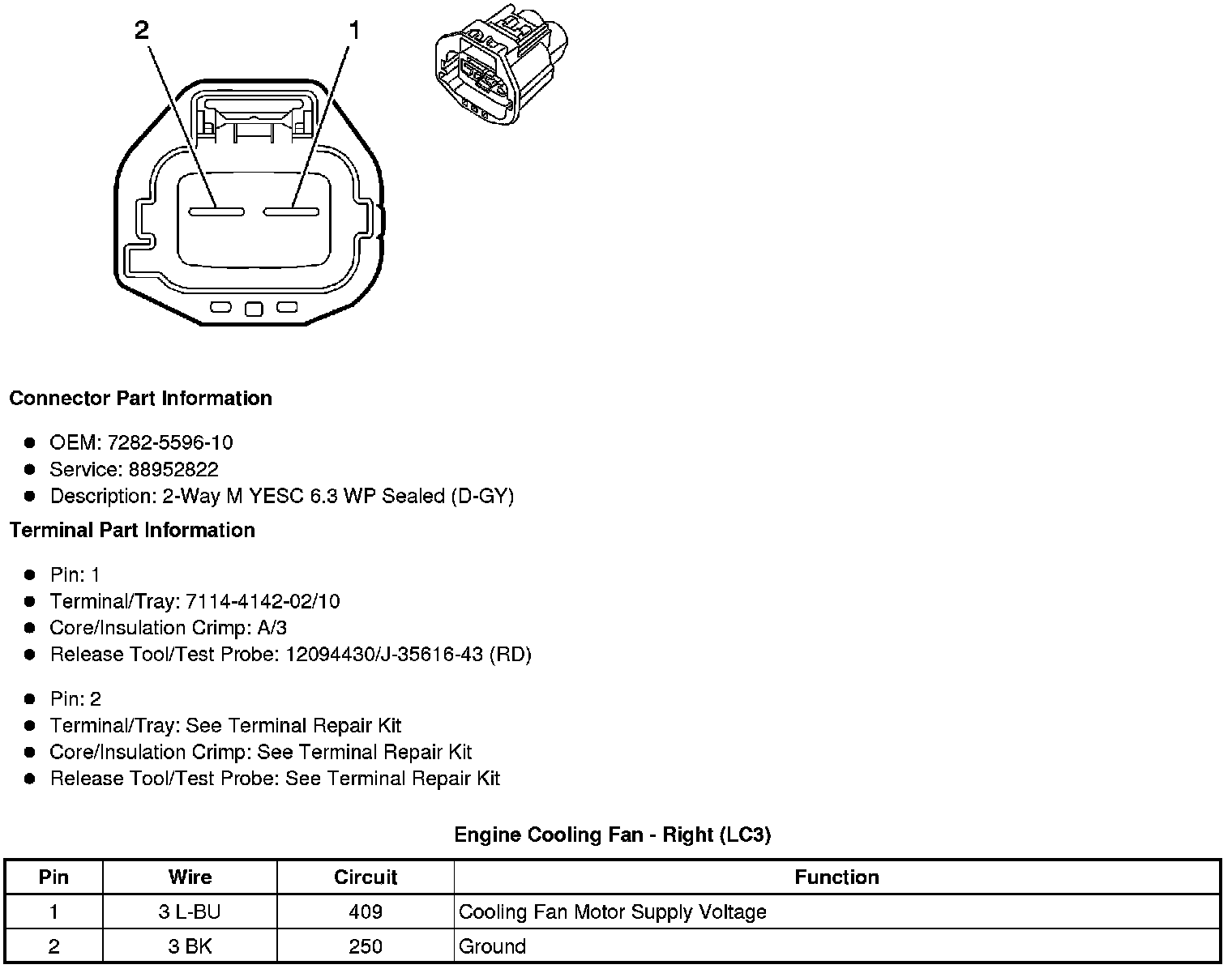

Engine Cooling Fan - Right (LC3 - 8 Cyl, 4.4L, MFI, V8, SC, ALUM, DOHC)

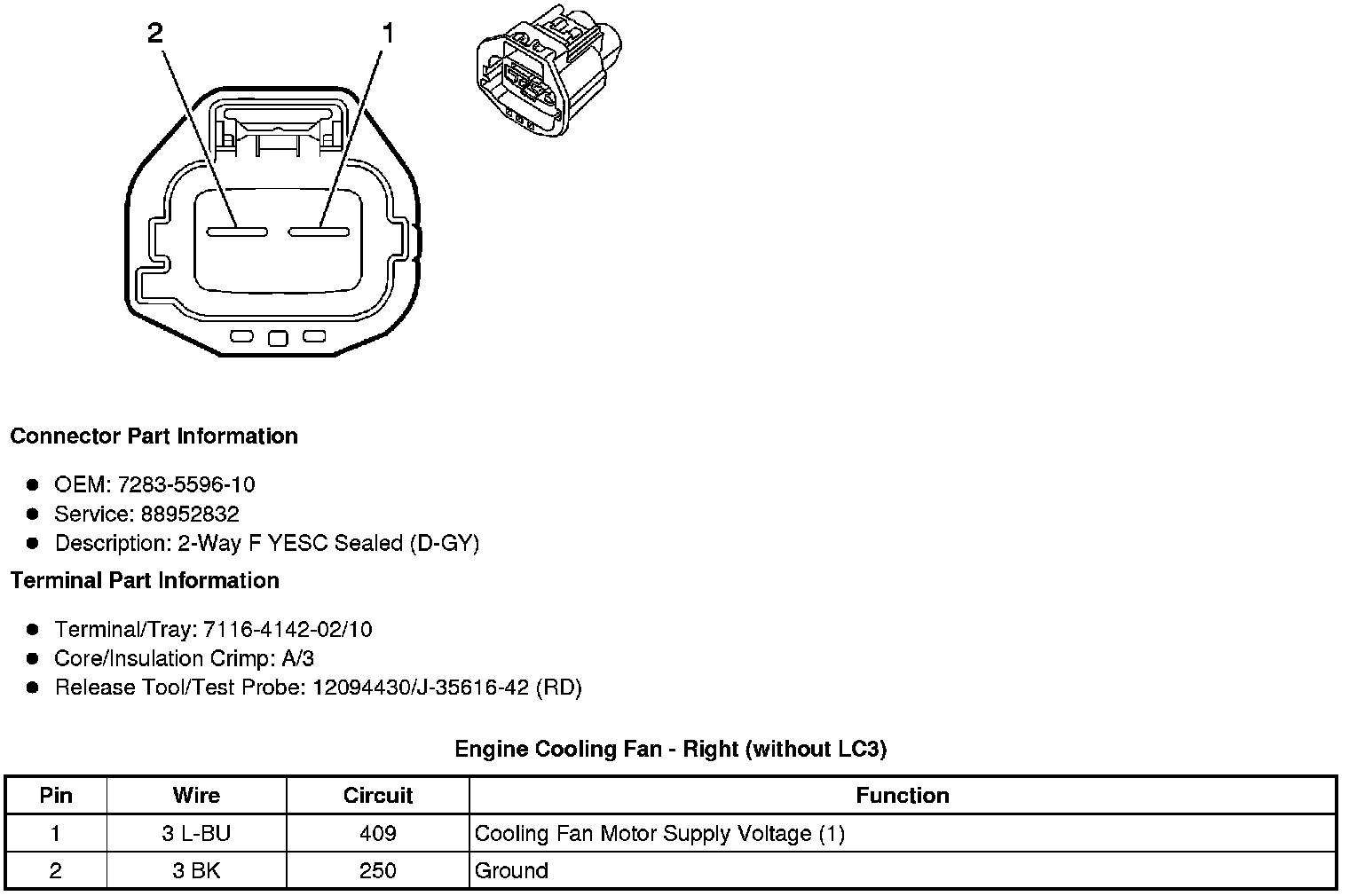

Engine Cooling Fan - Right (without LC3)
