Seat Temperature Element



Heated/Cooled Seat Schematics

Driver Heated Seat

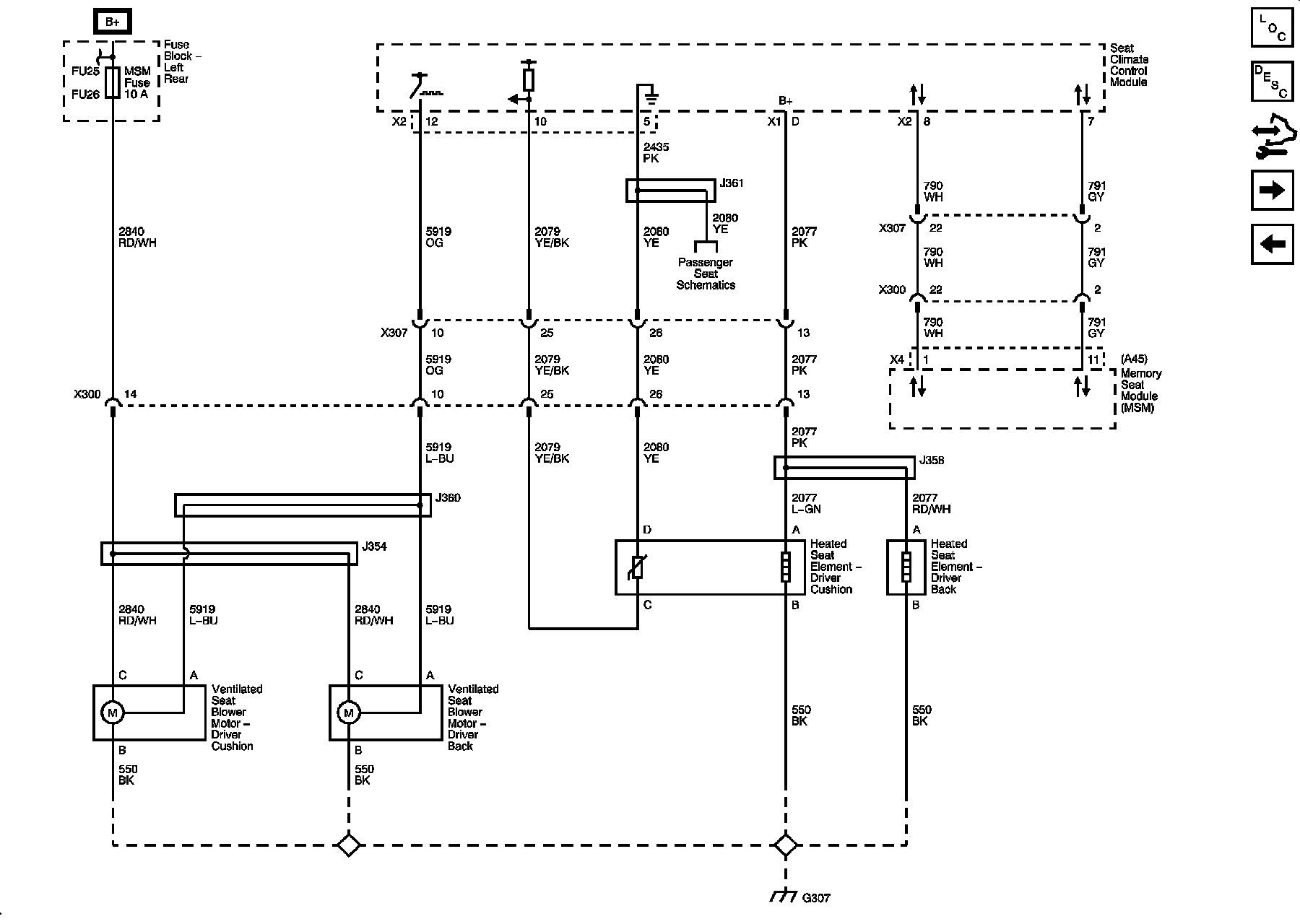

Driver Heated/Cooled Seat





Front Passenger Heated Seat

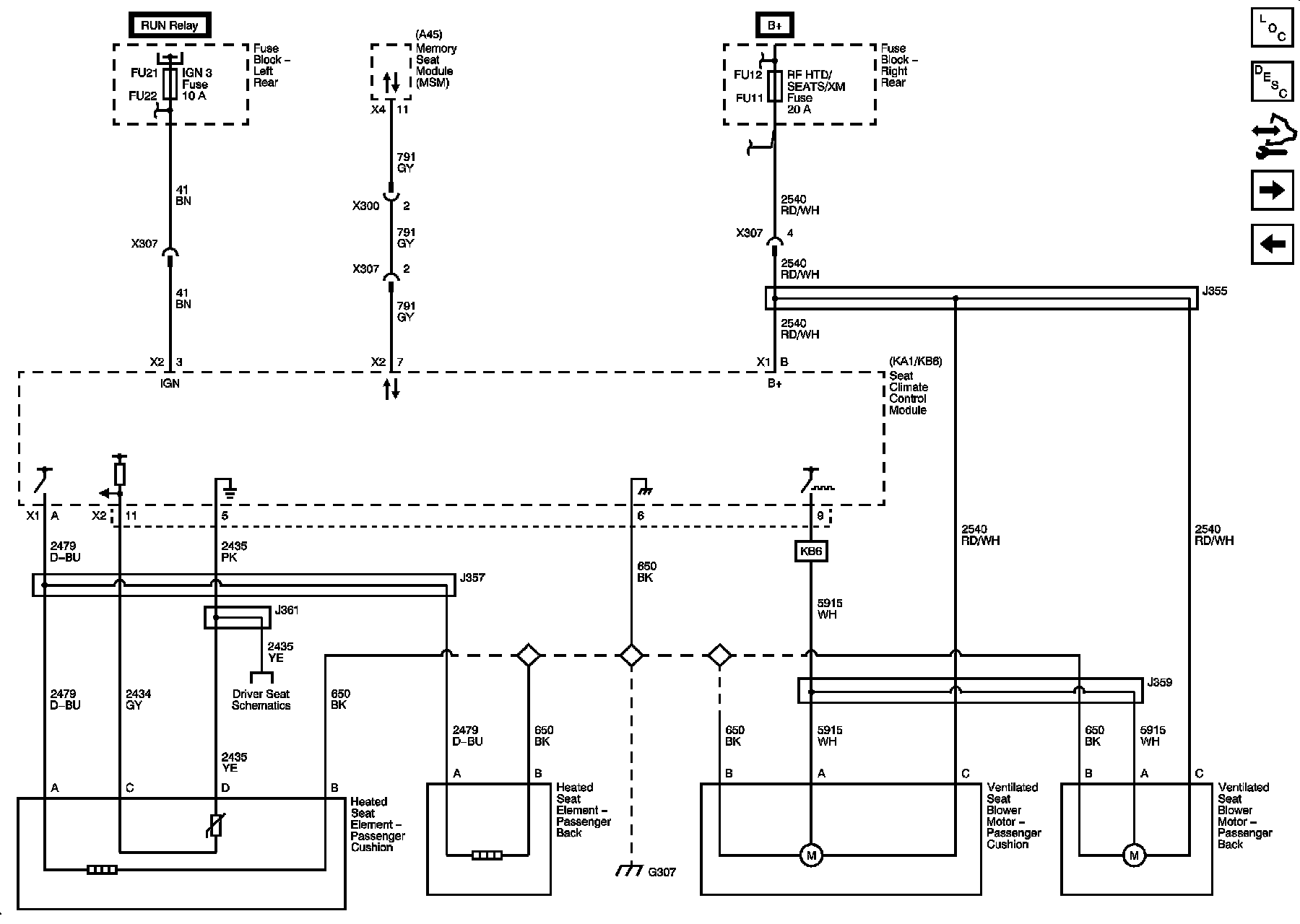

Front Passenger Heated/Cooled Seat

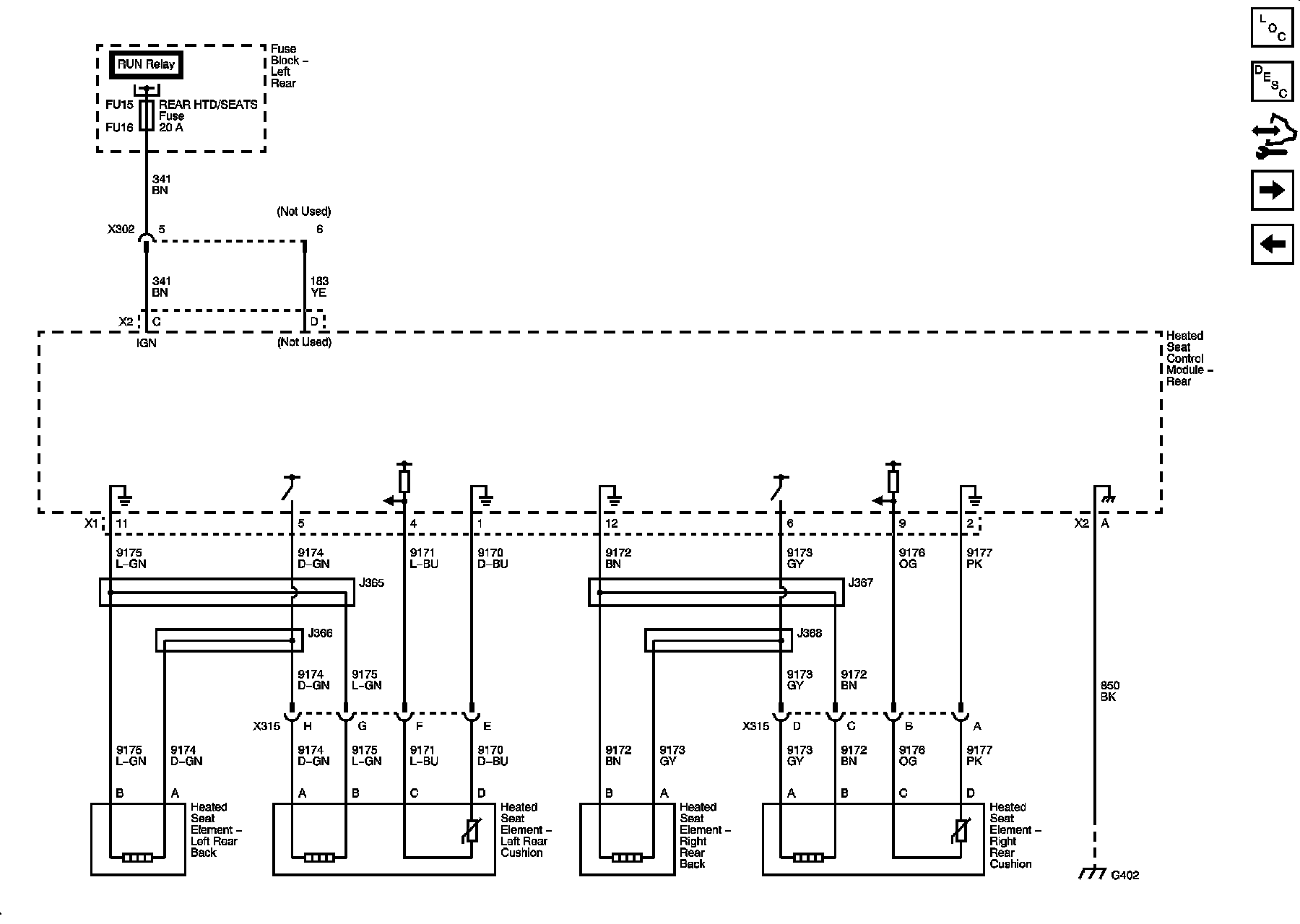

Right Rear Heated Seat Elements





Left Rear Heated Seat Controls
