Keyless Entry



Remote Function Schematics

Garage Door Opener

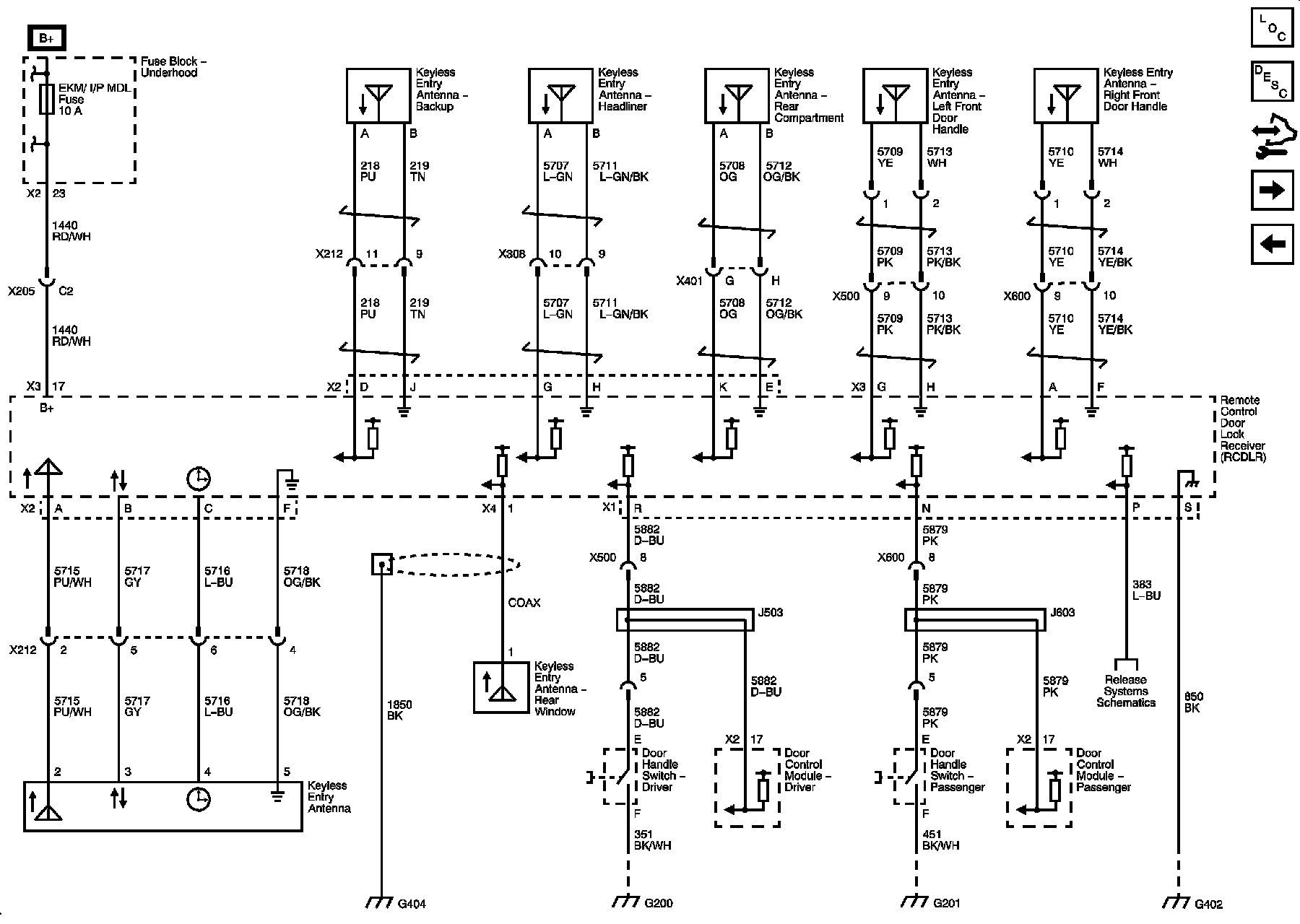

Keyless Entry Module Power, Grounds, Antennas and Switches





Keyless Entry DLC, Instrument Panel Cluster (IPC)
