Lane Sensing System Chime / Buzzer

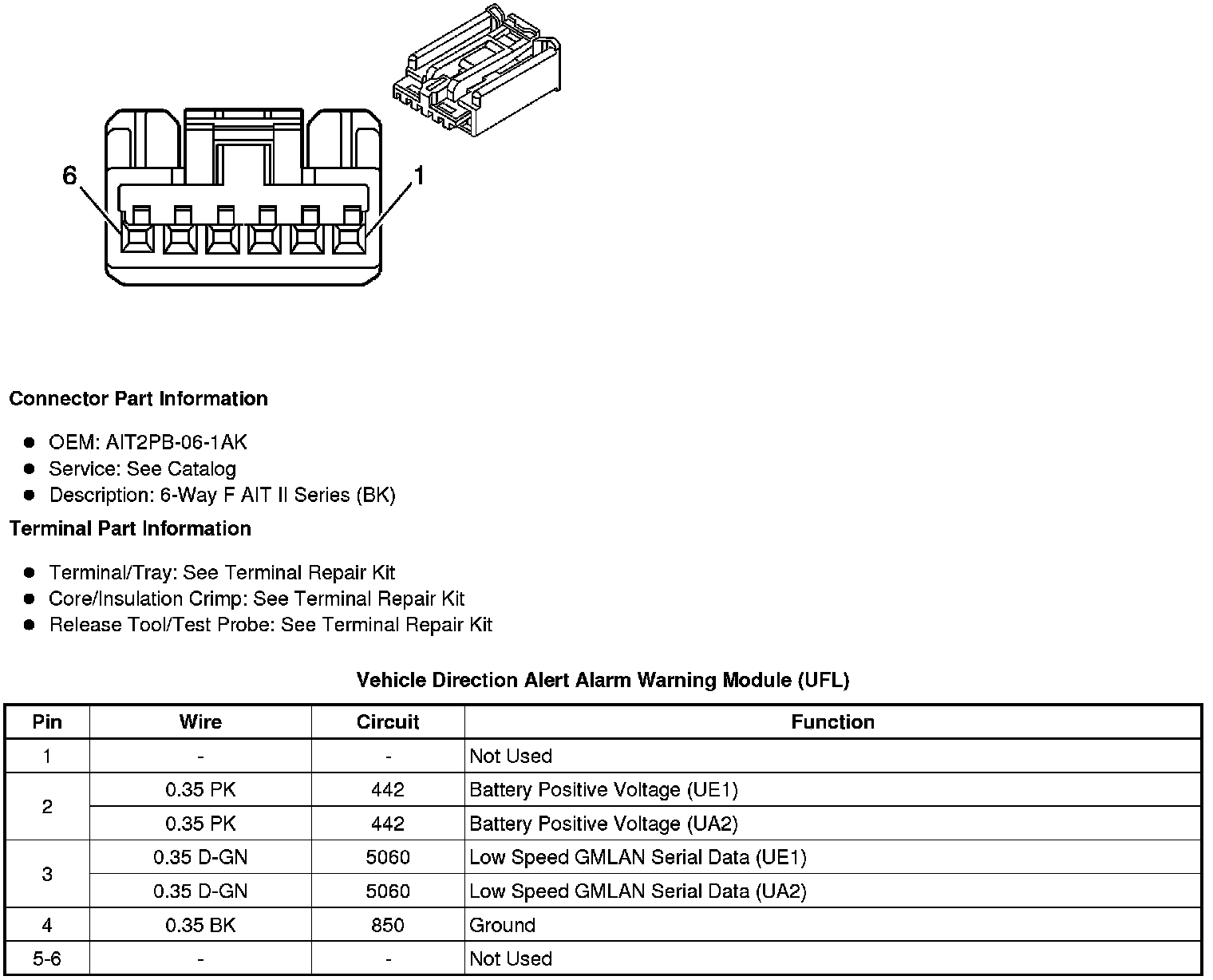

Component Connector End Views

Vehicle Direction Alert Alarm Warning Module (UFL)
