Canister Purge Solenoid



Component Connector End Views


Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LC3 or LH2)

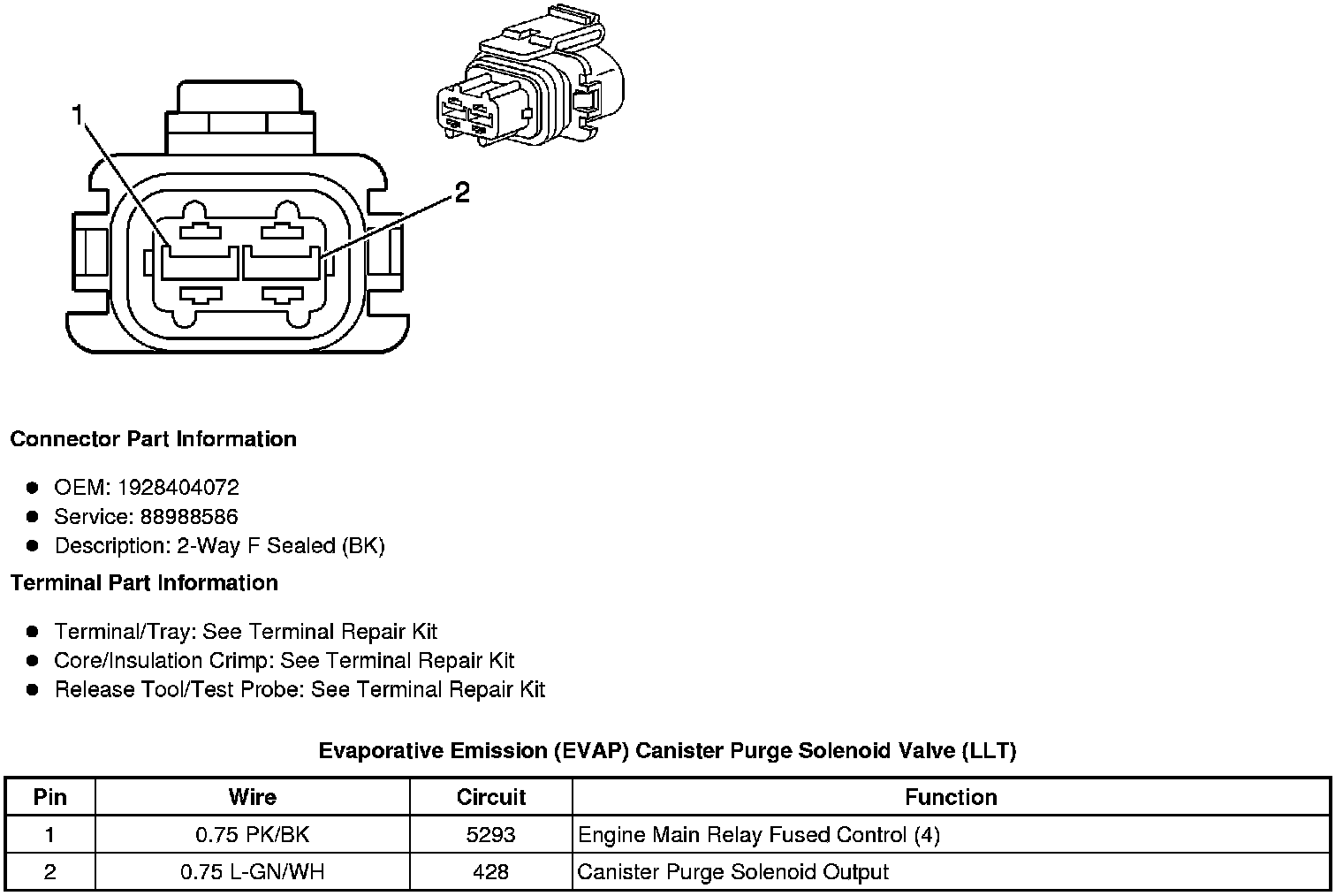

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)
