Rear Door Latch: Diagrams



Component Connector End Views

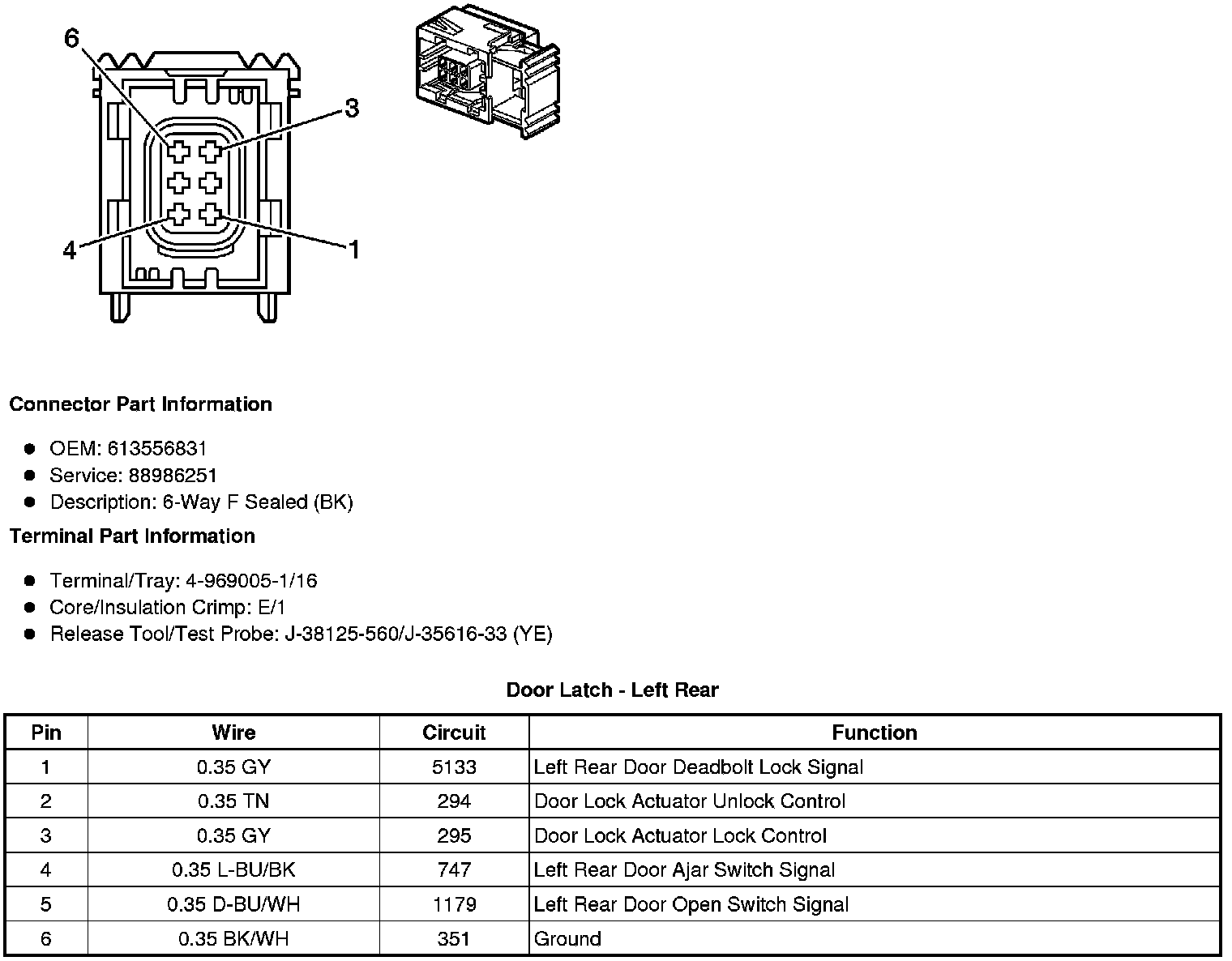

Door Latch - Left Rear

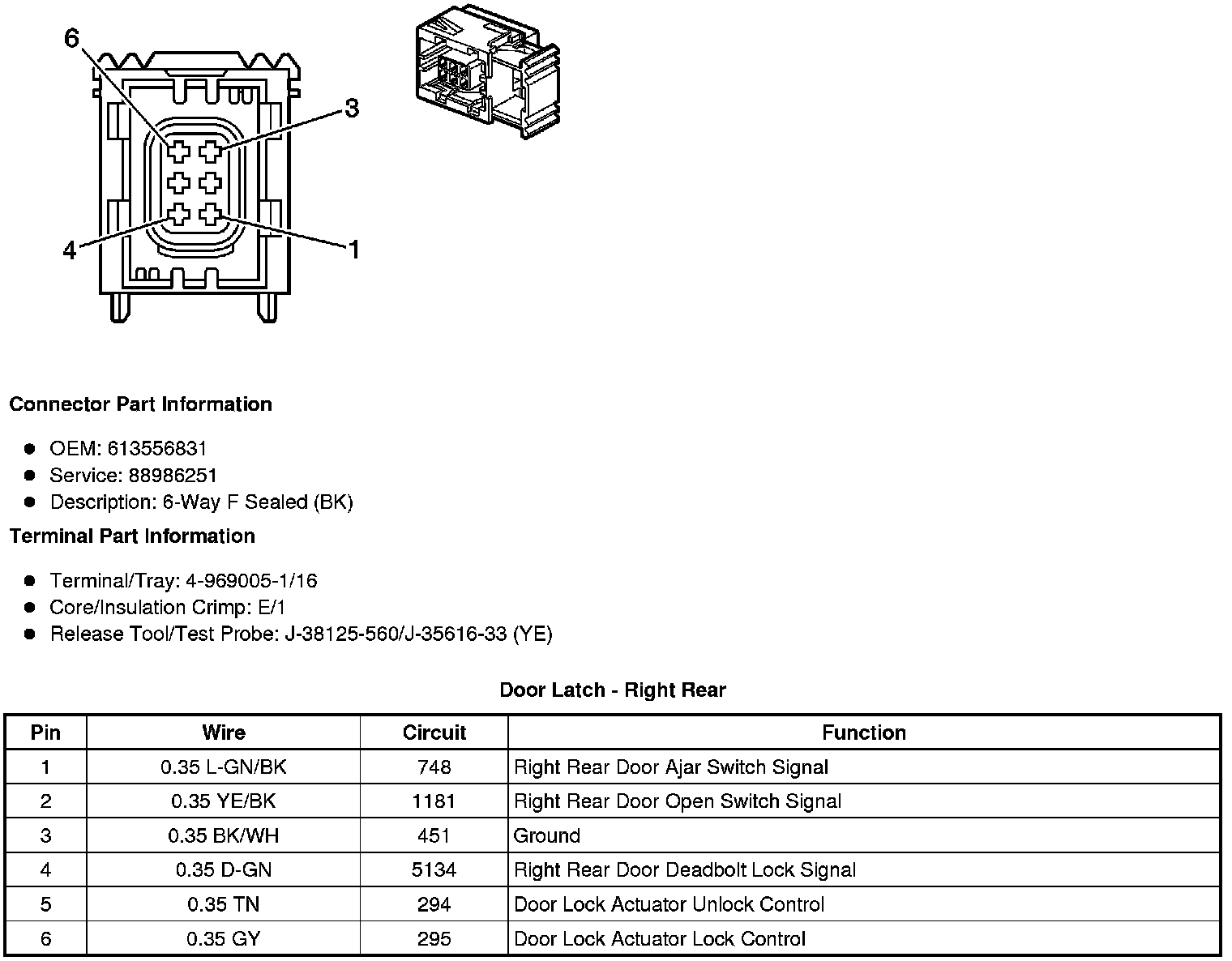

Door Latch - Right Rear
