Turn Signal Switch: Diagrams

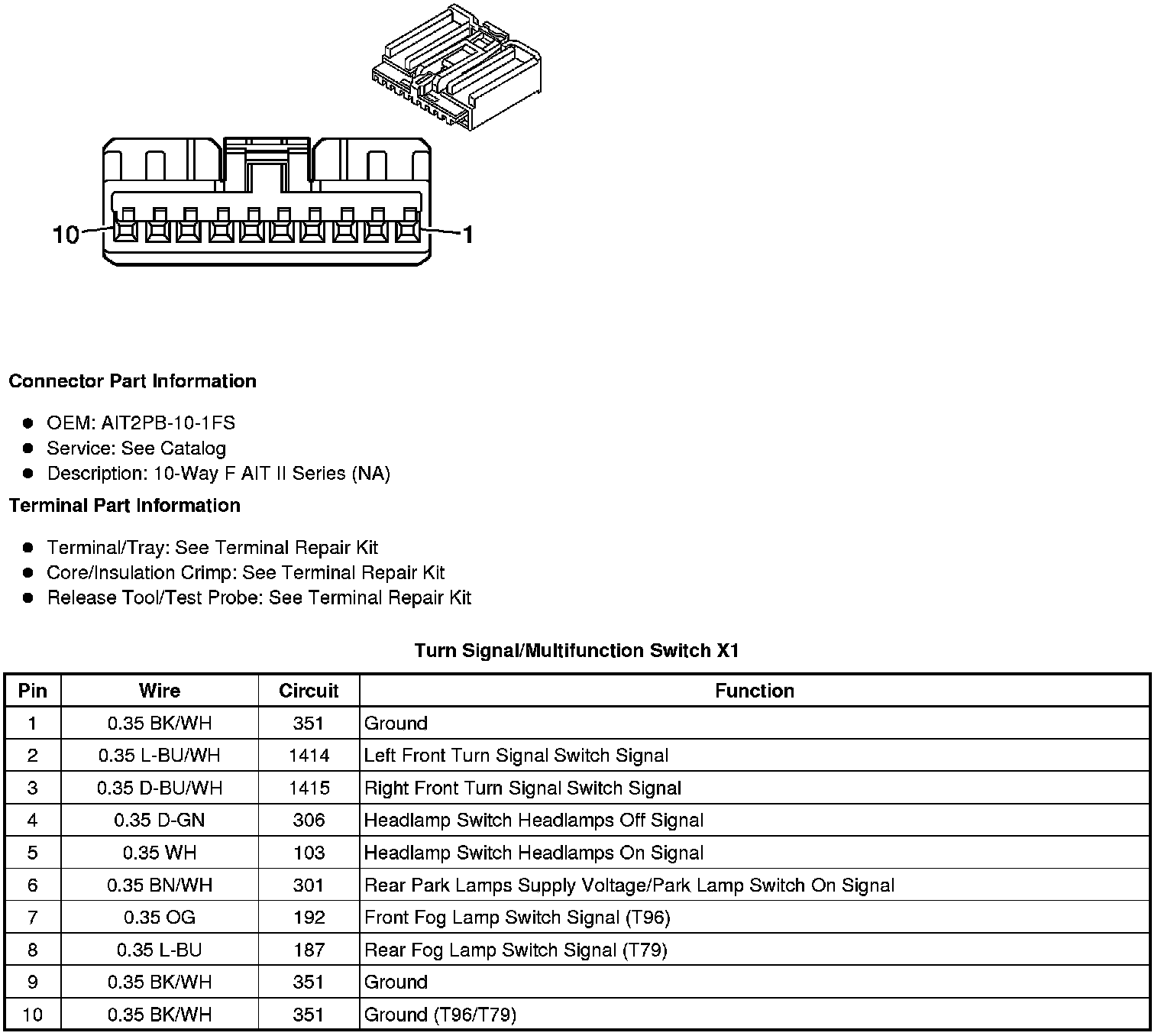

Turn Signal/Multifunction Switch X1

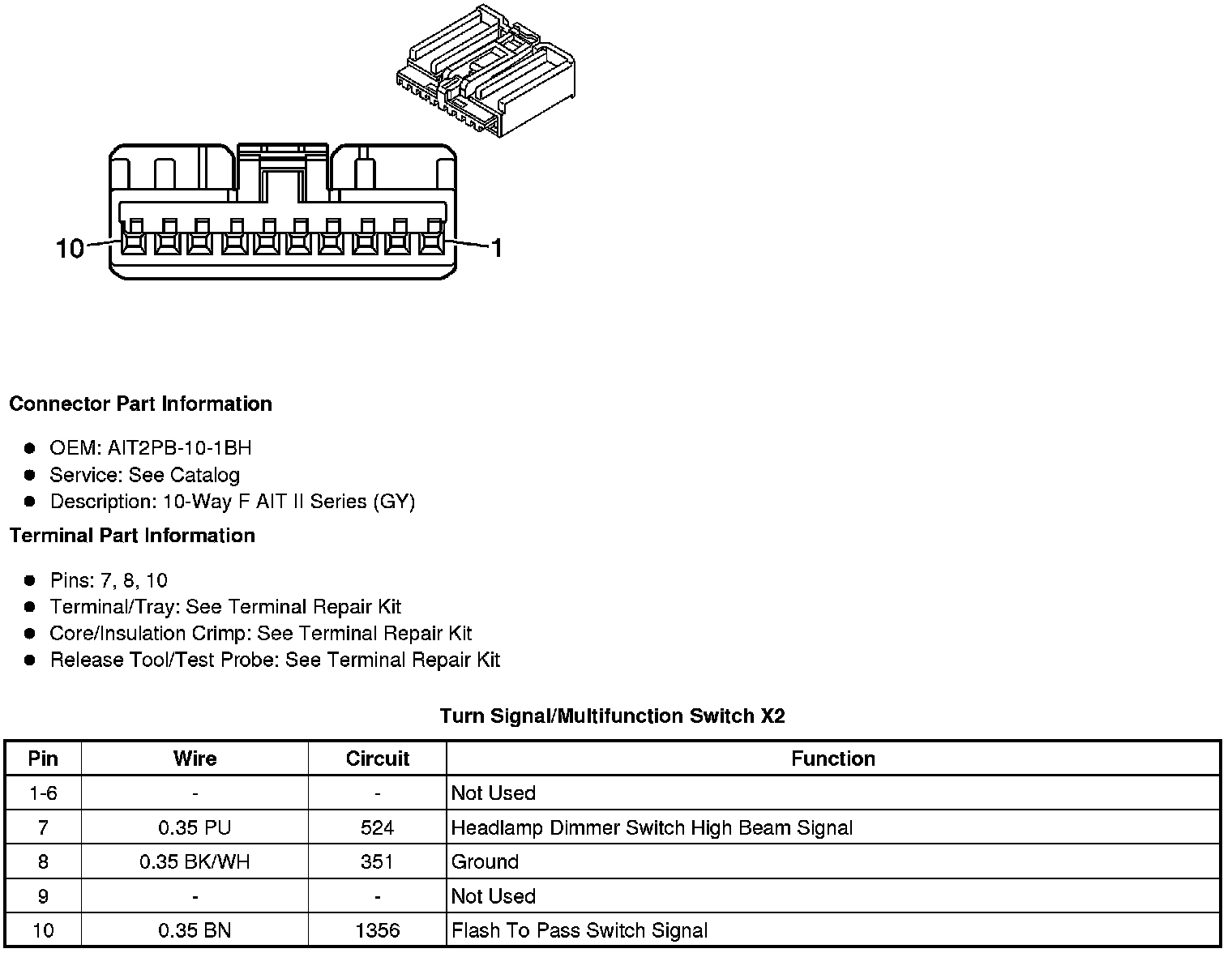

Turn Signal/Multifunction Switch X2

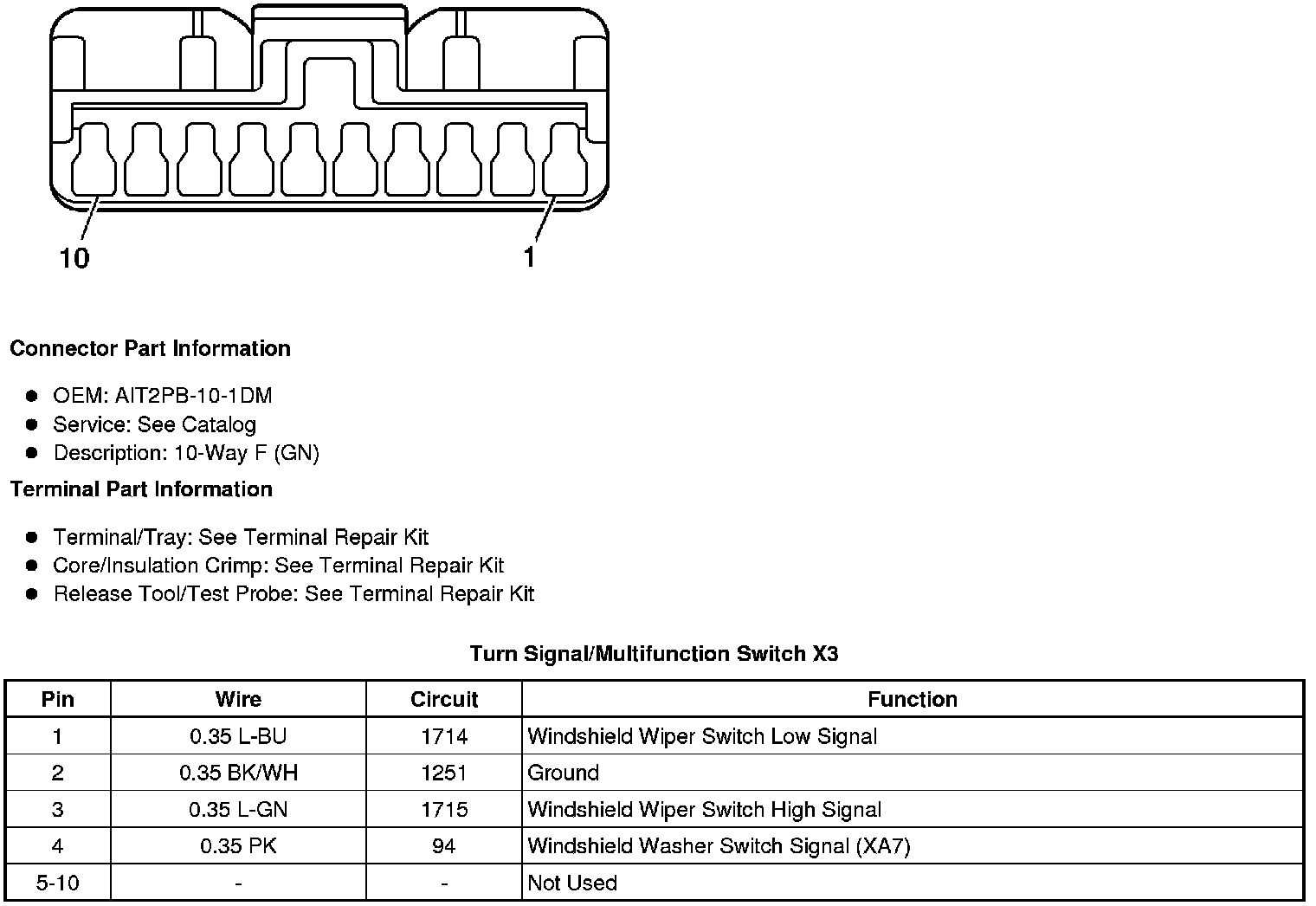

Turn Signal/Multifunction Switch X3
