Automatic Transmission Controls Schematics

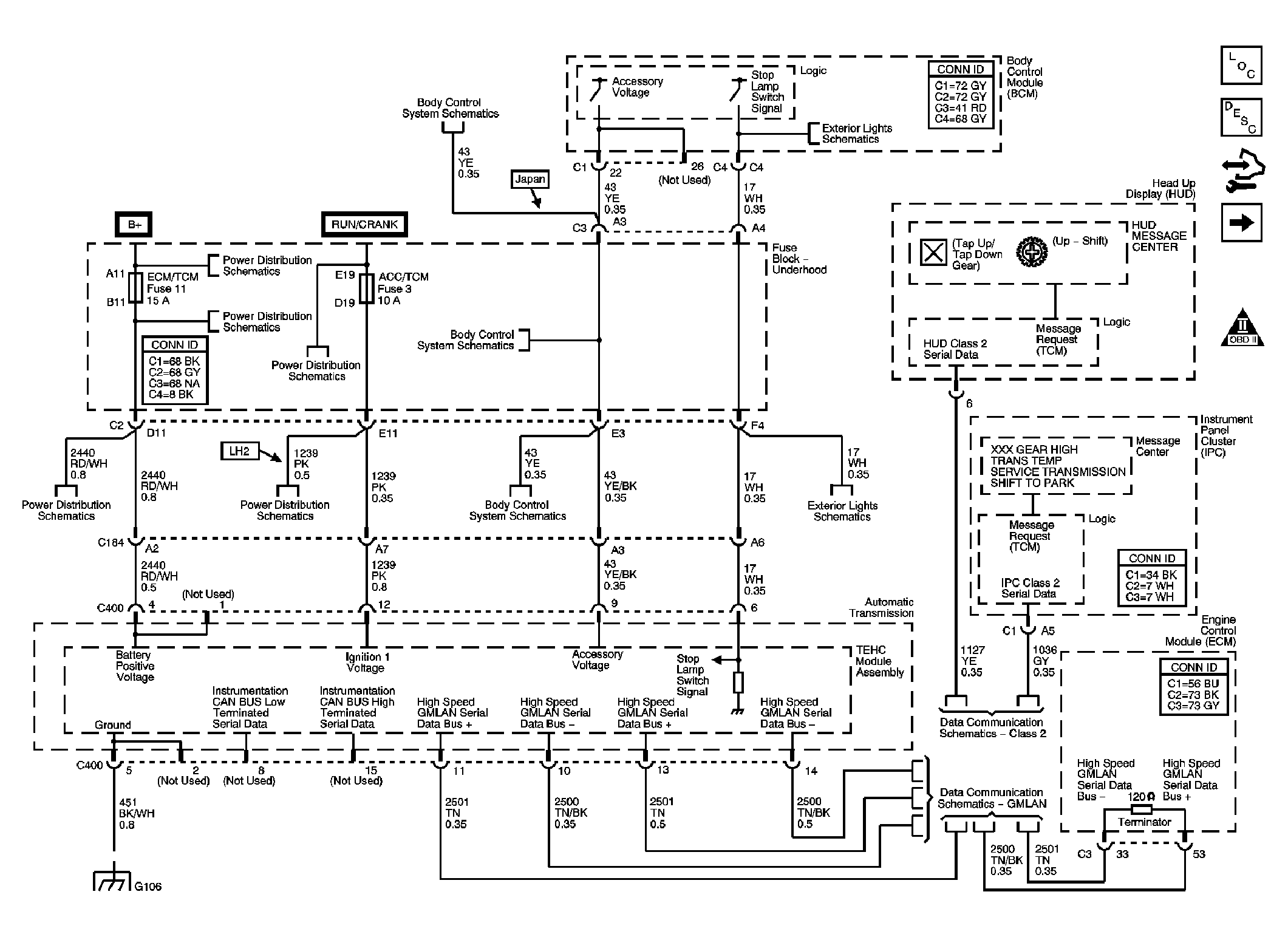

Fig 1: Power, Ground & Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

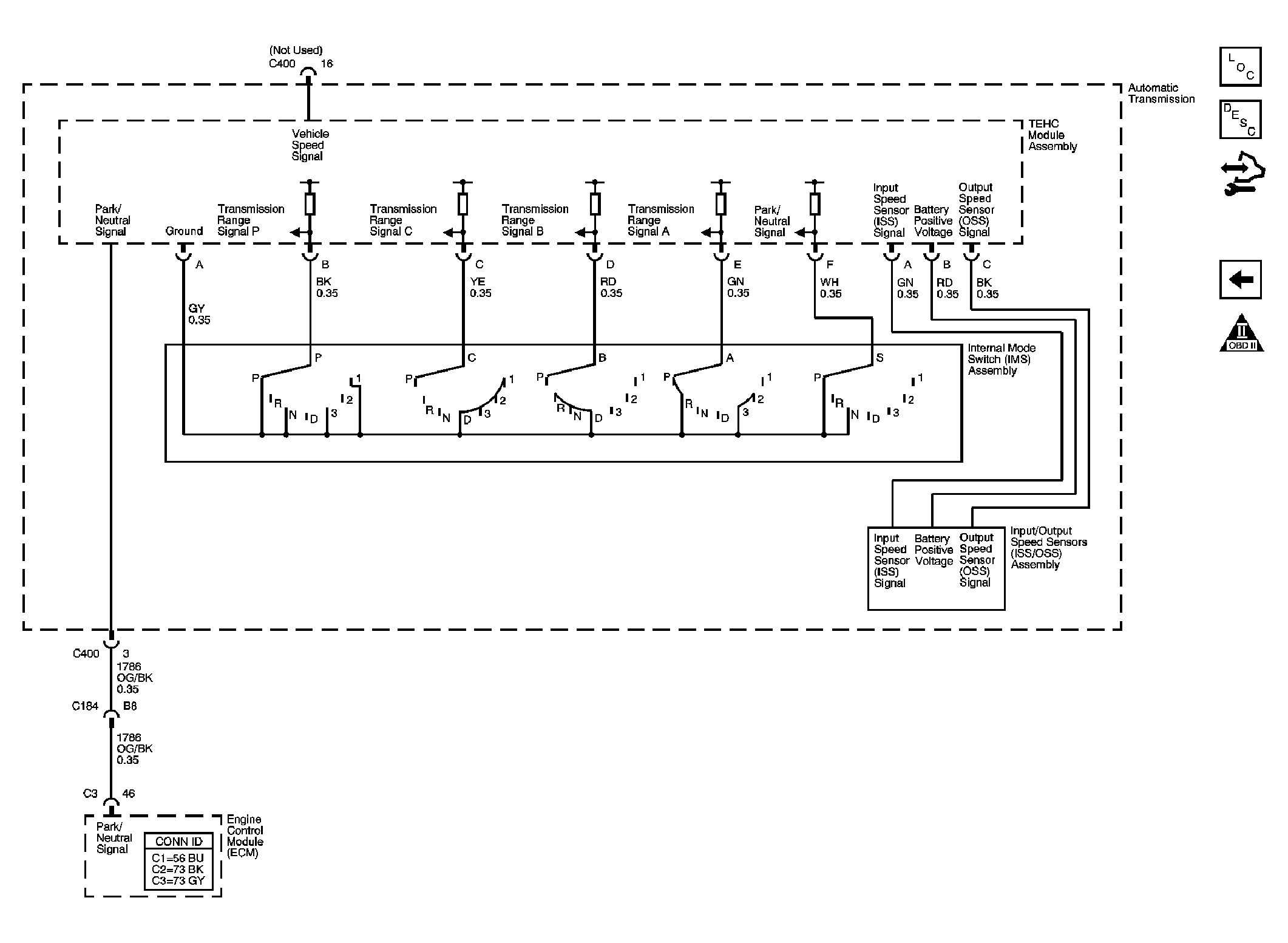

Fig 2: IMS Switch, Shift Solenoids & TCC, PC, TFT, VSS Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

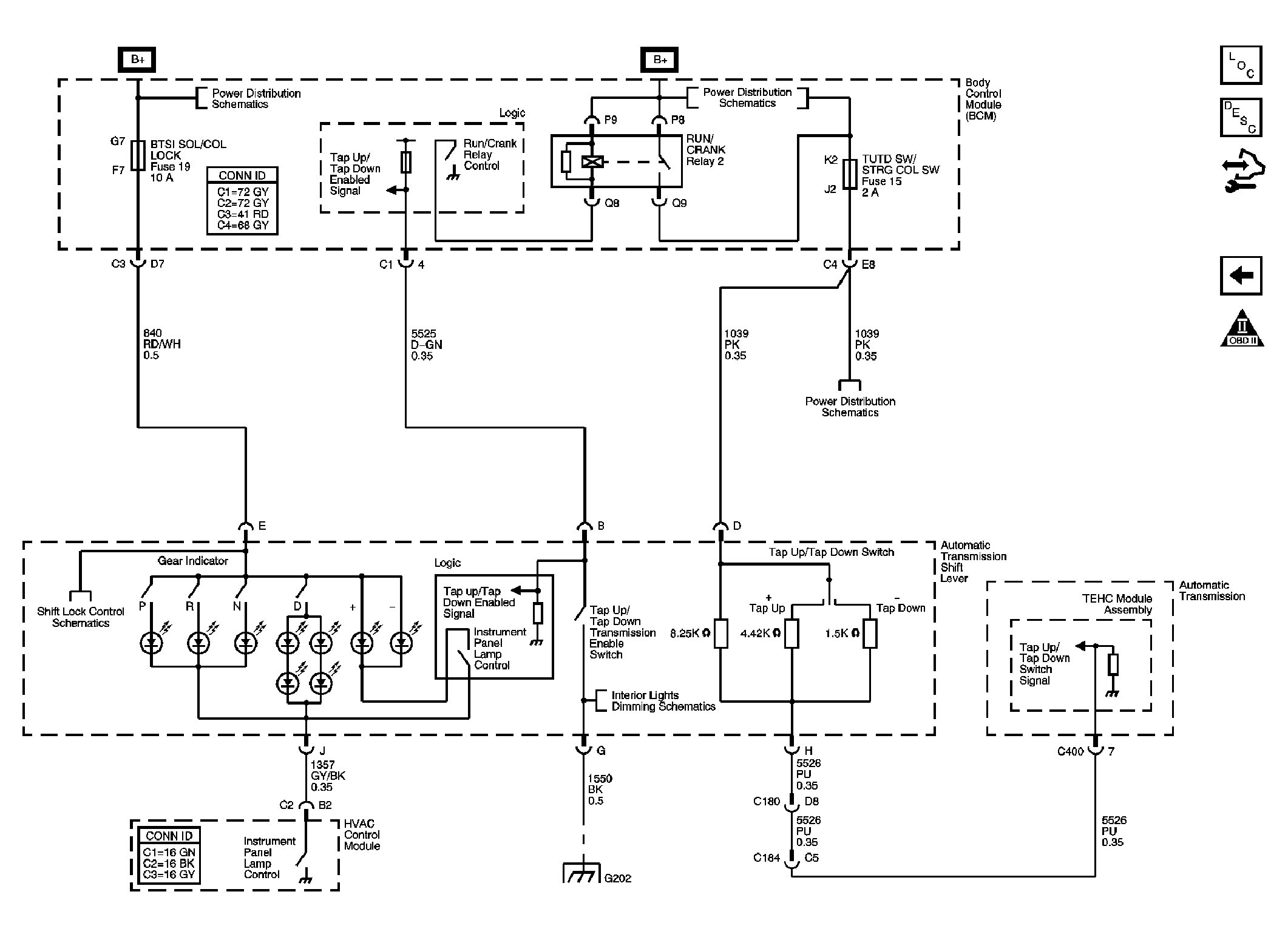

Fig 3: Shift Lever Schematic

Courtesy of GENERAL MOTORS CORP.
