Electronic Suspension Control Schematics

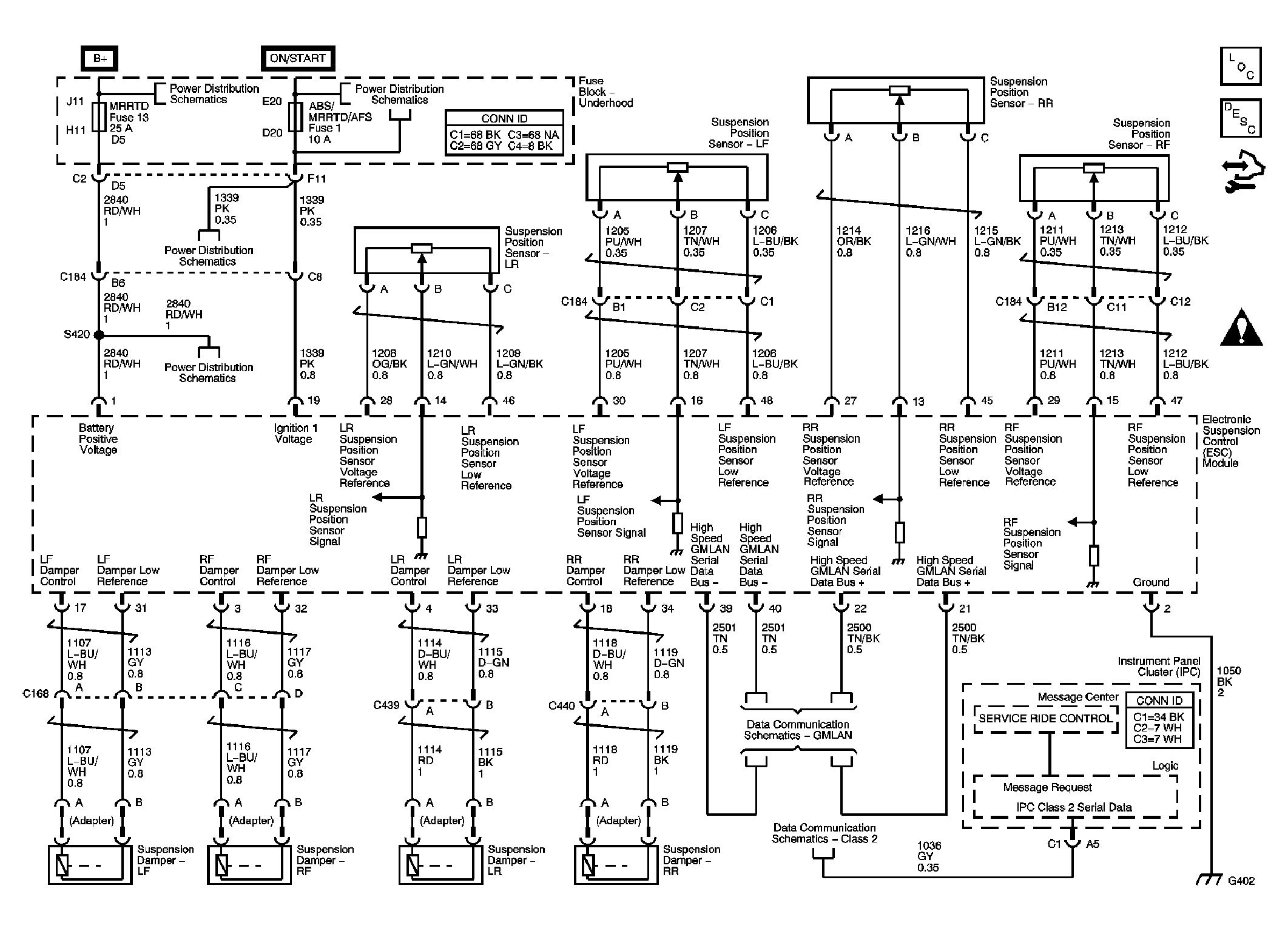

Fig 1: Electronic Suspension Control Schematic

GM1755887

Courtesy of GENERAL MOTORS CORP.
