SIR Schematics

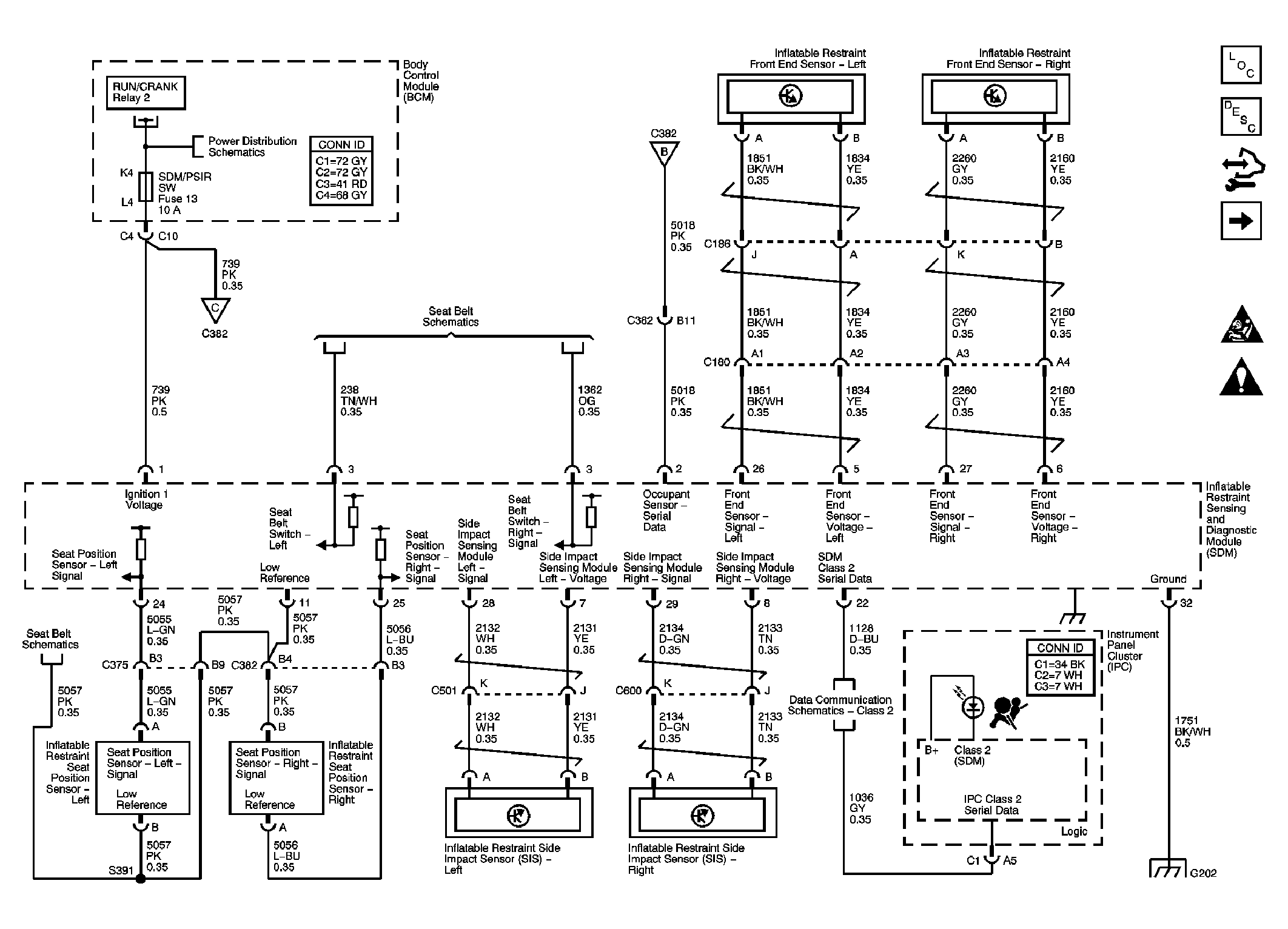

Fig 1: Power, Ground, DLC, Indicators, Sensors & References Schematic
GM1755911Courtesy of GENERAL MOTORS CORP.

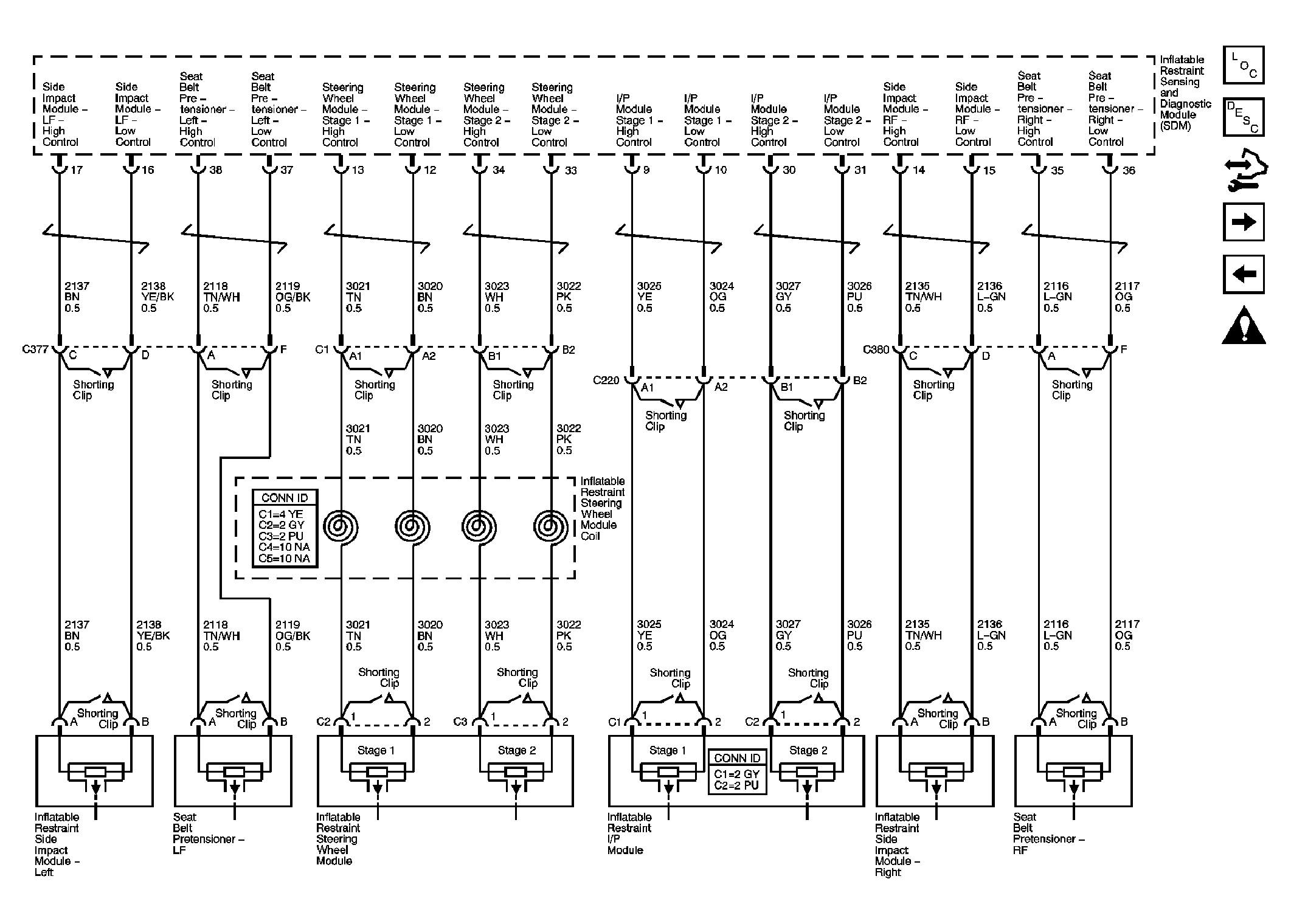

Fig 2: Deployment Loops Schematic
GM1755915Courtesy of GENERAL MOTORS CORP.

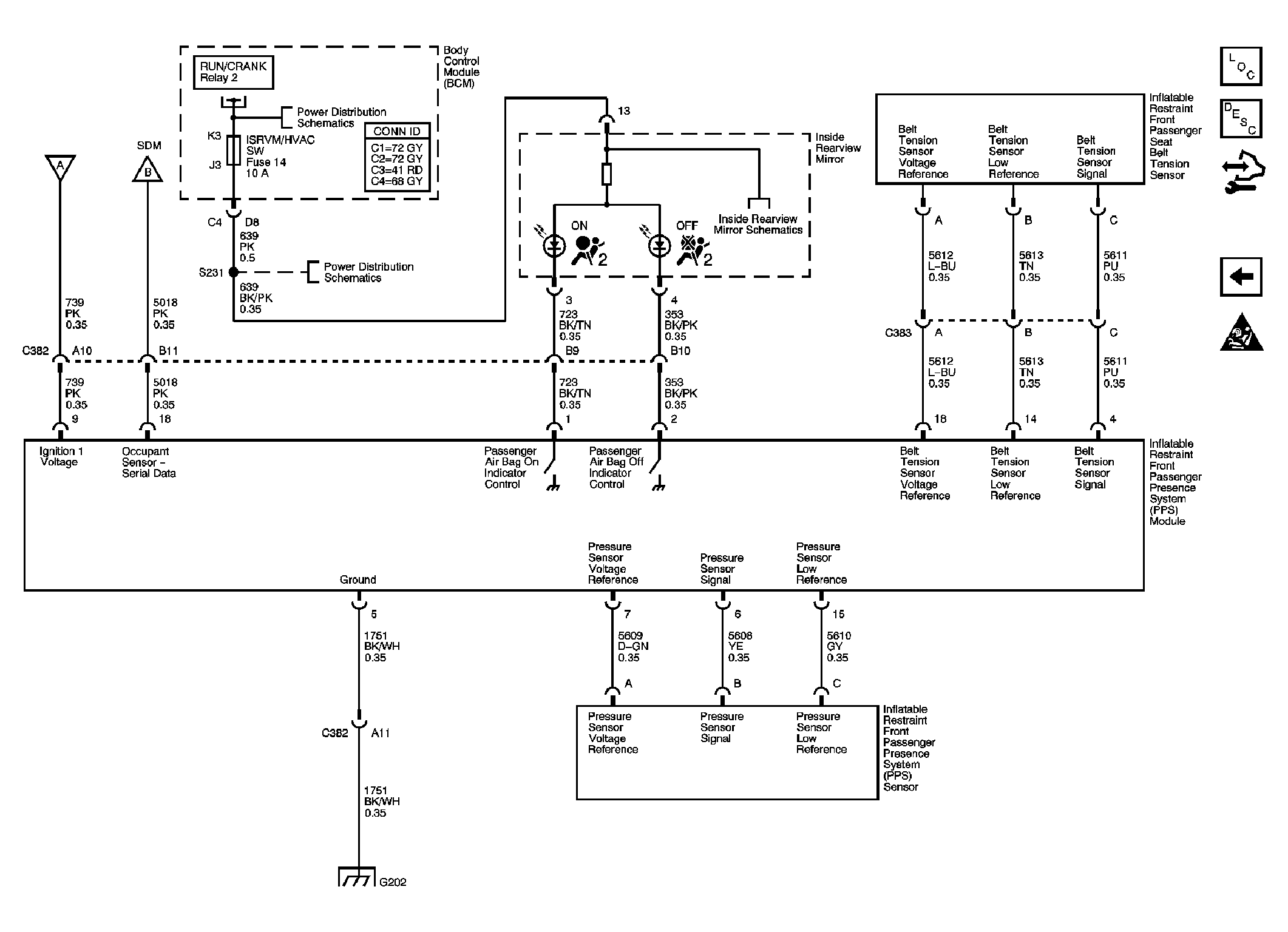

Fig 3: Passenger Presence System Schematic
GM1755917Courtesy of GENERAL MOTORS CORP.
