HVAC Schematics

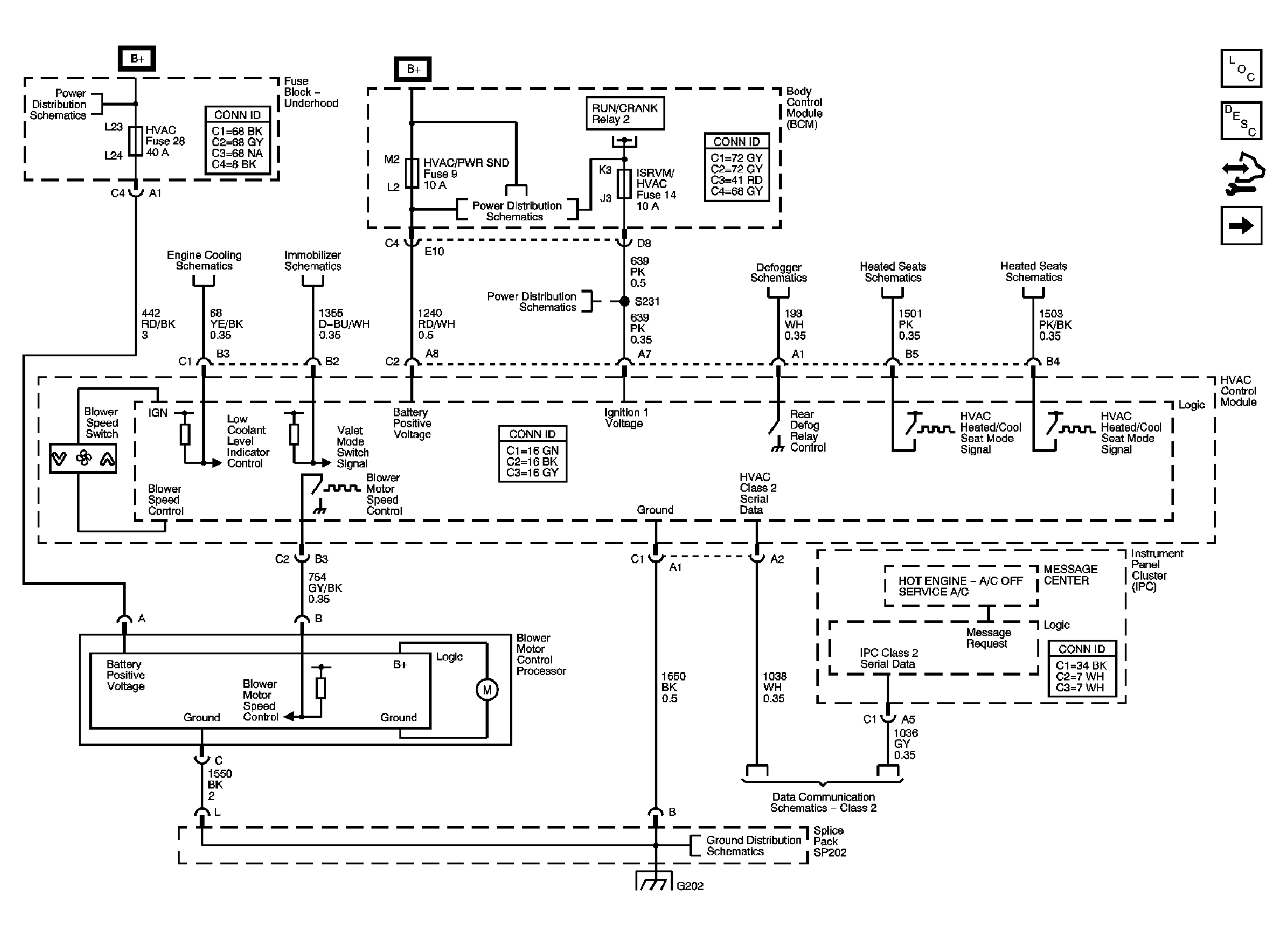

Fig 1: Power, Ground & Blower Motor Controls Schematic
GM1755258Courtesy of GENERAL MOTORS CORP.

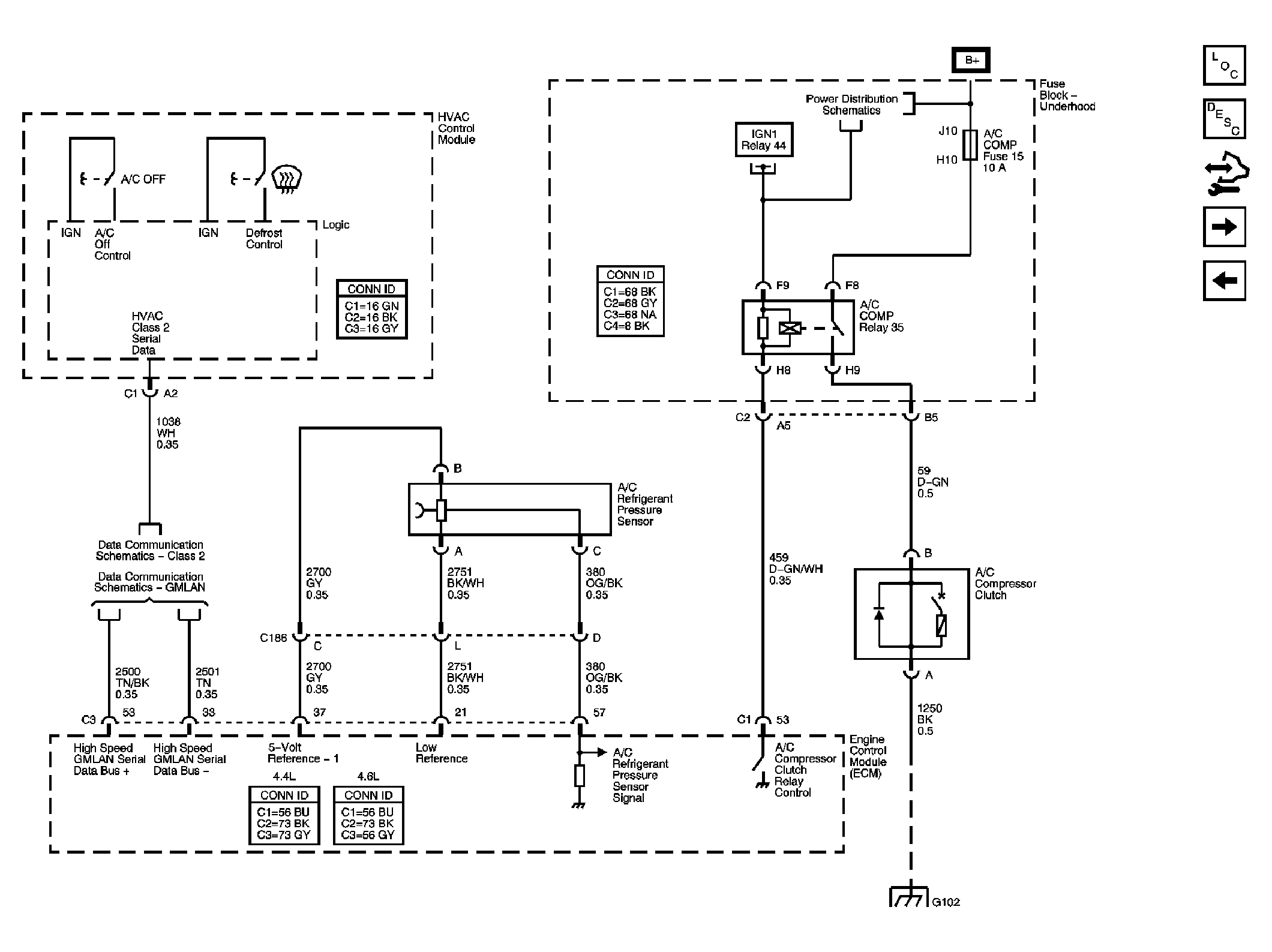

Fig 2: A/C Compressor Controls Schematic
GM1755268Courtesy of GENERAL MOTORS CORP.

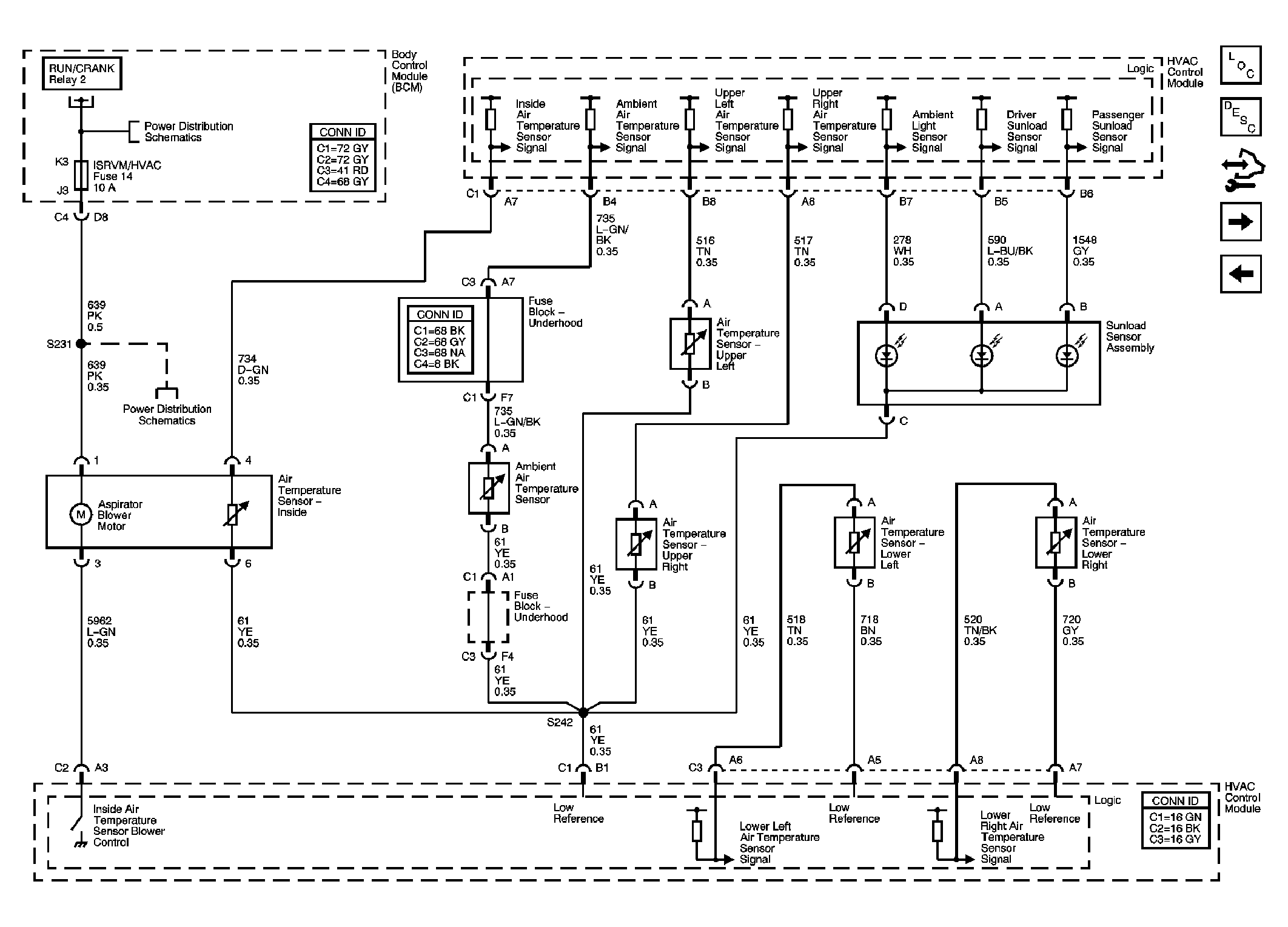

Fig 3: Temperature Sensors Schematic
GM1755270Courtesy of GENERAL MOTORS CORP.

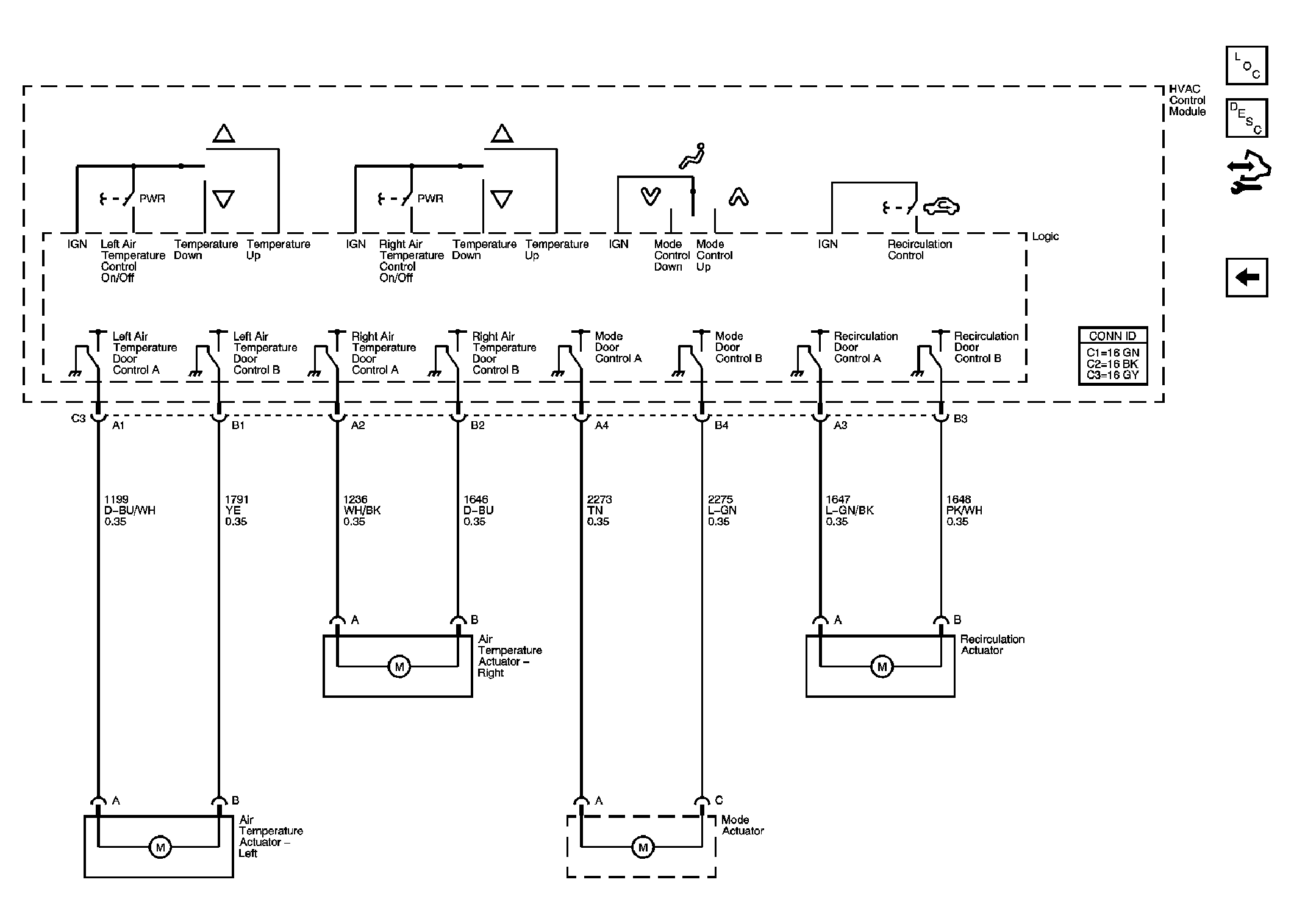

Fig 4: Mode & Air Temperature Controls Schematic
GM1755272Courtesy of GENERAL MOTORS CORP.
