Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

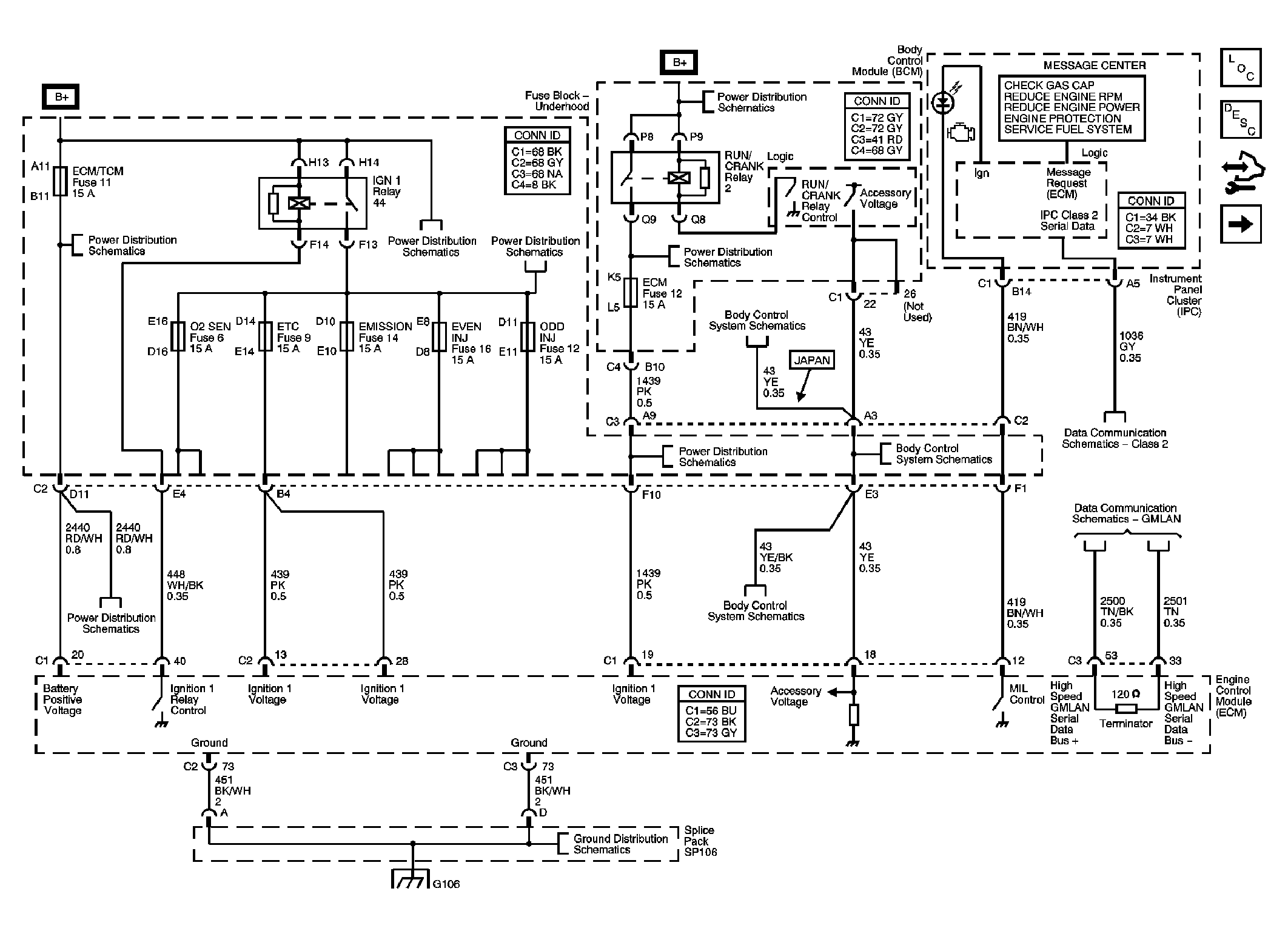

Fig 1: ECM Power, Ground, MIL & Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

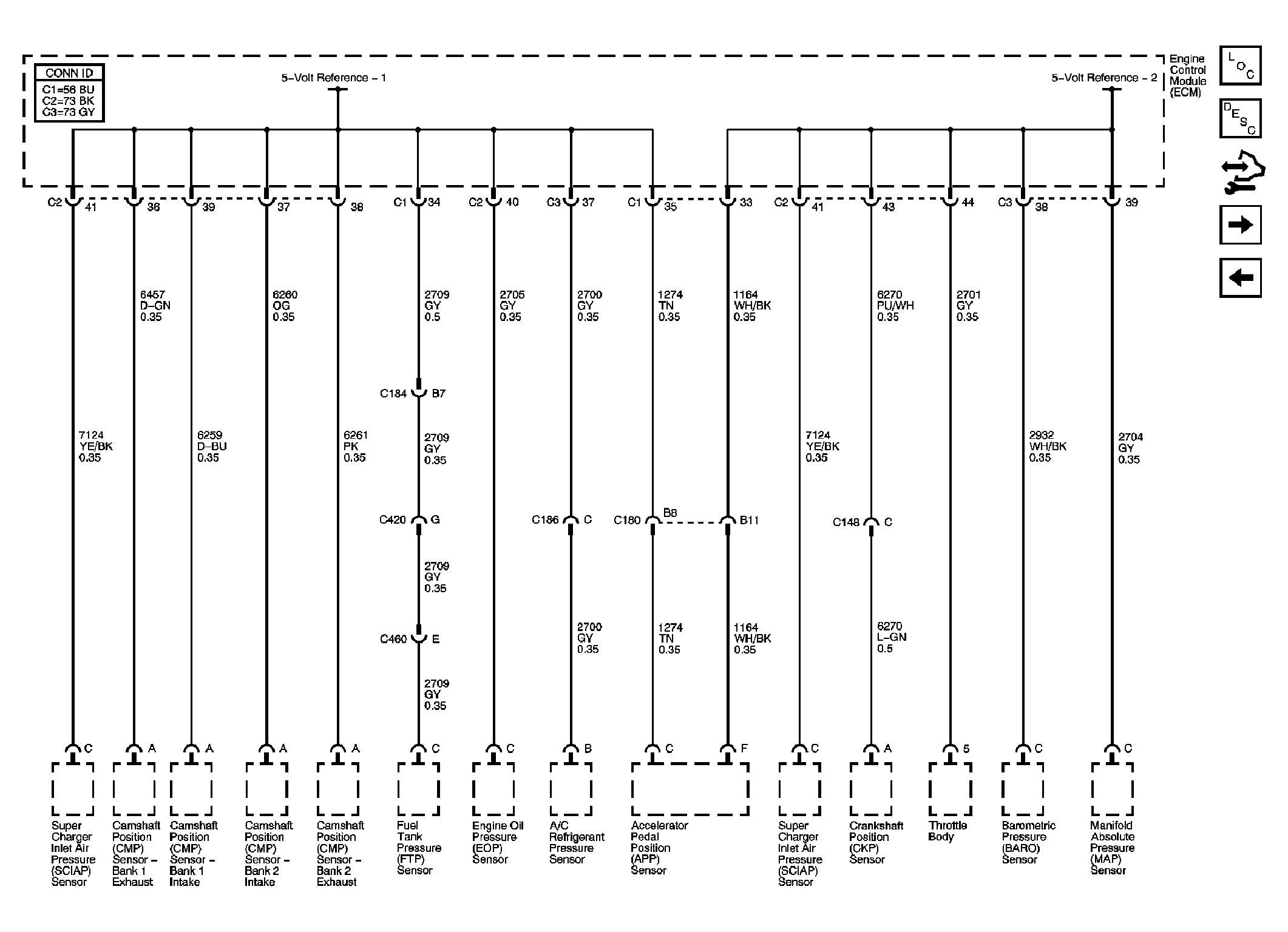

Fig 2: 5-Volt Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

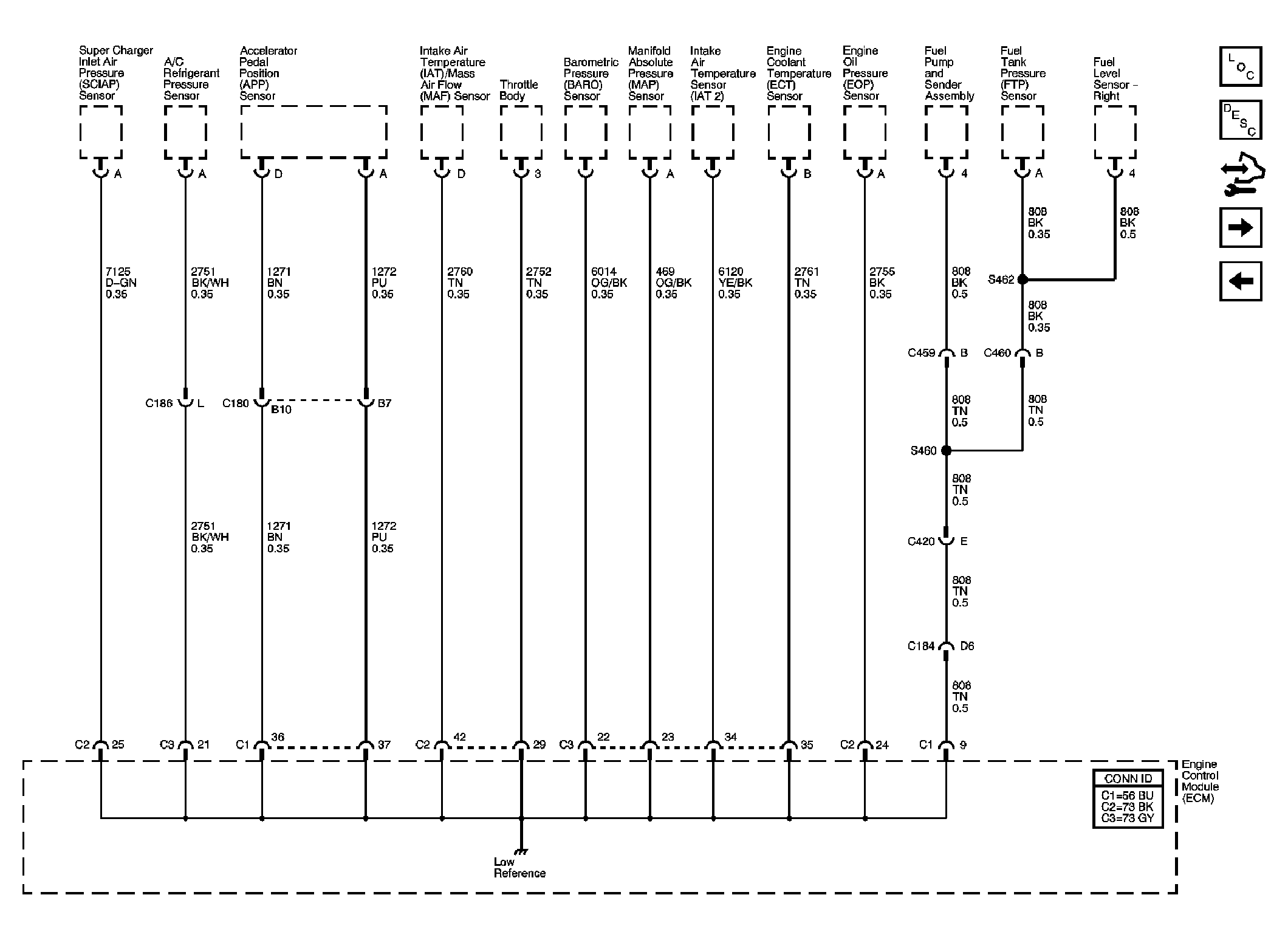

Fig 3: Low Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

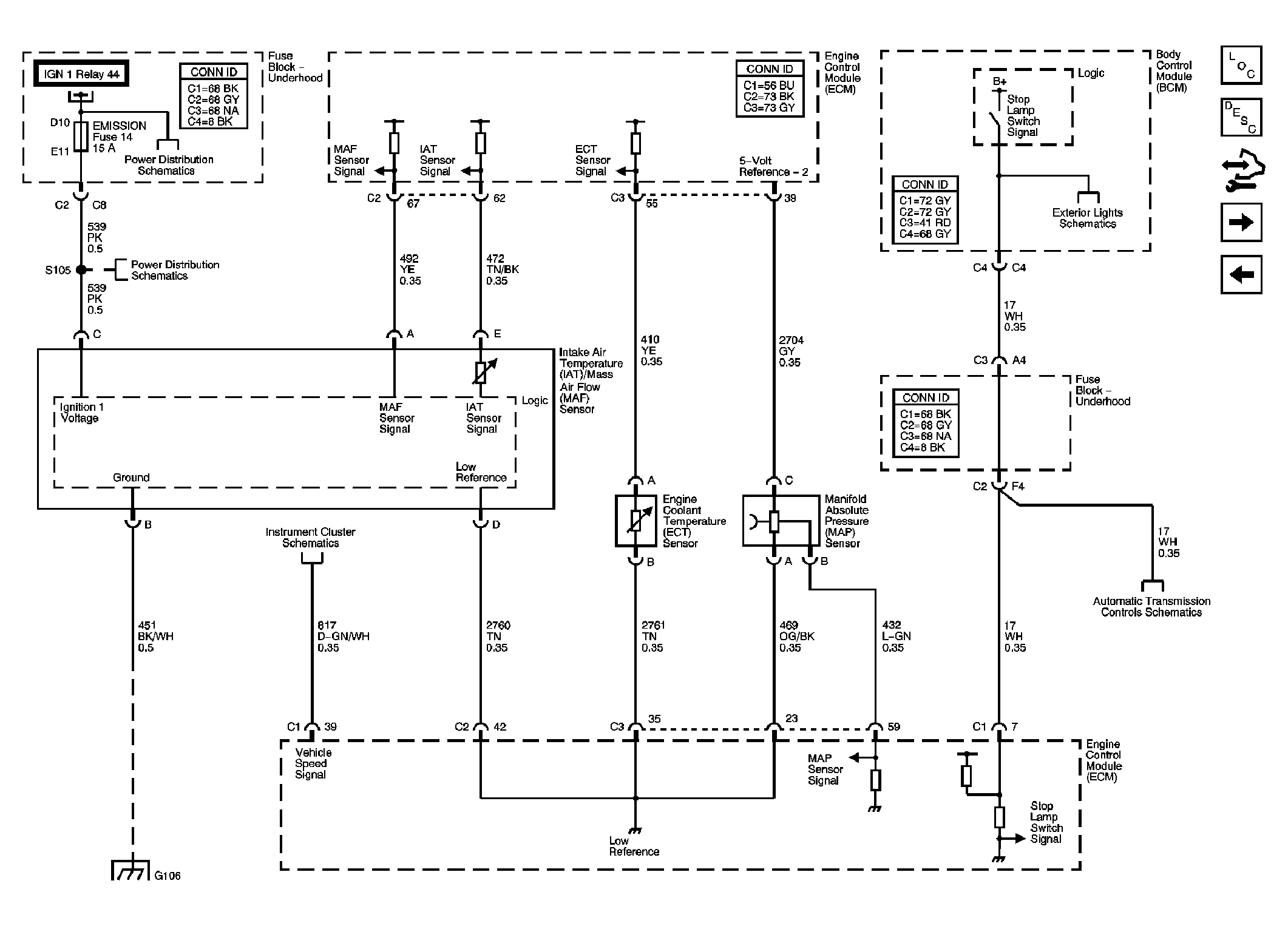

Fig 4: MAF/IAT, ECT, MAP Sensors & Stop Lamp Switch Signal Schematic

Courtesy of GENERAL MOTORS CORP.

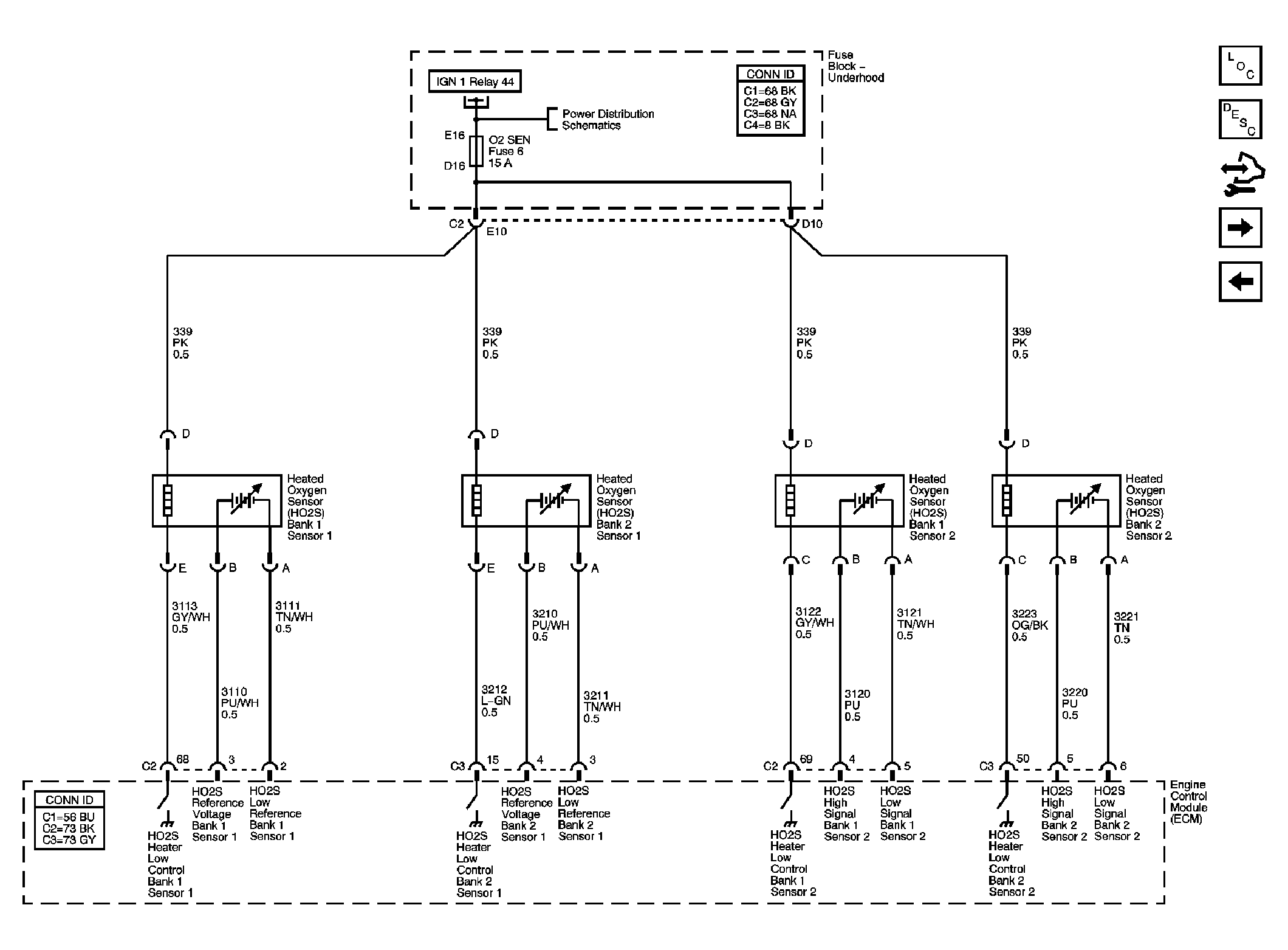

Fig 5: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

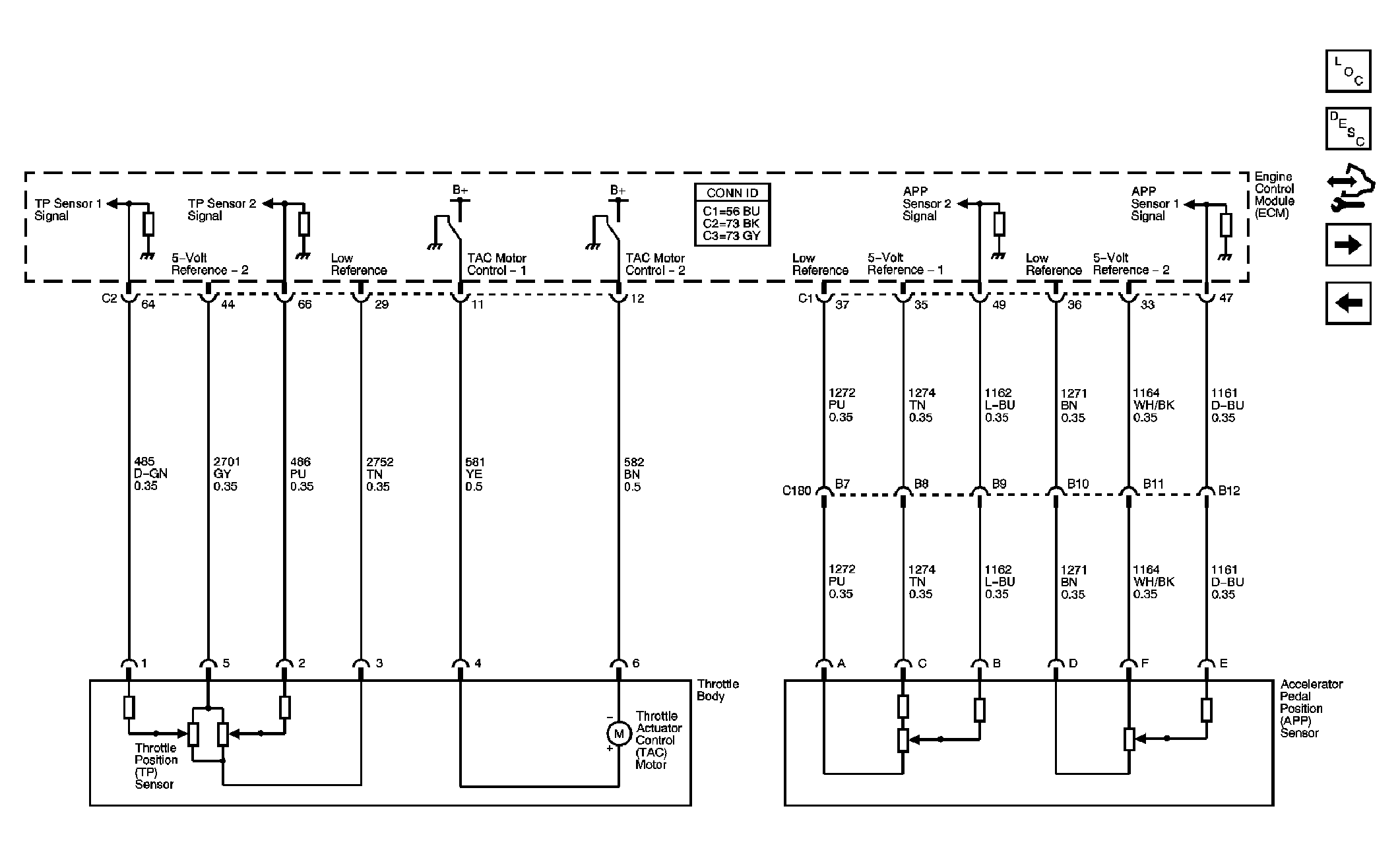

Fig 6: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

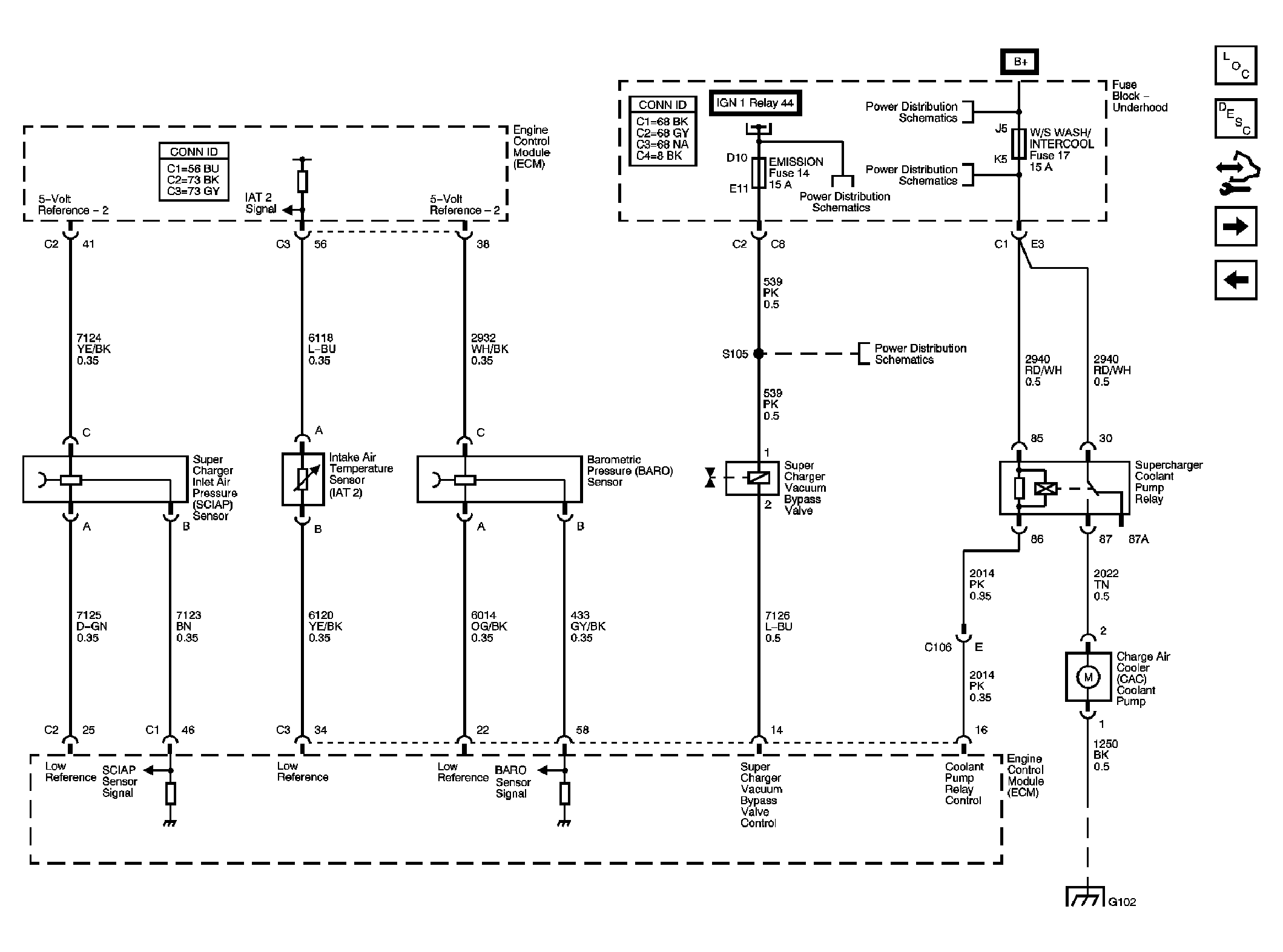

Fig 7: SCIAP, IAT2, BARO Sensors & Super Charger Vacuum Bypass Valve Schematic

Courtesy of GENERAL MOTORS CORP.

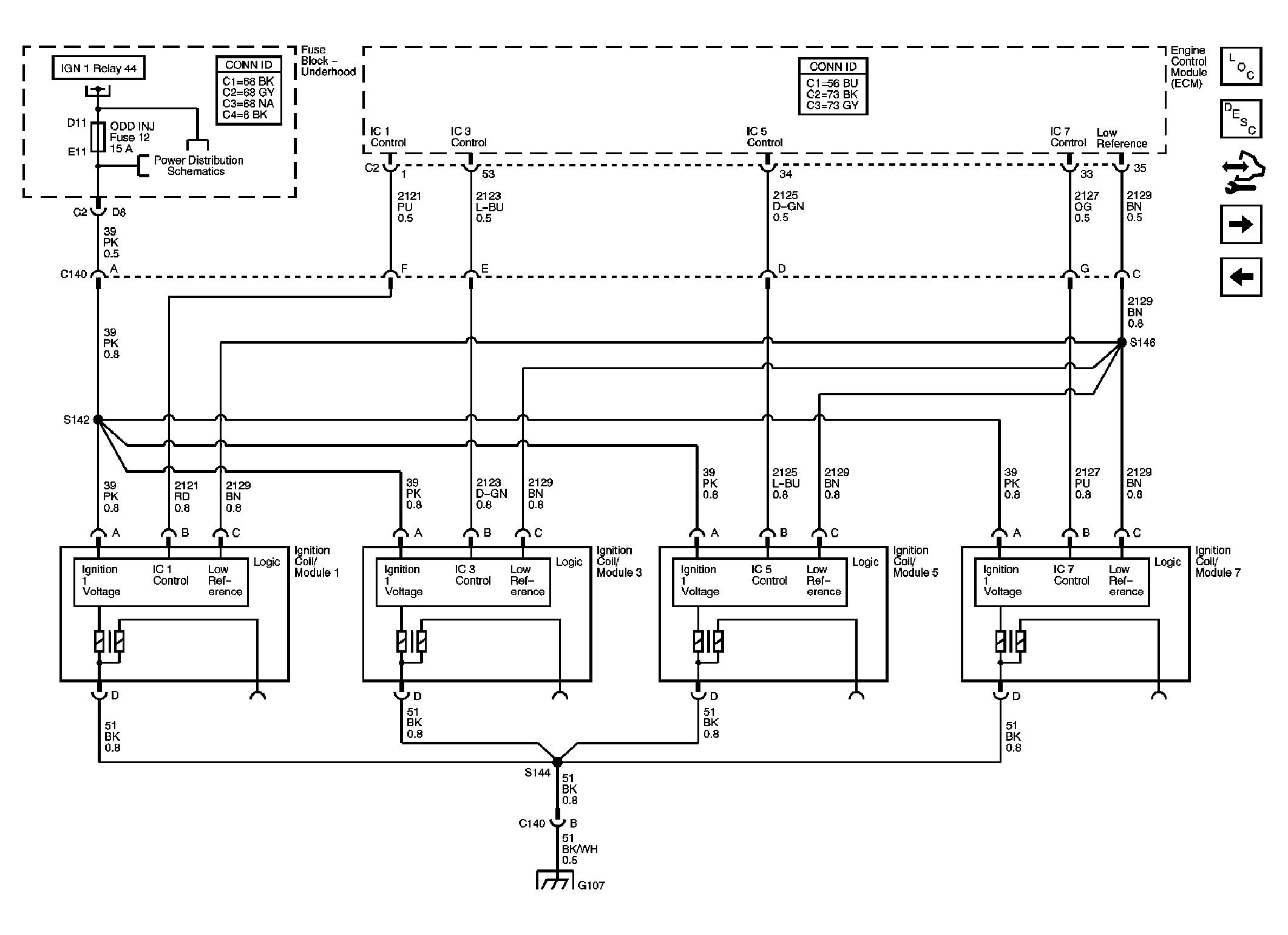

Fig 8: Ignition Coils Bank 1 Schematic

Courtesy of GENERAL MOTORS CORP.

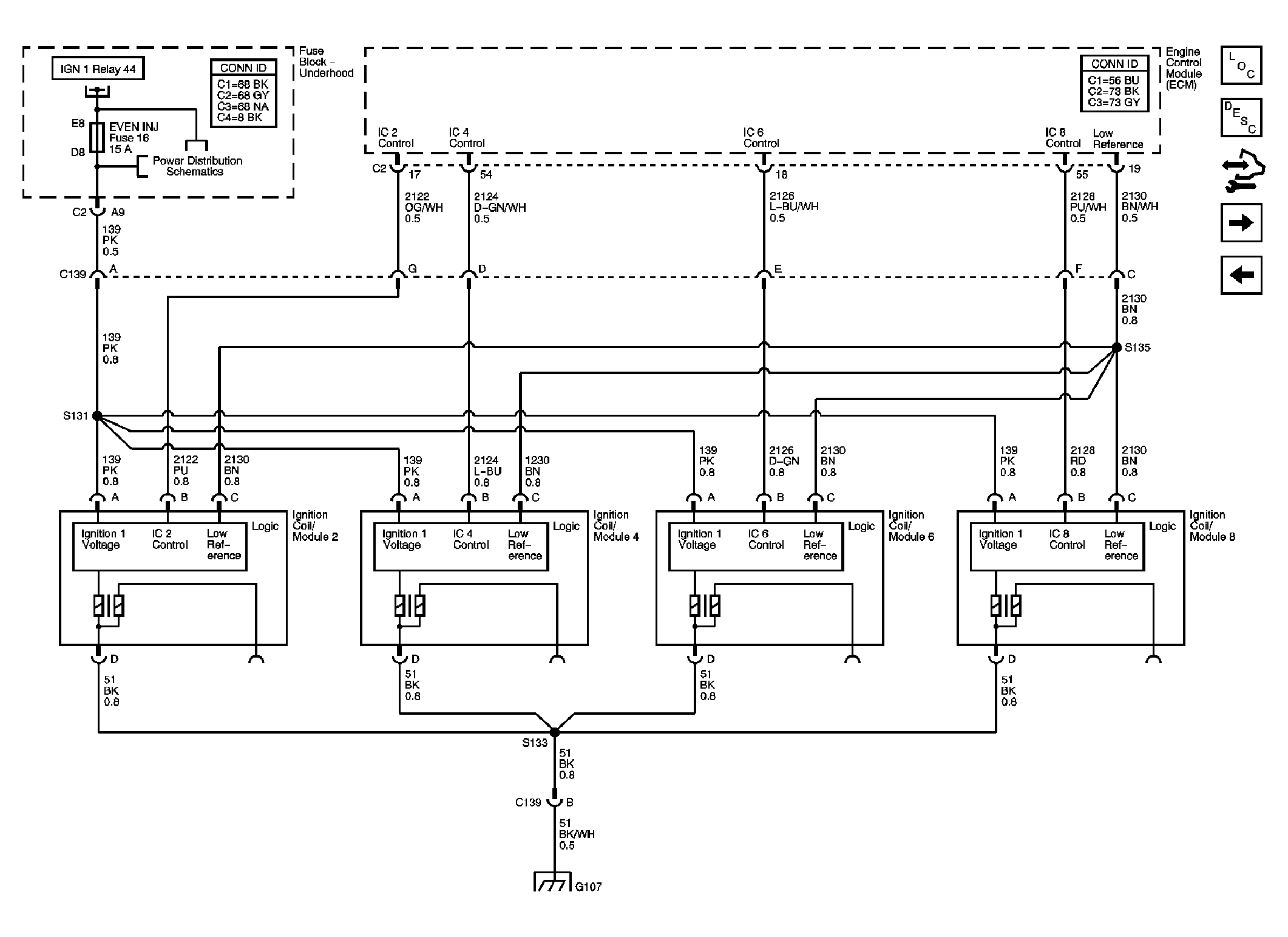

Fig 9: Ignition Coils Bank 2 Schematic

Courtesy of GENERAL MOTORS CORP.

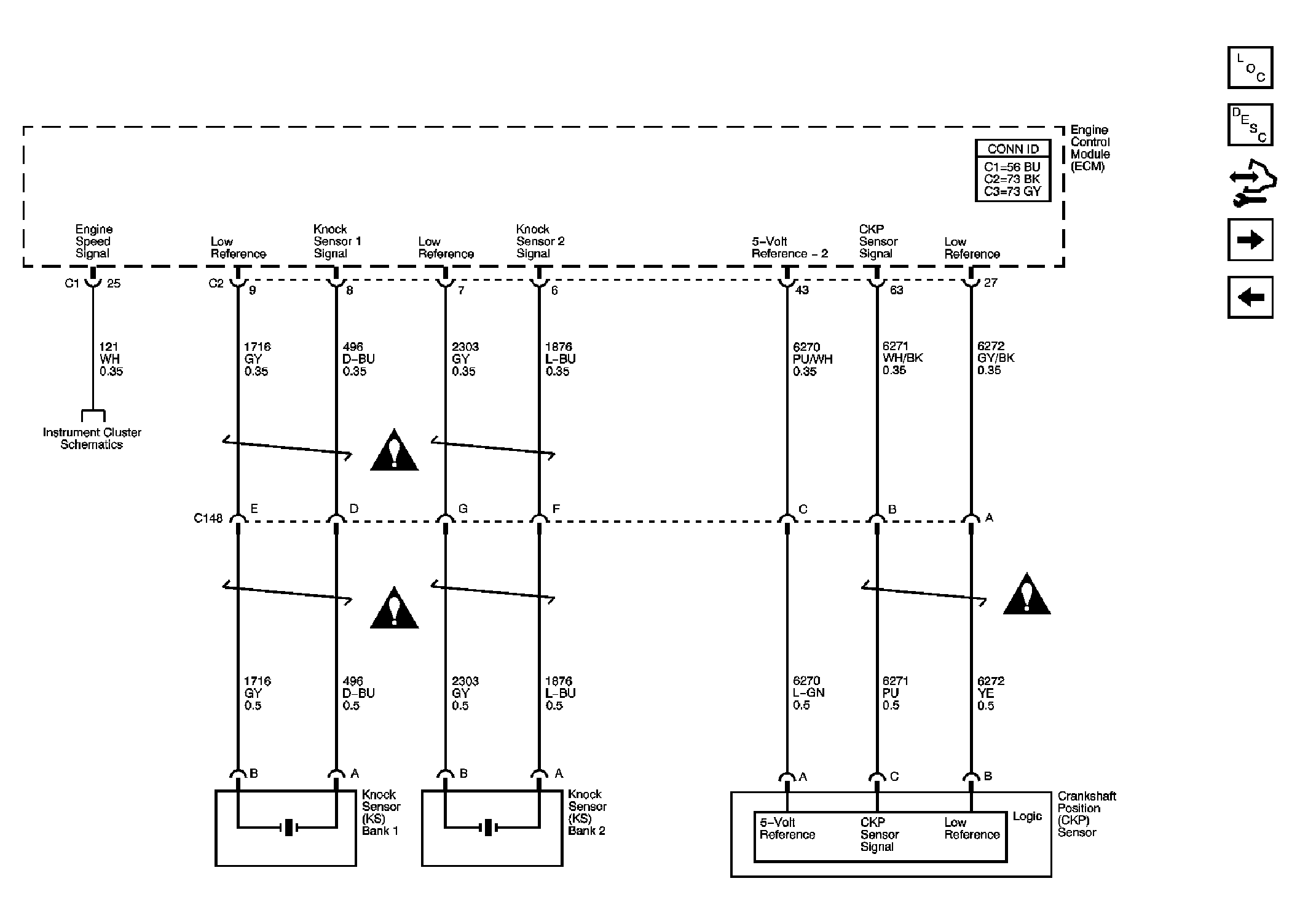

Fig 10: CKP & KS Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

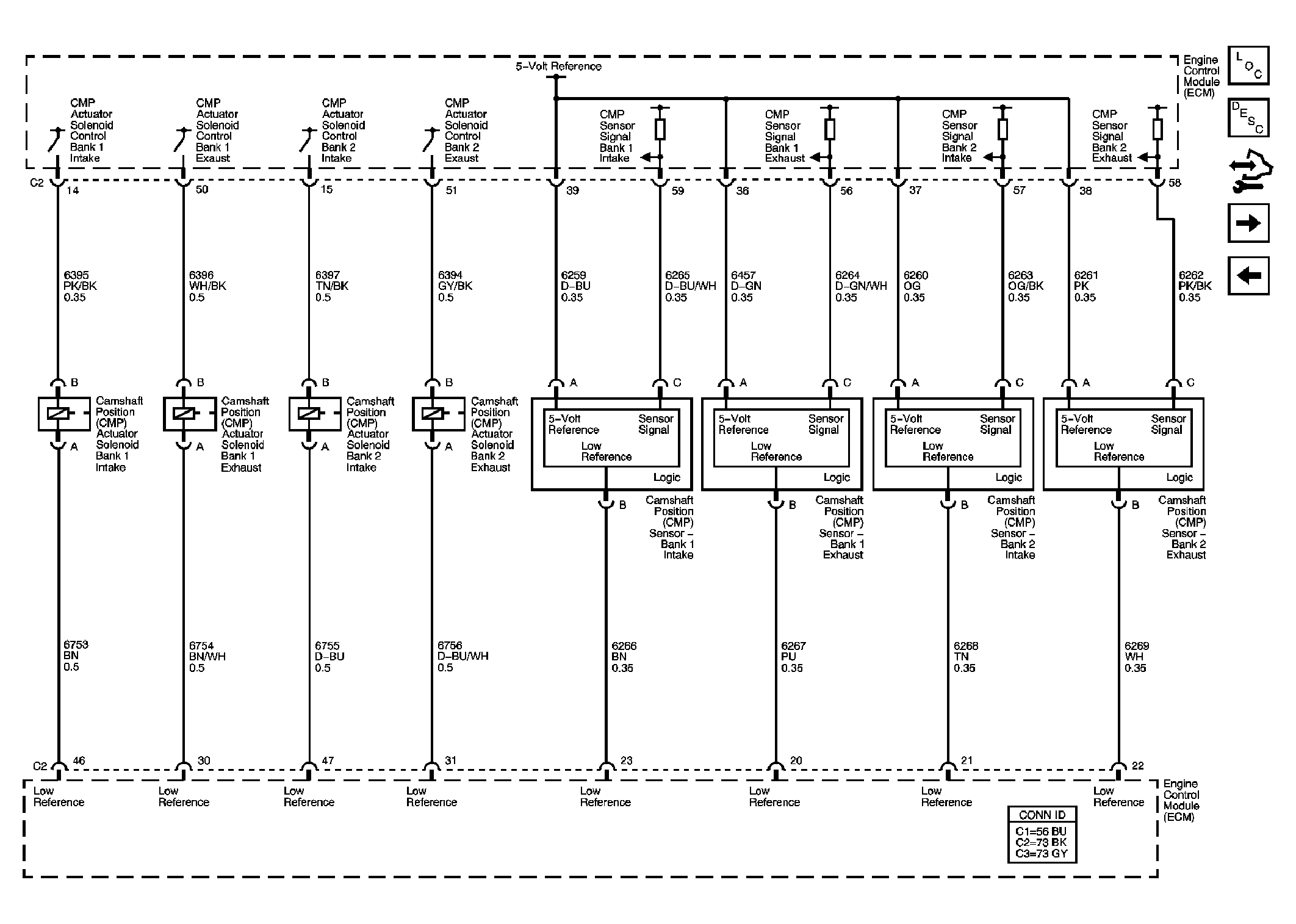

Fig 11: CMP Sensors & Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

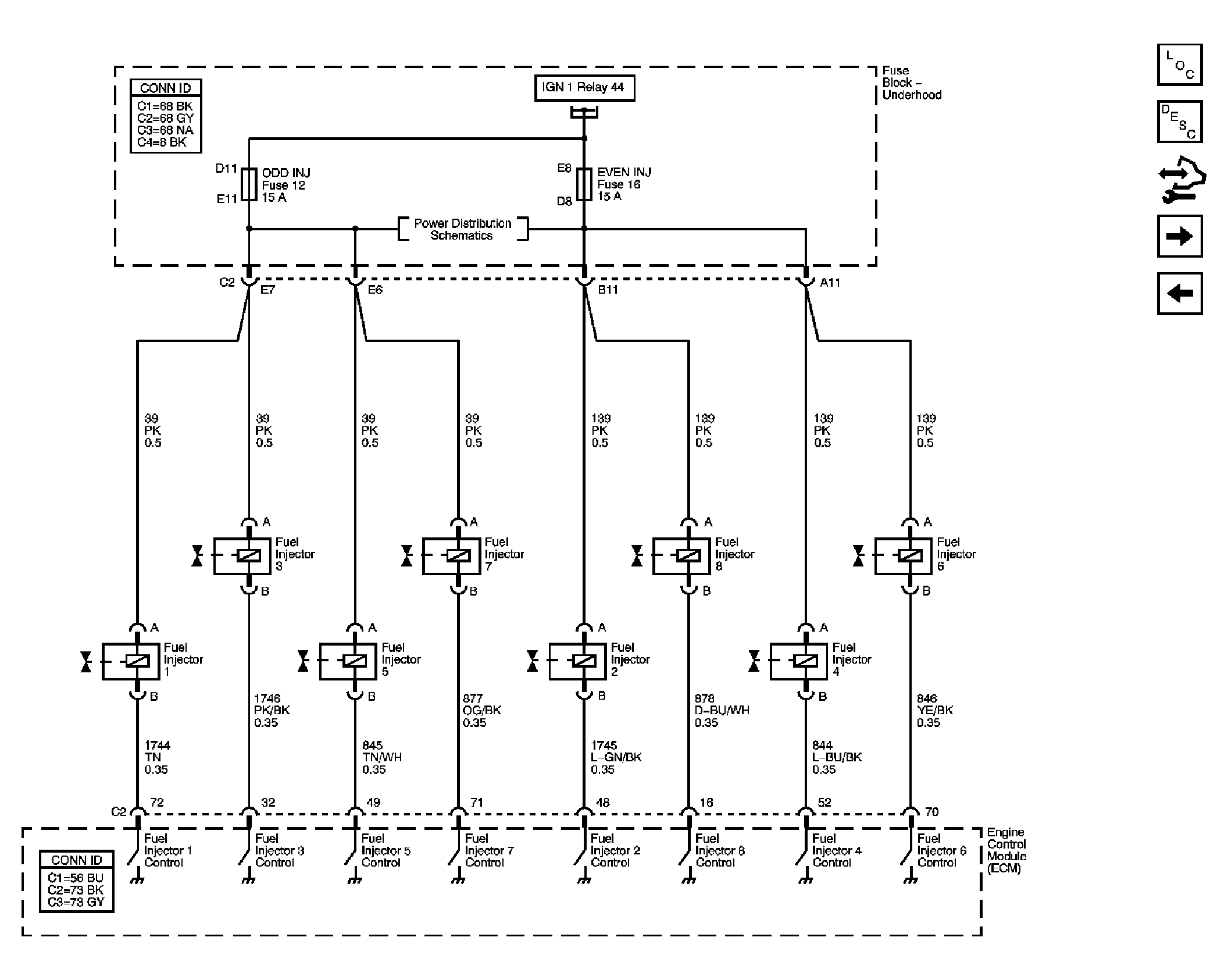

Fig 12: Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

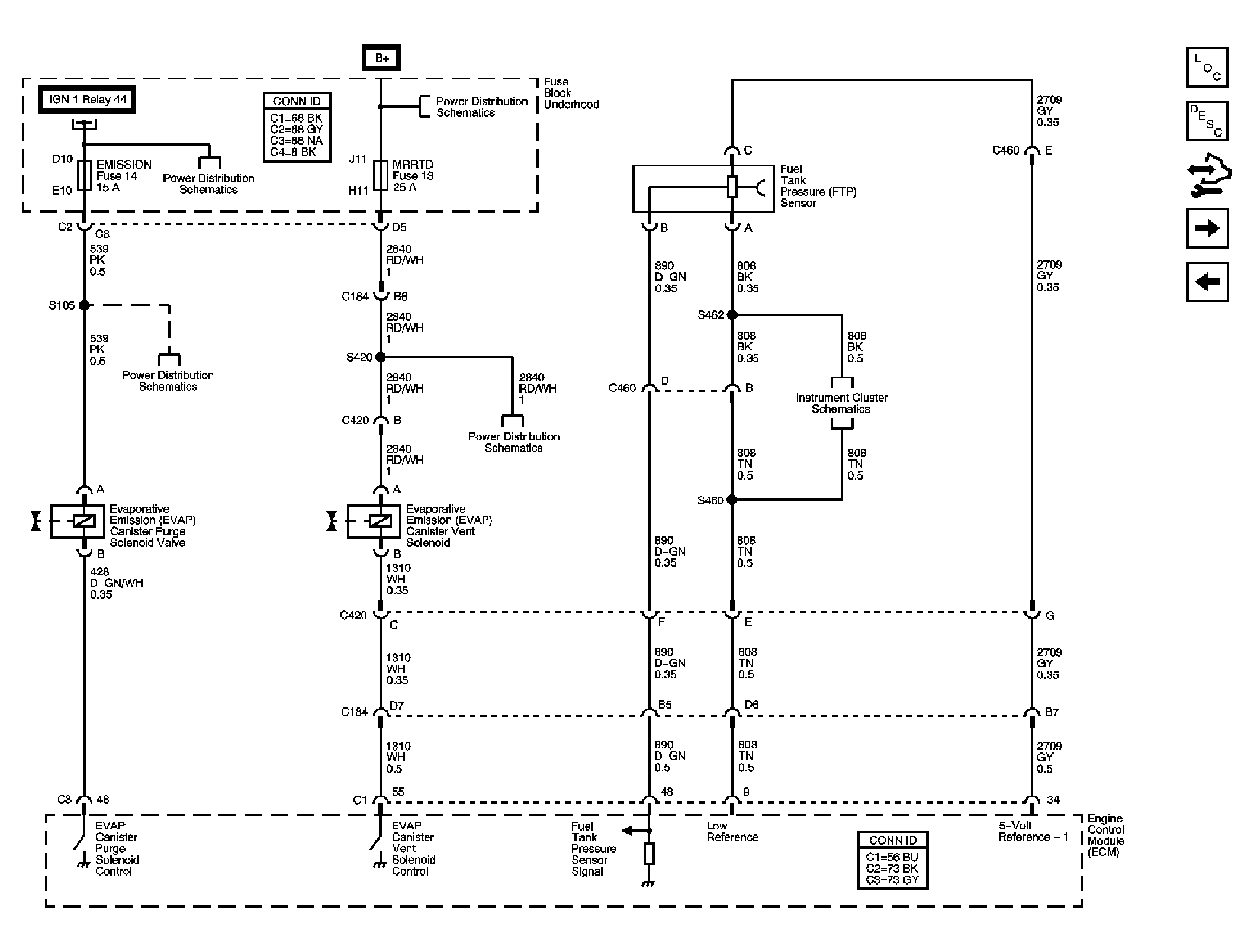

Fig 13: EVAP Solenoids & FTP Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

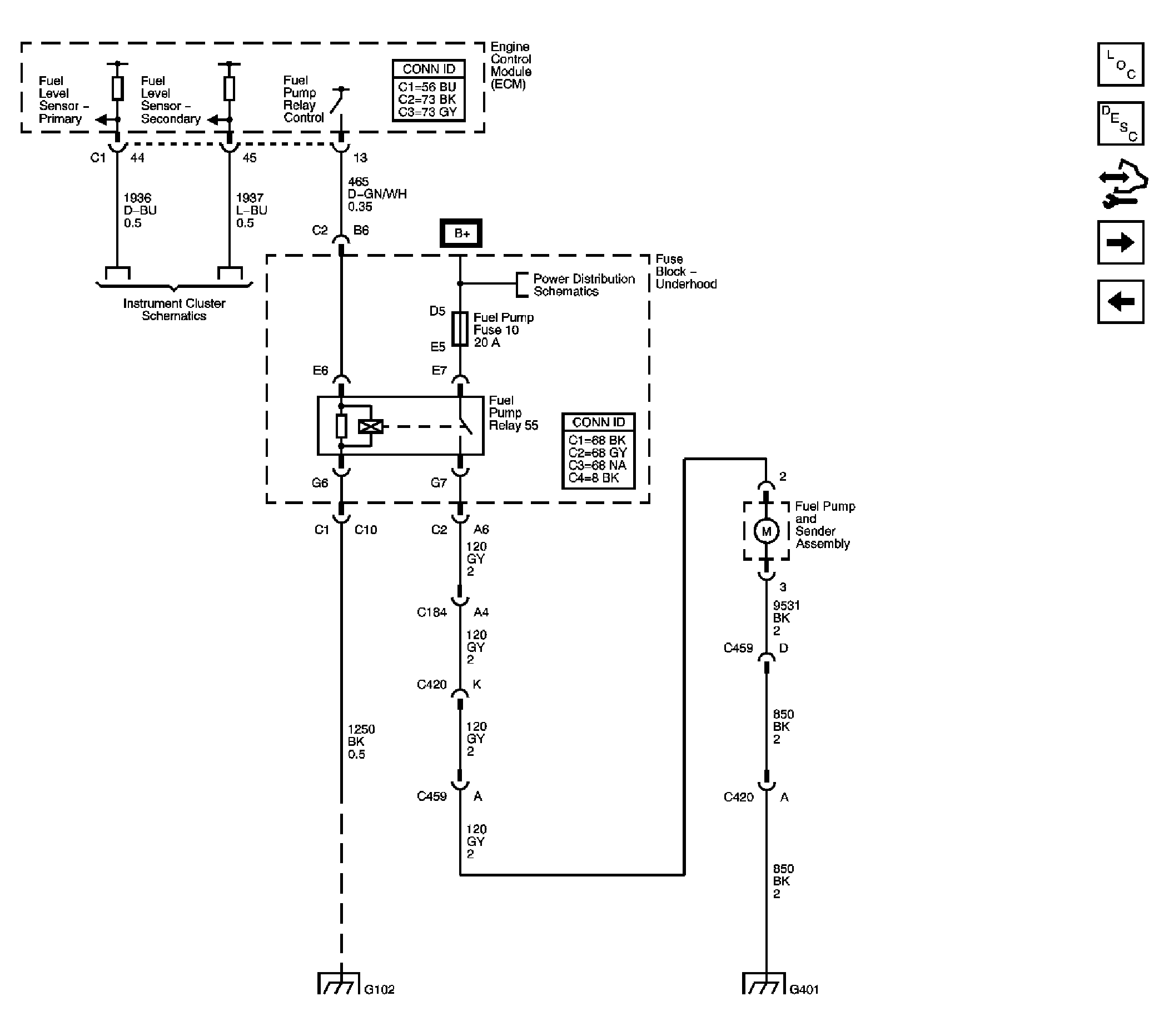

Fig 14: Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

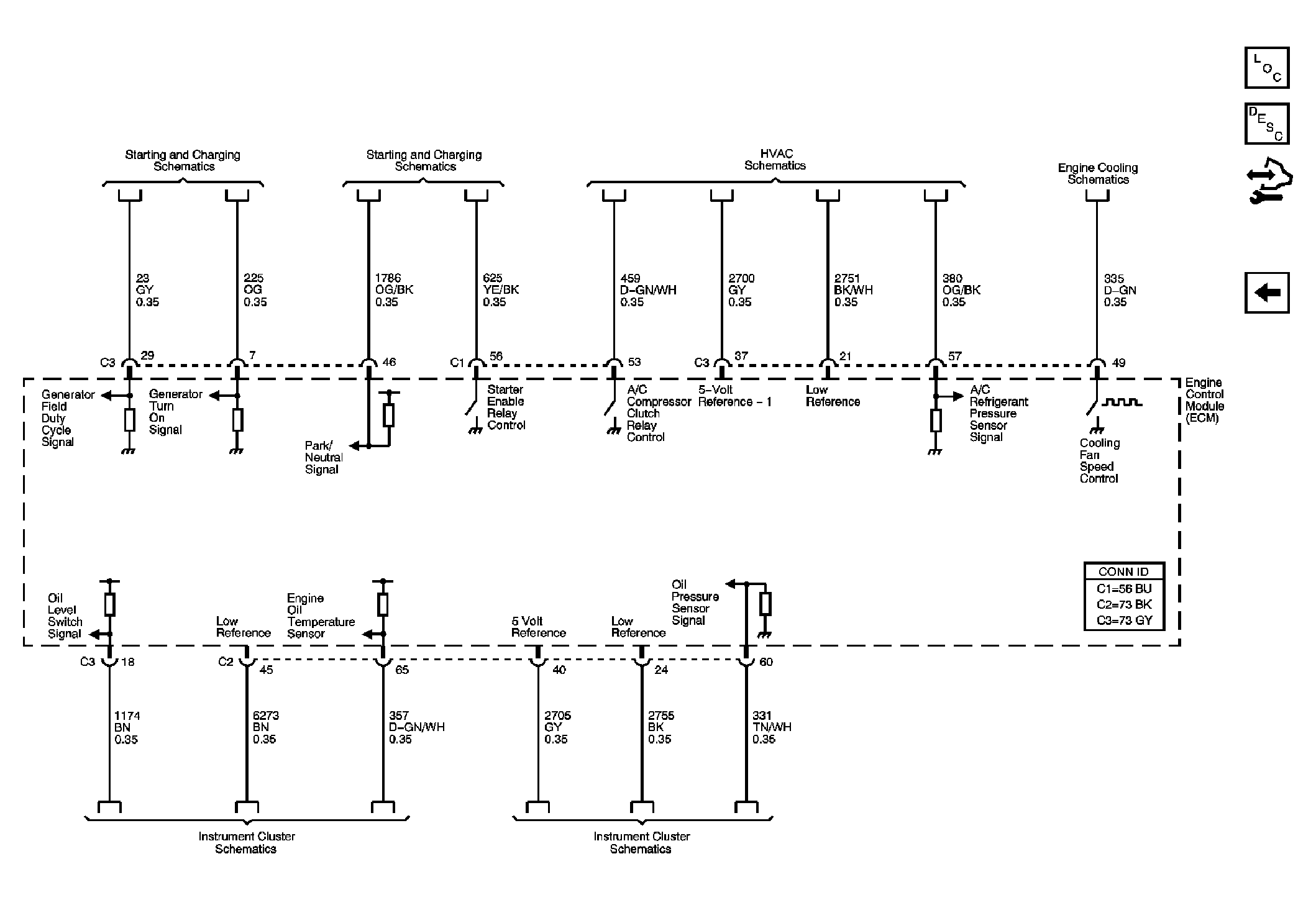

Fig 15: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
