Engine Cooling Schematics

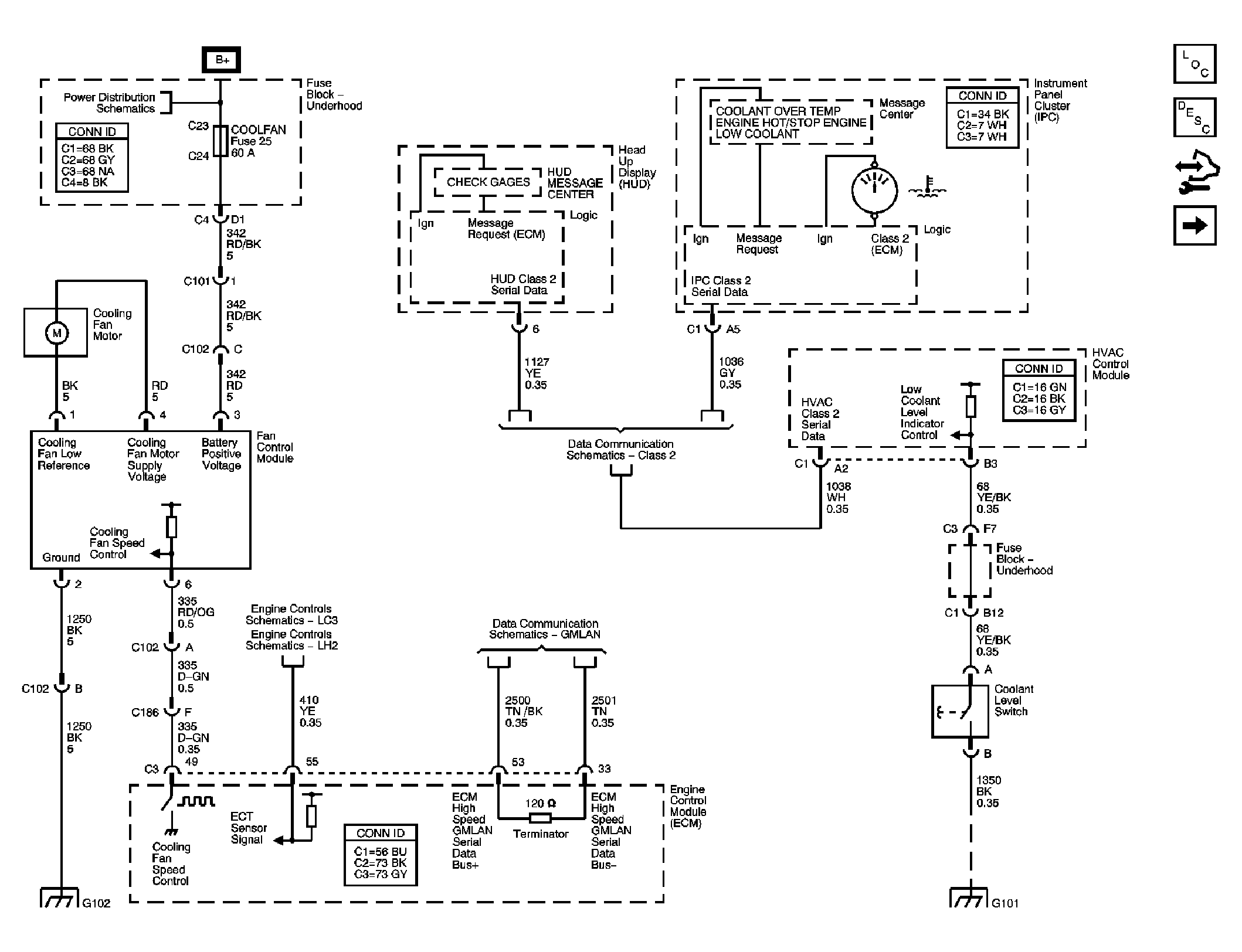

Fig 1: Engine Cooling Schematic - 4.4L

GM1755089

Courtesy of GENERAL MOTORS CORP.

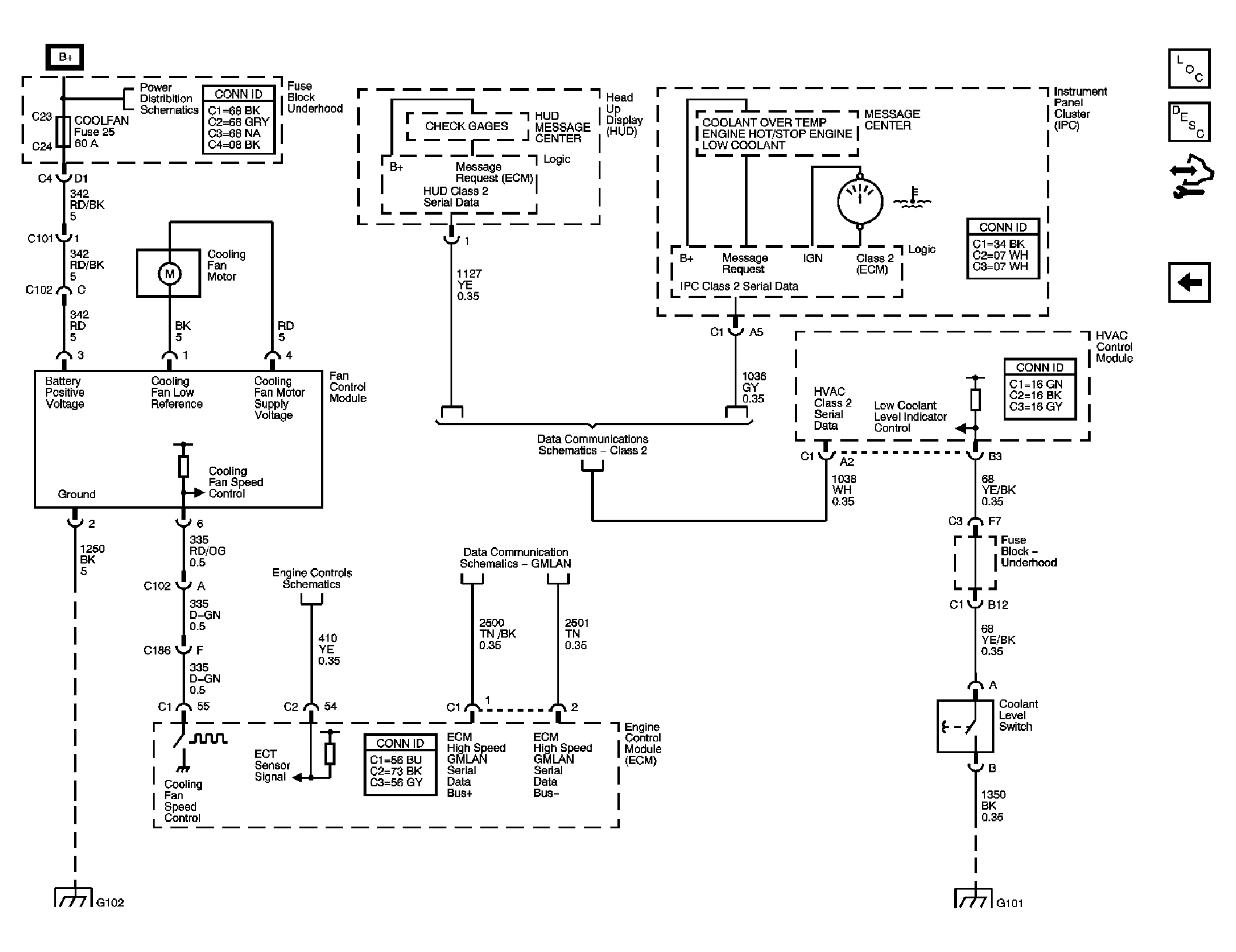

Fig 2: Engine Cooling Schematic - 4.6L

GM1755091

Courtesy of GENERAL MOTORS CORP.
