Instrument Cluster Schematics

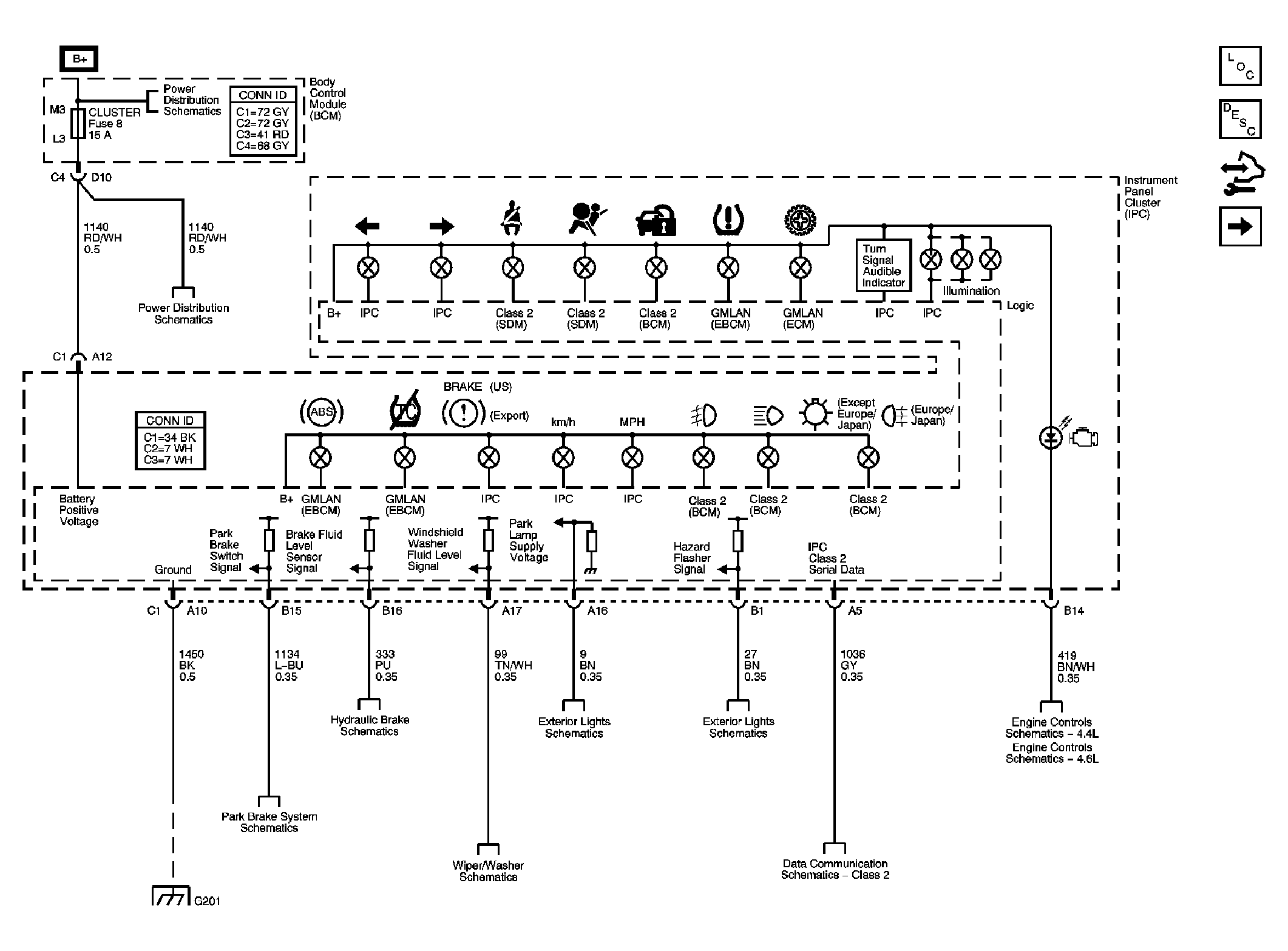

Fig 1: Power, Ground & Indicators Schematic
GM1755359Courtesy of GENERAL MOTORS CORP.

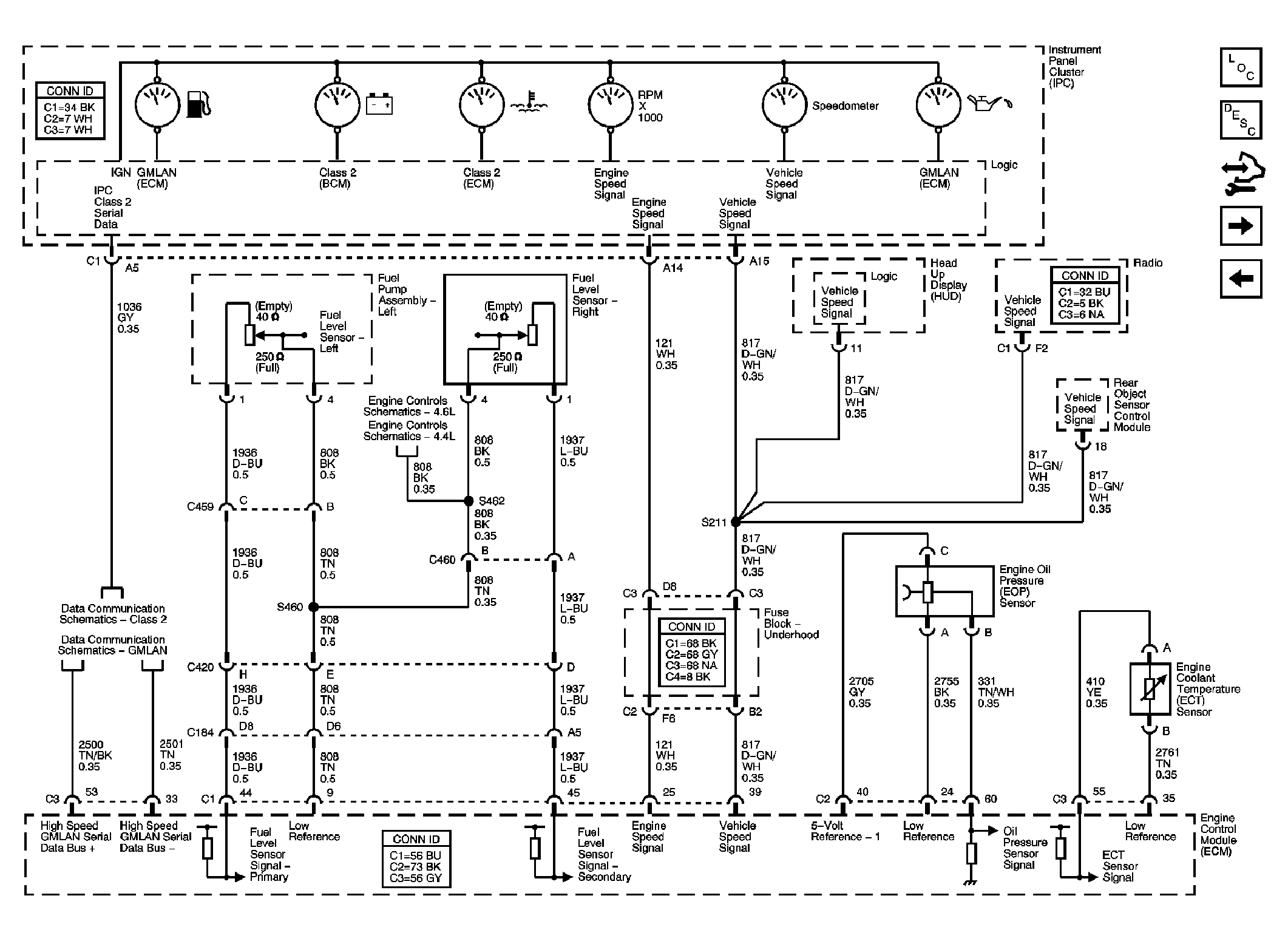

Fig 2: Gages Schematic
GM1755365Courtesy of GENERAL MOTORS CORP.

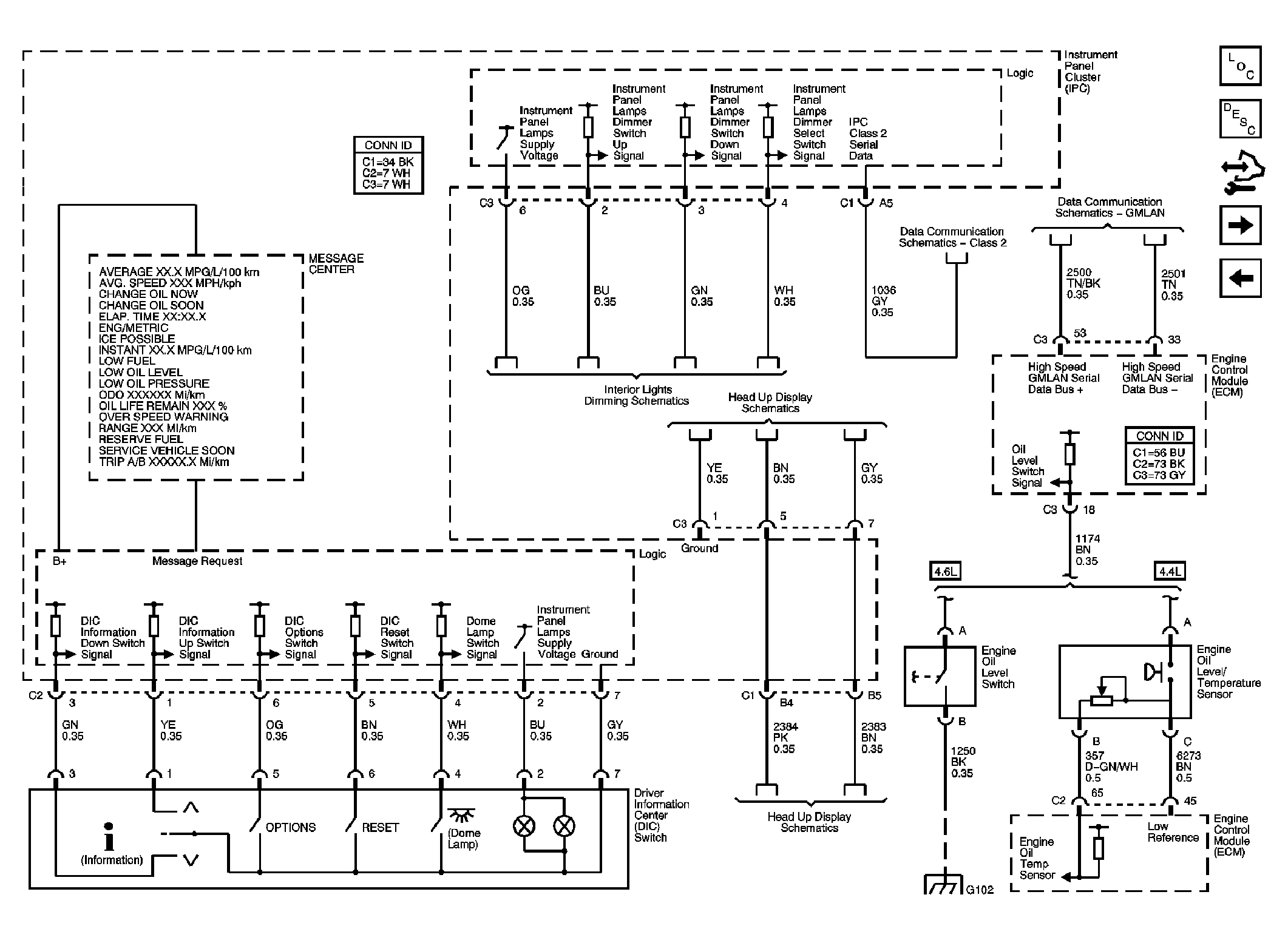

Fig 3: Messages Schematic
GM1755369Courtesy of GENERAL MOTORS CORP.
