Head Up Display Schematics

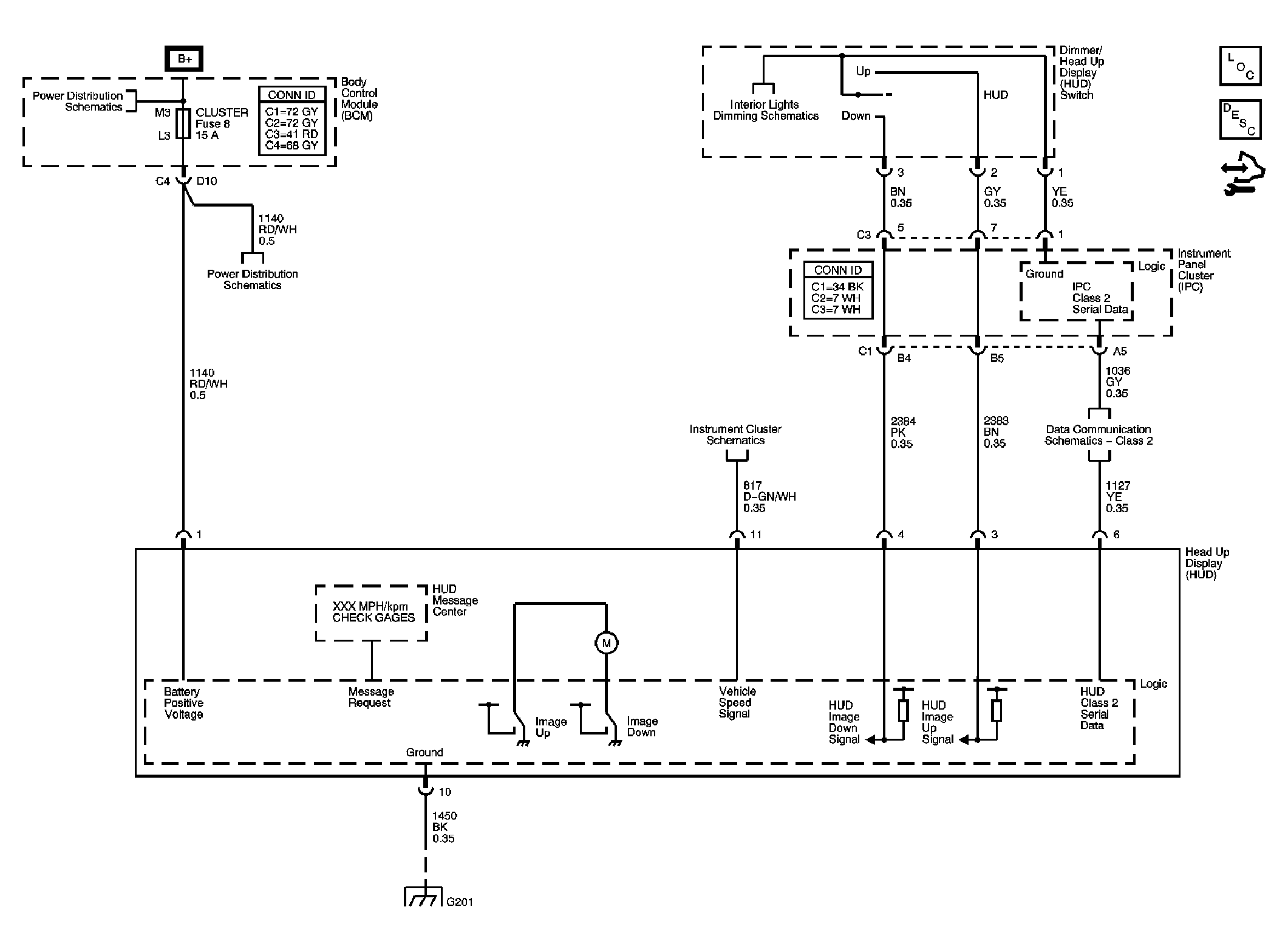

Fig 1: Head Up Display Schematic

GM1755454

Courtesy of GENERAL MOTORS CORP.
