Audible Warnings Schematics

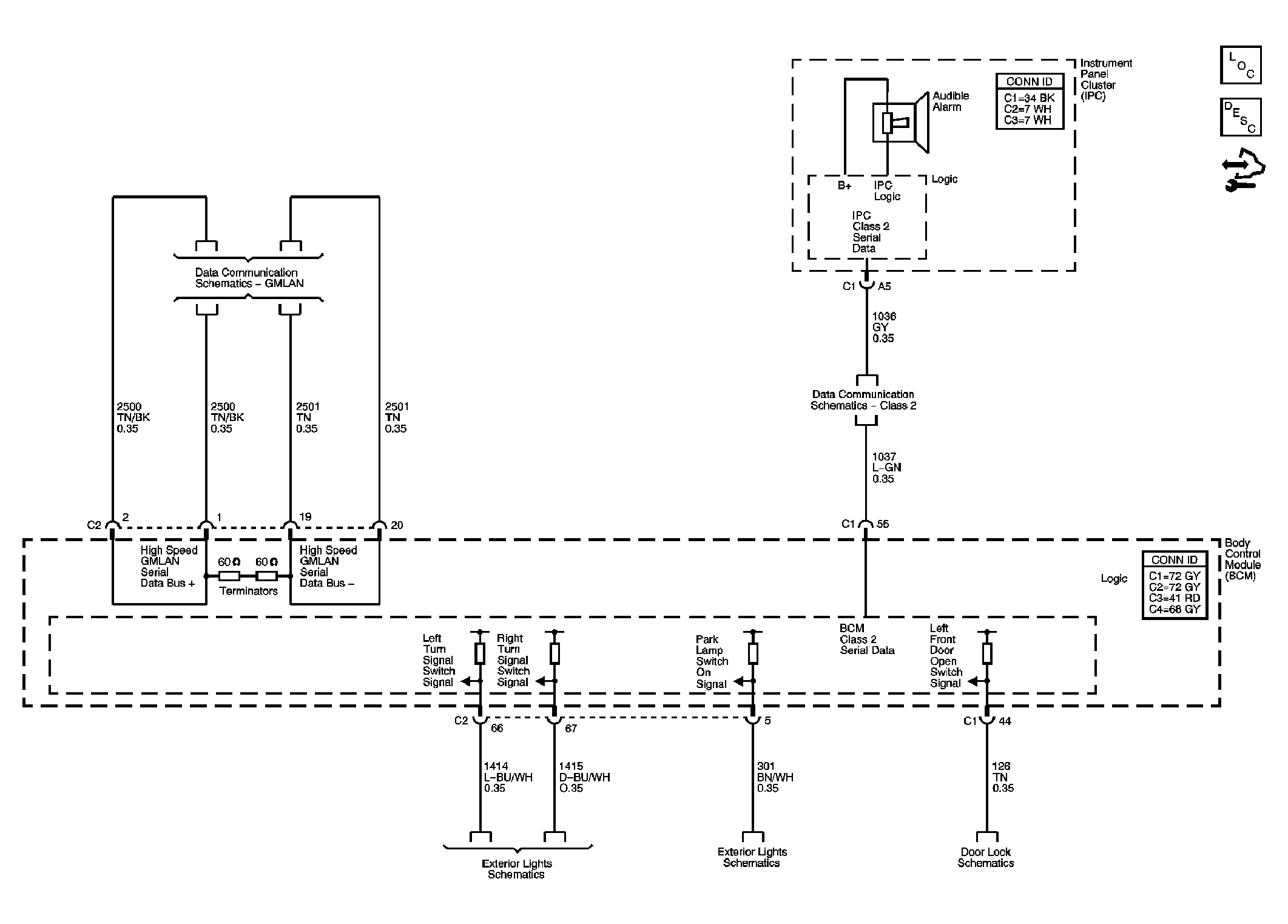

Fig 1: Audible Warnings Schematic

GM1755481

Courtesy of GENERAL MOTORS CORP.
