Folding Top Schematics

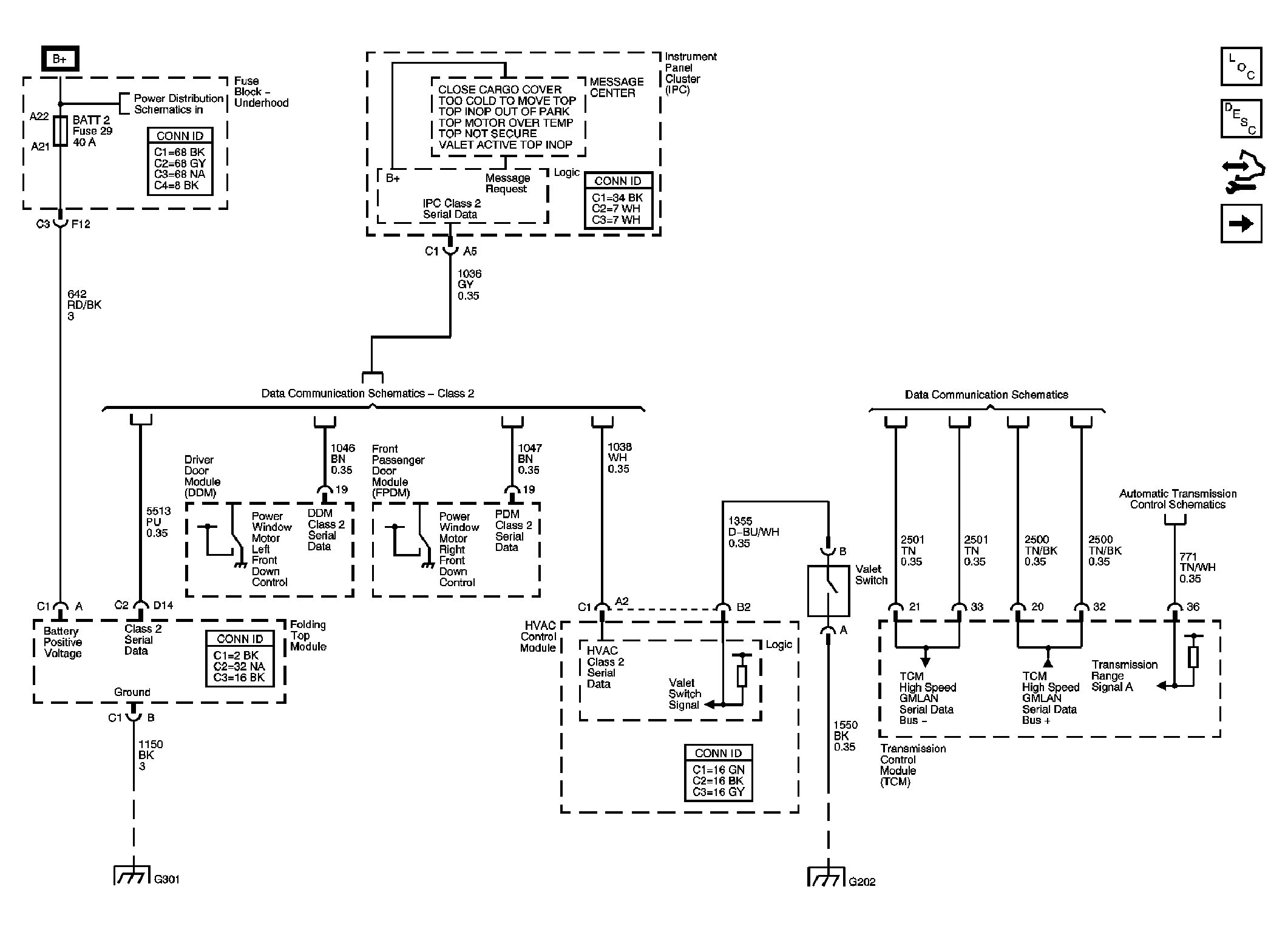

Fig 1: Power, Ground, DLC & Messages Schematic
GM1757464Courtesy of GENERAL MOTORS CORP.

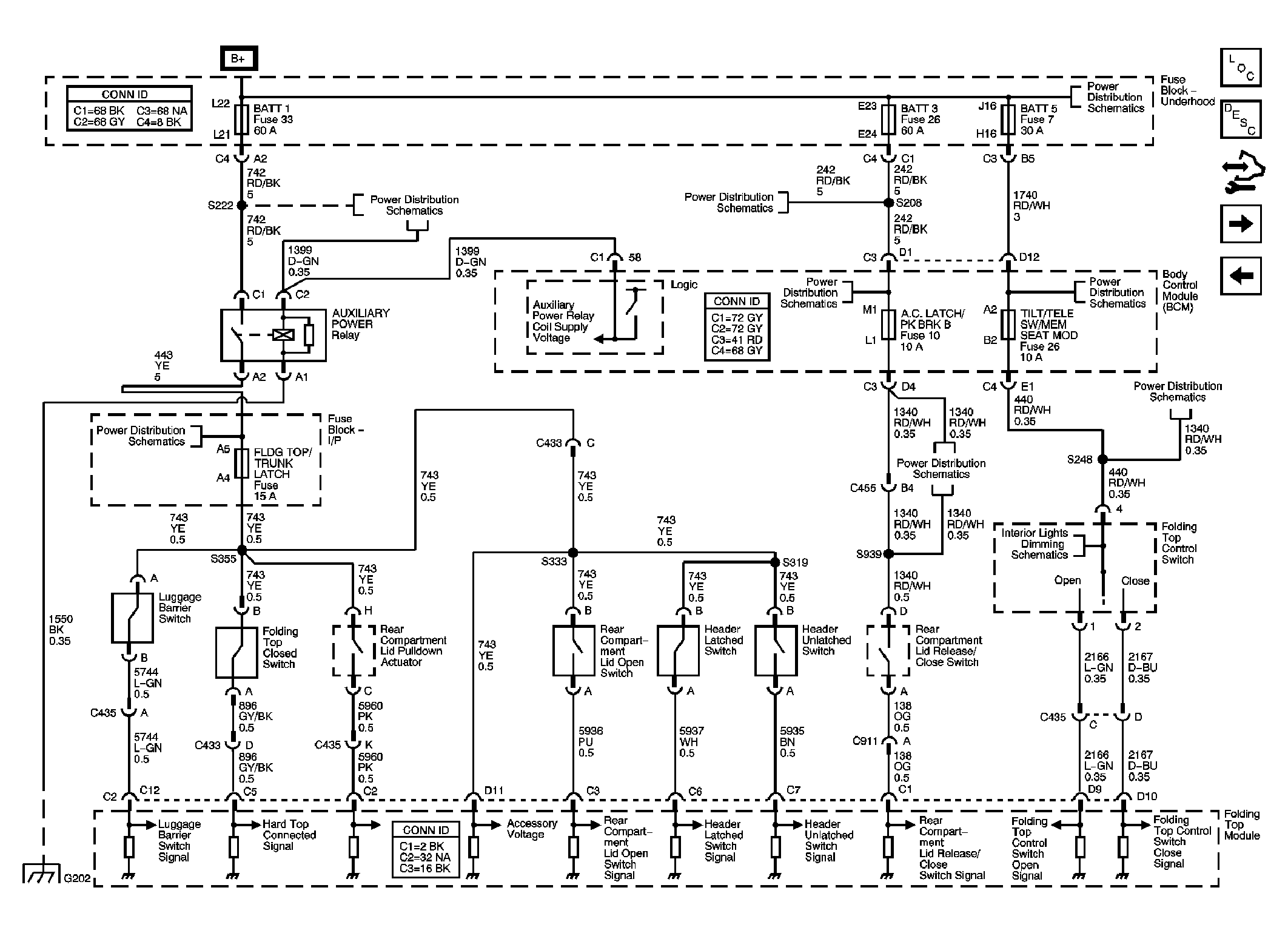

Fig 2: Switches Schematic
GM1757467Courtesy of GENERAL MOTORS CORP.

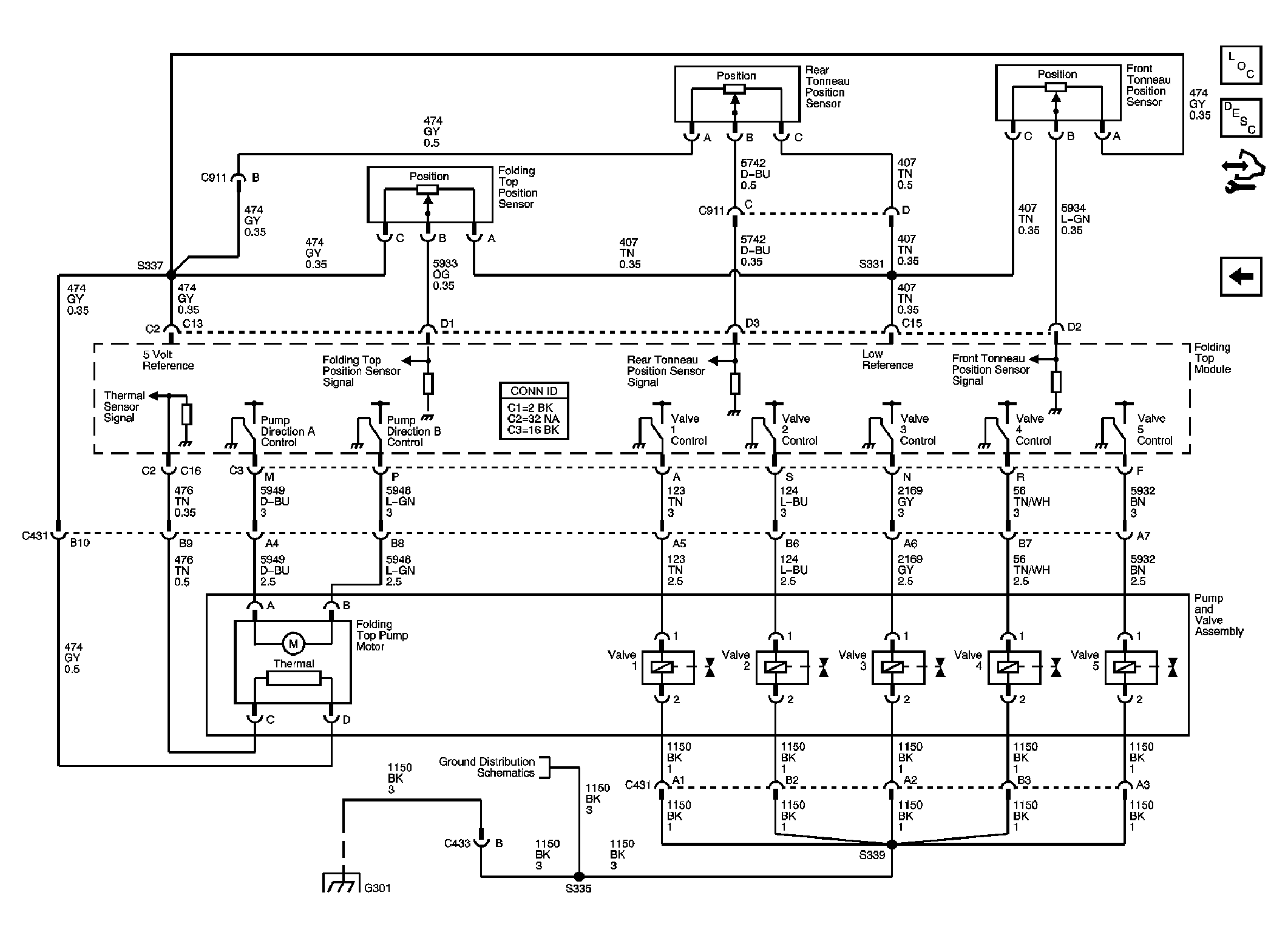

Fig 3: Sensors, Valves & Pump Schematic
GM1757469Courtesy of GENERAL MOTORS CORP.
