Heated/Cooled Seat Schematics

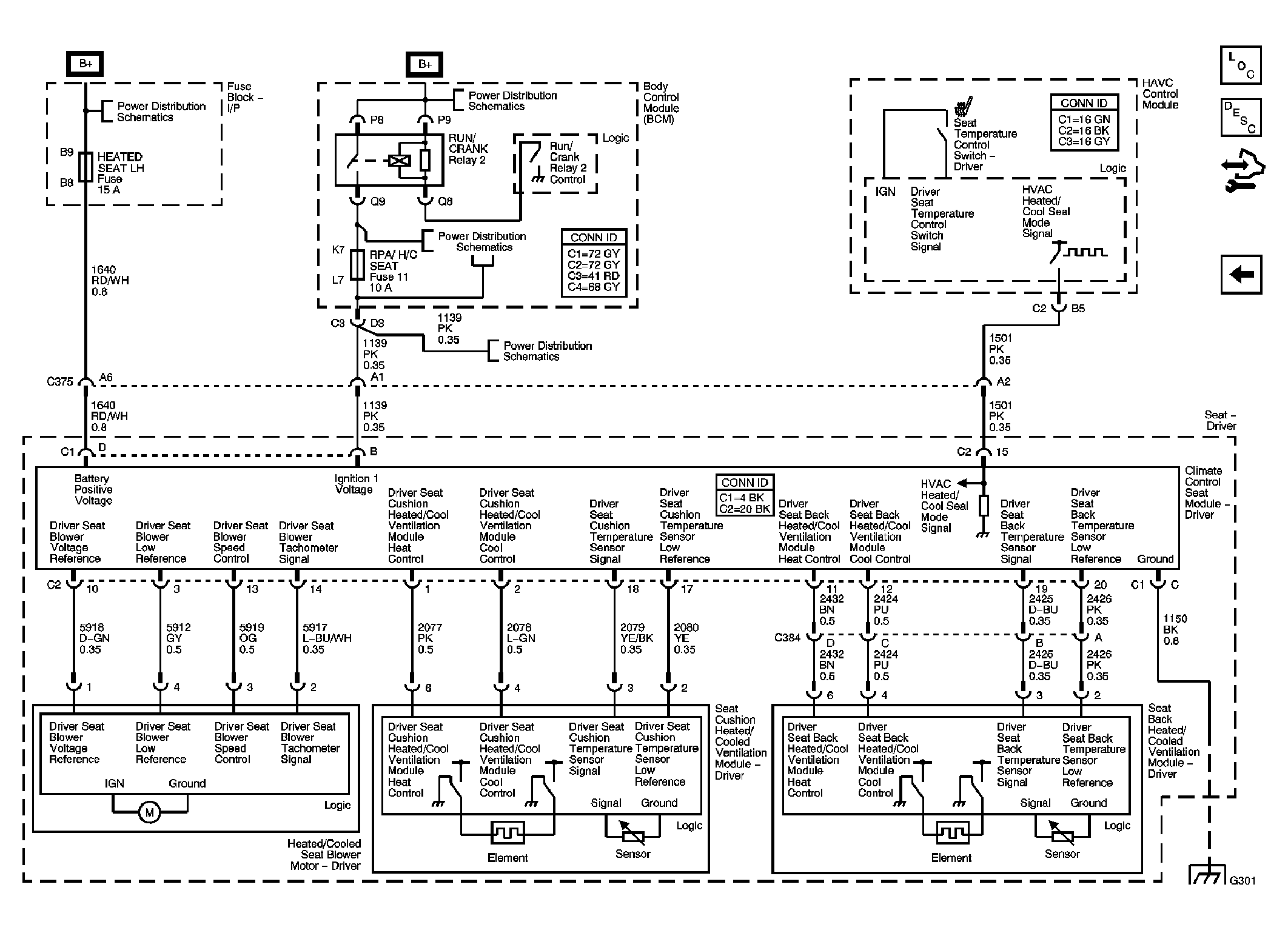

Fig 1: Driver Heated/Cooled Seat Schematic

GM1757189

Courtesy of GENERAL MOTORS CORP.

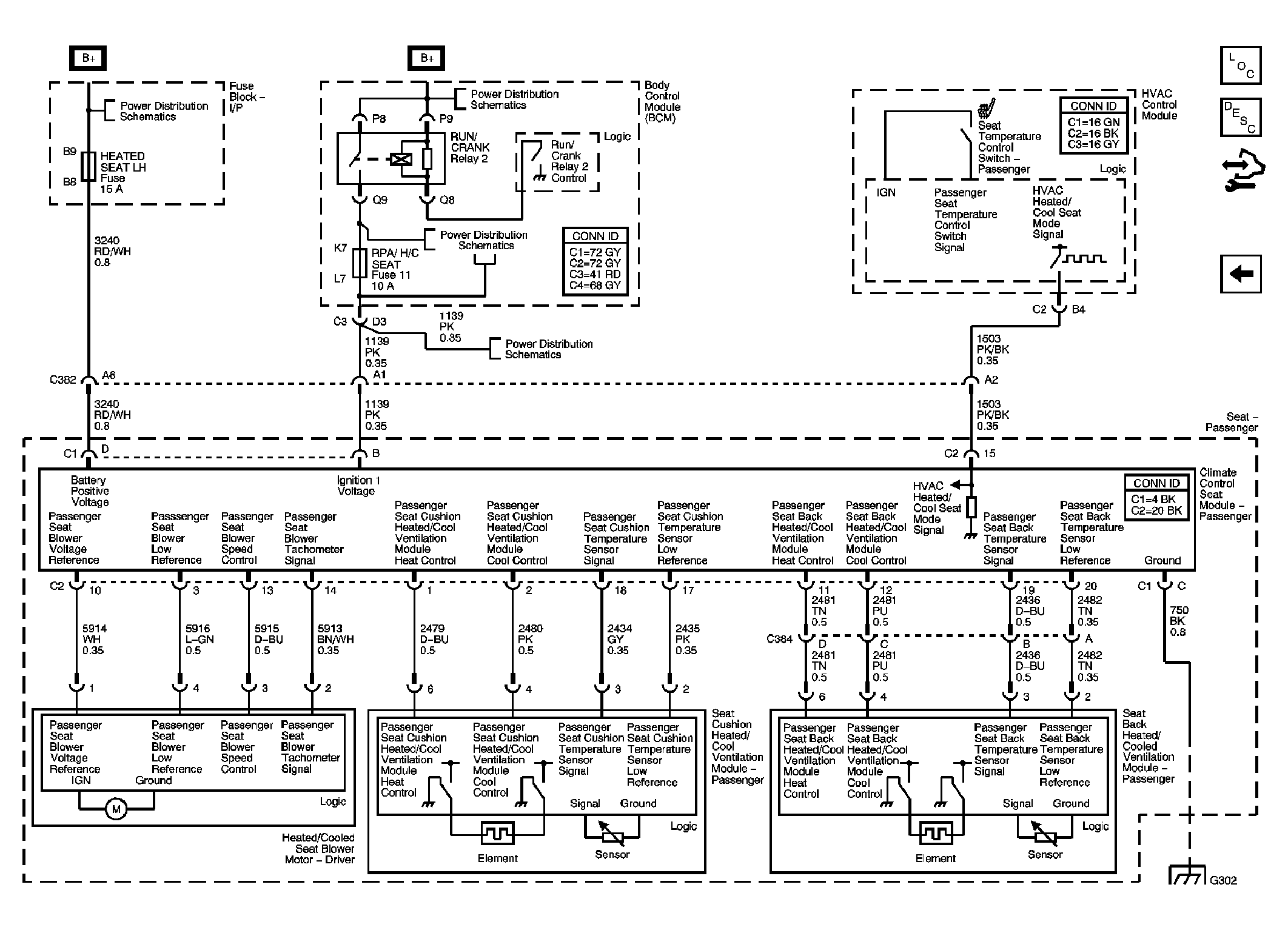

Fig 2: Passenger Heated/Cooled Seat Schematic

GM1757192

Courtesy of GENERAL MOTORS CORP.
