Driver Seat Schematics

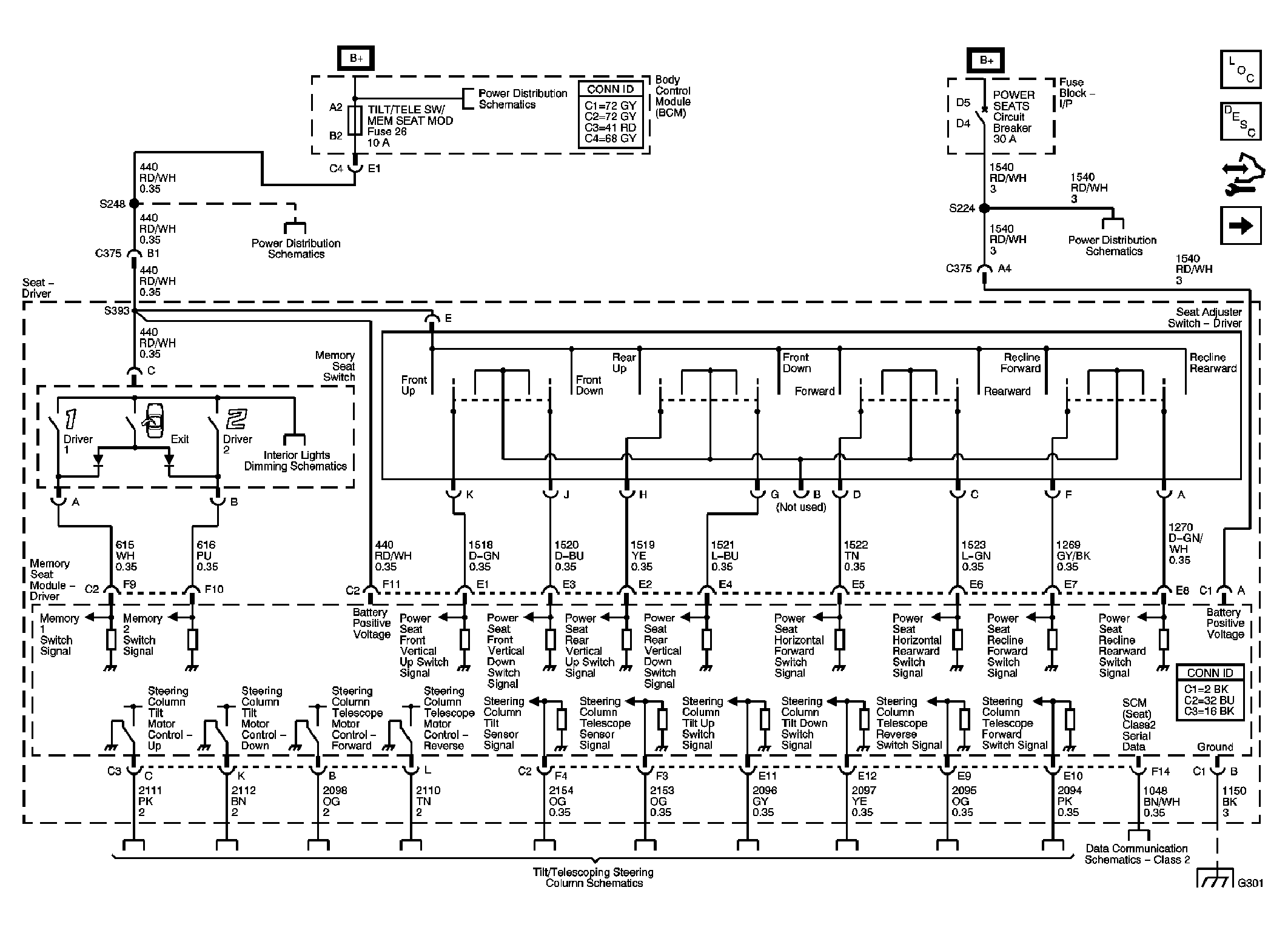

Fig 1: Power, Ground, DLC, Switches & References Schematic
GM1757091Courtesy of GENERAL MOTORS CORP.

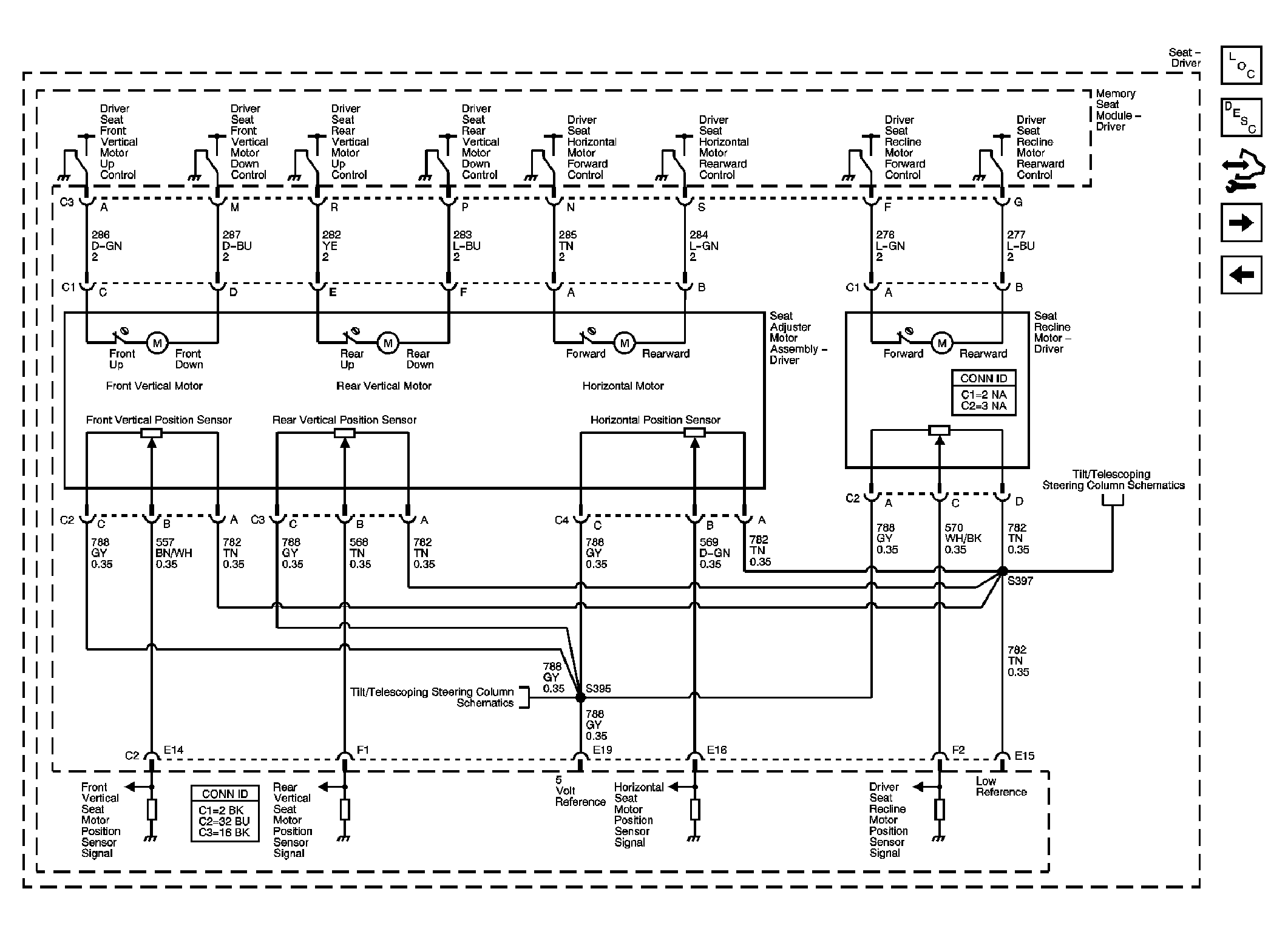

Fig 2: Motors Schematic
GM1757092Courtesy of GENERAL MOTORS CORP.

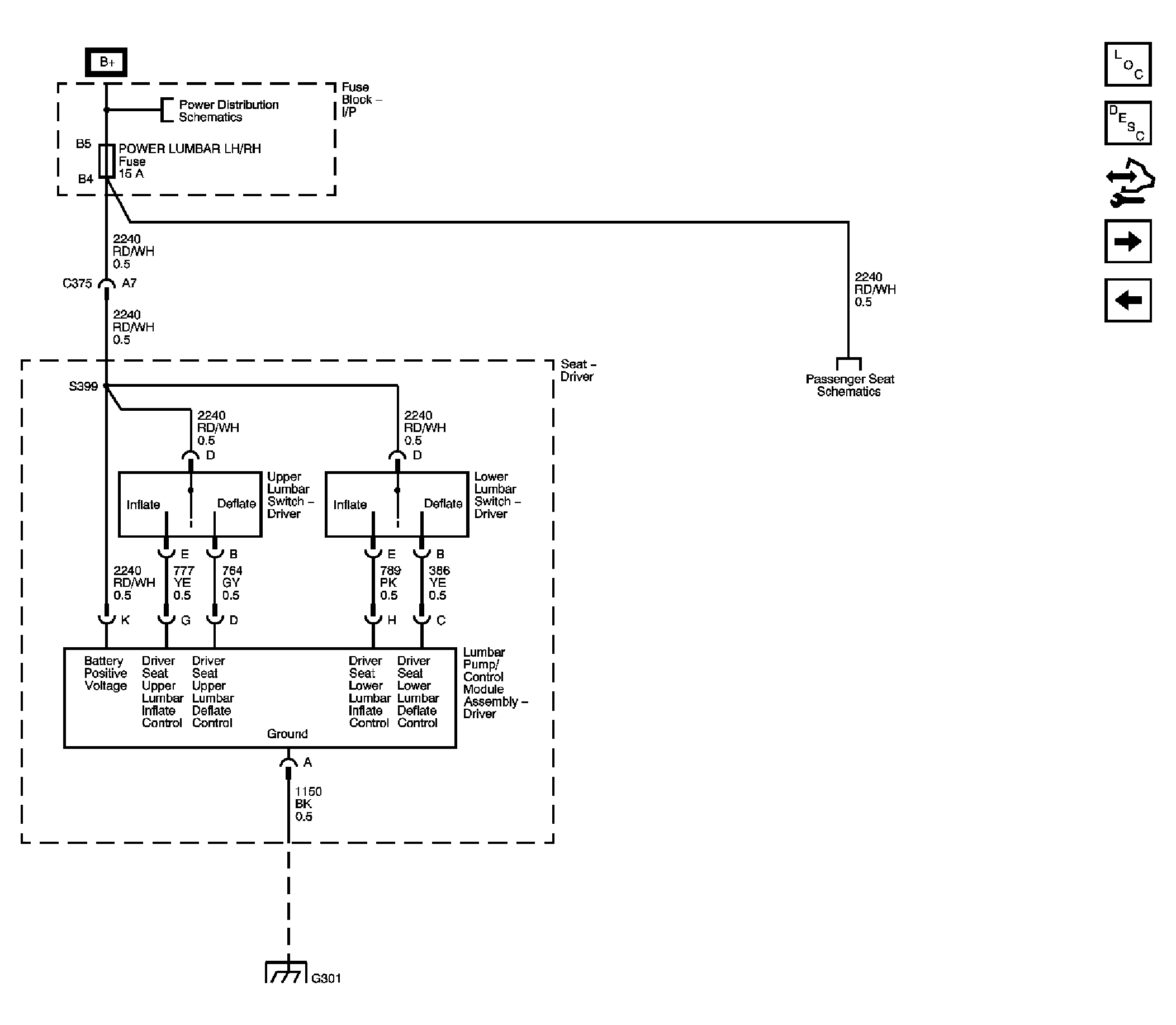

Fig 3: Lumbar Support Schematic
GM1757093Courtesy of GENERAL MOTORS CORP.
