Rear Window Panel Trim Replacement
Courtesy of GENERAL MOTORS CORP. Rear Window Panel Trim Replacement
| Callout |
Component Name |
|
Preliminary Procedure
- Power operate folding top to down and stored position.
- Position driver and passenger seat fully forward.
- Remove roof bar tube assemblies. Refer to Roof Bar Tube Trim Replacement .
- Remove stowage trim from rear compartment panel. Refer to Body Rear Compartment Replacement .
- Remove lock pillar trim. Refer to Body Lock Pillar Trim Panel Replacement .
|

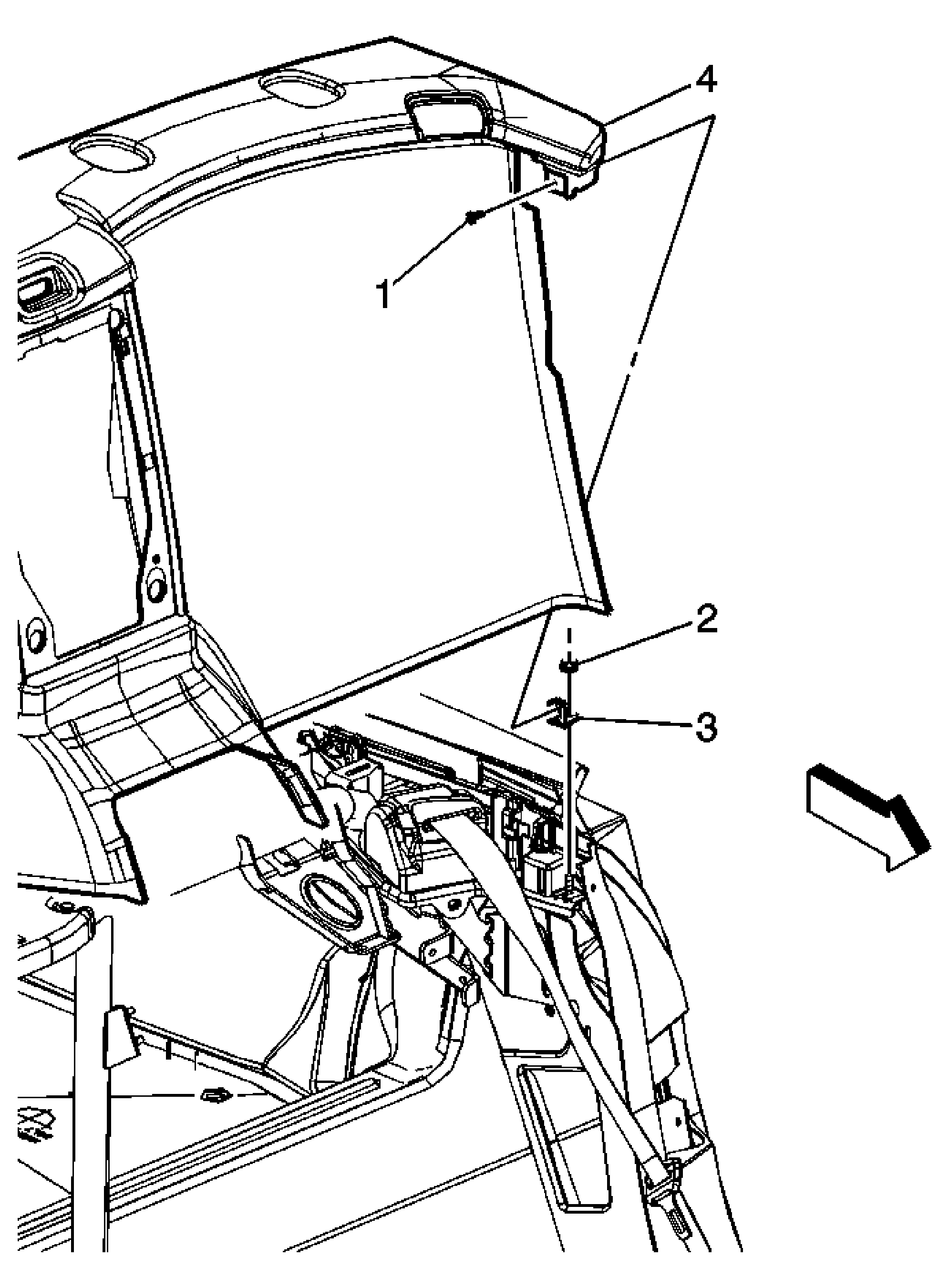

| 1 |
Rear Window Trim Panel Screw Tighten:
2.5 N.m (22 lb in)
|
| 2 |
Body Lock Pillar Upper Trim Panel Nut Tighten:
10 N.m (89 lb in)
|
| 3 |
Rear Window Trim Panel Support Bracket |
| 4 |
Rear Window Trim Panel Assembly
Tip:
- Remove seat belt trim bezel from rear window. Leave bezel on seat belt
- Lift upwards to slide trim out from behind end of console. Route seat belts from both ends.
|
