Door Lock/Indicator Schematics

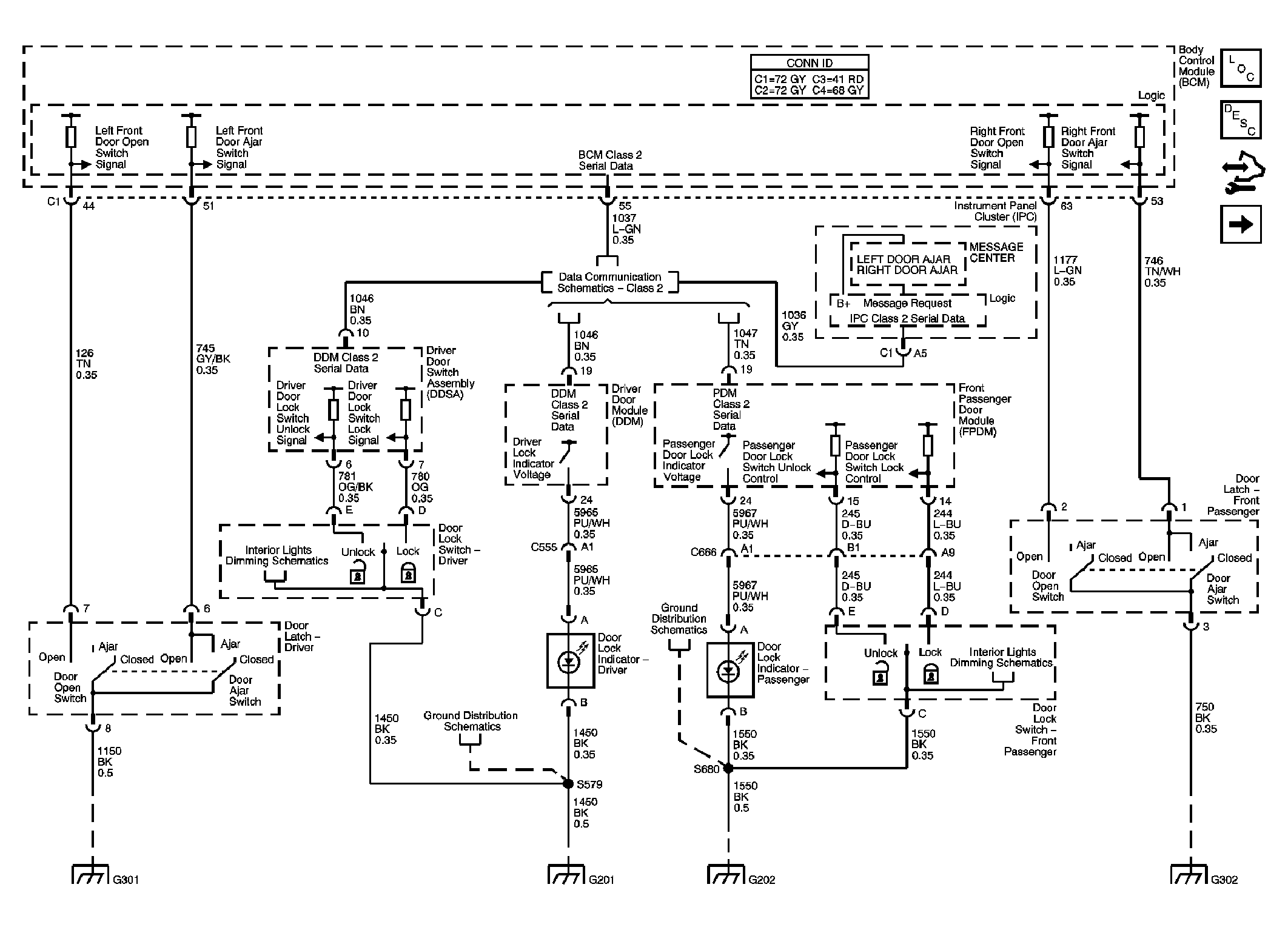

Fig 1: Indicators, Messages and Ajar/Open/Lock Switches Schematic
GM1756994Courtesy of GENERAL MOTORS CORP.

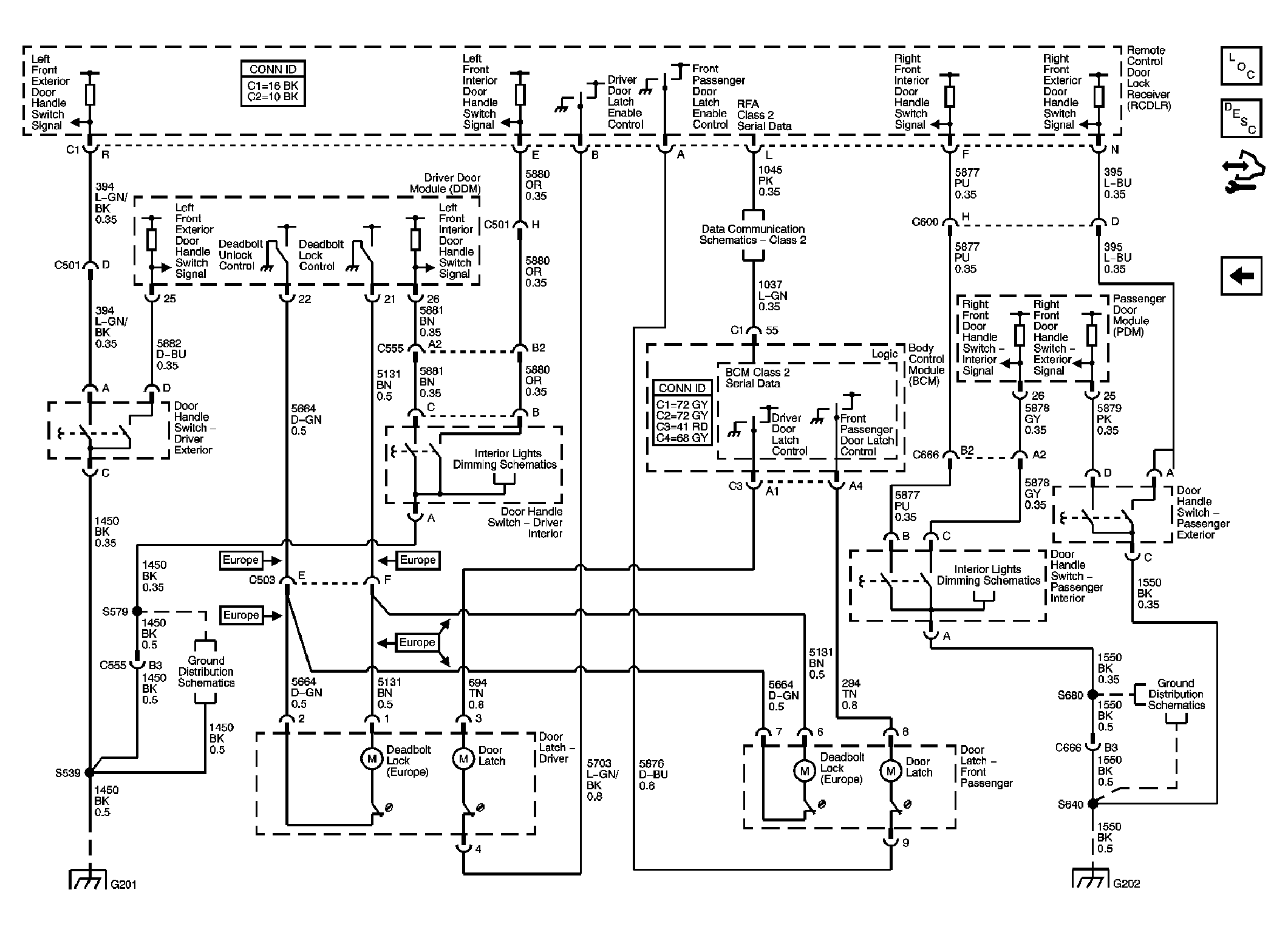

Fig 2: Actuators & Handle Switches Schematic
GM1756999Courtesy of GENERAL MOTORS CORP.
