Rear Compartment Lid Pulldown Switch Replacement

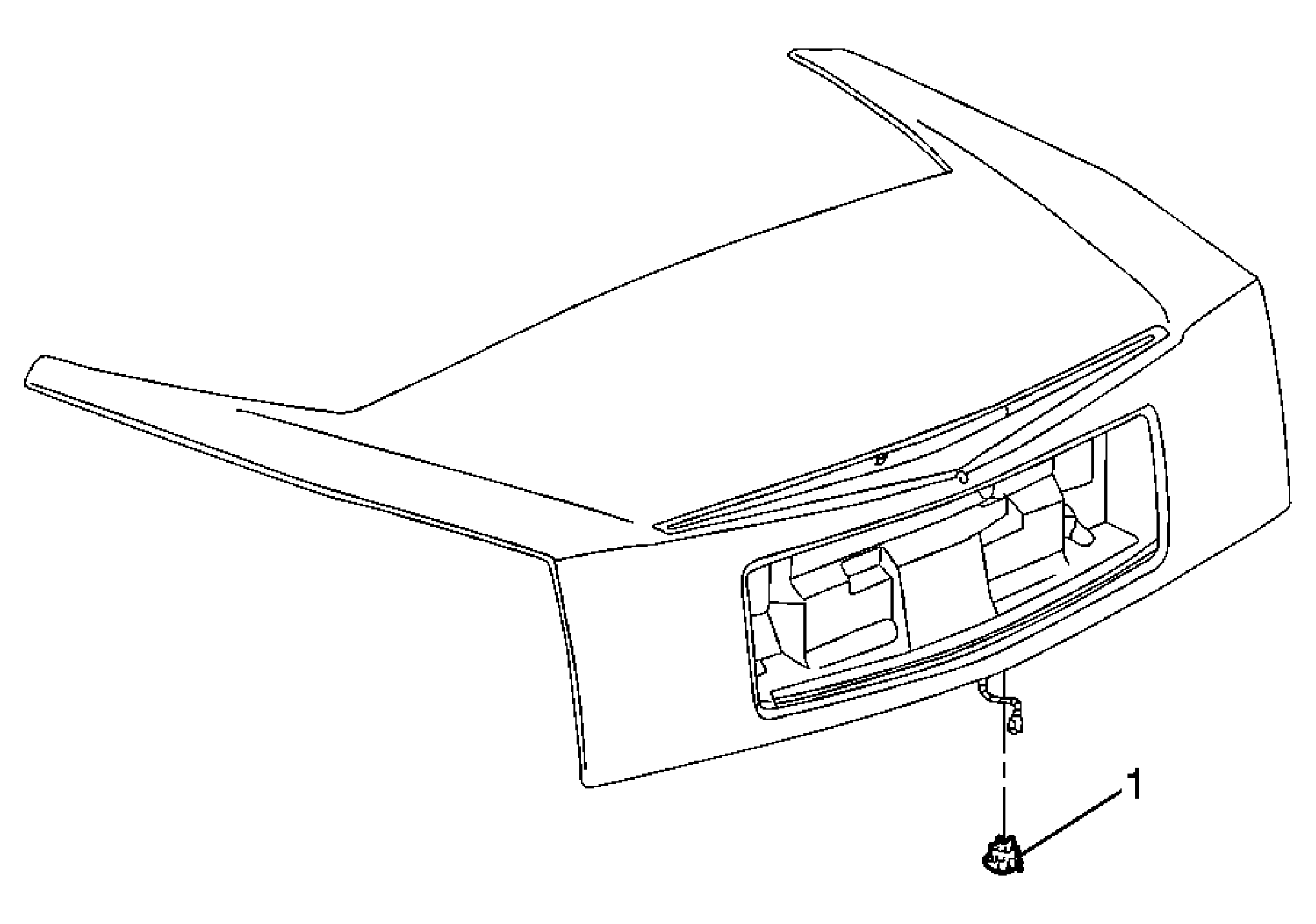

Fig 1: View Of Rear Compartment Lid Pulldown Switch

Courtesy of GENERAL MOTORS CORP.

Rear Compartment Lid Pulldown Switch Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Switch Assembly, Rear Compartment Lid Pull Down Tip:  Use a flat-bladed plastic tool to aid in the removal of the switch from the rear compartment lid. Disconnect the electrical connector.
