Headlights/Daytime Running Lights (DRL) Schematics

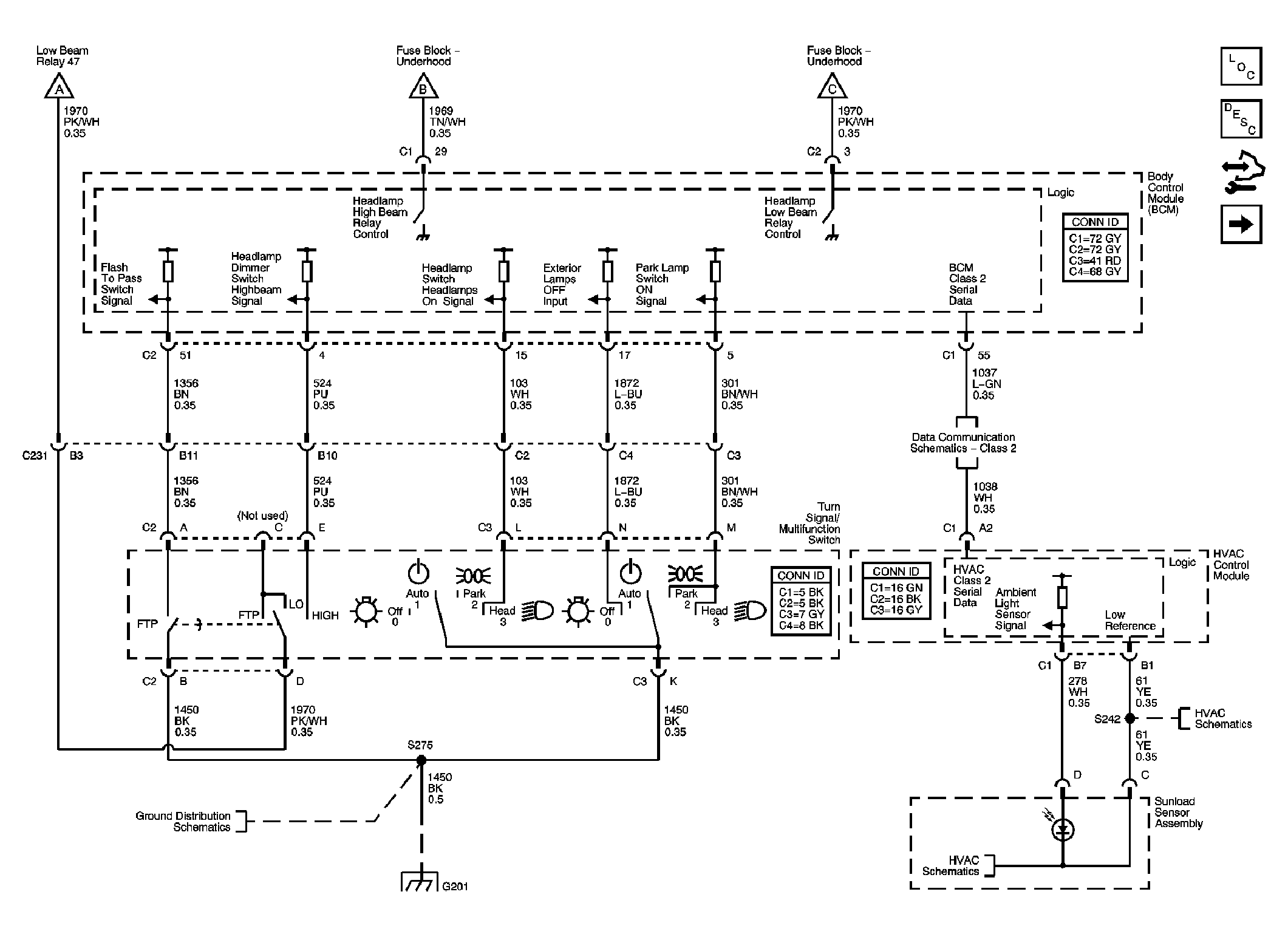

Fig 1: Headlamp/DRL Controls Schematic
GM1755989Courtesy of GENERAL MOTORS CORP.

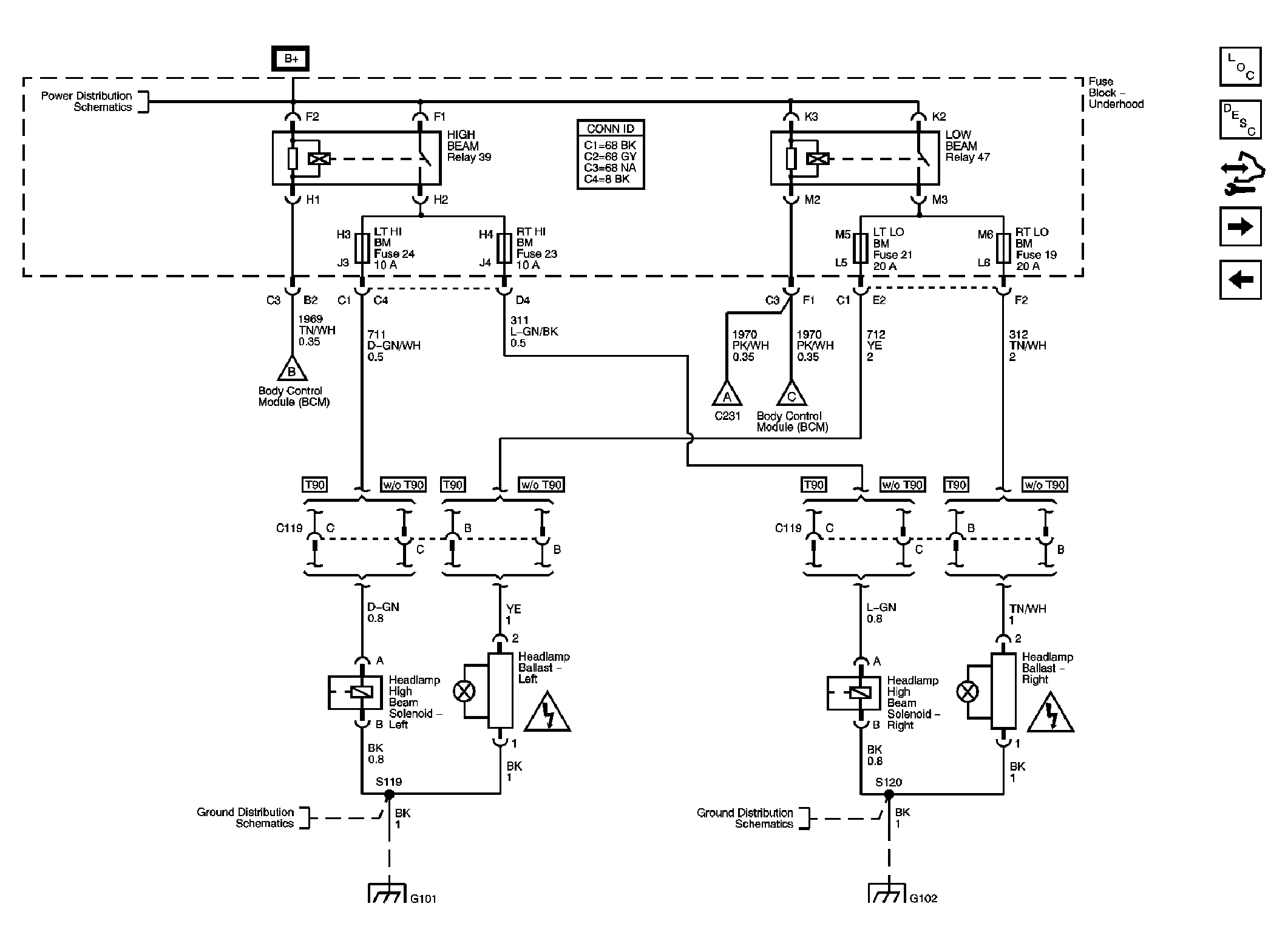

Fig 2: Headlamps Schematic
GM1755990Courtesy of GENERAL MOTORS CORP.

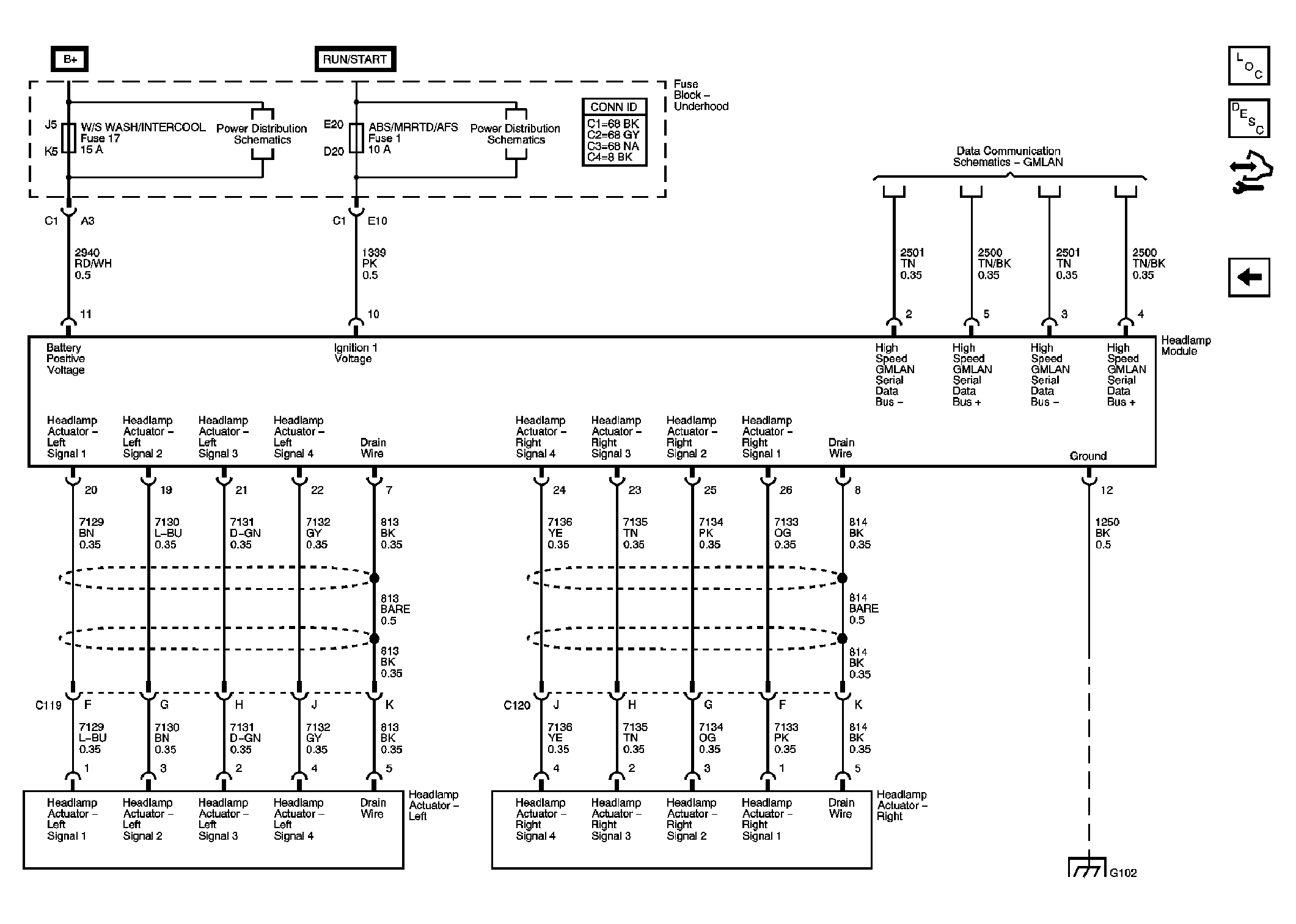

Fig 3: Adaptive Forward Lighting System (AFS) Schematic - Except Japan & Europe
GM1788098Courtesy of GENERAL MOTORS CORP.
