OnStar Schematics

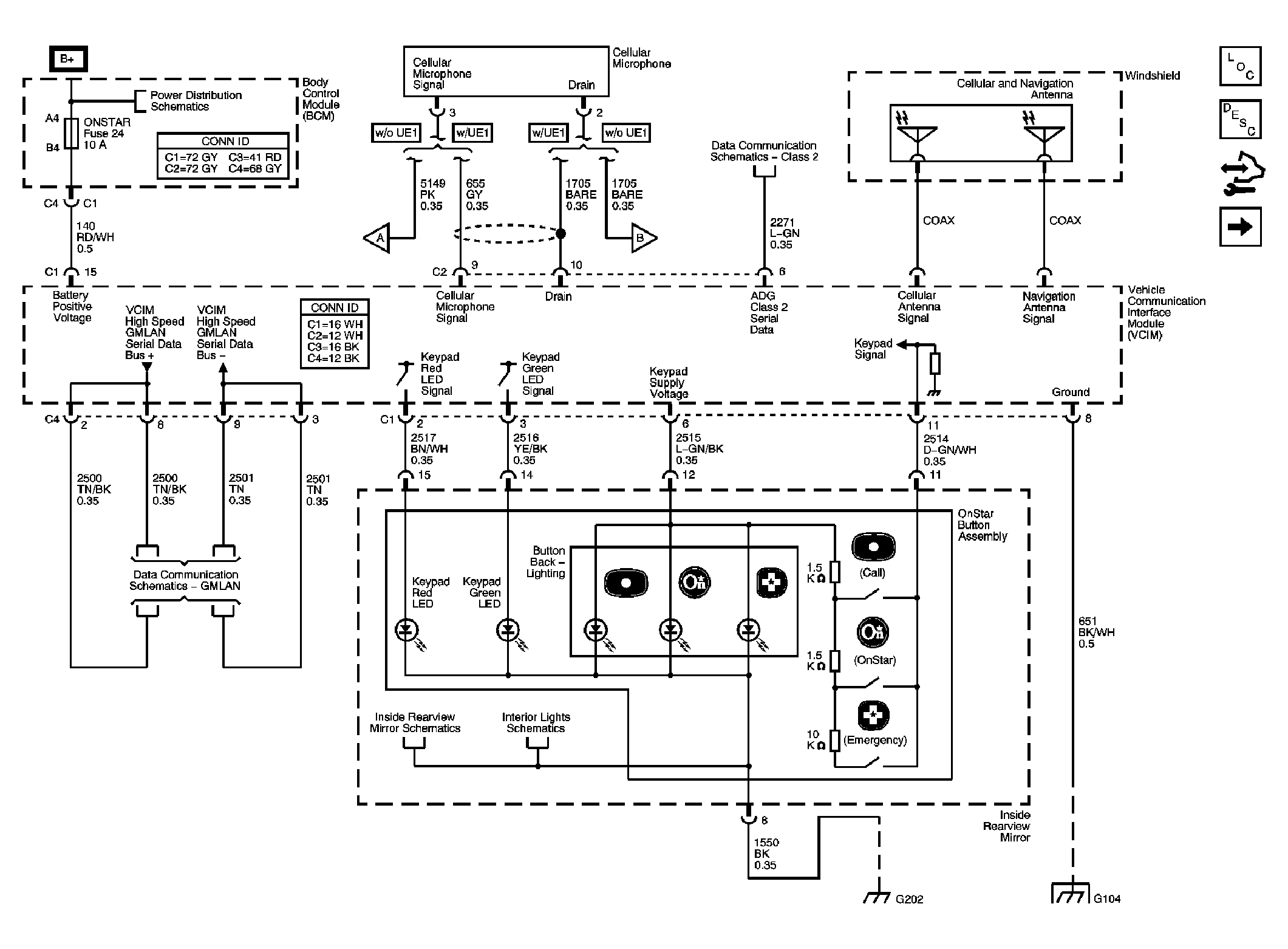

Fig 1: Power, Ground, DLC, Antenna & User Inputs Schematic
Courtesy of GENERAL MOTORS CORP.

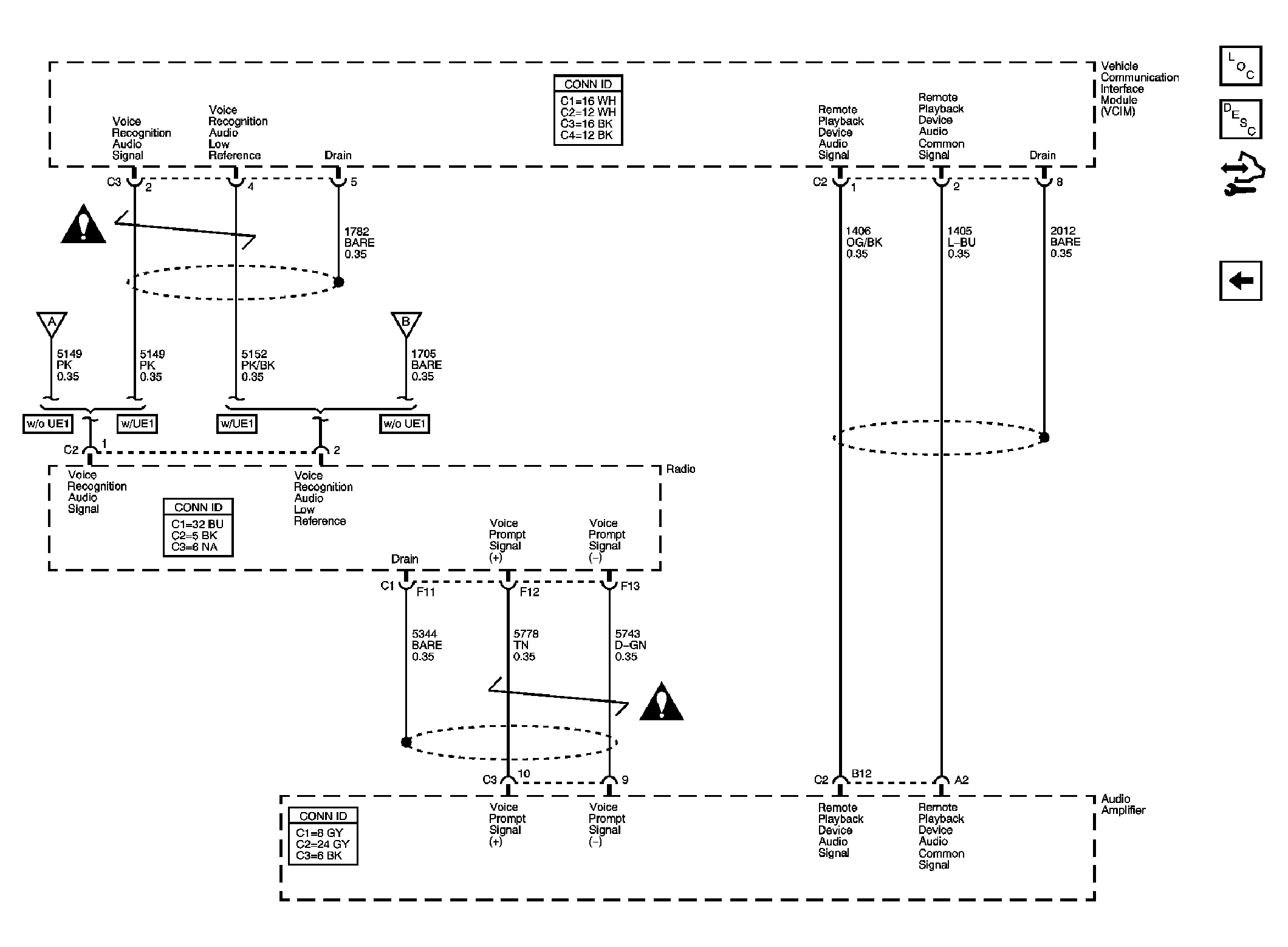

Fig 2: Audio Output Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
