Cruise Control Schematics (Conventional Cruise)

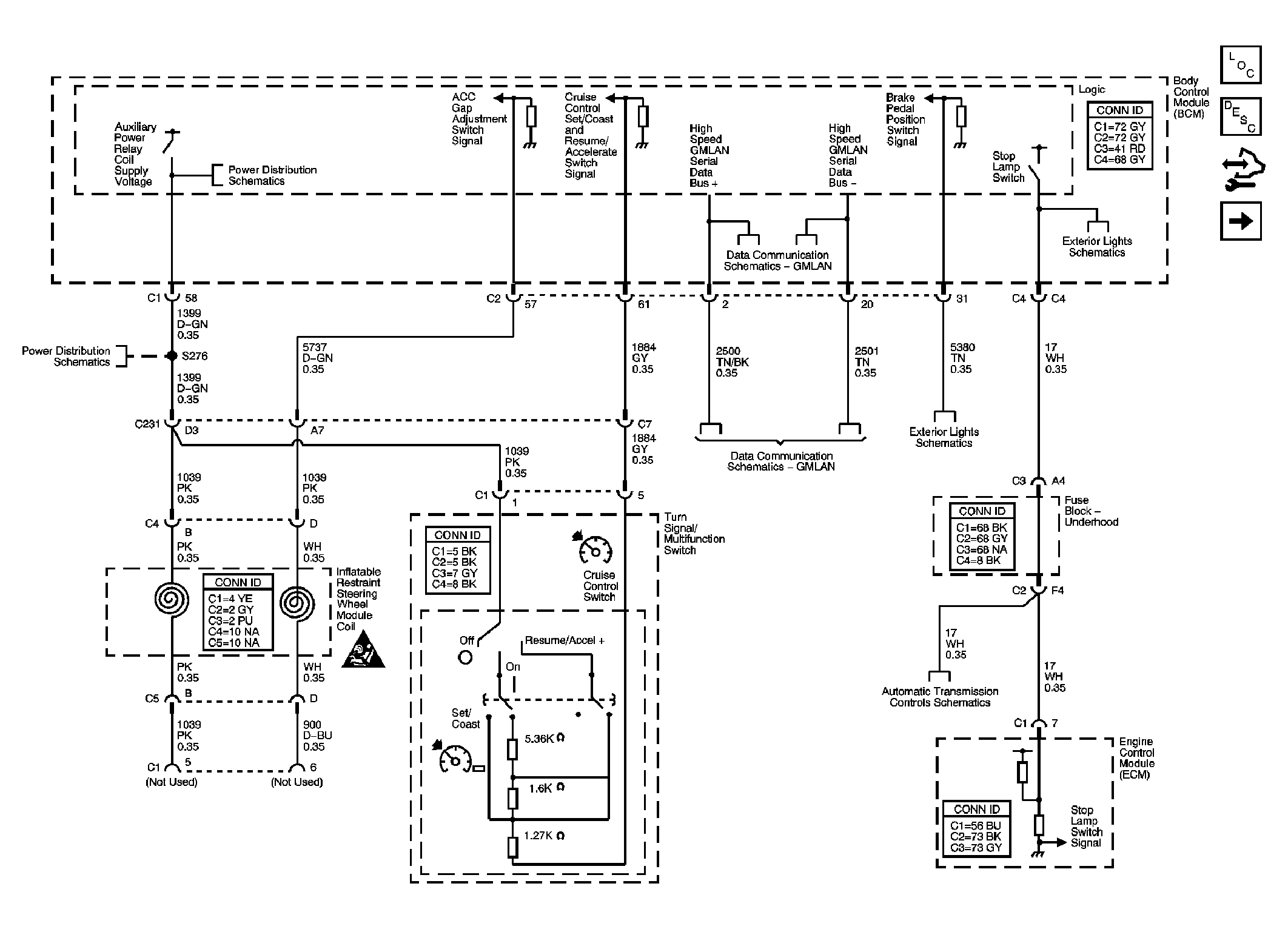

Fig 1: Driver Controls Schematic

GM1819108

Courtesy of GENERAL MOTORS CORP.

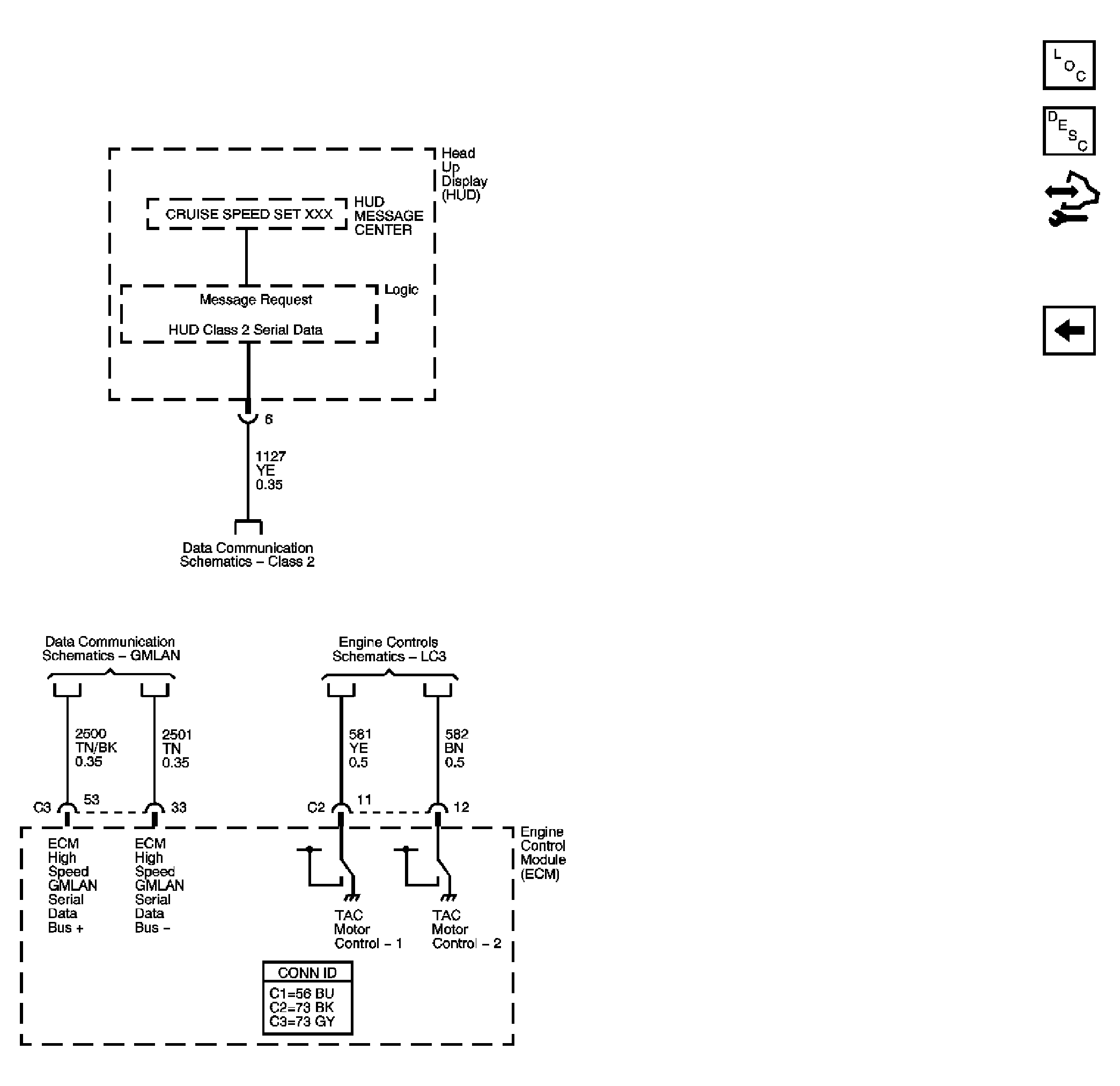

Fig 2: Computer Controls & Indicators Schematic

GM1819109

Courtesy of GENERAL MOTORS CORP.
