Cruise Control Schematics (Adaptive Cruise)

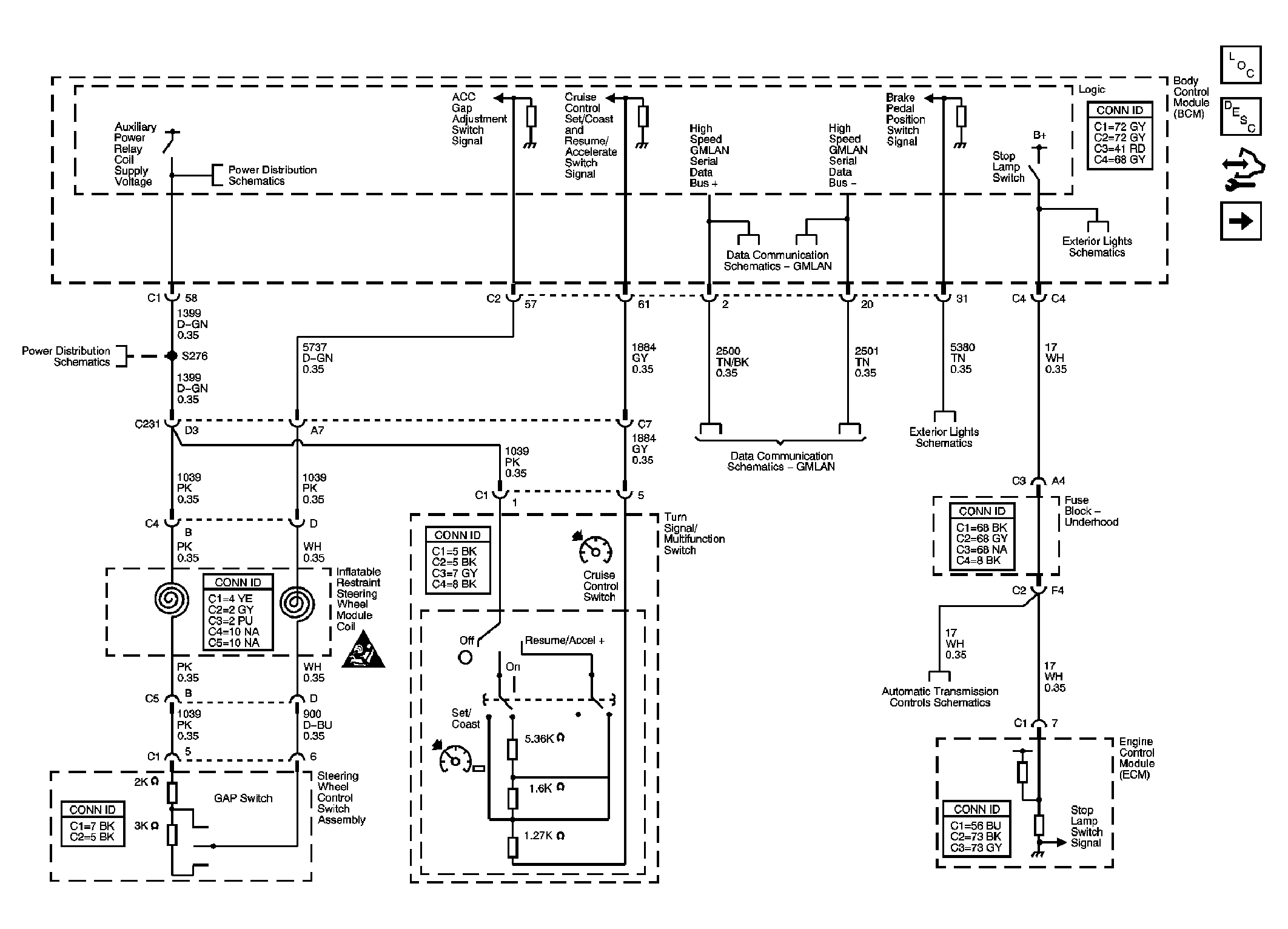

Fig 1: Driver Controls Schematic

Courtesy of GENERAL MOTORS CORP.

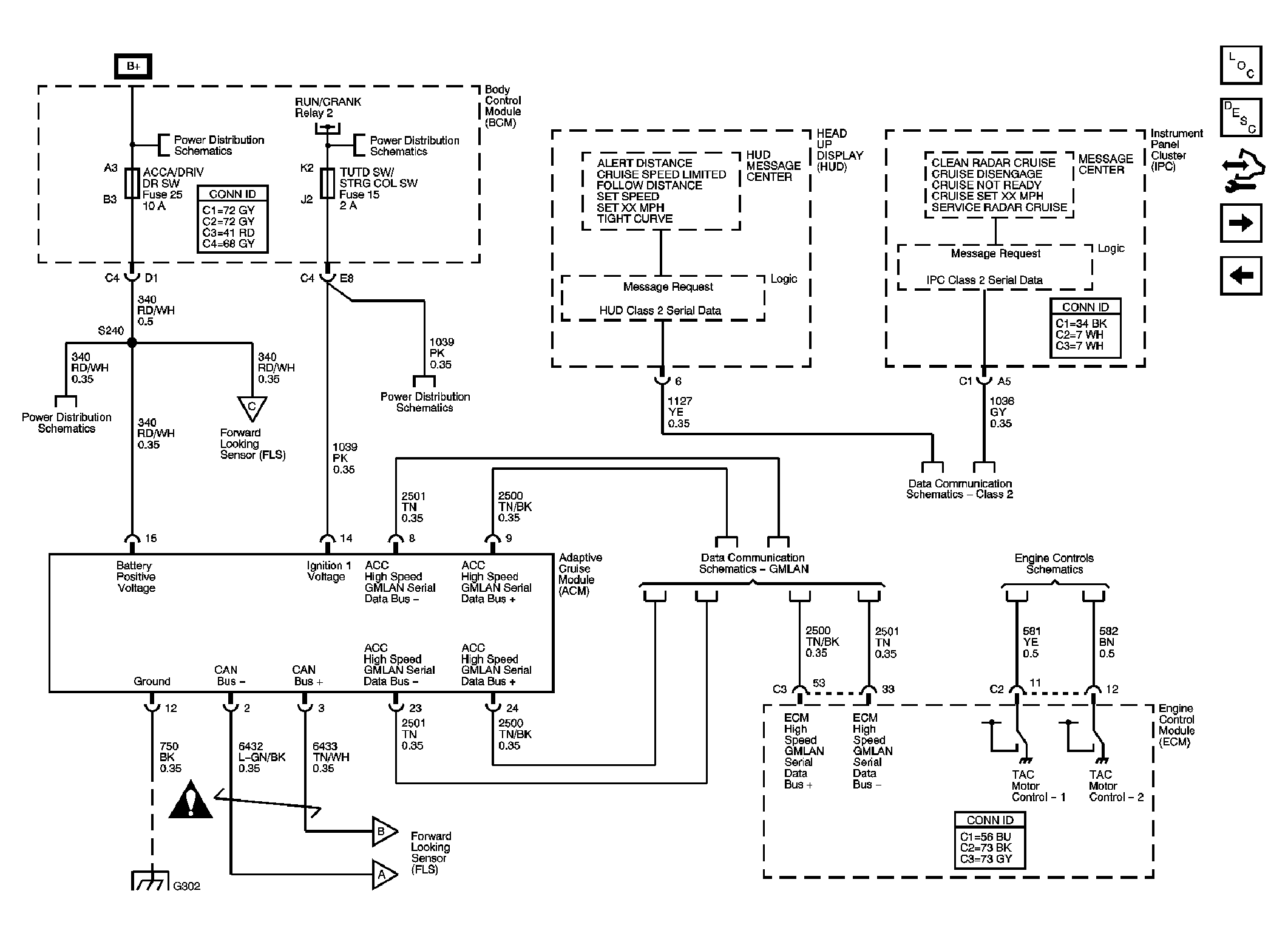

Fig 2: Computer Controls & Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

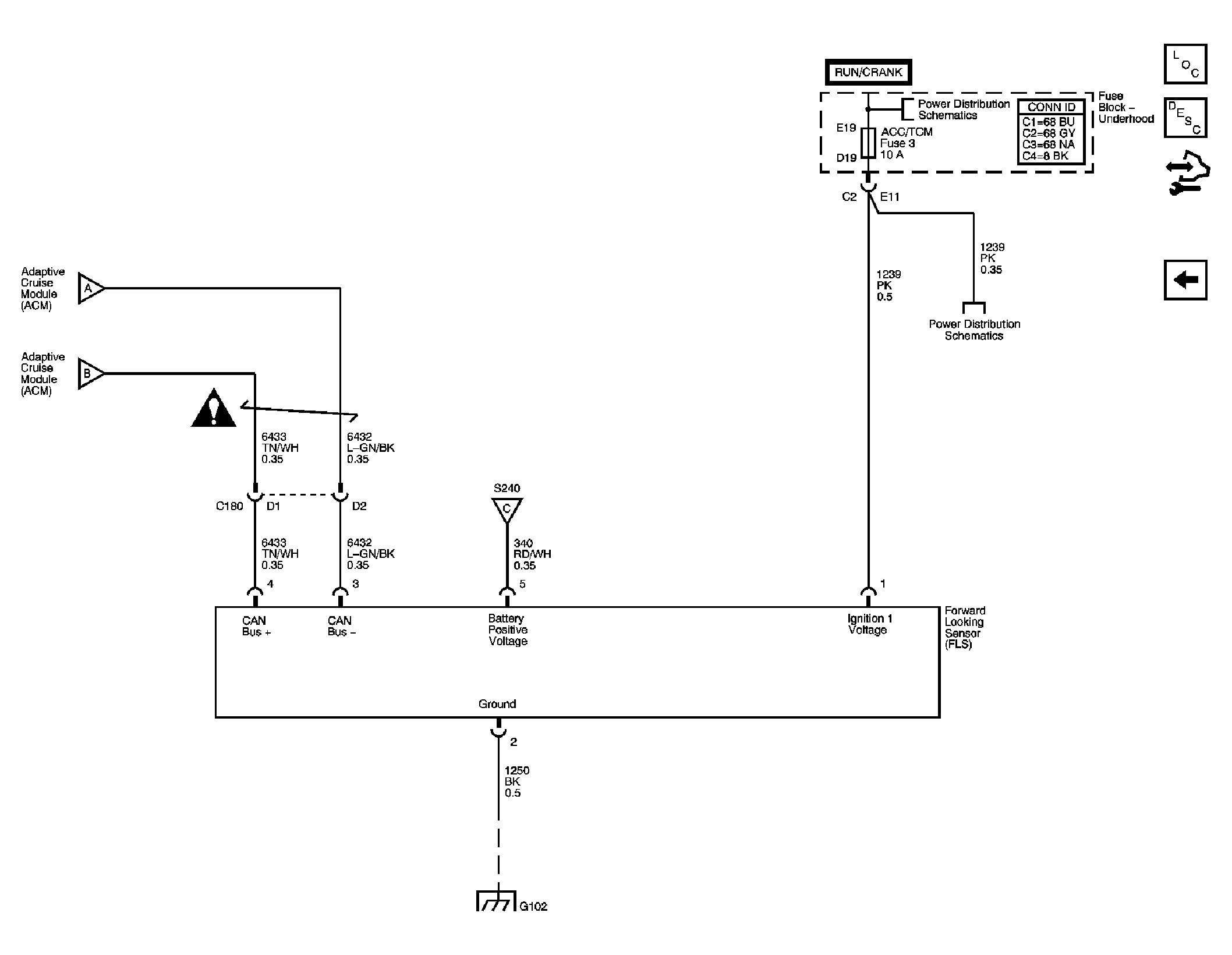

Fig 3: Forward Looking Sensor Schematic

Courtesy of GENERAL MOTORS CORP.
