Automatic Transmission Controls Schematics

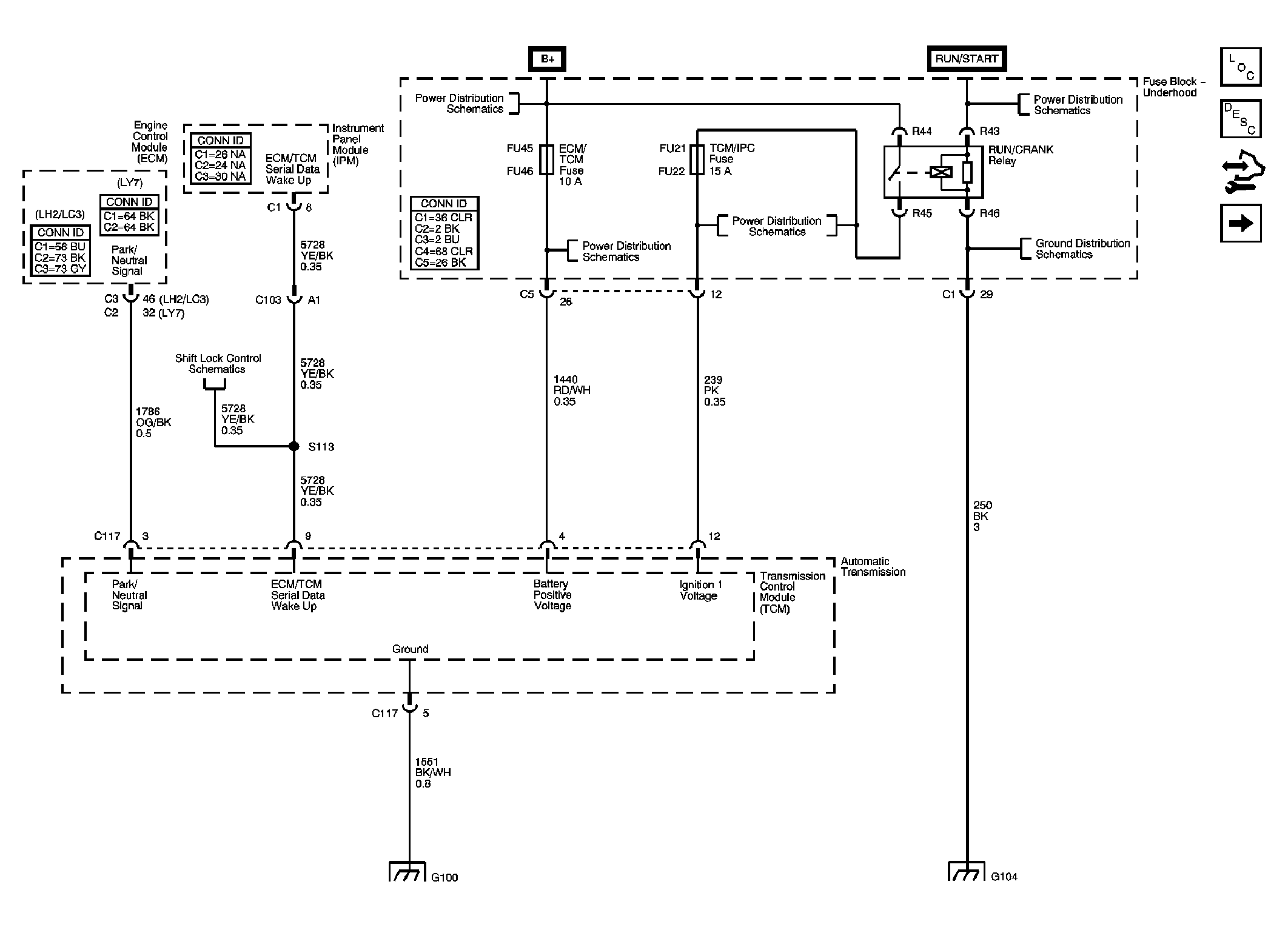

Fig 1: TCM Power, Grounds, ECM, IPM Schematic

Courtesy of GENERAL MOTORS CORP.

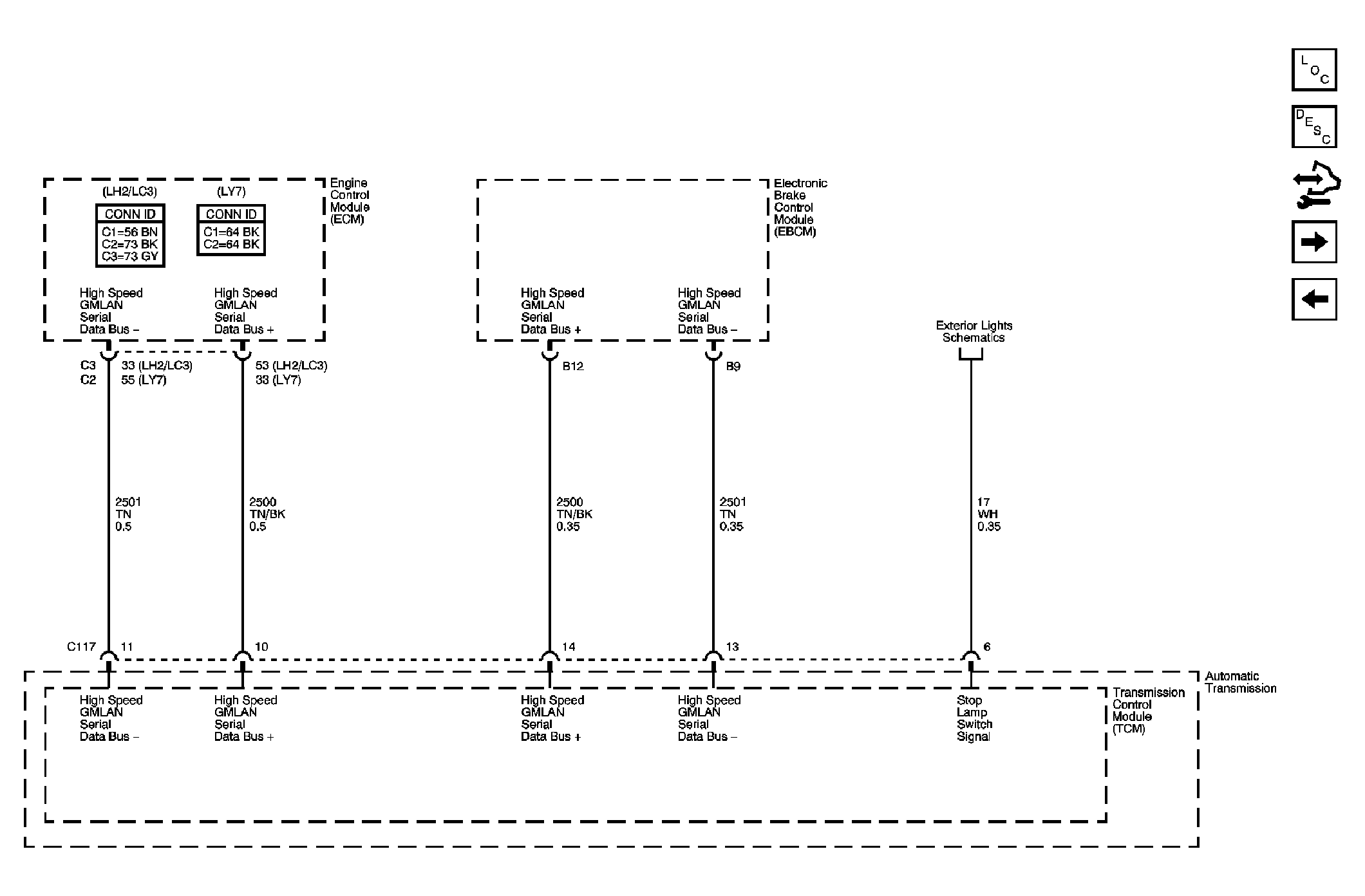

Fig 2: ECM, EBCM Schematic

Courtesy of GENERAL MOTORS CORP.

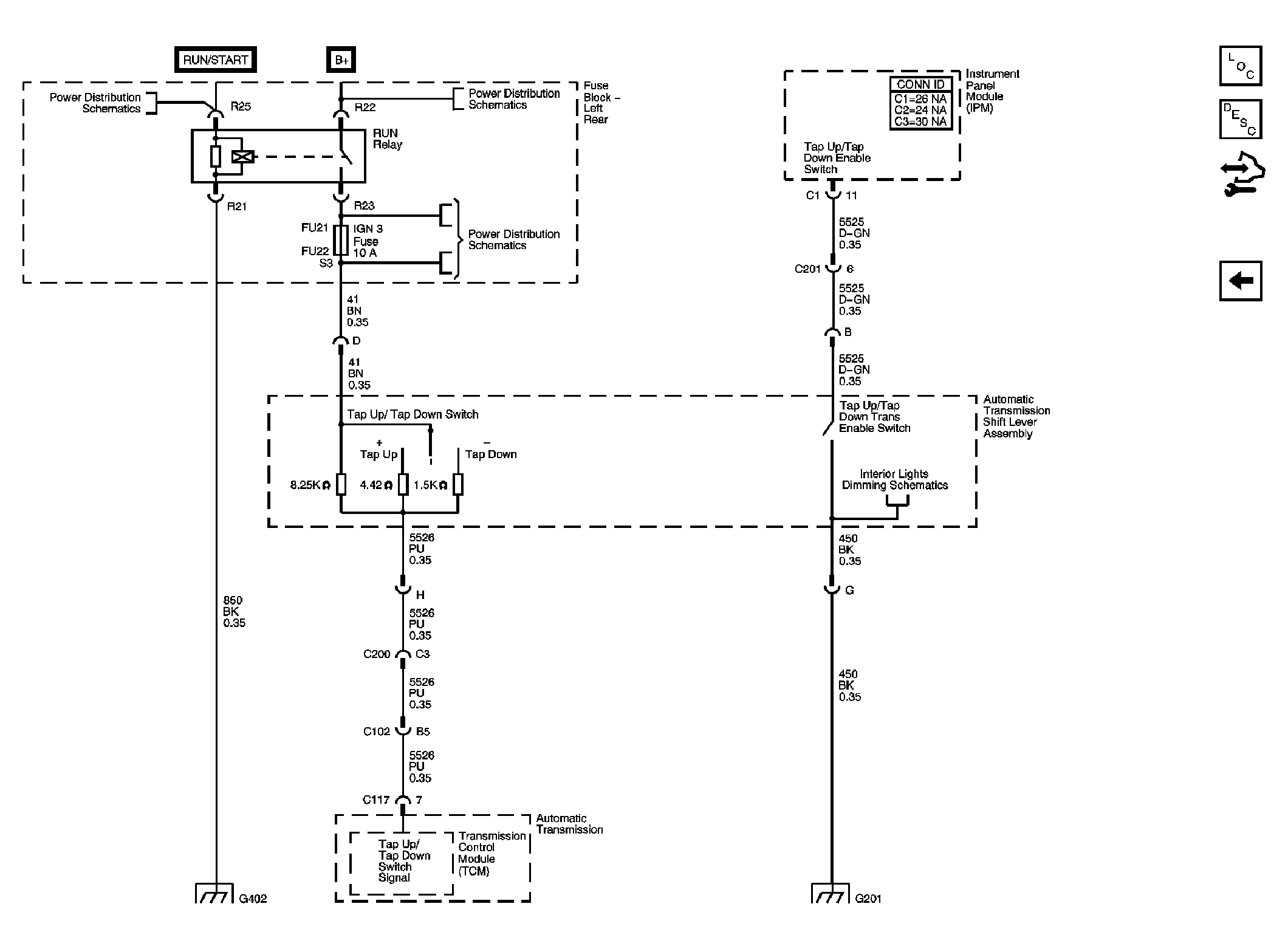

Fig 3: Automatic Transmission Shift Lever Assembly, IPM Schematic

Courtesy of GENERAL MOTORS CORP.
