SIR Schematics

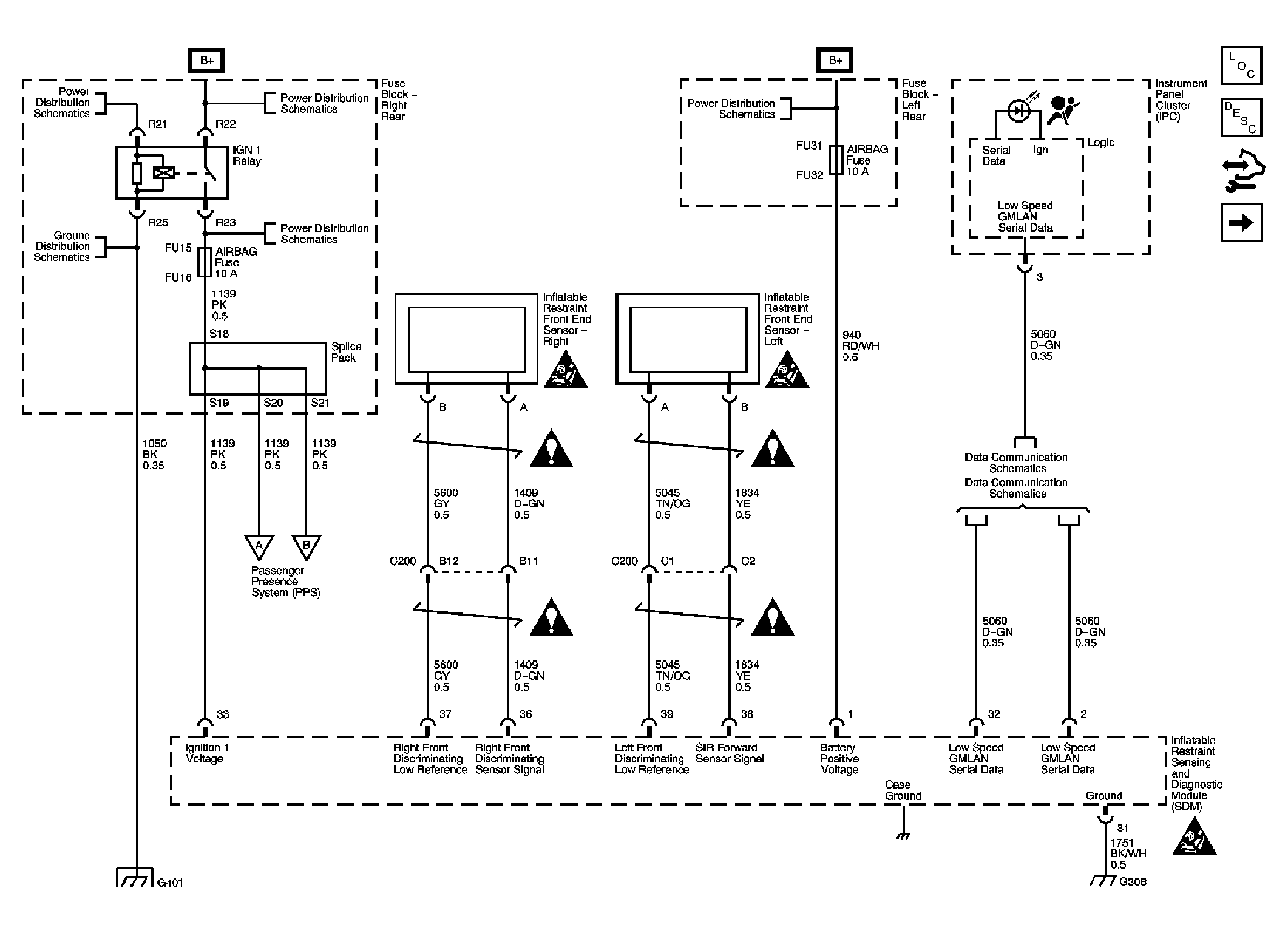

Fig 1: Power, Ground, DLC, Indicator and Front End Sensors Schematic
GM1822955Courtesy of GENERAL MOTORS CORP.

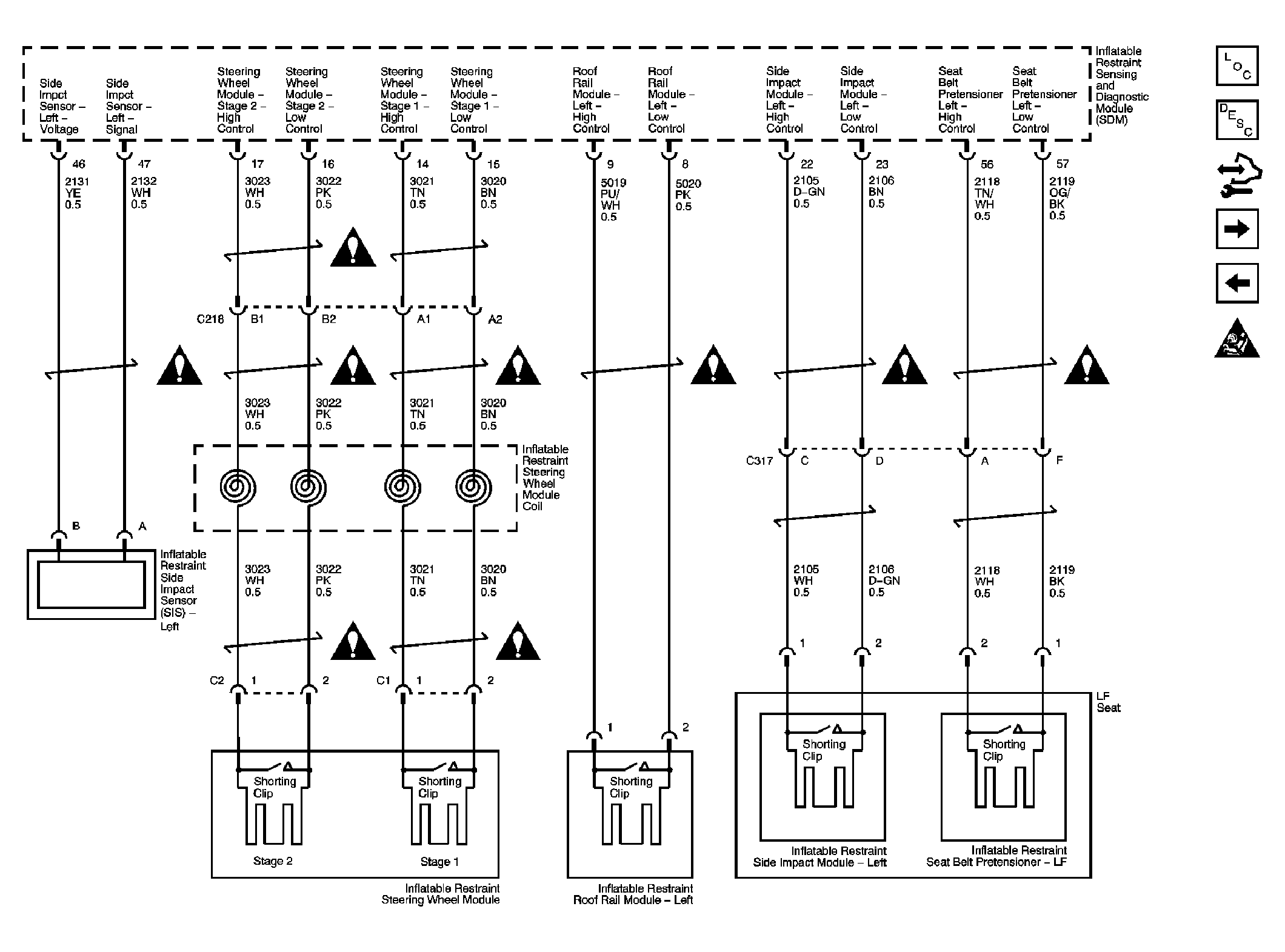

Fig 2: Left Side Modules and Sensors Schematic
GM1822957Courtesy of GENERAL MOTORS CORP.

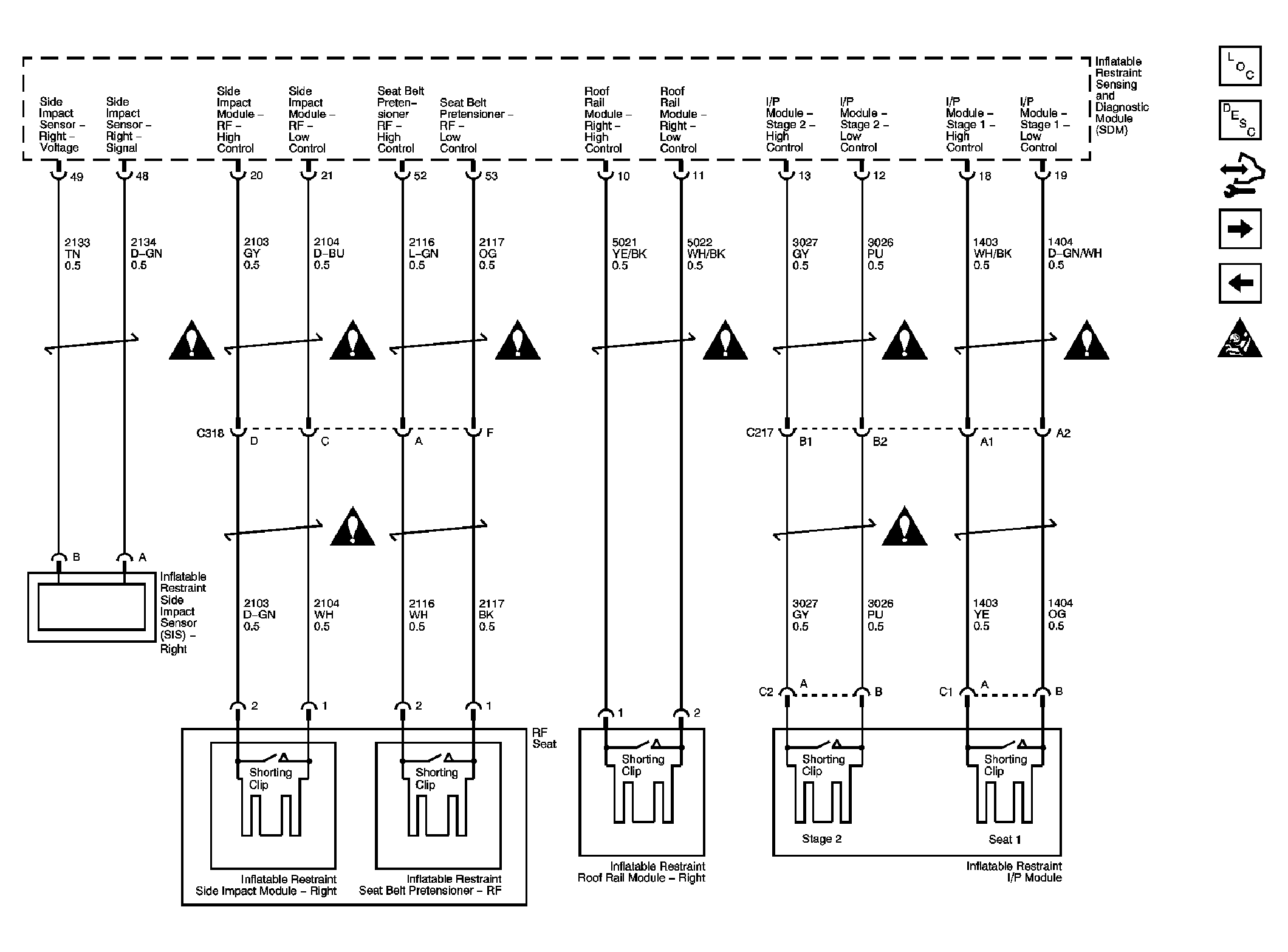

Fig 3: Right Side Modules and Sensors Schematic
GM1822963Courtesy of GENERAL MOTORS CORP.

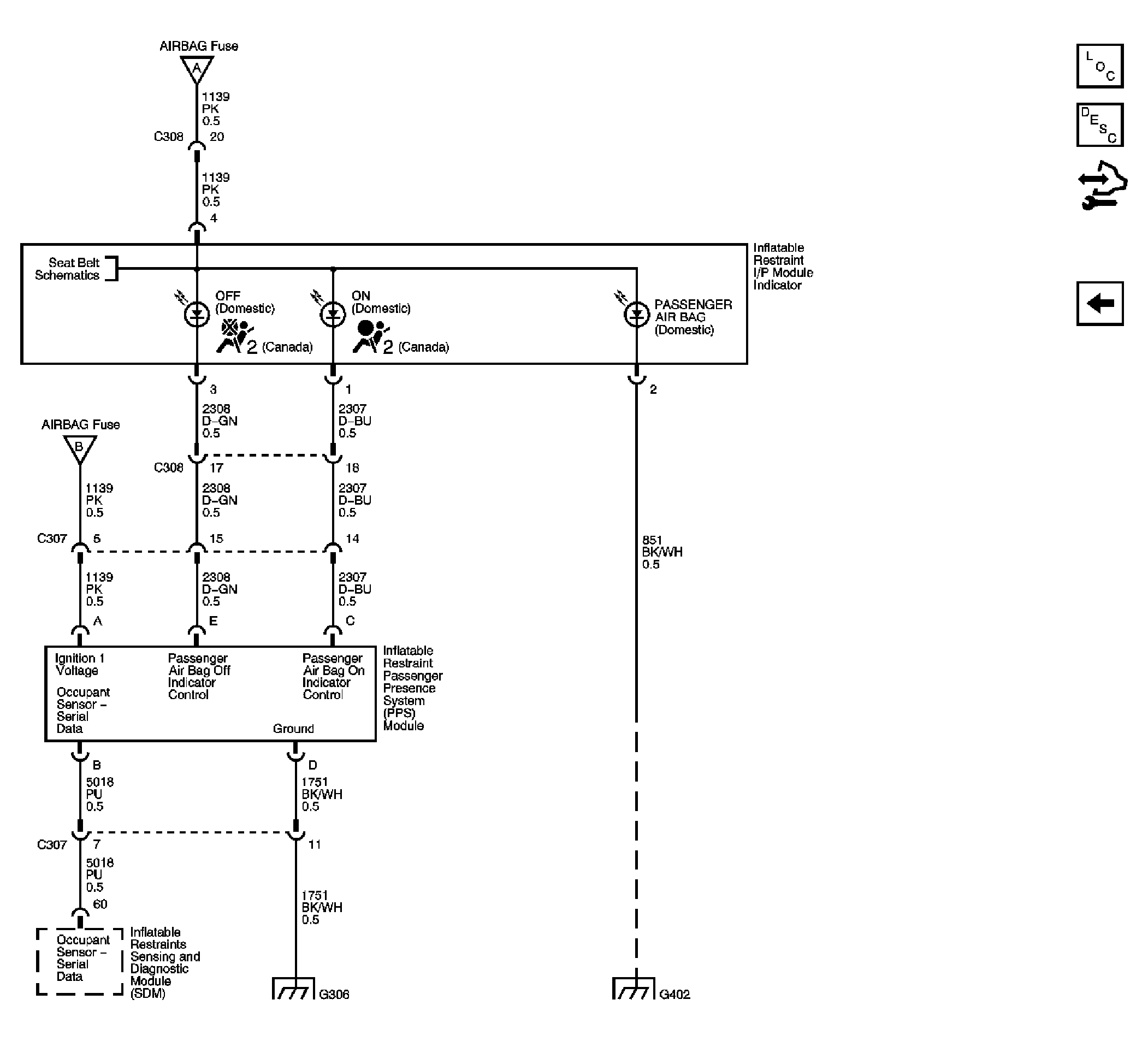

Fig 4: Passenger Presence System (PPS) Schematic
GM1822970Courtesy of GENERAL MOTORS CORP.
