HVAC Schematics

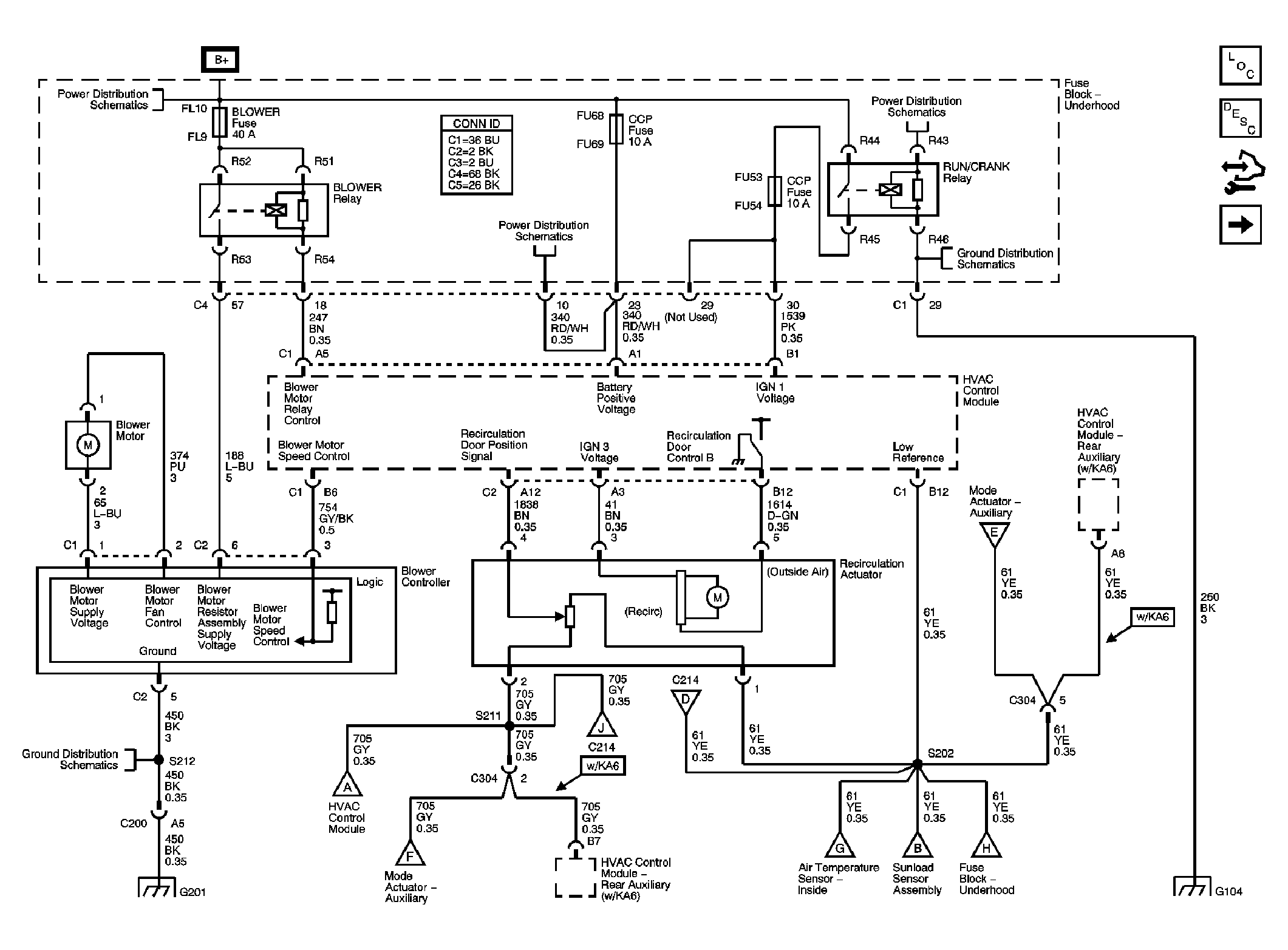

Fig 1: Power, Ground, Blower Motor, Recirculation Actuator (LHD) Schematic

Courtesy of GENERAL MOTORS CORP.

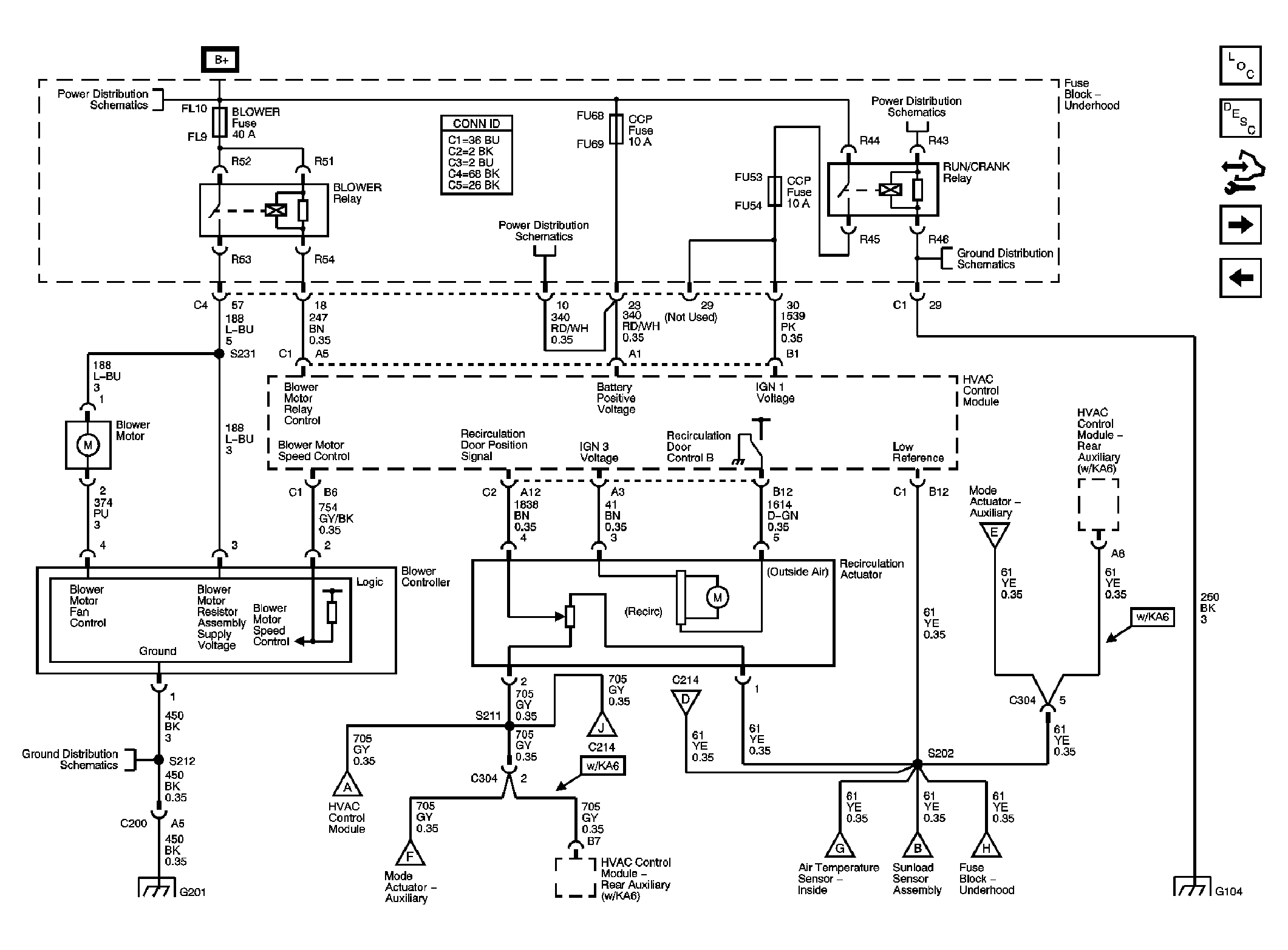

Fig 2: Power, Ground, Blower Motor, Recirculation Actuator (RHD) Schematic

Courtesy of GENERAL MOTORS CORP.

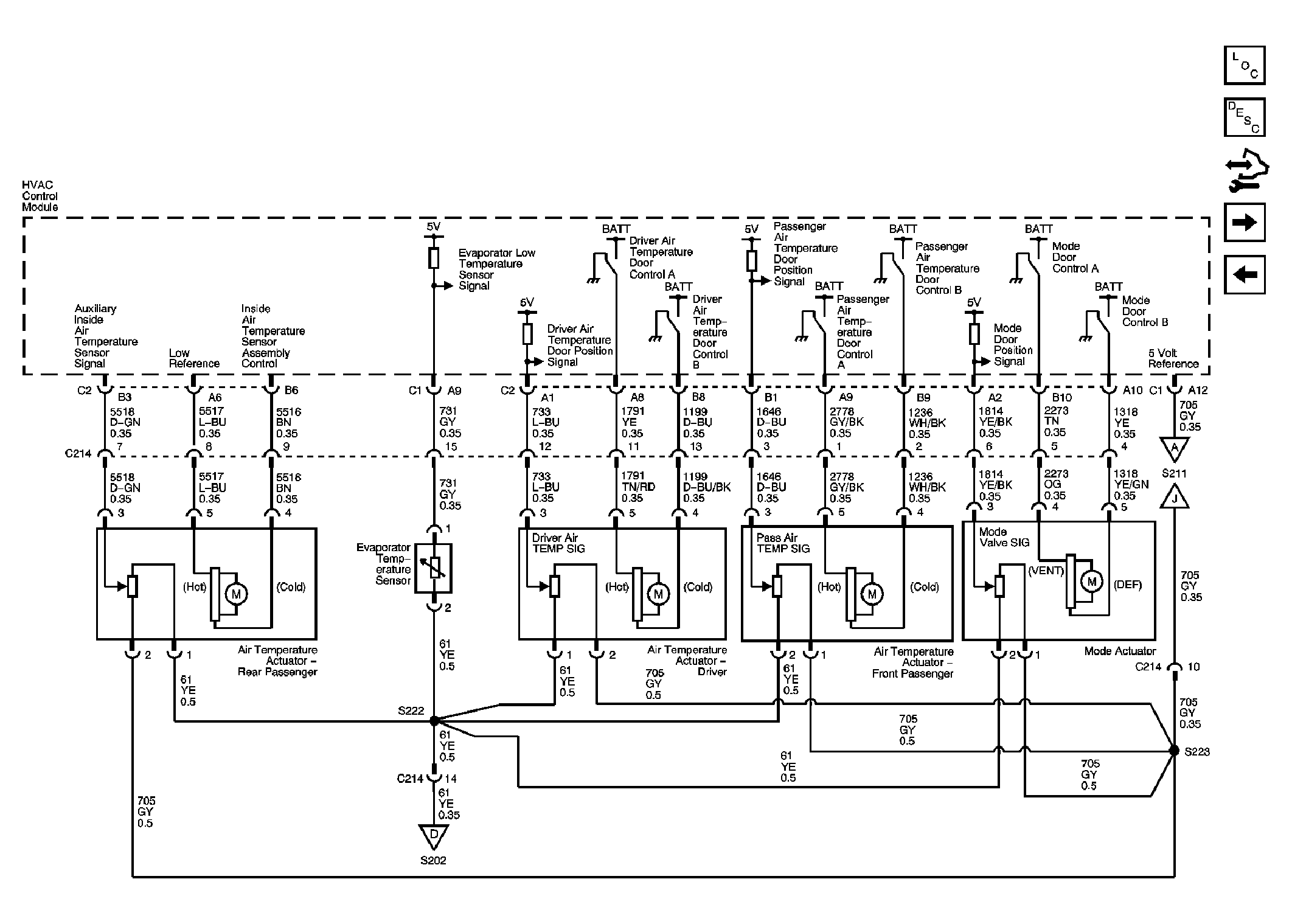

Fig 3: Air Delivery, EVAP Temperature Sensor, Rear Passenger Air Temperature Actuator Schematic

Courtesy of GENERAL MOTORS CORP.

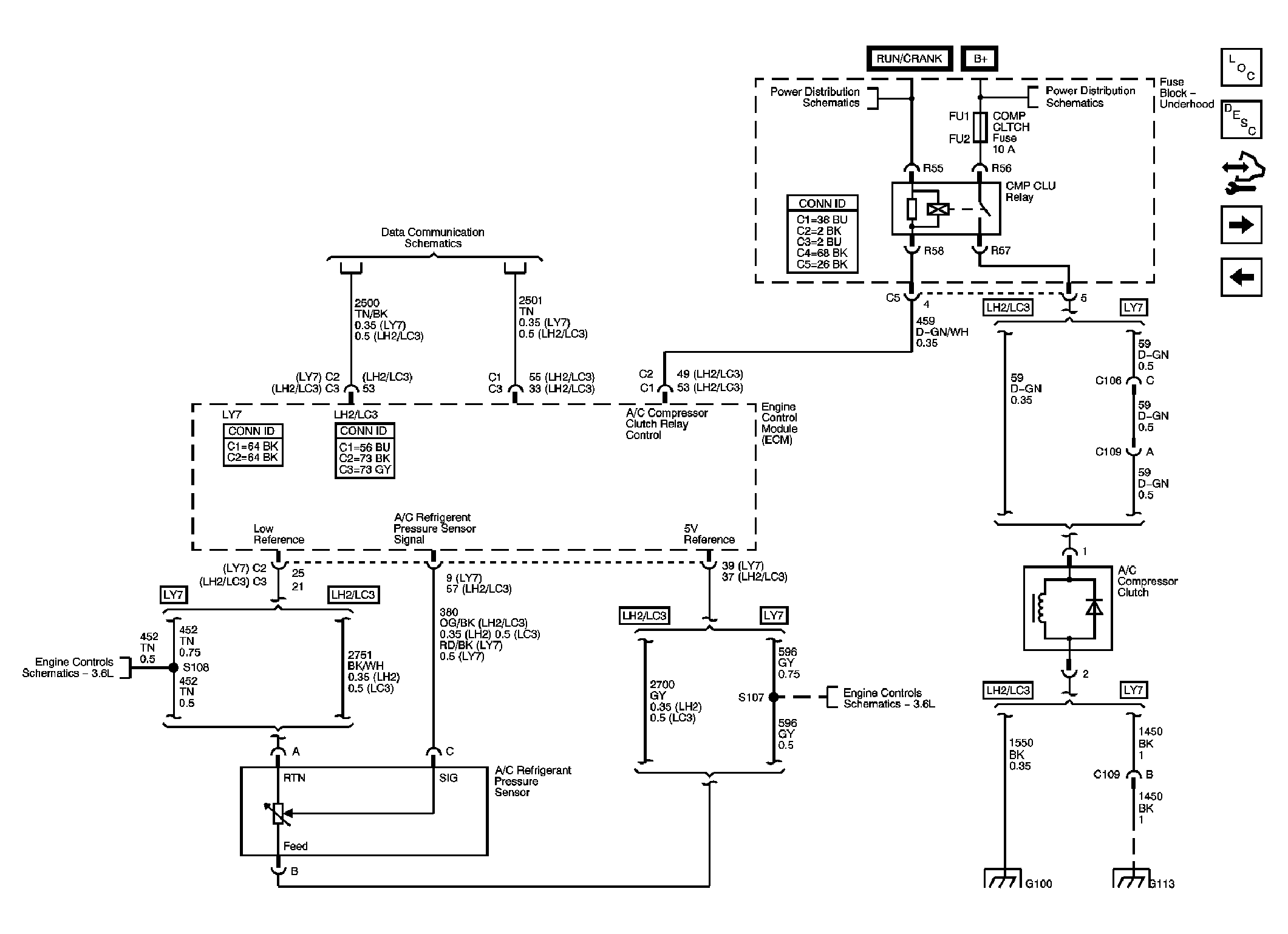

Fig 4: A/C Refrigerant Pressure Sensor and Compressor Clutch Schematic

Courtesy of GENERAL MOTORS CORP.

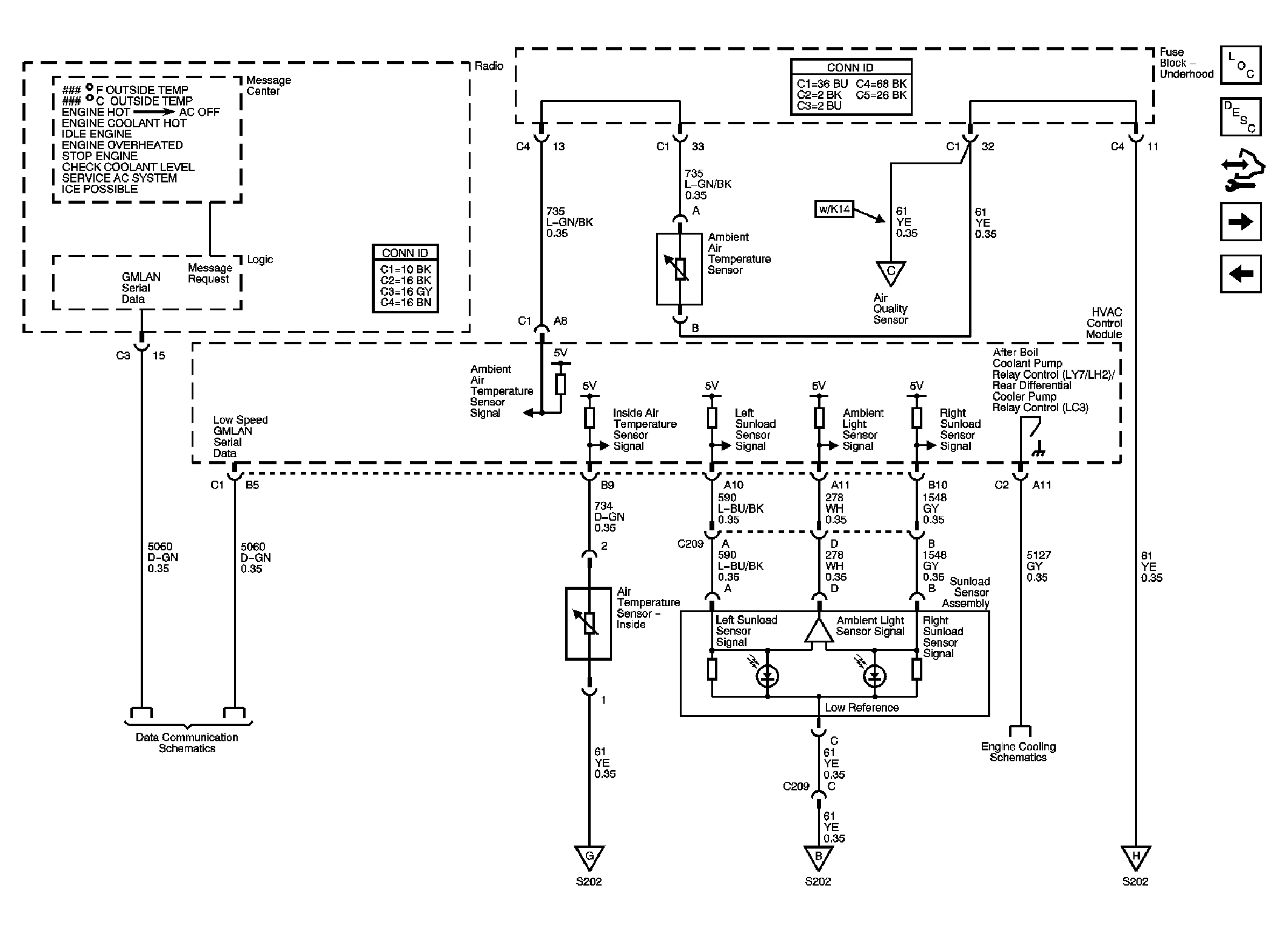

Fig 5: DLC, Temperature Controls, Sunload Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

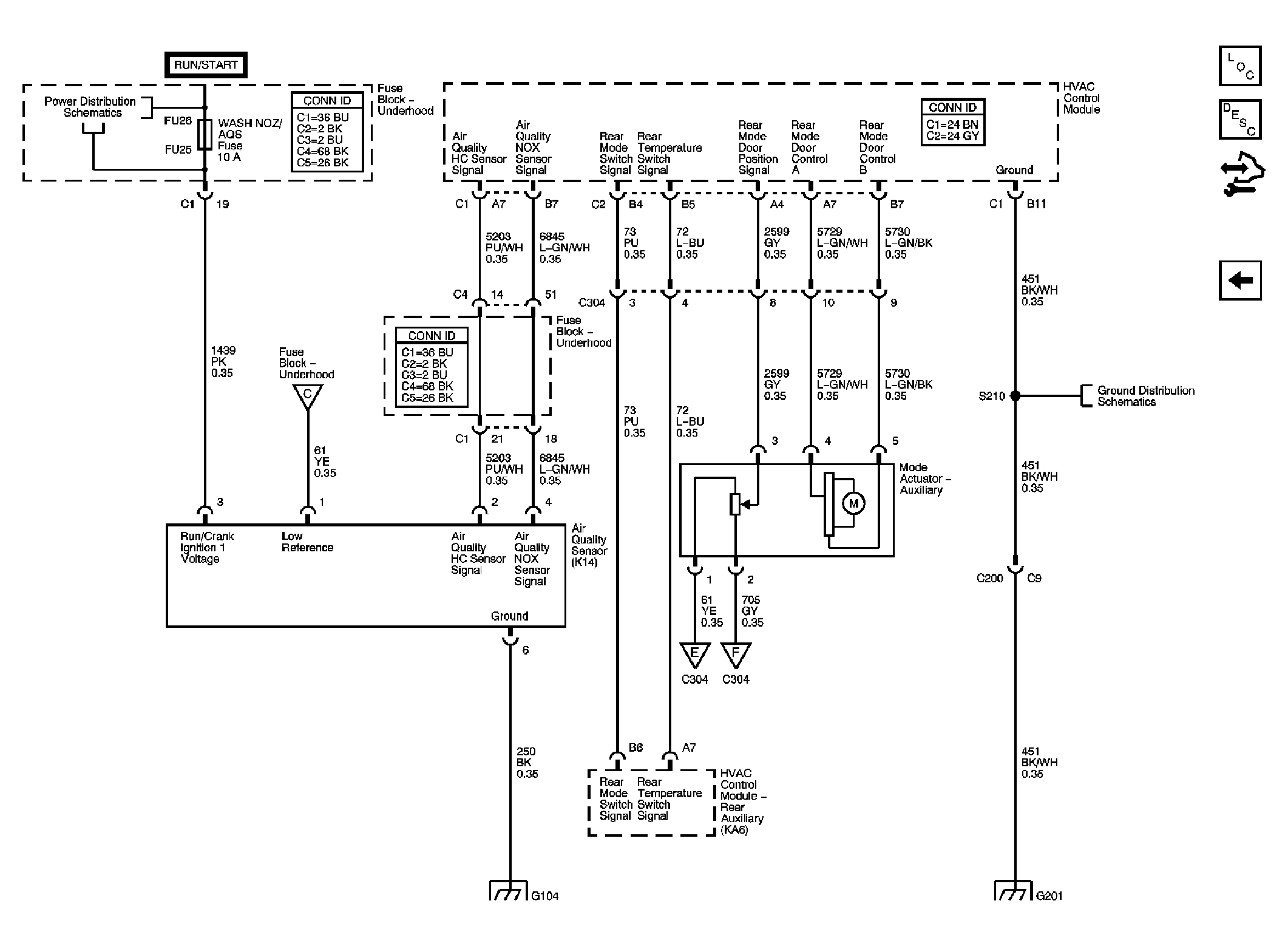

Fig 6: Air Quality Sensor, Rear Mode Motor Schematic

Courtesy of GENERAL MOTORS CORP.
