HVAC Component Views

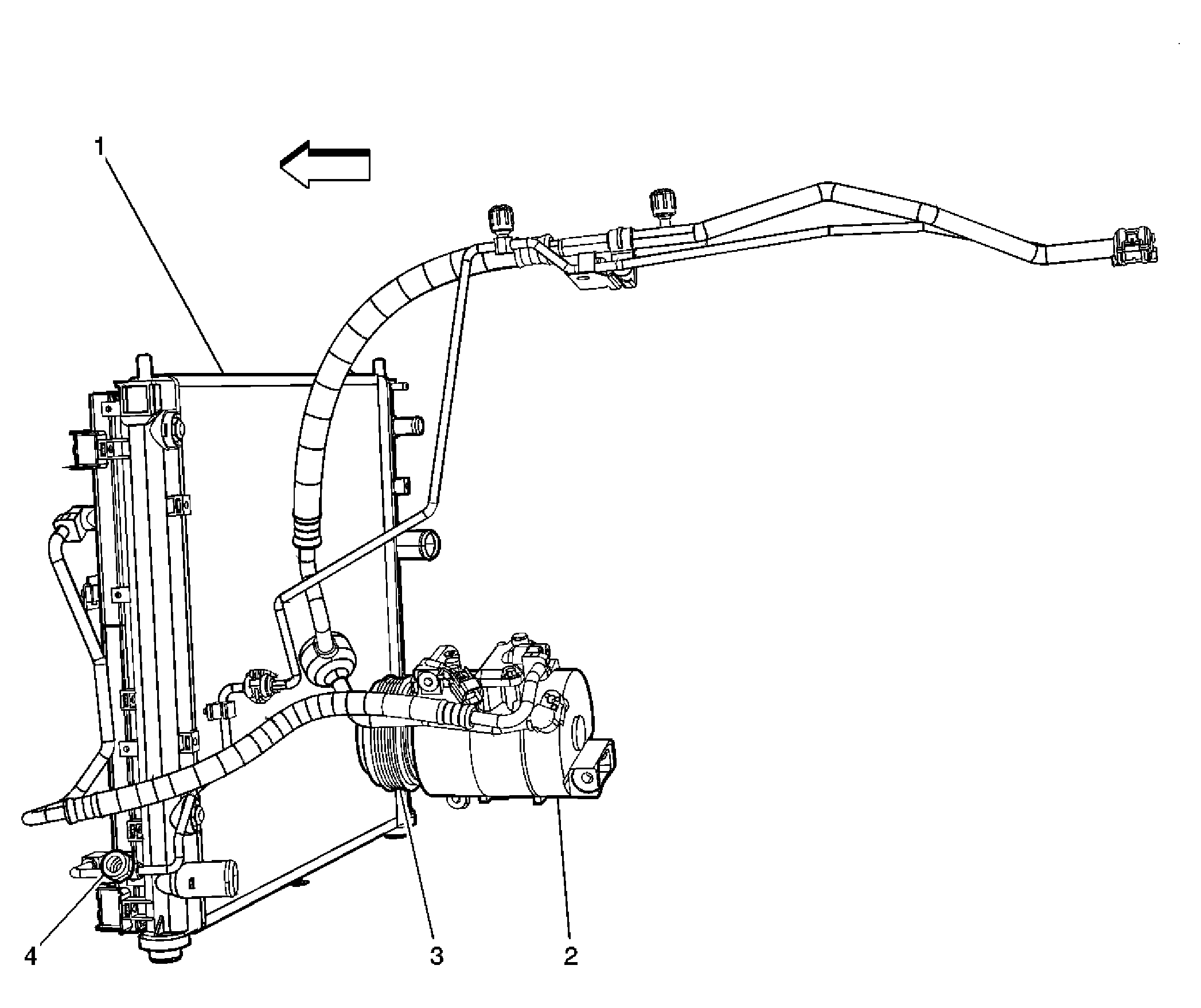

Fig 1: Outside A/C Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Condenser
2	A/C Compressor
3	A/C Compressor Clutch
4	A/C Refrigerant Pressure Sensor

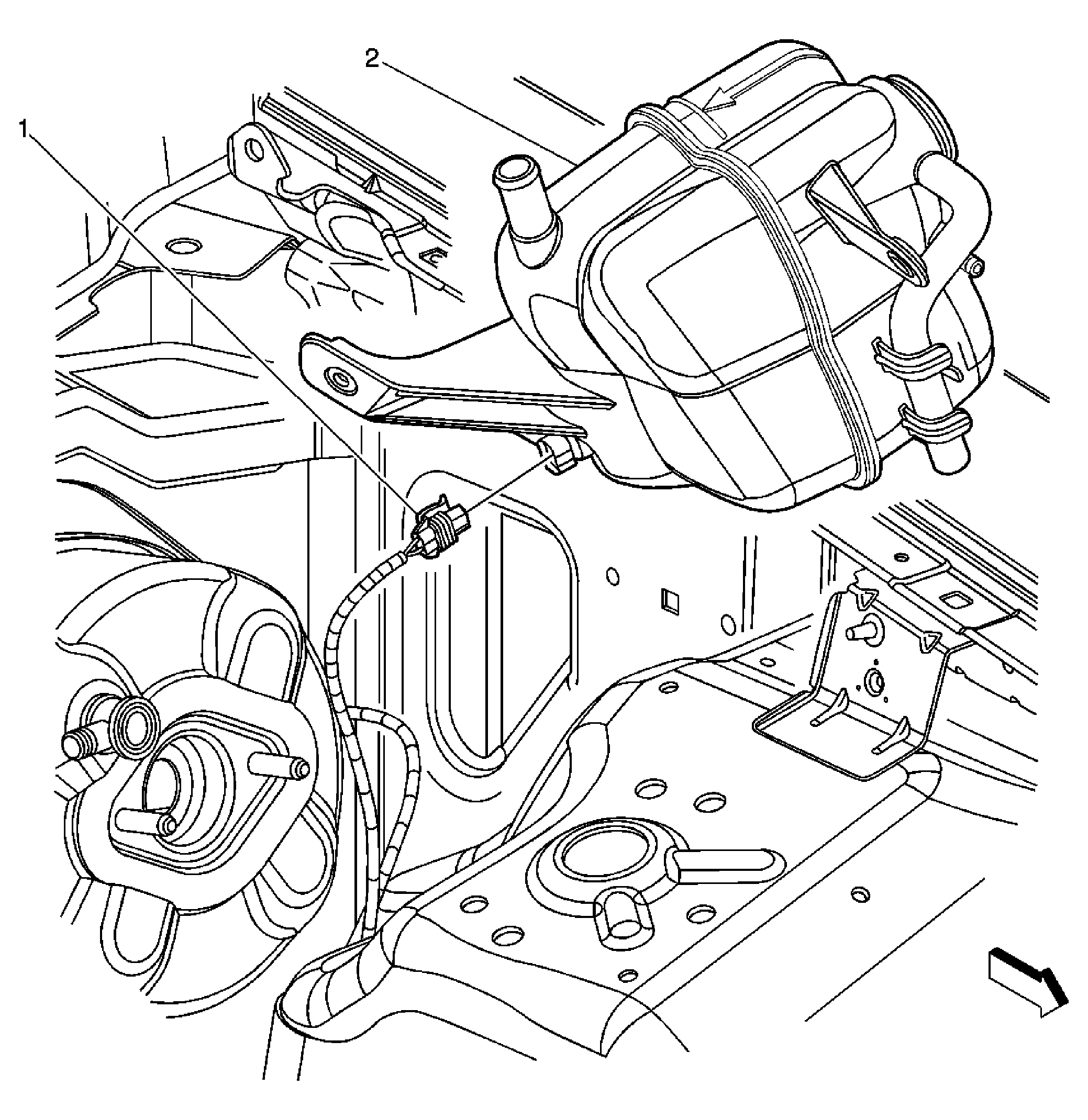

Fig 2: Coolant Level Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
2	Coolant Recovery Reservoir

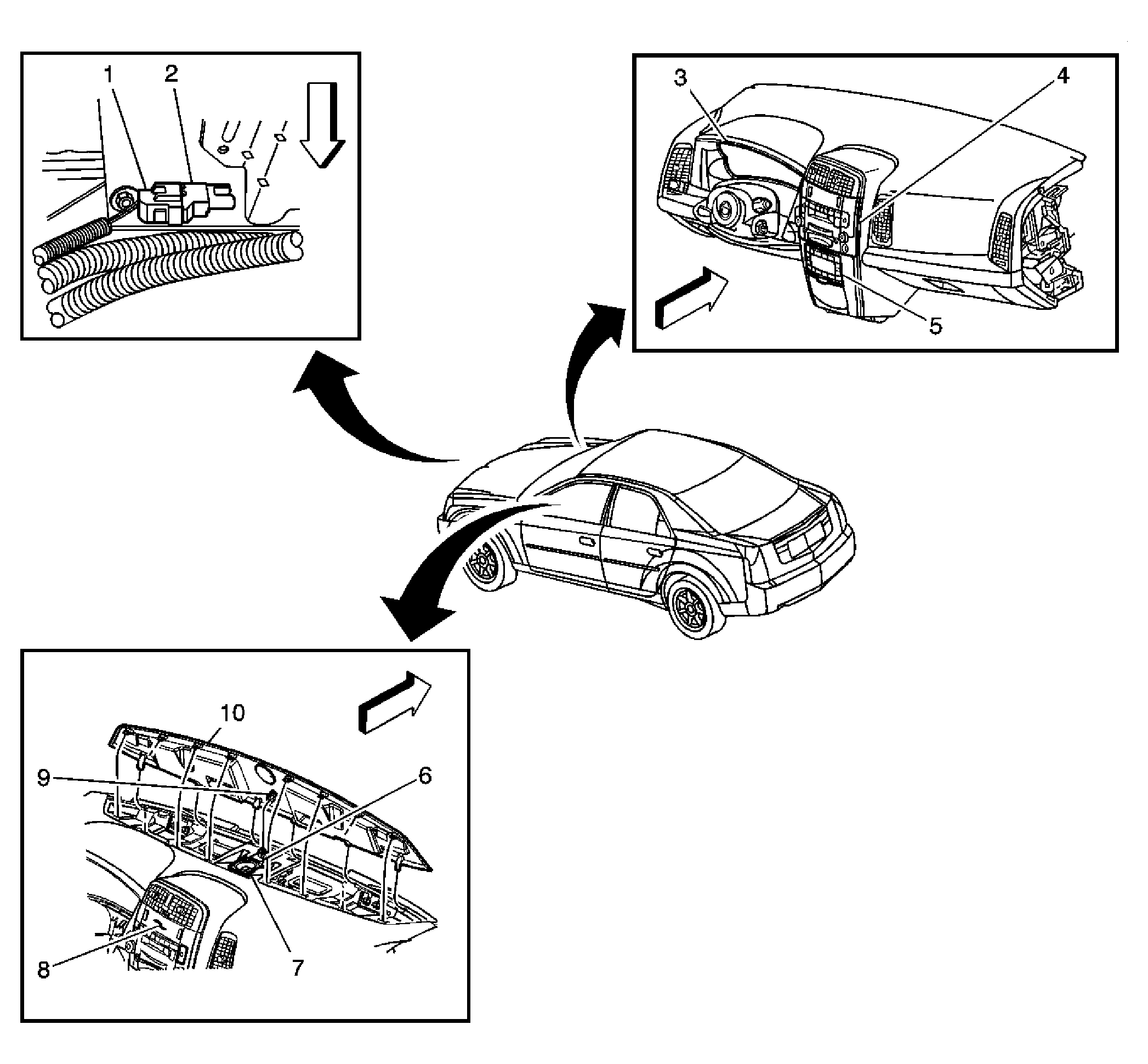

Fig 3: Ambient Air Temperature Sensor, Sunload Sensor and HVAC Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor Connector
2	Ambient Air Temperature Sensor
3	Instrument Panel Cluster (IPC) (LHD shown, RHD similar)
4	Radio
5	HVAC Control Module
6	Sunload Sensor Connector
7	Speaker - Front Center (U57)
8	Radio
9	Sunload Sensor
10	Trim Panel - I/P Center

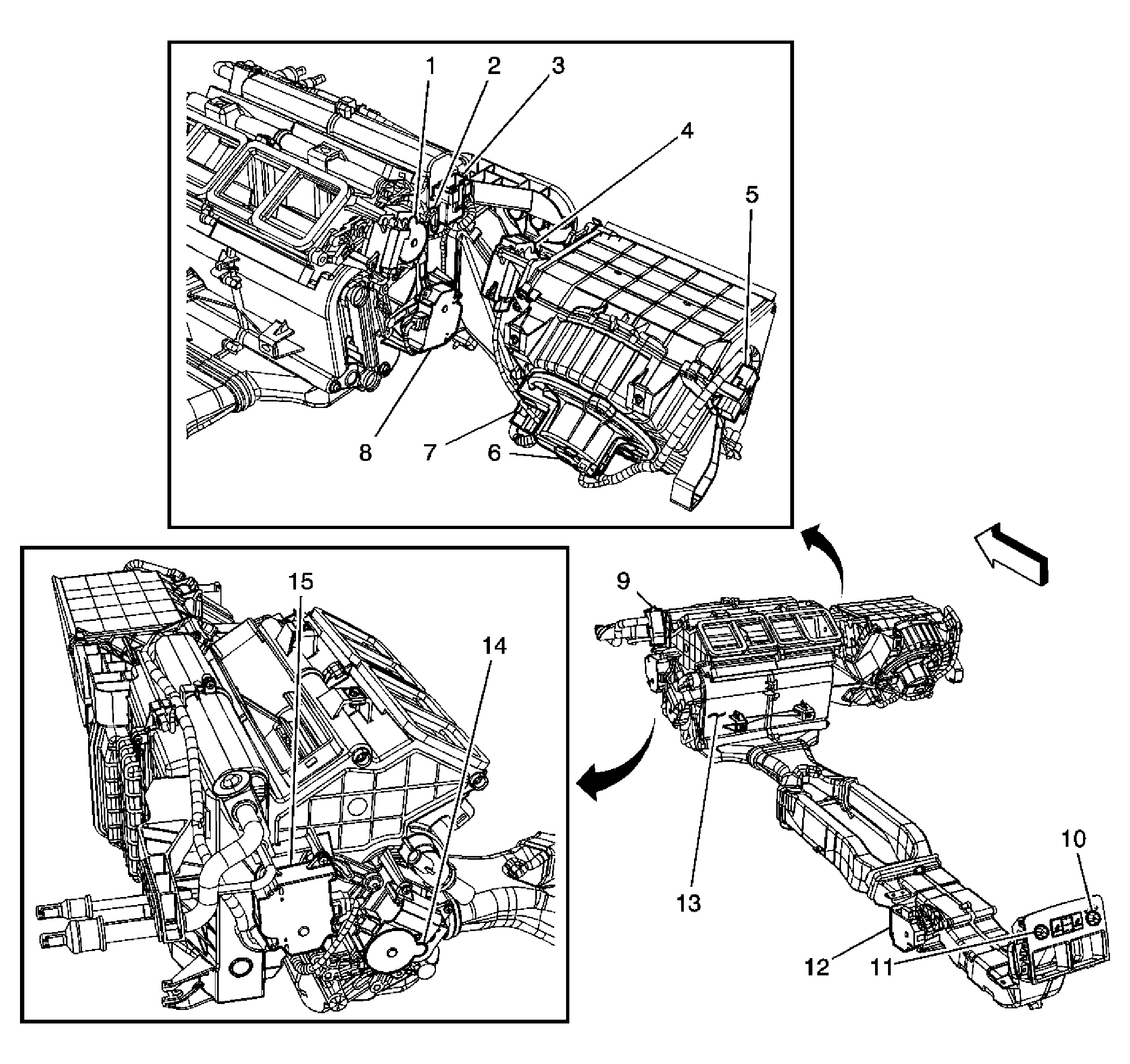

Fig 4: Interior A/C Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Evaporator Temperature Sensor
3	C214
4	Recirculation Actuator
5	C200
6	Blower Motor
7	Blower Controller
8	Air Temperature Actuator - Front Passenger
9	Thermostatic Expansion Valve
10	HVAC Control Module Mode Switch - Rear Auxiliary
11	HVAC Control Module Temperature Switch - Rear Auxiliary
12	Mode Actuator - Auxiliary
13	HVAC Box
14	Air Temperature Actuator - Rear Passenger
15	Air Temperature Actuator - Driver

Fig 5: I/P Cluster and Trim Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dash Board
2	Instrument Panel Cluster (IPC)
3	Ignition Mode Switch
4	Air Temperature Sensor - Inside
5	I/P Dimmer Switch/HUD Switches w/ UV6

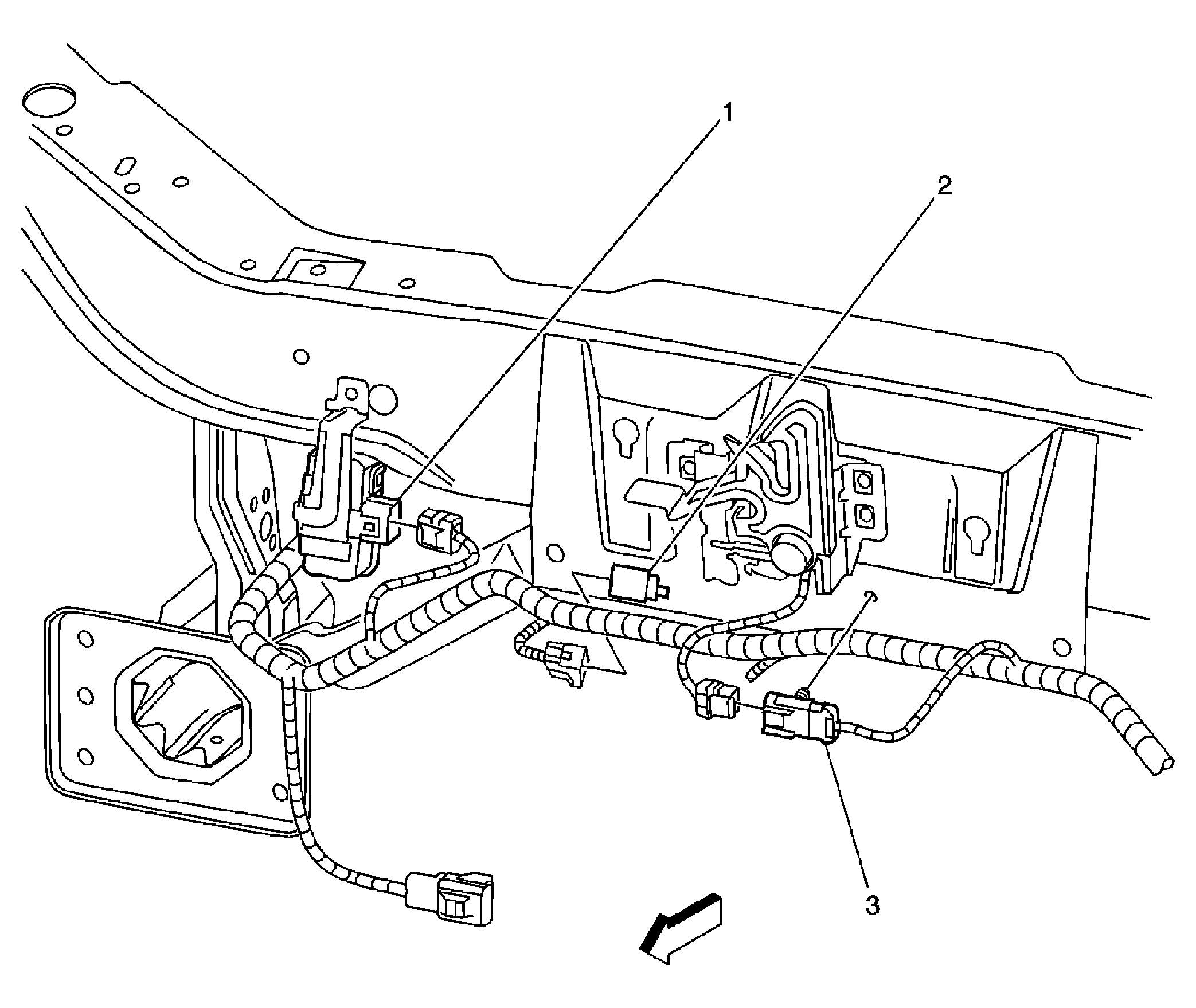

Fig 6: Center of the Core Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Quality Sensor (K14)
2	Ambient Air Temperature Sensor
3	Hood Ajar Switch Connector
