Automatic Transmission Electronic Component Views
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 42 |
Output Speed Sensor (OSS) |
| 44 |
Input Speed Sensor (ISS) |
| 55 |
Transmission Fluid Temperature (TFT) Sensor - Part of Automatic Transmission Wiring Harness (55) |
| 352 |
TCC PWM Solenoid Valve |
| 357 |
Pressure Control Solenoid (PCS) Assembly |
| 368 |
1-2 Shift Solenoid (SS) Valve Assembly |
| 369 |
2-3 Shift Solenoid (SS) Valve Assembly |
| 376 |
4-5 Shift Solenoid (SS) Valve Assembly |
| 602 |
Transmission Manual Shift Shaft Switch Assembly |

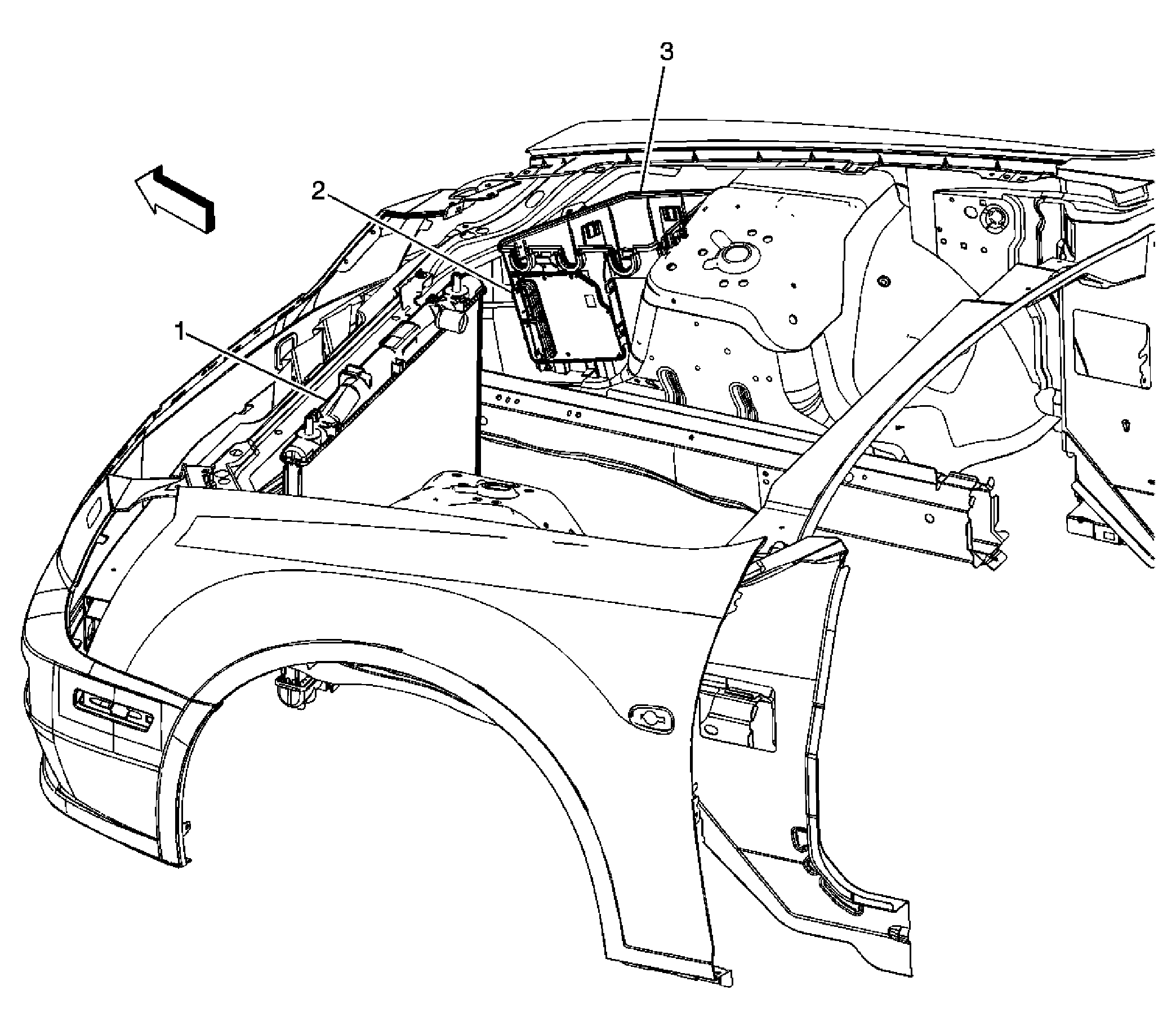

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Radiator |
| 2 |
Transmission Control Module (TCM) |
| 3 |
Fuse Block-Underhood Bracket |
