Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

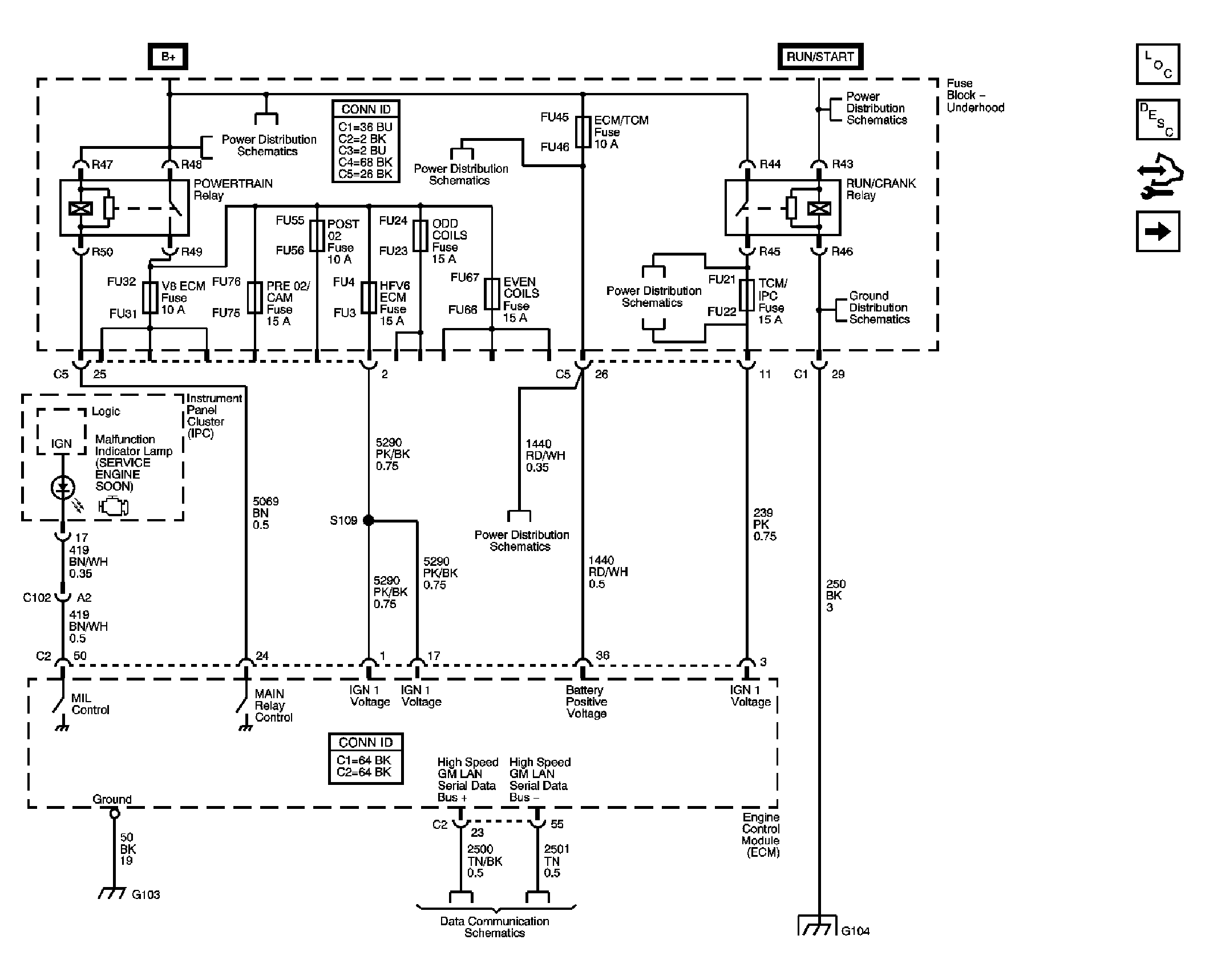

Fig 1: ECM Power, Ground, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

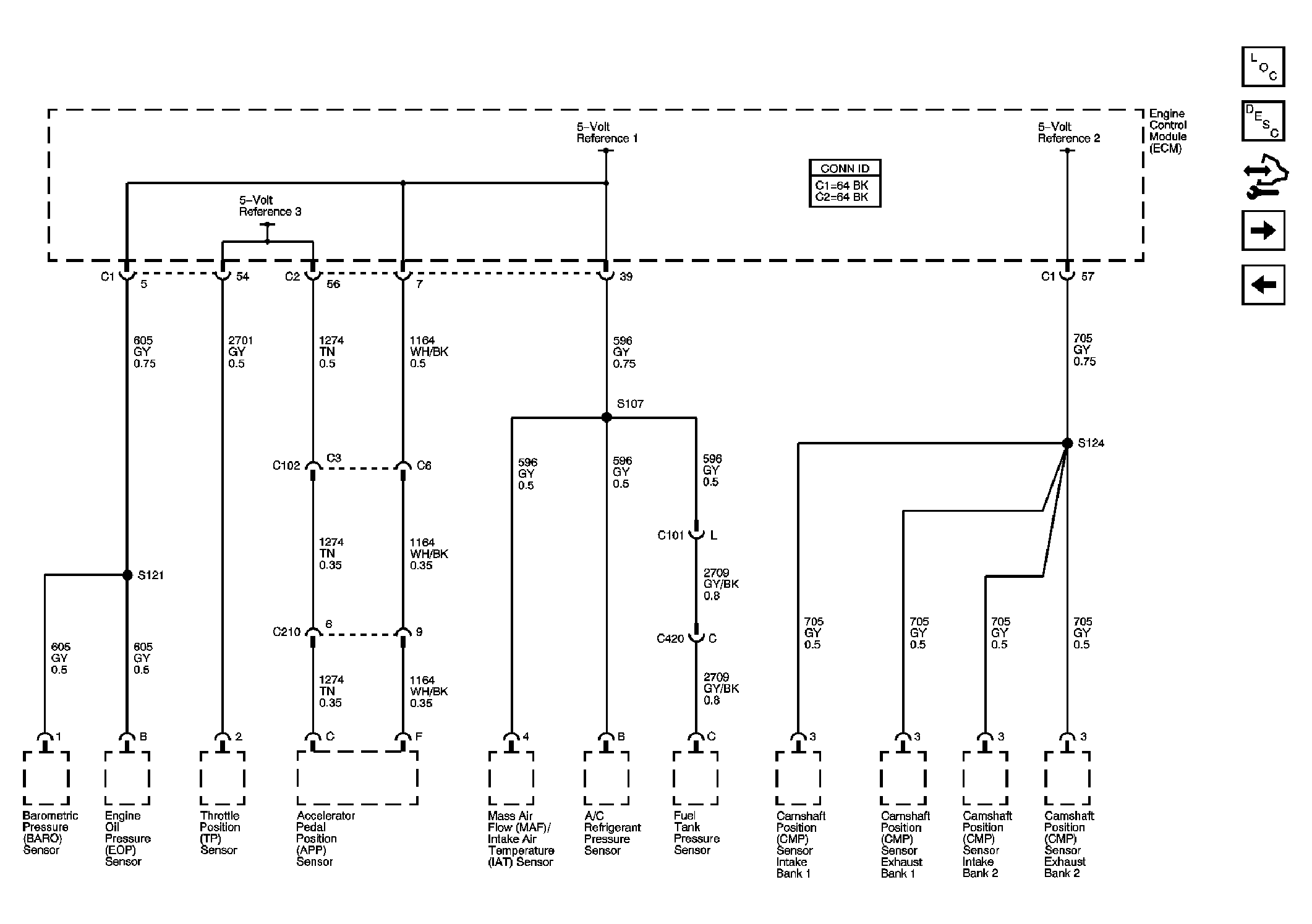

Fig 2: Engine Data Sensors - 5-Volt Reference Bus Schematic

Courtesy of GENERAL MOTORS CORP.

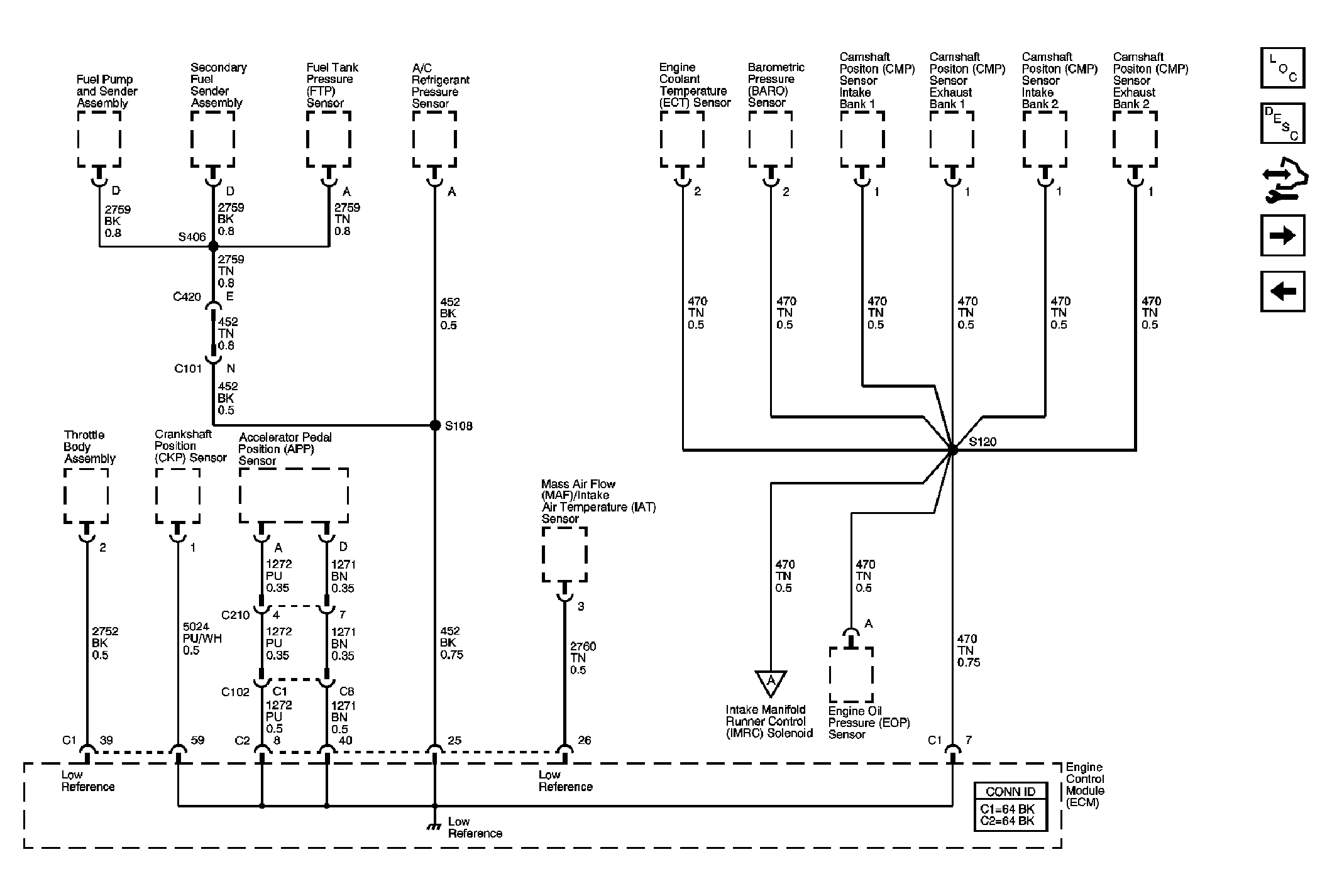

Fig 3: Engine Data Sensors - Low Reference Bus Schematic

Courtesy of GENERAL MOTORS CORP.

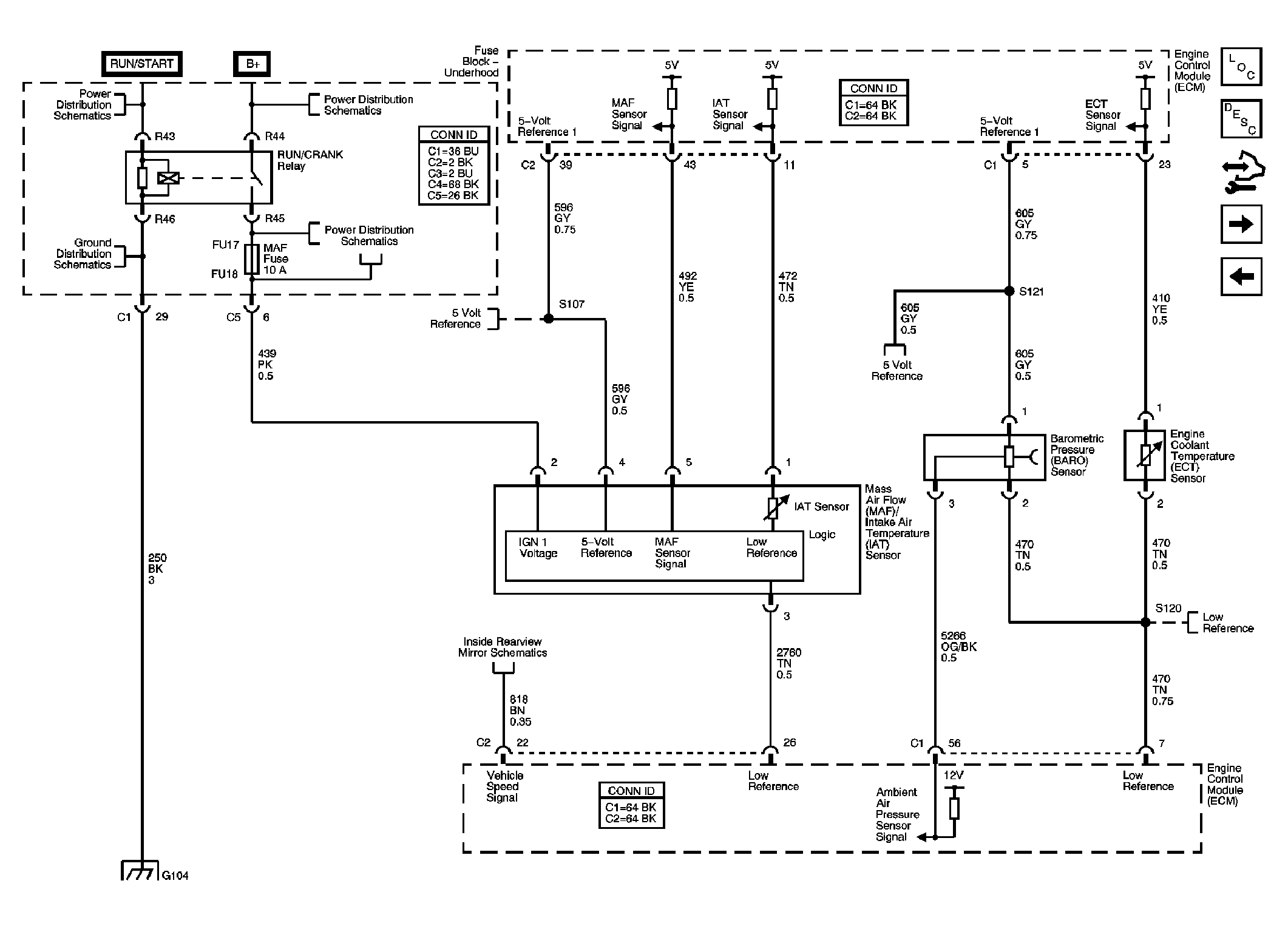

Fig 4: Engine Data Sensors - Pressure, Temperature, MAF, VSS Schematic

Courtesy of GENERAL MOTORS CORP.

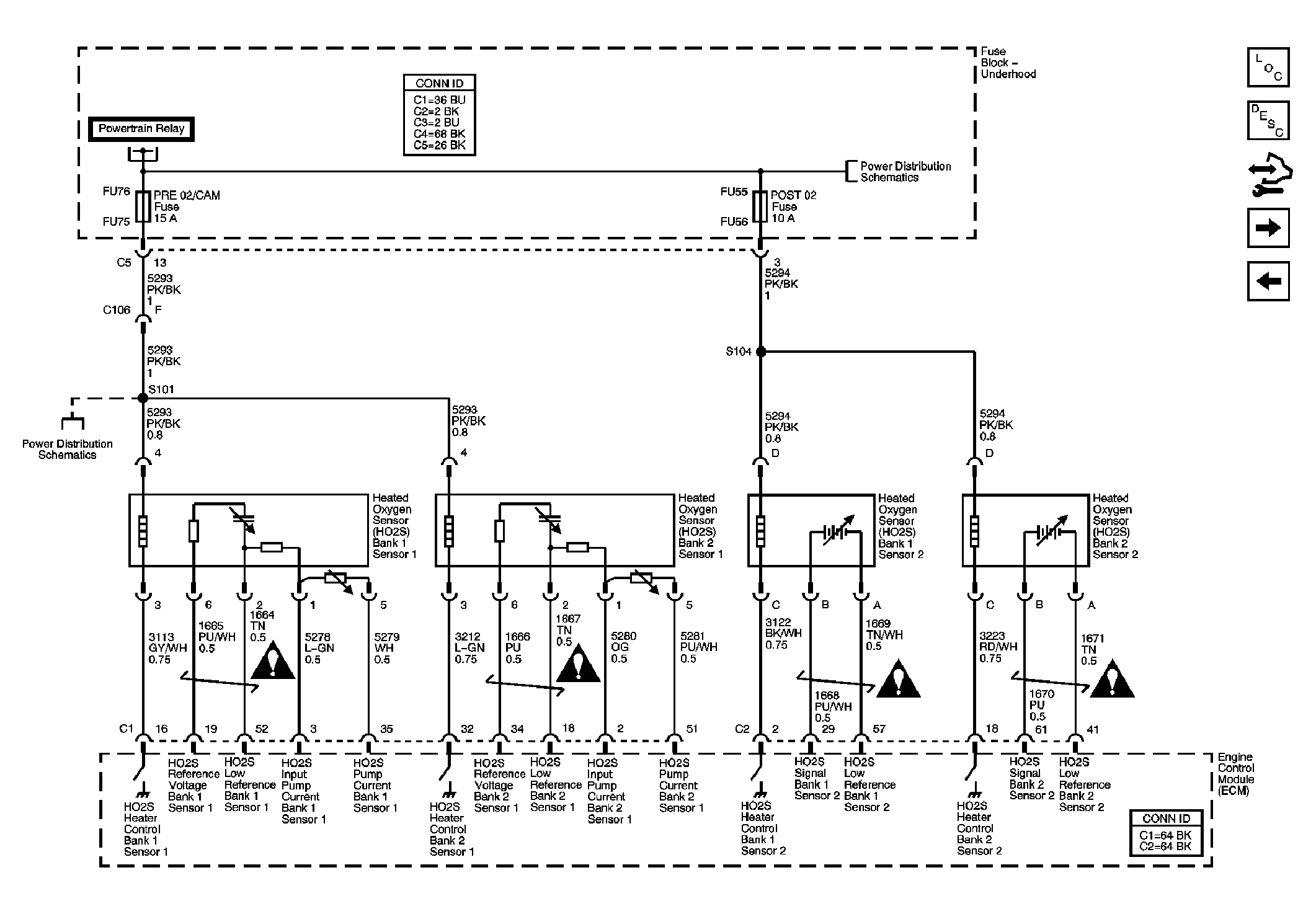

Fig 5: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

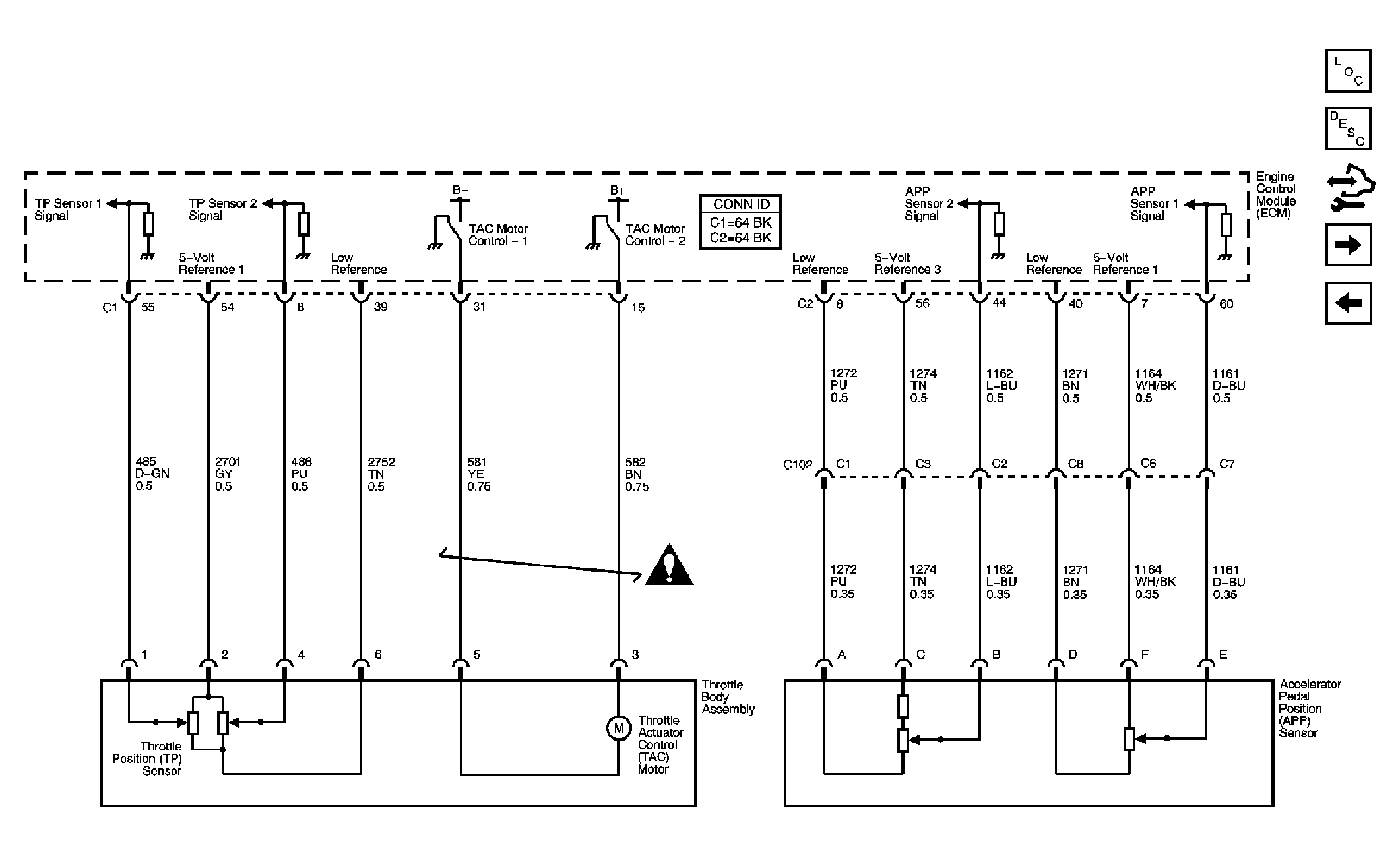

Fig 6: Engine Data Sensors - Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

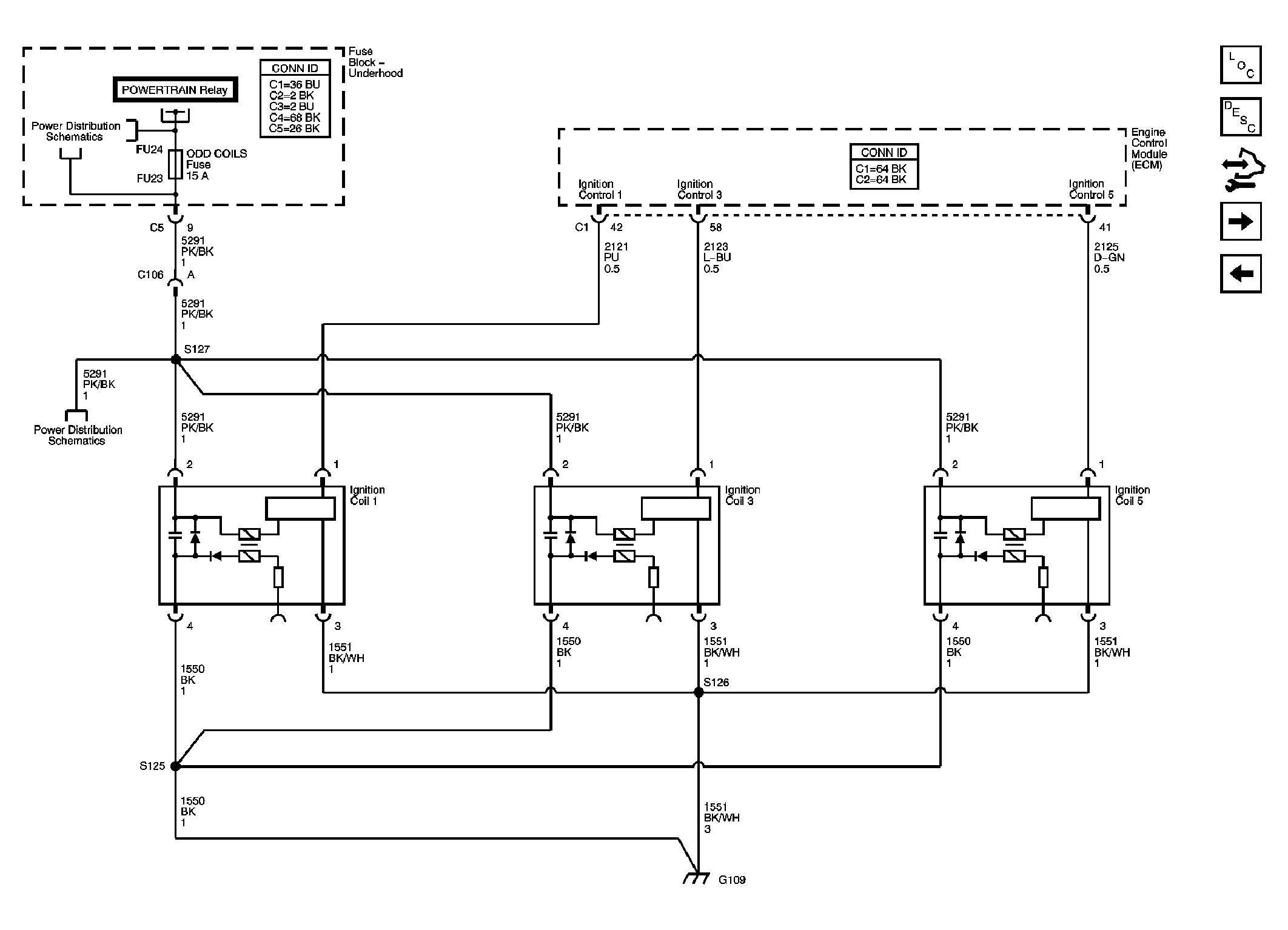

Fig 7: Ignition Controls - Bank 1 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

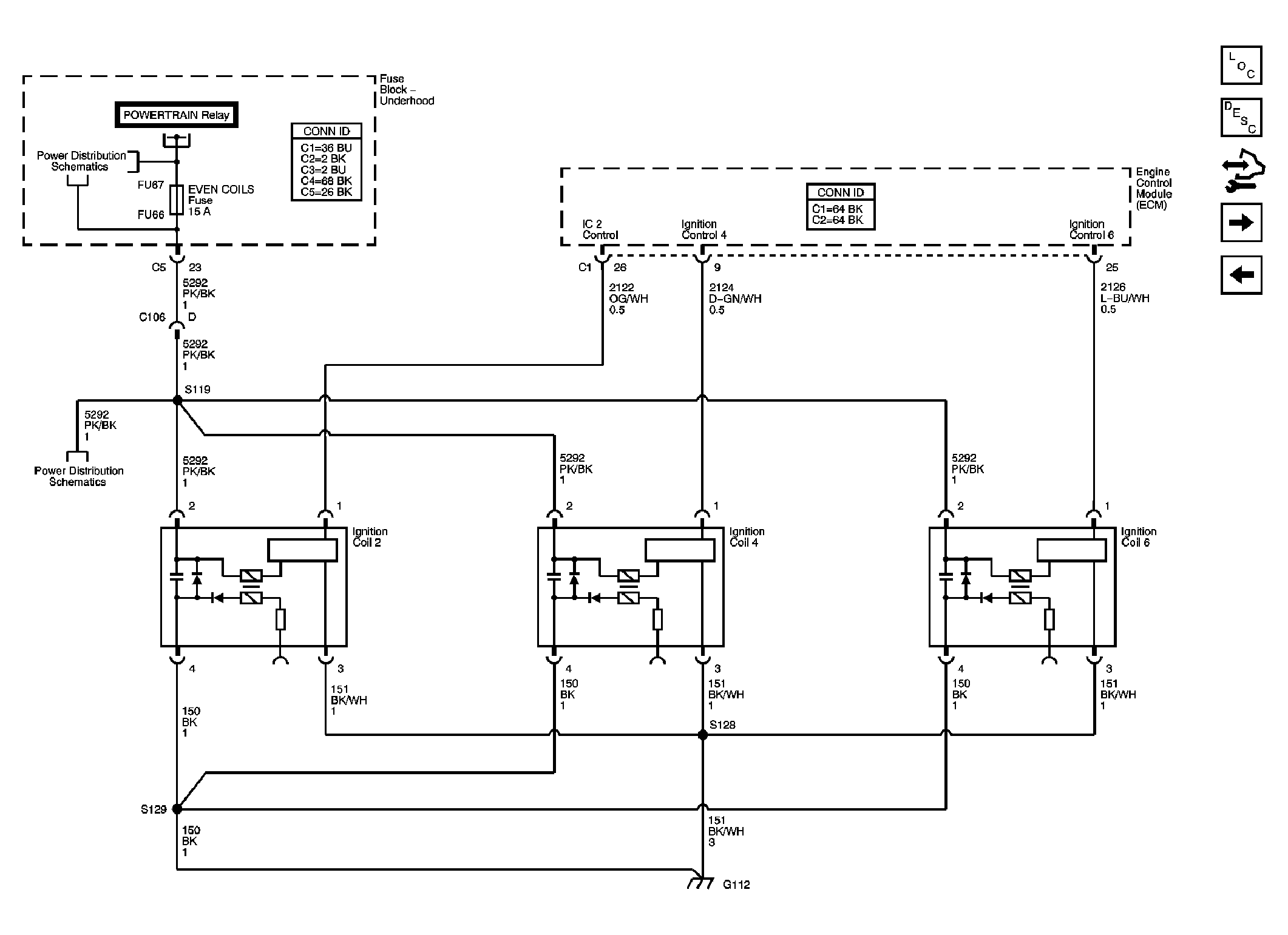

Fig 8: Ignition Controls - Bank 2 Ignition Coils Schematic

Courtesy of GENERAL MOTORS CORP.

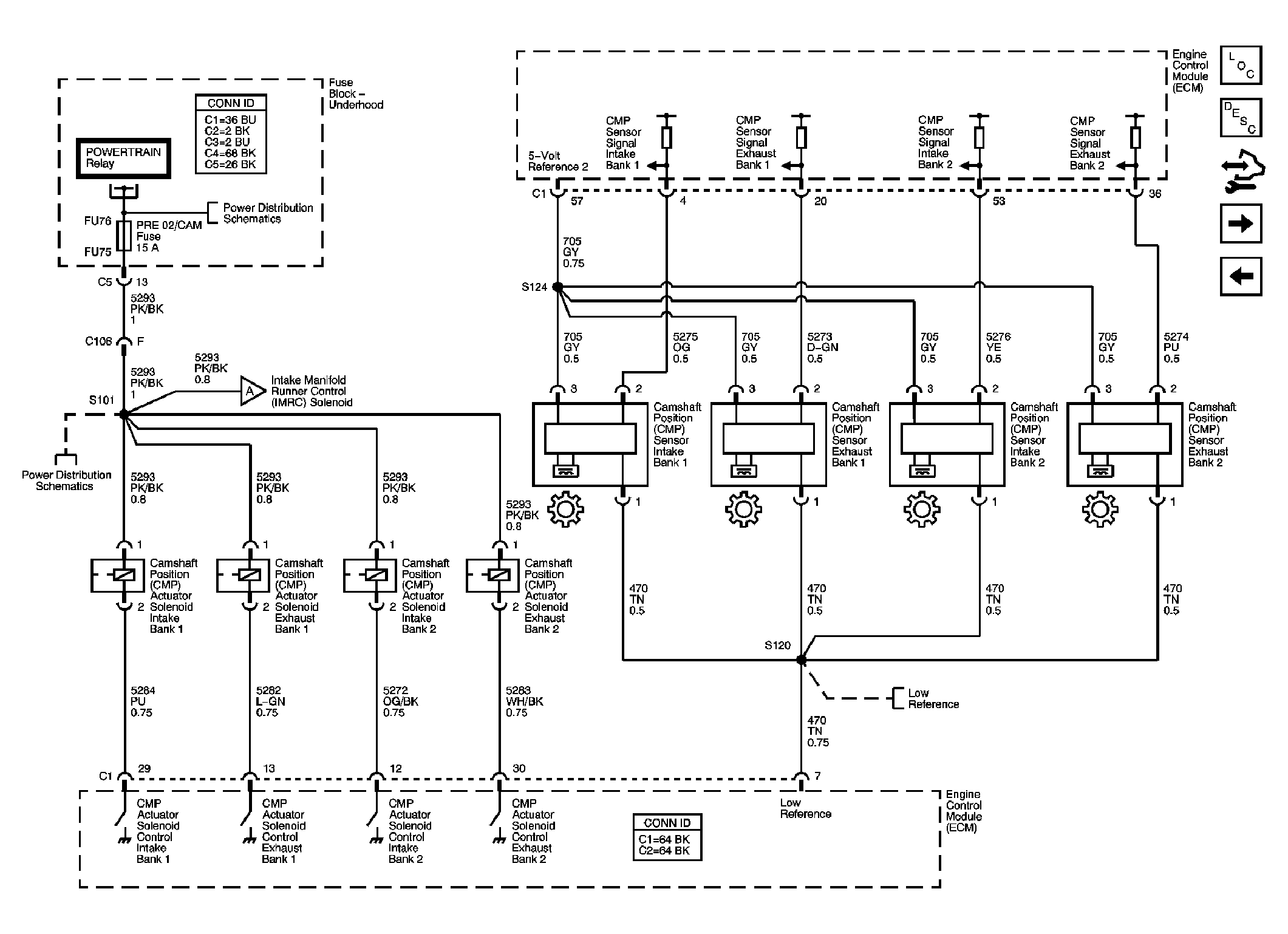

Fig 9: Ignition Controls - CMP Sensors and Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

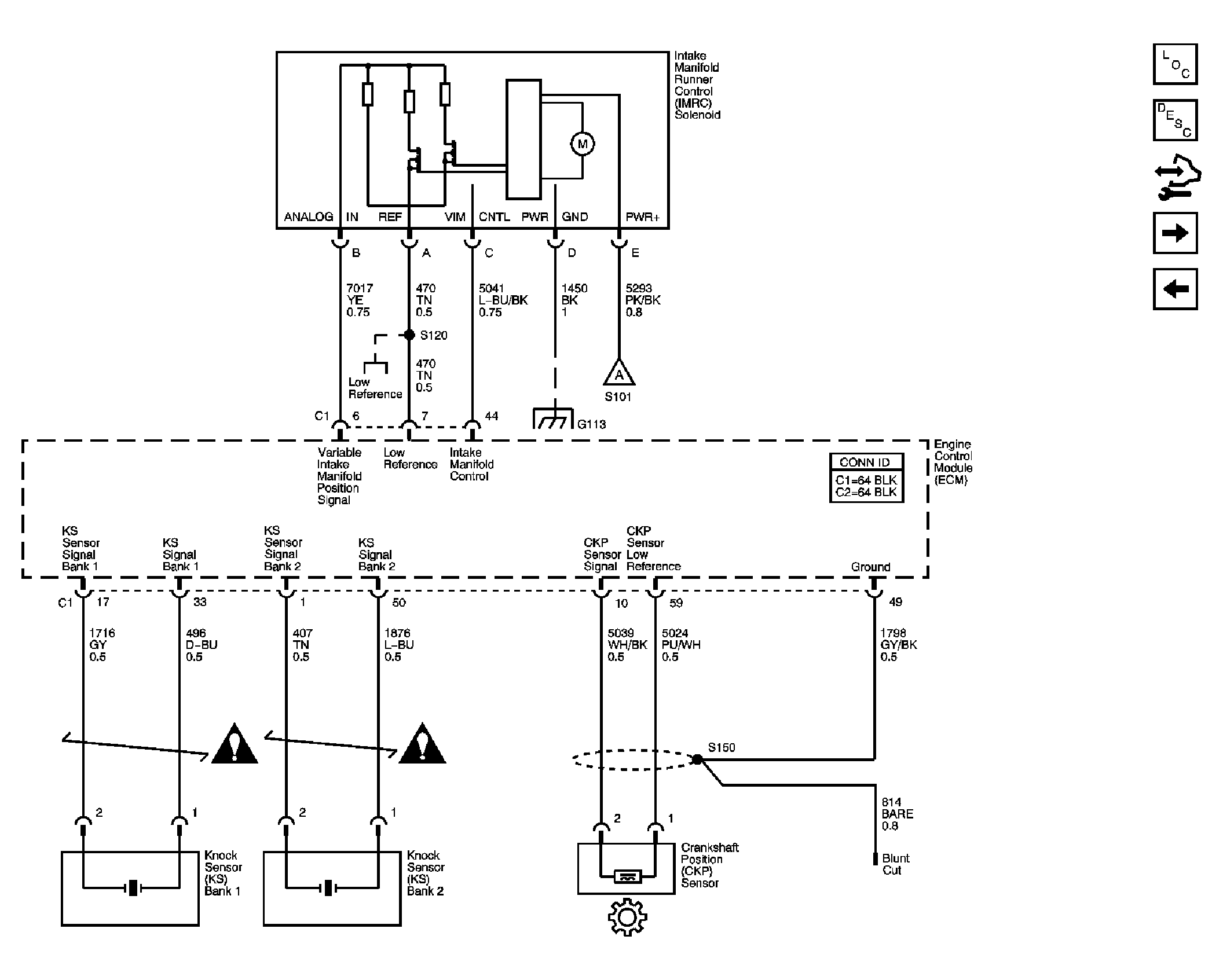

Fig 10: Ignition Controls - CKP, Knock Sensors and IMRC Solenoid Schematic

Courtesy of GENERAL MOTORS CORP.

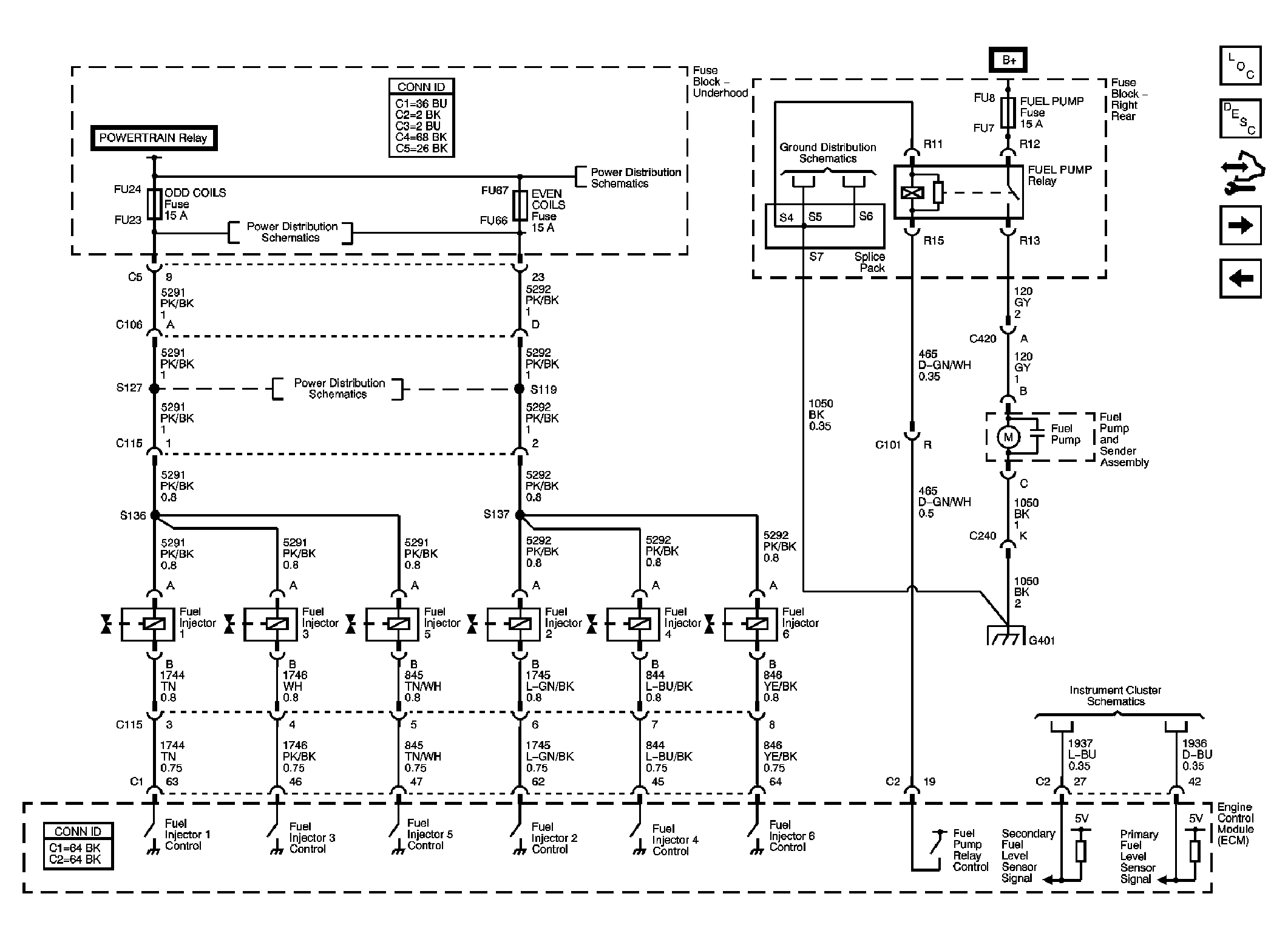

Fig 11: Fuel Controls - Fuel Pump and Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

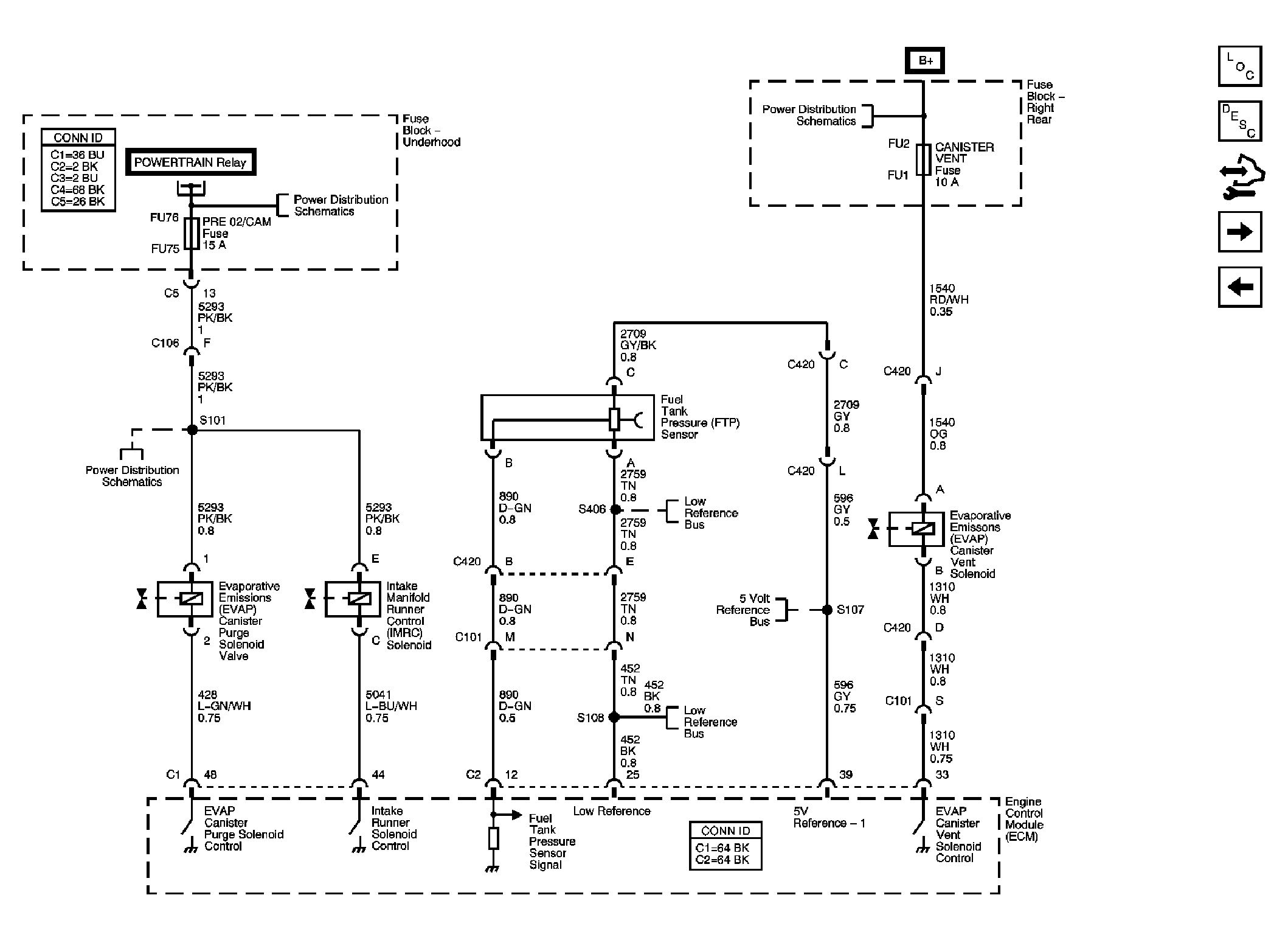

Fig 12: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

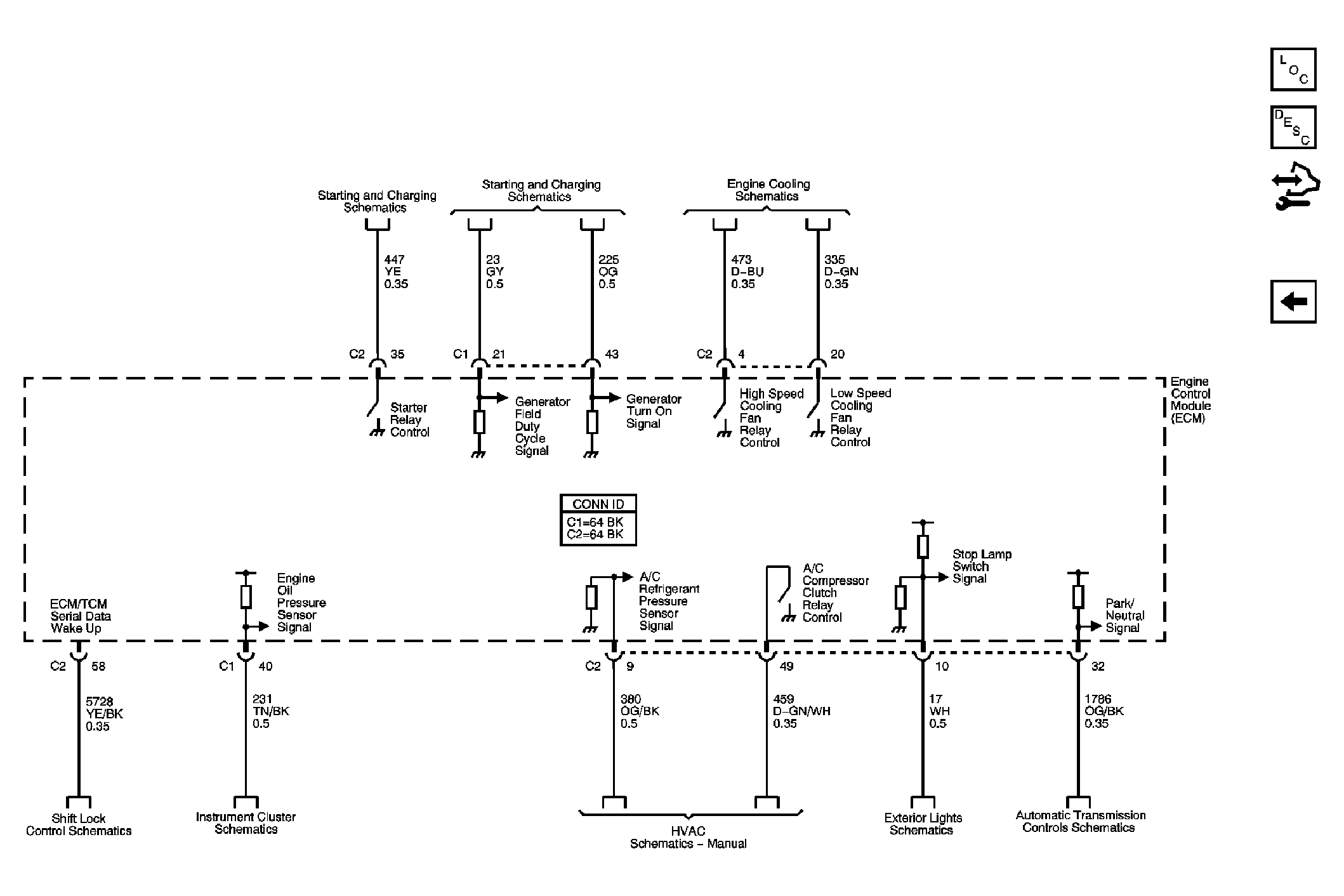

Fig 13: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
