Instrument Cluster Schematics

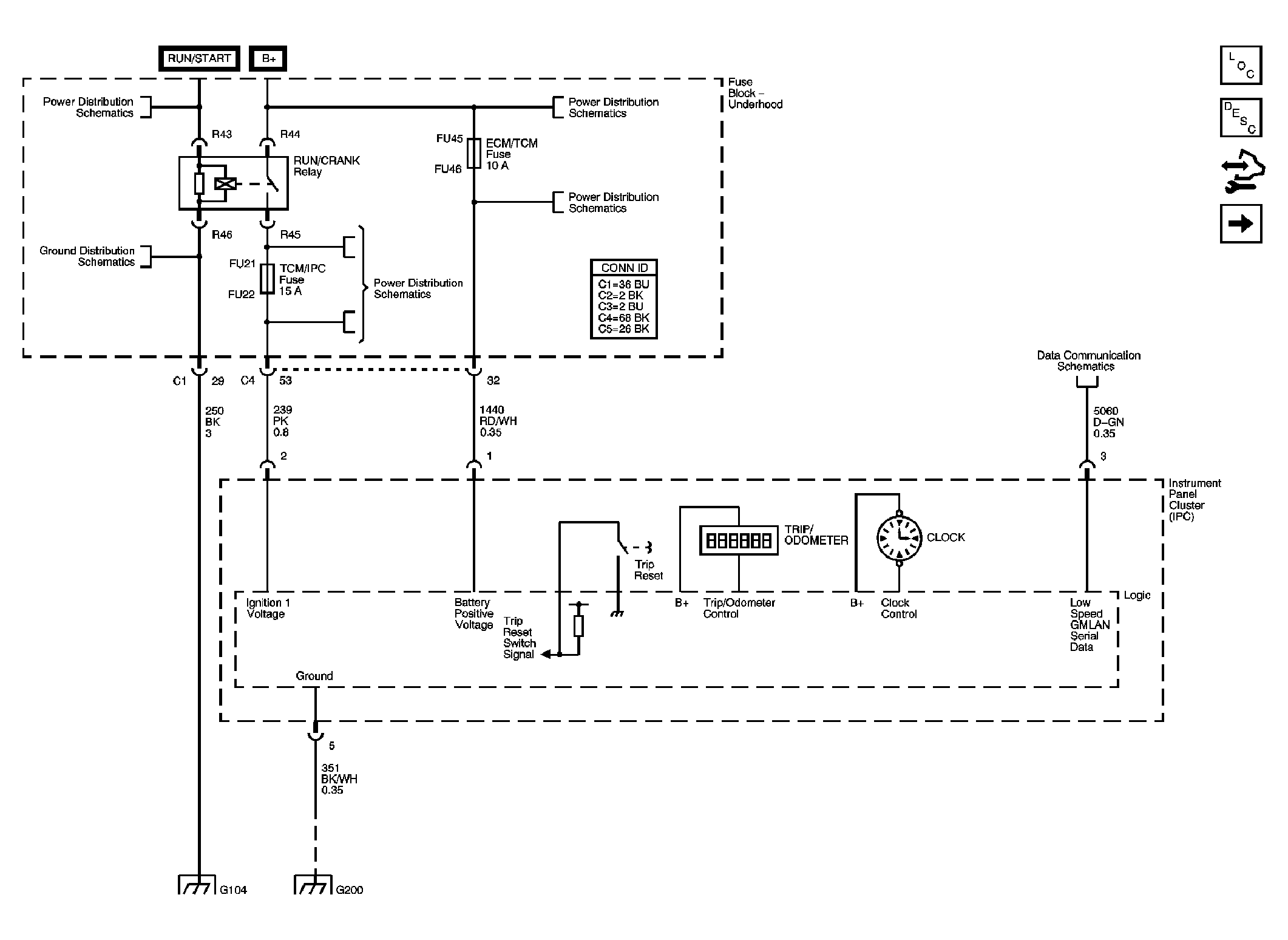

Fig 1: Power, Ground, DLC, Odometer and Clock Schematic
GM1823155Courtesy of GENERAL MOTORS CORP.

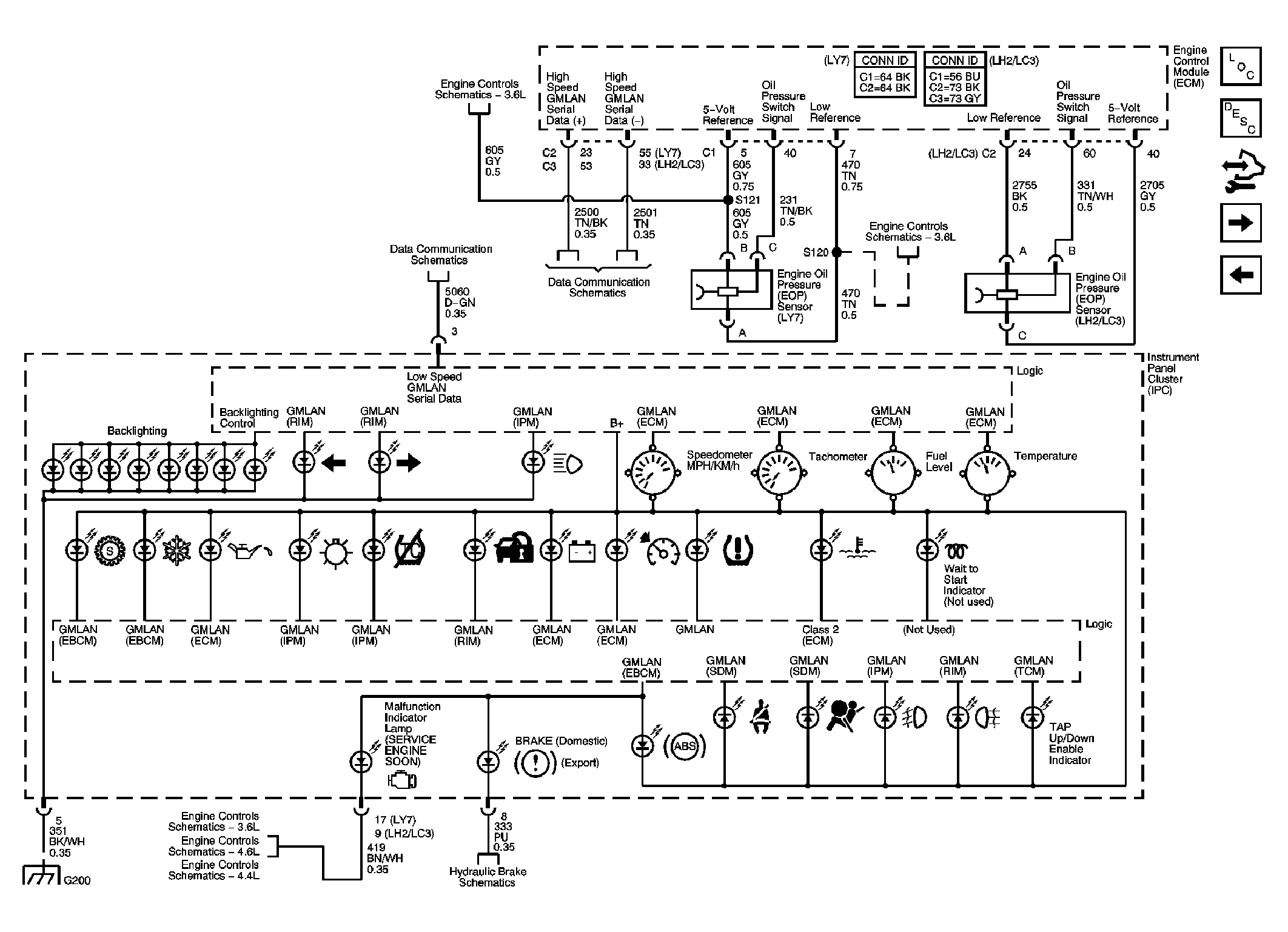

Fig 2: Indicator Schematic
GM1823161Courtesy of GENERAL MOTORS CORP.

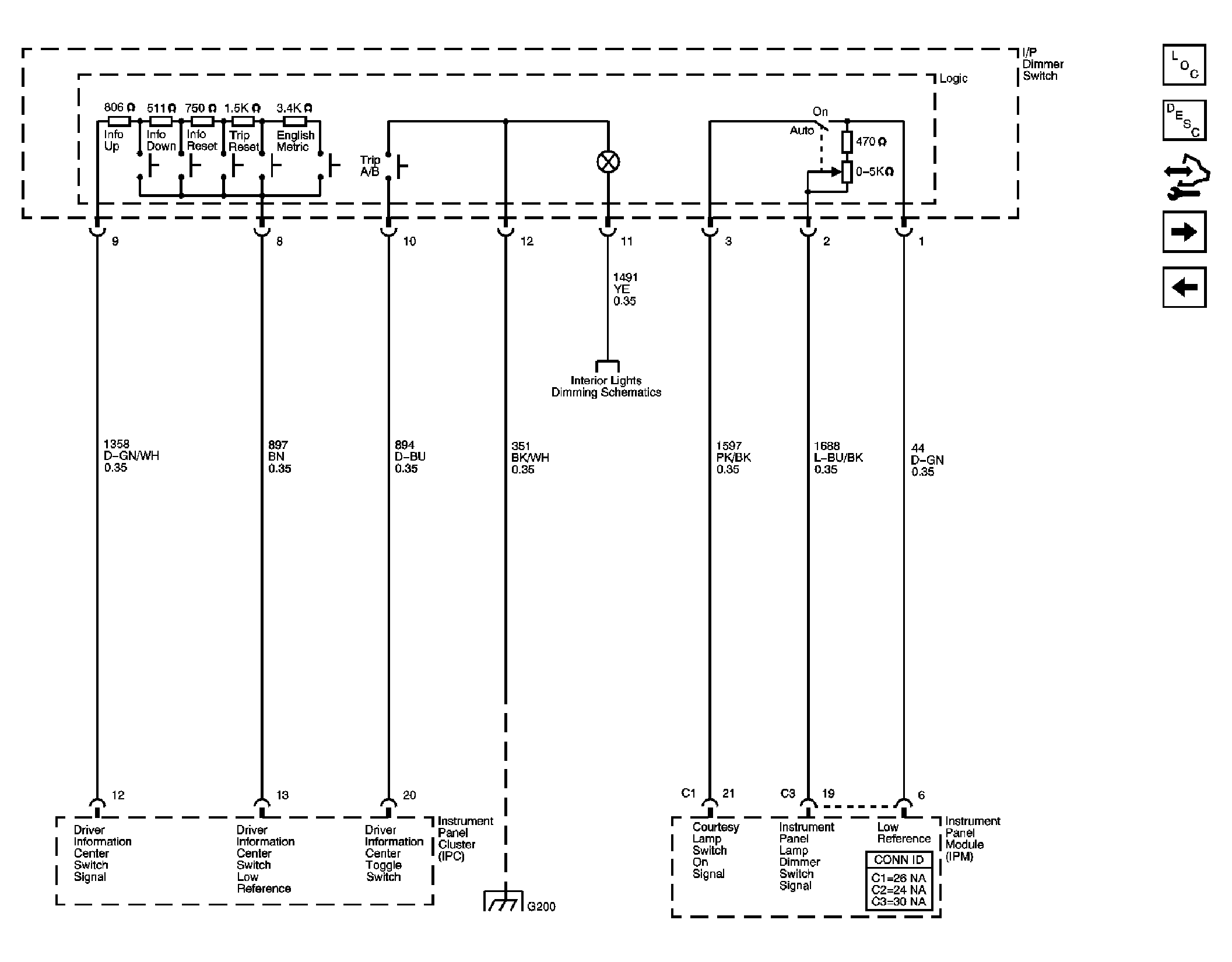

Fig 3: DIC/Dimmer Switch Schematic
GM1823164Courtesy of GENERAL MOTORS CORP.

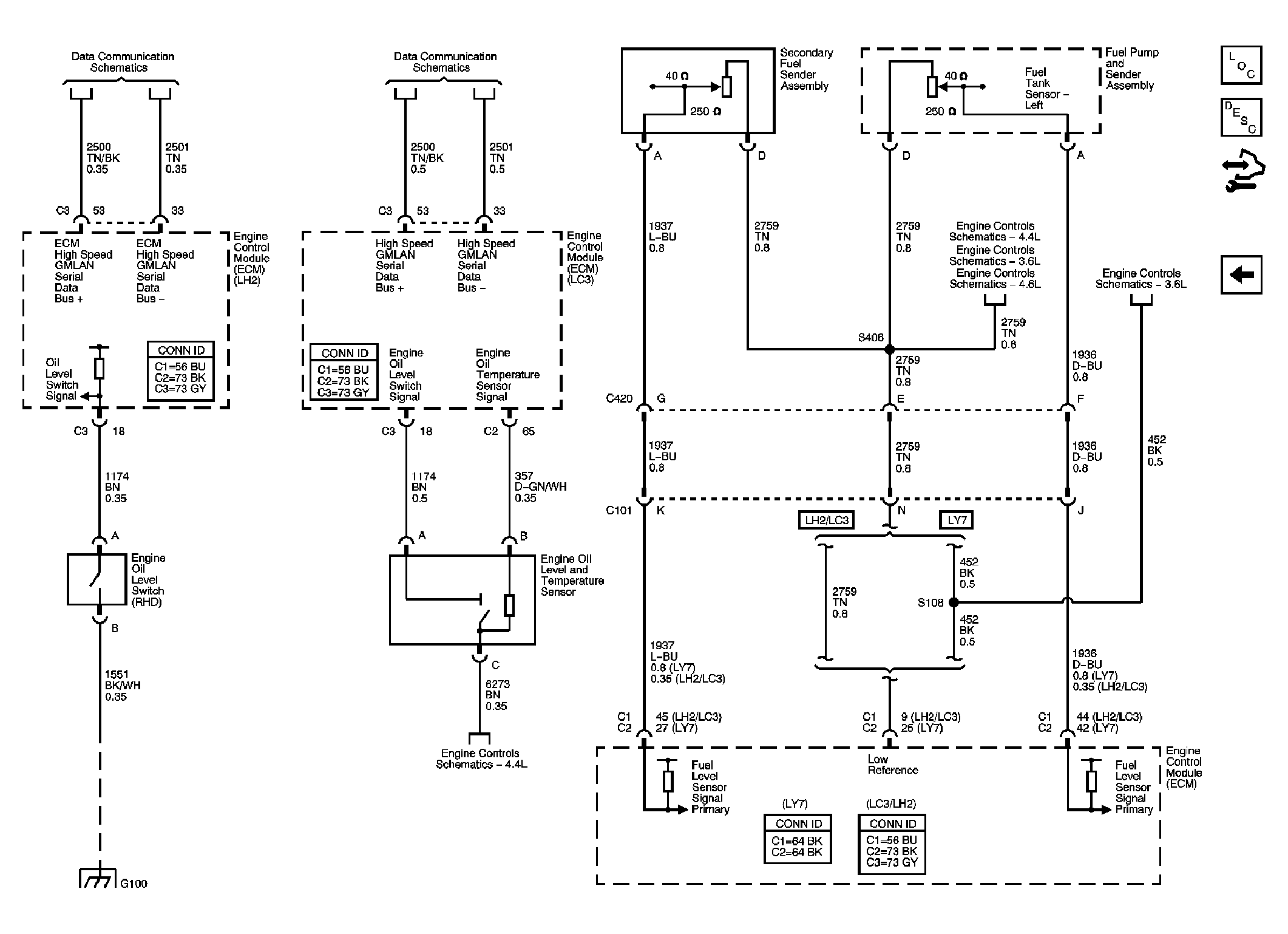

Fig 4: Engine Oil and Fuel Tank Level Schematic
GM1823172Courtesy of GENERAL MOTORS CORP.
