Audible Warnings Schematics

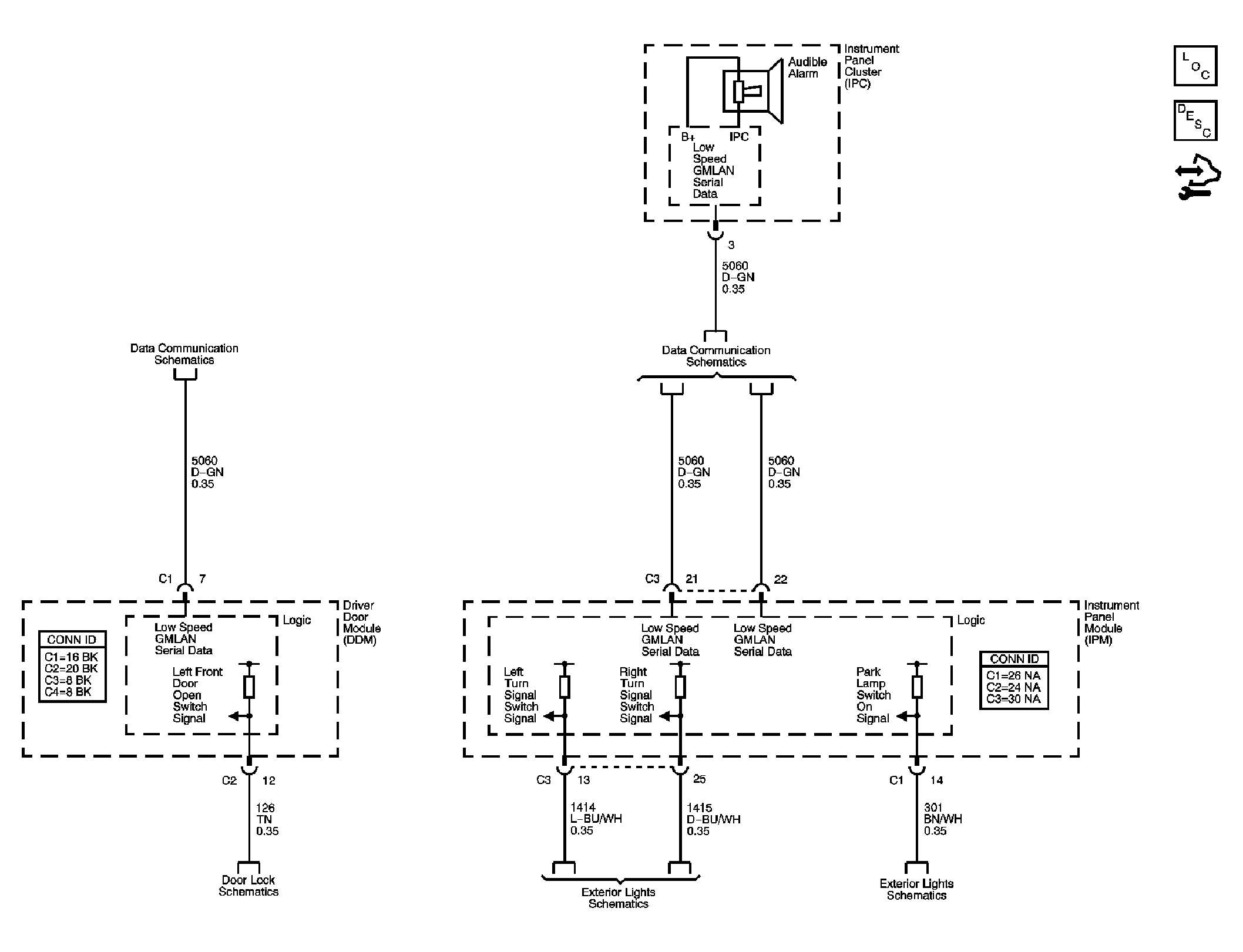

Fig 1: Audible Warnings Schematic

GM1823188

Courtesy of GENERAL MOTORS CORP.
