Hydraulic Brake Component Views

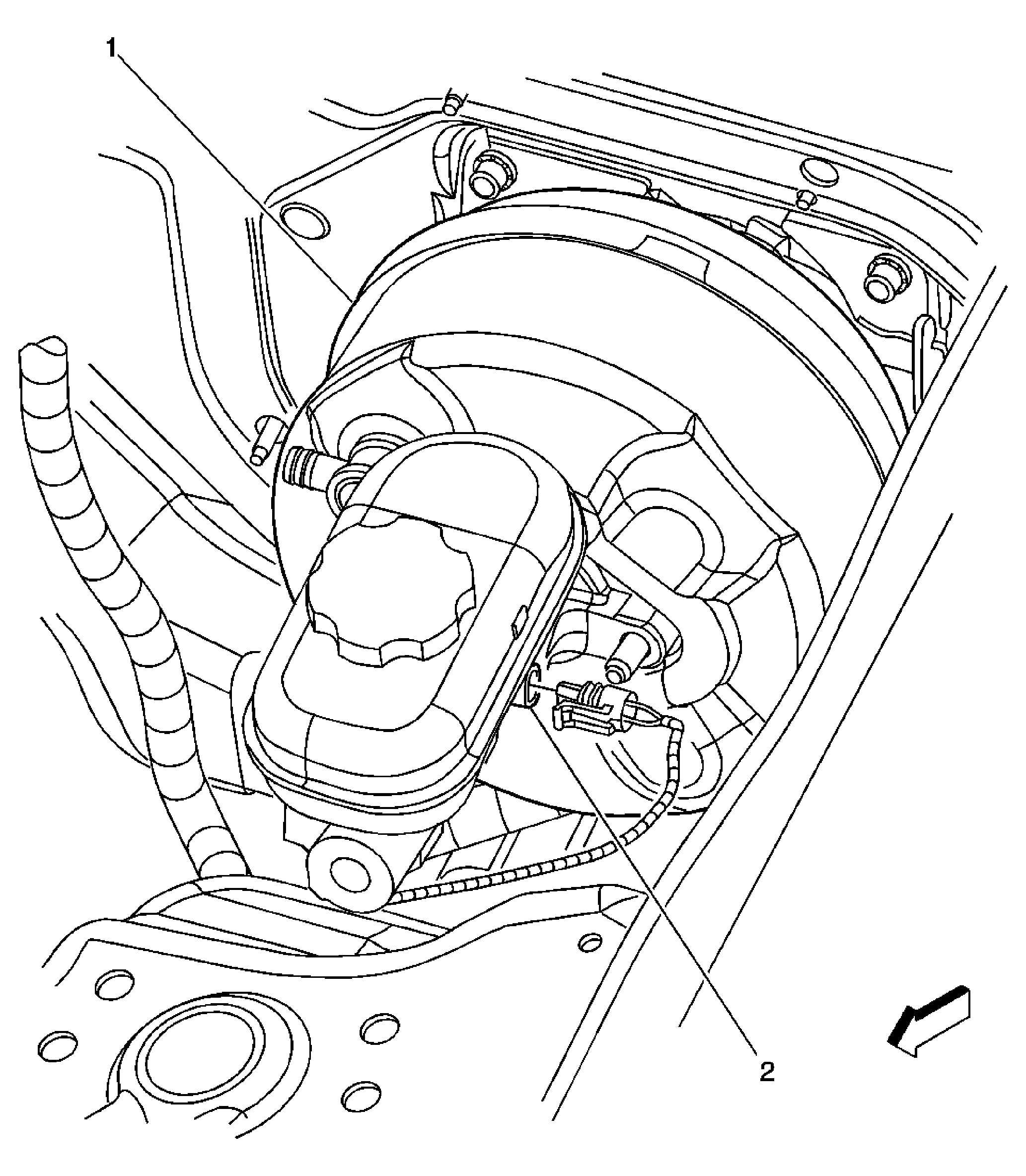

Fig 1: Brake Fluid Level Switch
GM1488426Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Booster
2 Brake Fluid Level Switch
Fig 2: Pedal Switches & Sensors Component View
GM1488592Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Switch
2 Brake Pedal Position Sensor
3 Accelerator Pedal Position (APP) Sensor
4 Left Front Floor Panel
