Heated/Cooled Seat Schematics

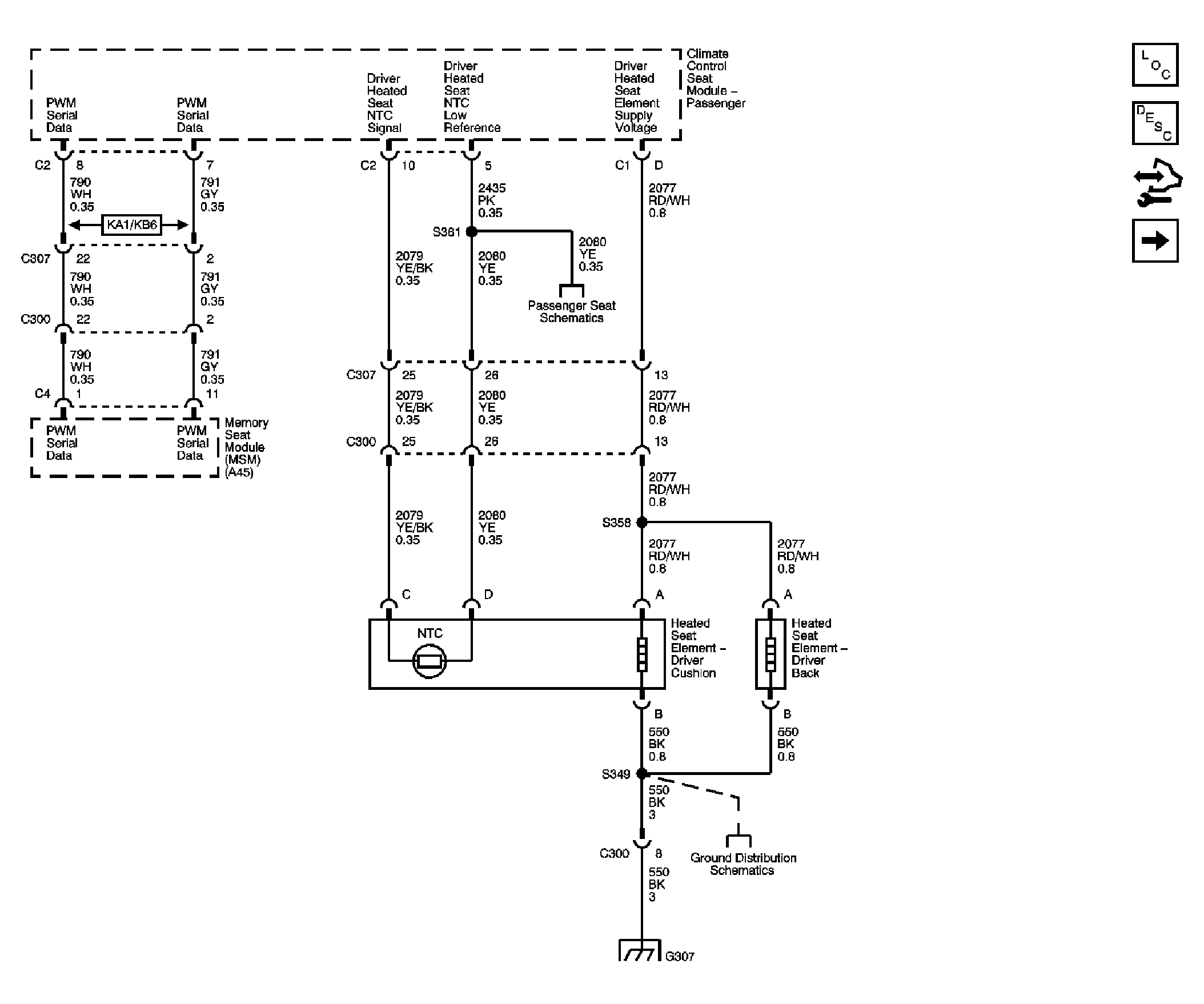

Fig 1: Driver Heated Seat Schematic
GM1824263Courtesy of GENERAL MOTORS CORP.

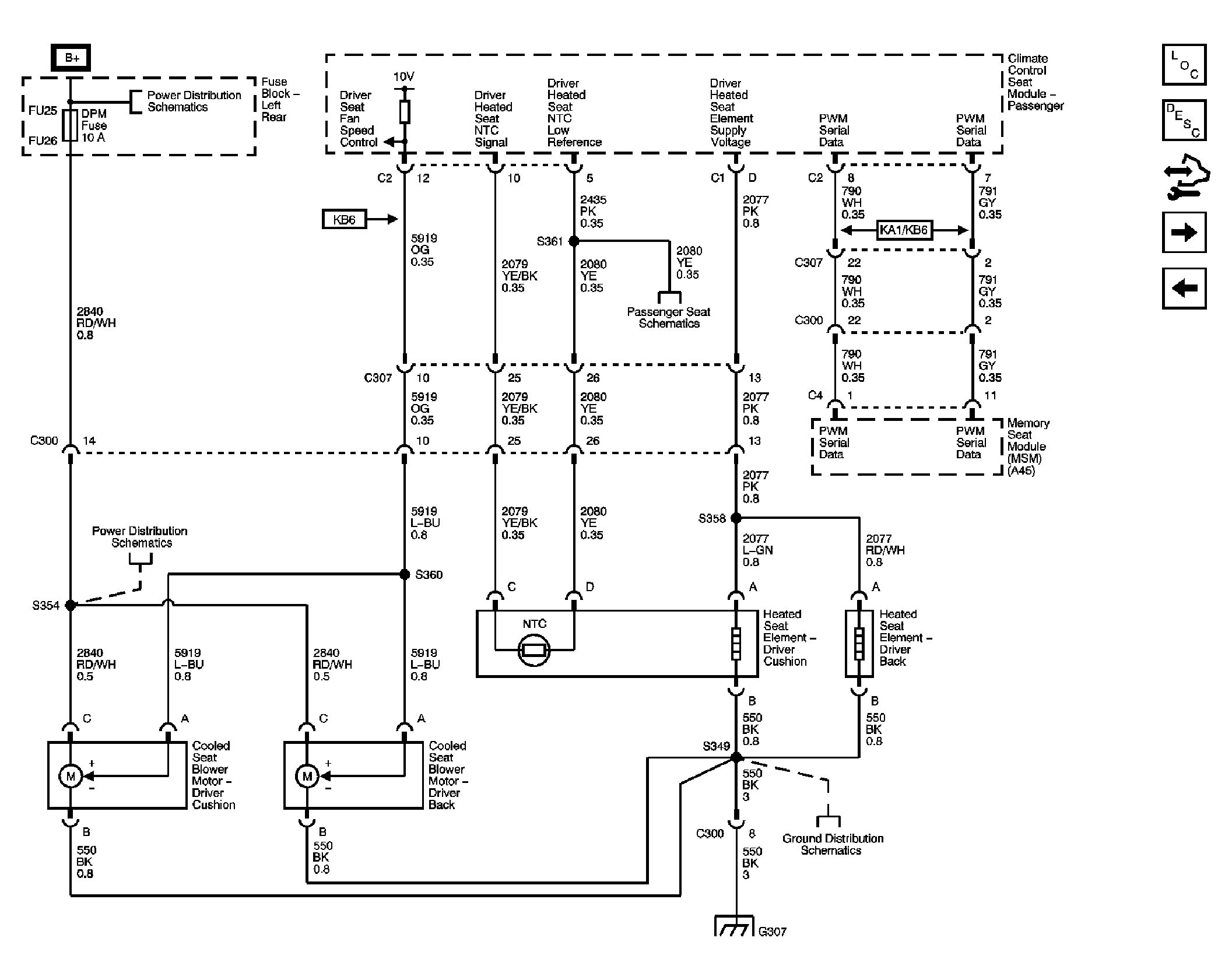

Fig 2: Driver Heated/Cooled Seat Schematic
GM1824265Courtesy of GENERAL MOTORS CORP.

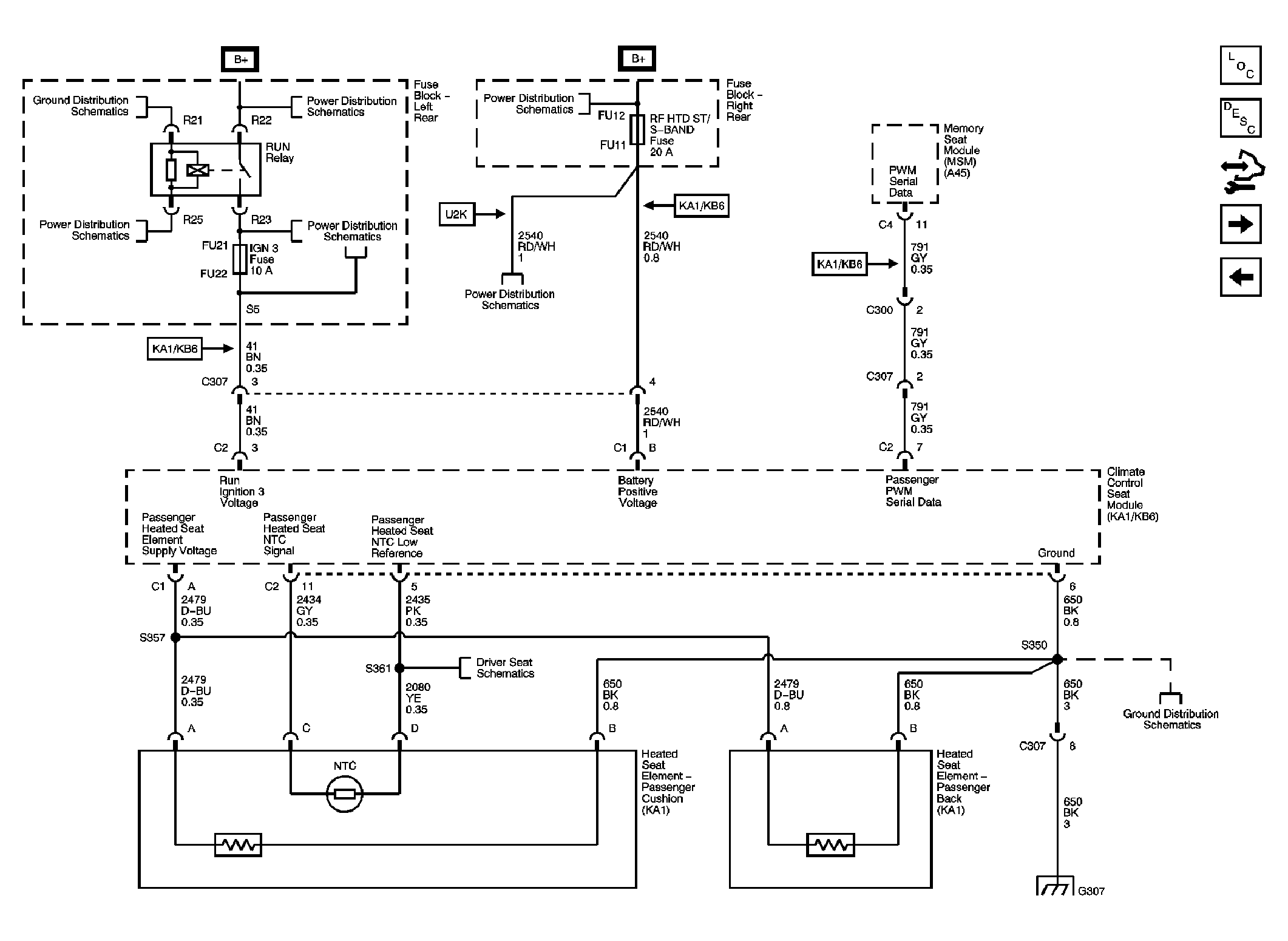

Fig 3: Front Passenger Heated Seat Schematic
GM1824267Courtesy of GENERAL MOTORS CORP.

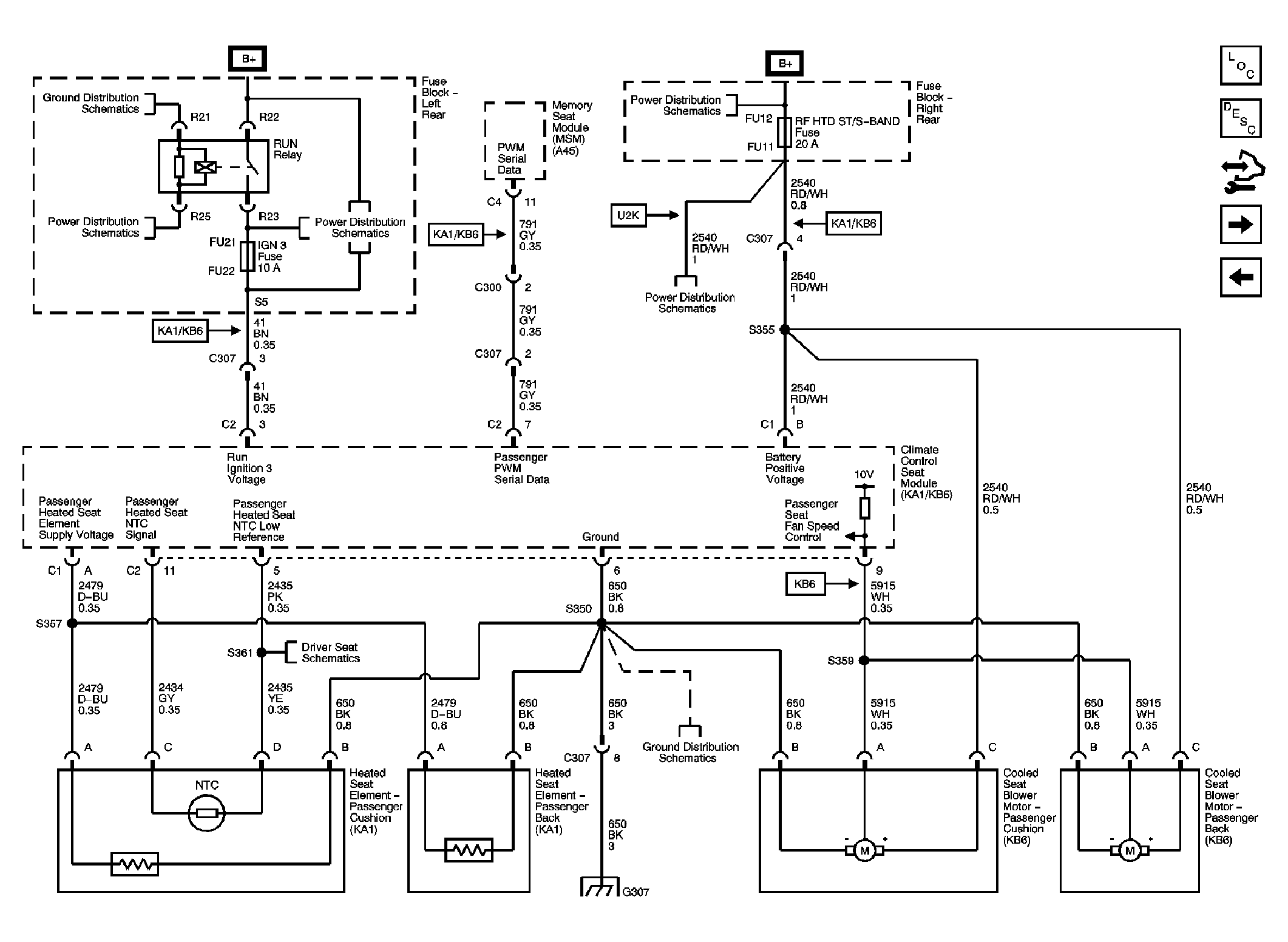

Fig 4: Front Passenger Heated/Cooled Seat Schematic
GM1824271Courtesy of GENERAL MOTORS CORP.
Fig 5: Right Rear Heated Seat Elements Schematic
GM1824284Courtesy of GENERAL MOTORS CORP.

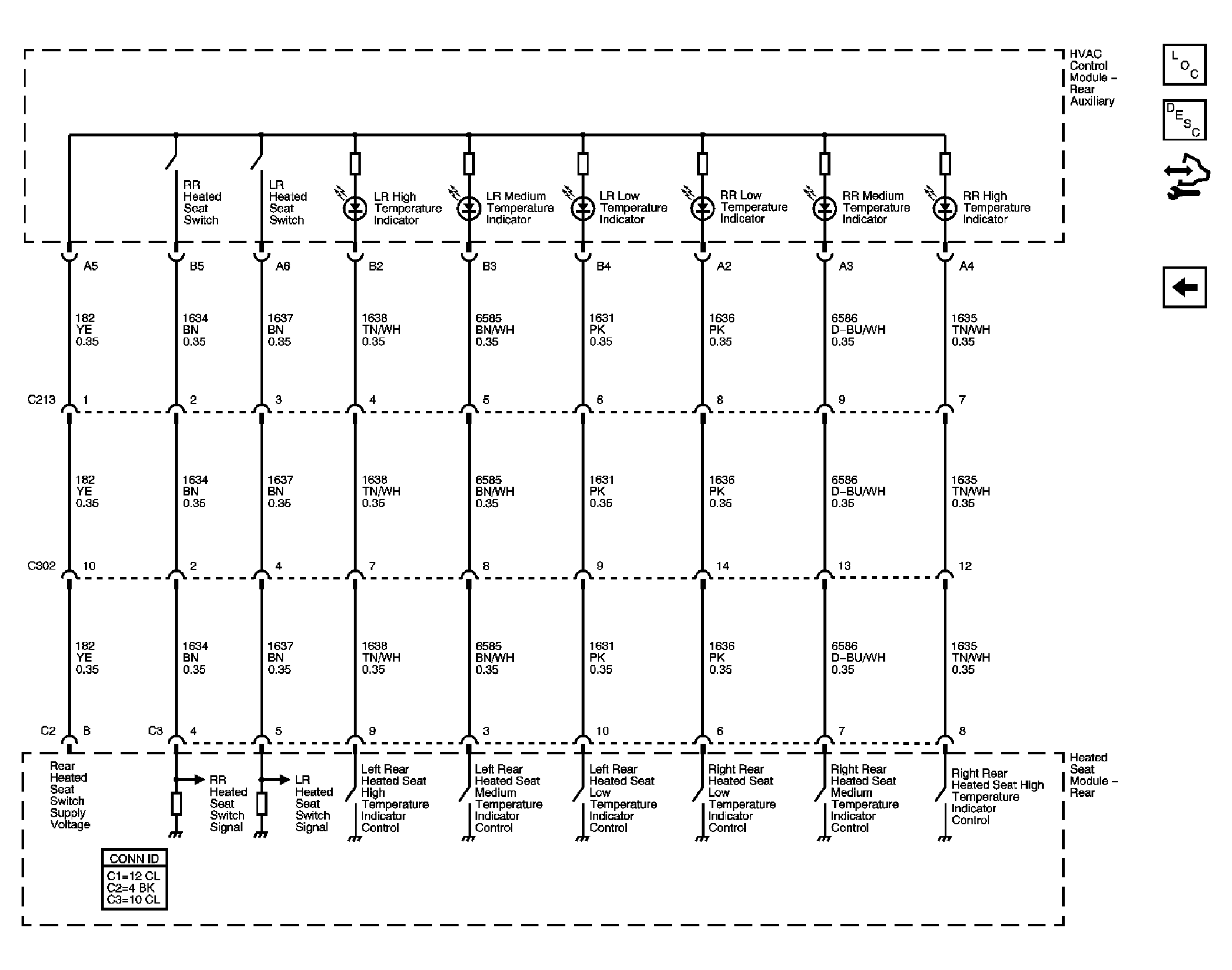

Fig 6: Left Rear Heated Seat Controls Schematic
GM1824286Courtesy of GENERAL MOTORS CORP.
