Driver Seat Schematics

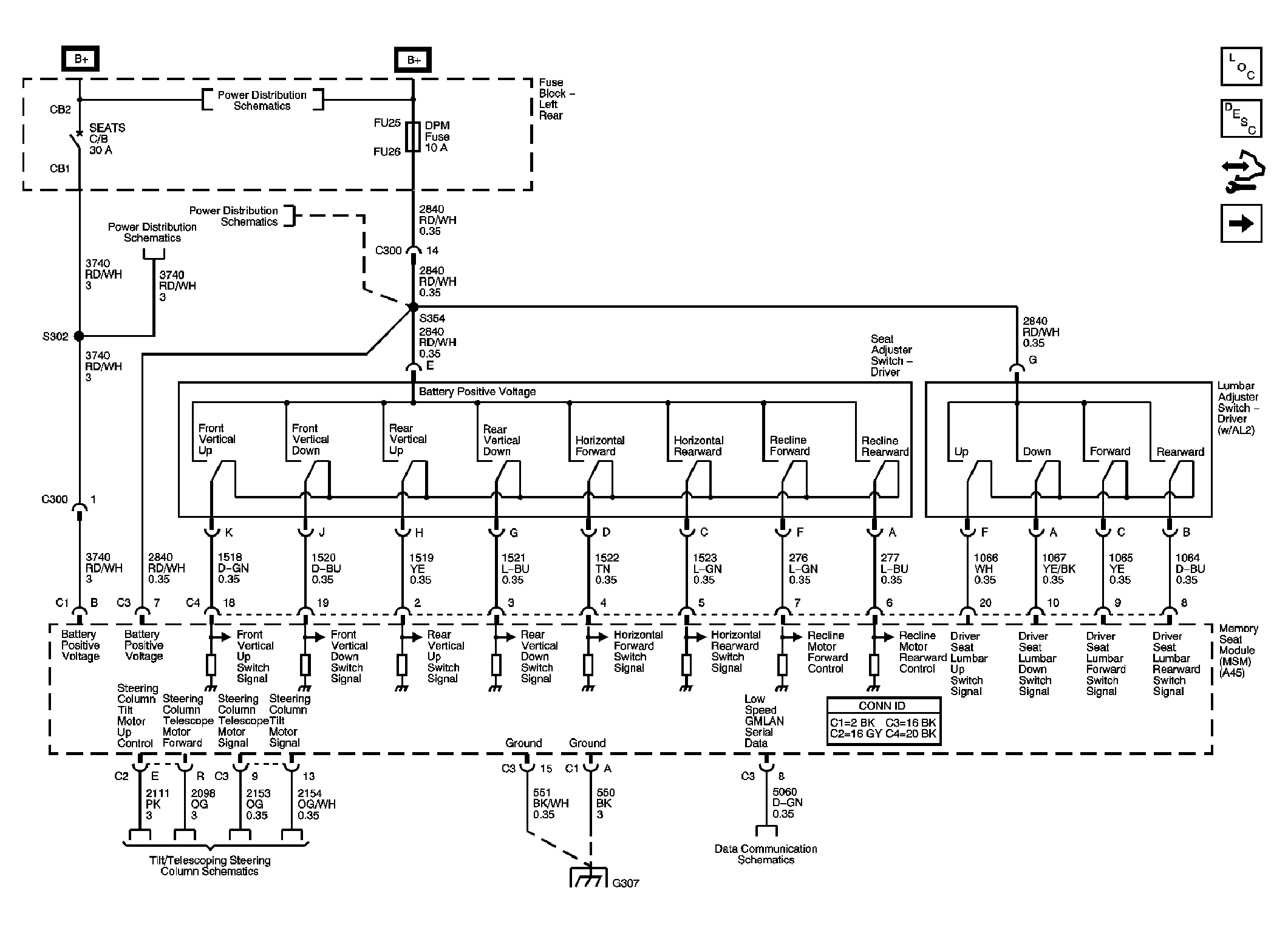

Fig 1: Memory Seat Module Power, Ground and DLC

GM1824246

Courtesy of GENERAL MOTORS CORP.

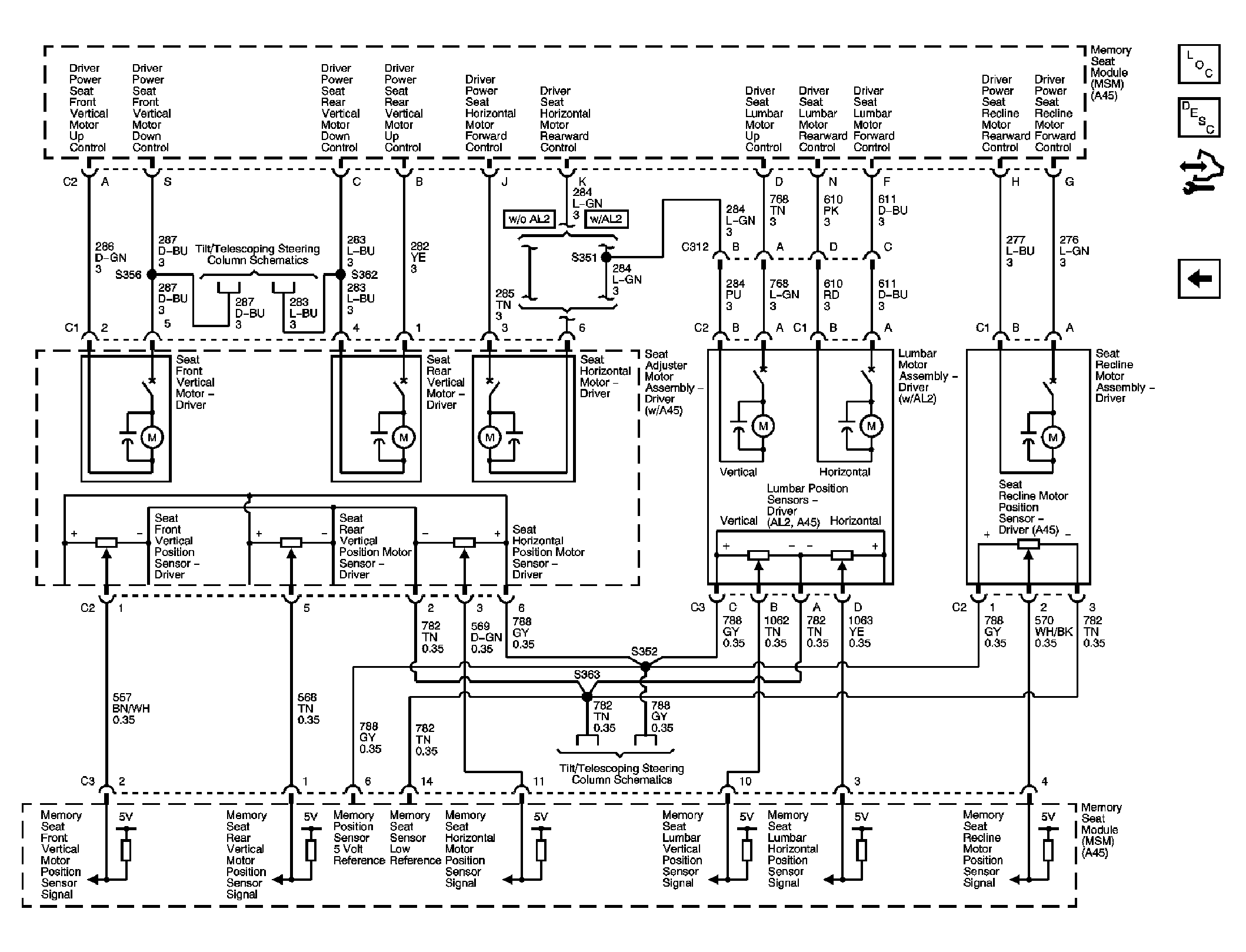

Fig 2: Position Sensors and Motors

GM1824248

Courtesy of GENERAL MOTORS CORP.
