Inside Rearview Mirror Schematics

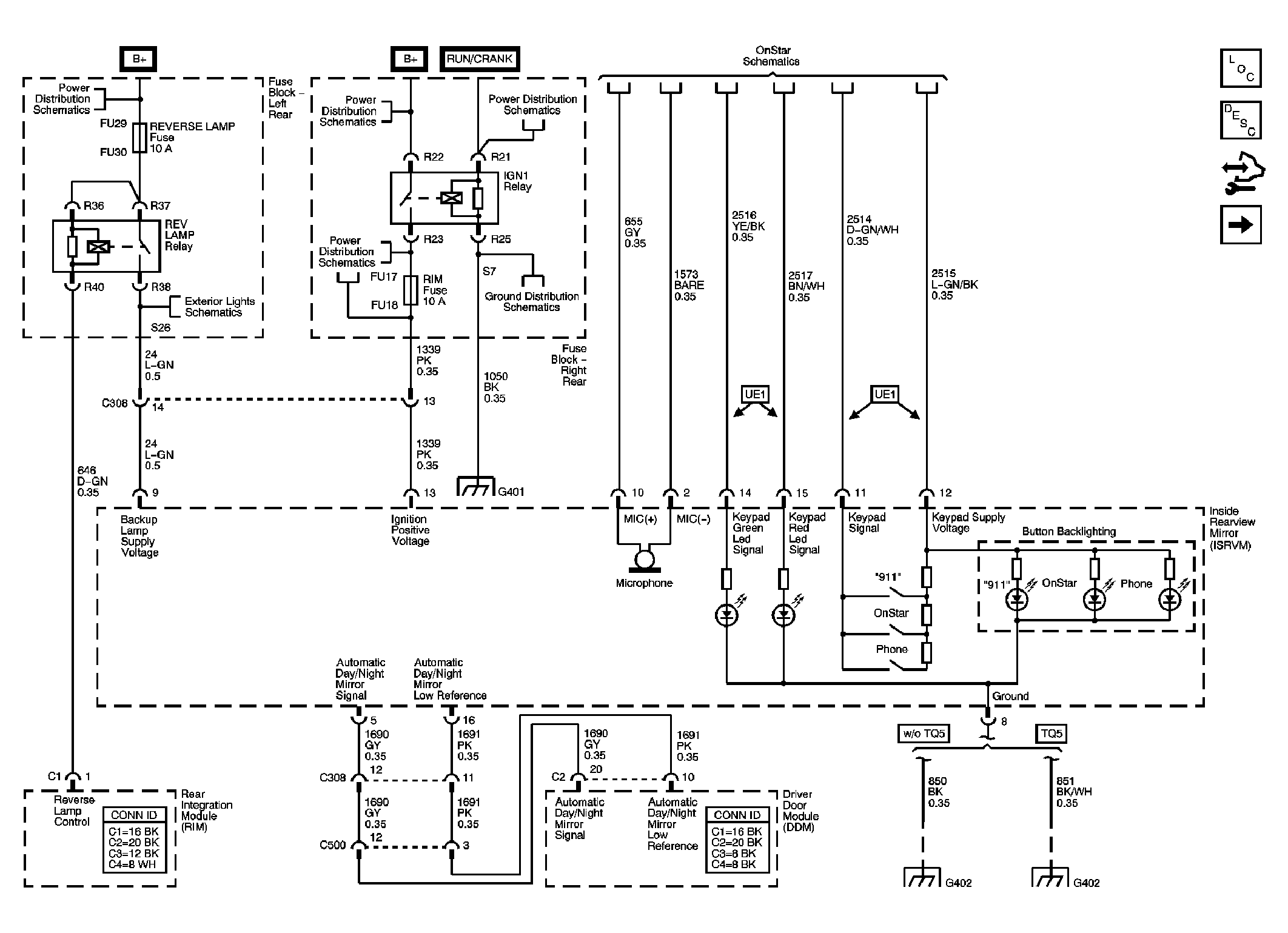

Fig 1: Inside Rearview Mirror (ISRVM), Power and Ground Schematic
GM1822649Courtesy of GENERAL MOTORS CORP.

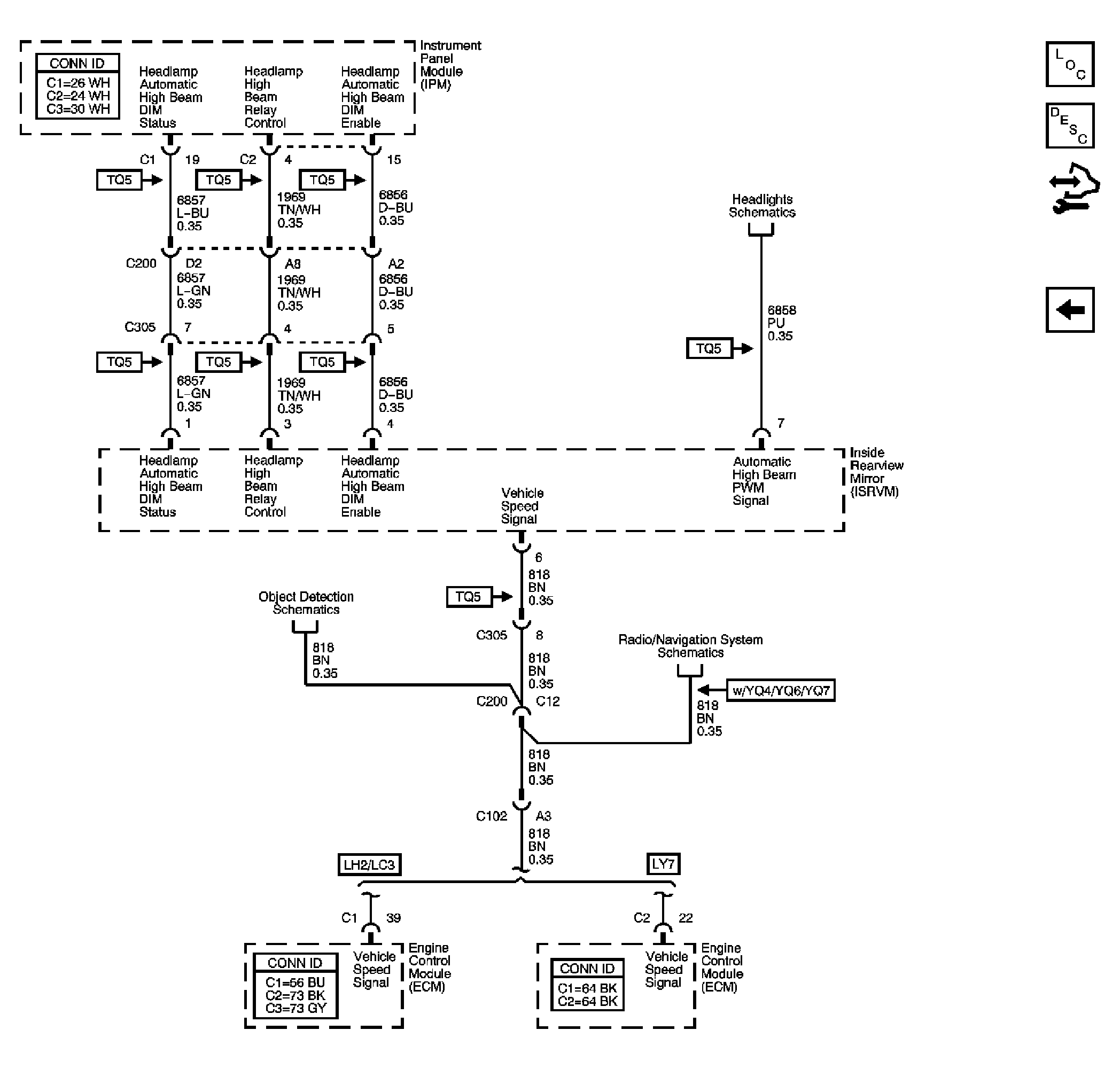

Fig 2: Inside Rearview Mirror (ISRVM): Automatic Headlamp Dimming Signals Schematic
GM1822656Courtesy of GENERAL MOTORS CORP.
