Theft Deterrent System Schematics

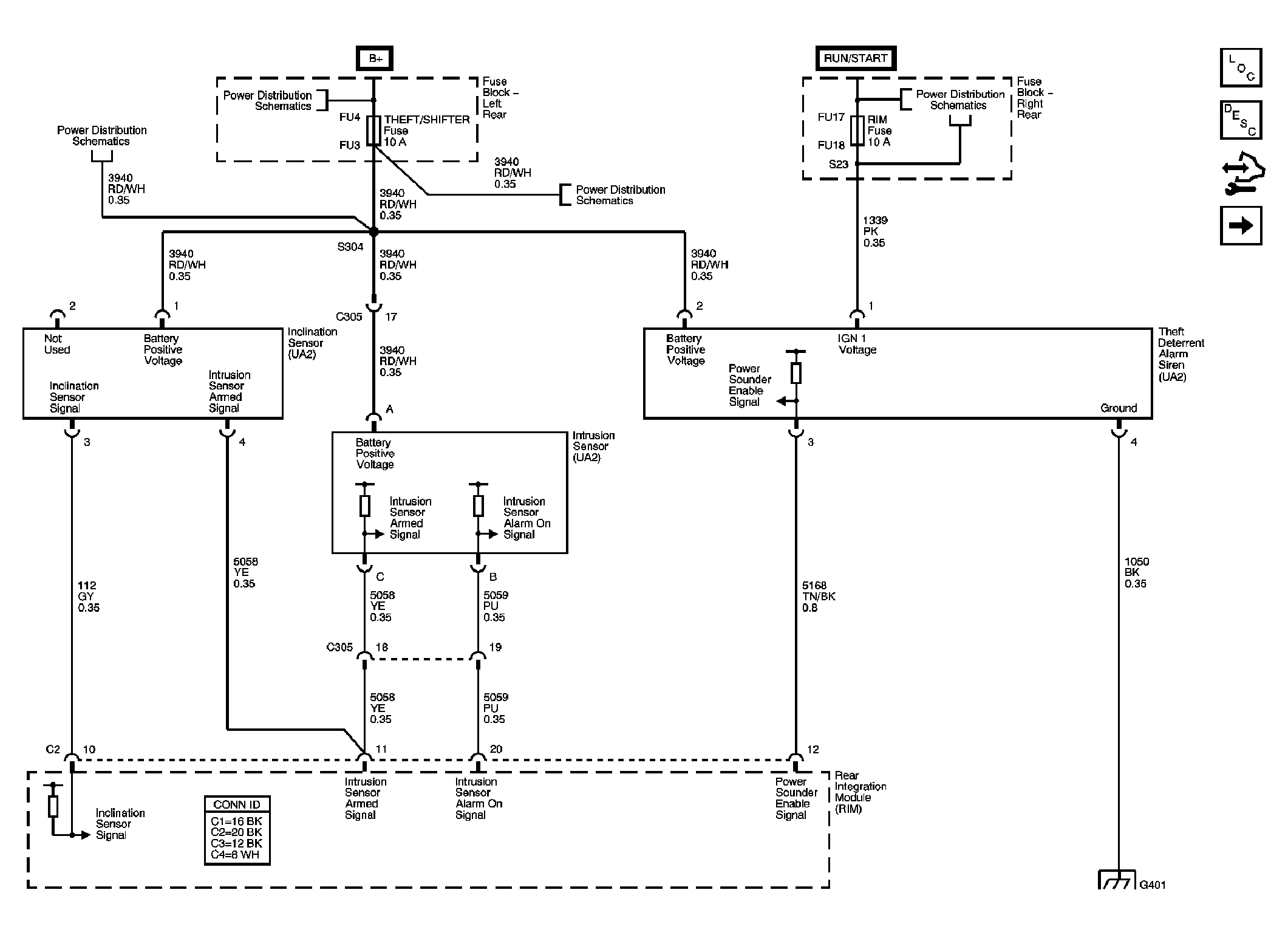

Fig 1: Content Theft Deterrent (CTD) System Schematic

GM1822983

Courtesy of GENERAL MOTORS CORP.

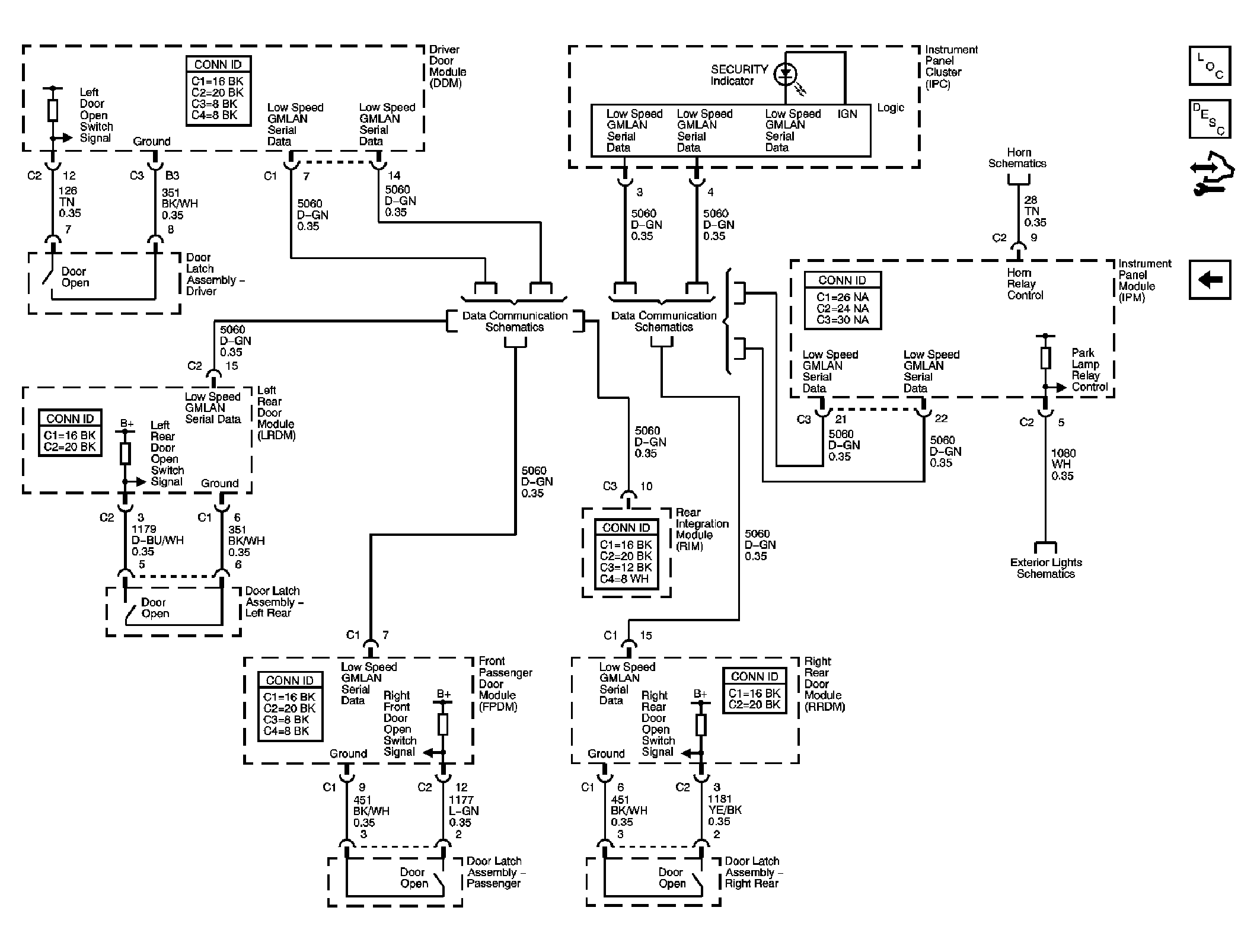

Fig 2: Door Modules and Horn Schematic

GM1822988

Courtesy of GENERAL MOTORS CORP.
