Rear Compartment Lid Switch Replacement (Exterior)

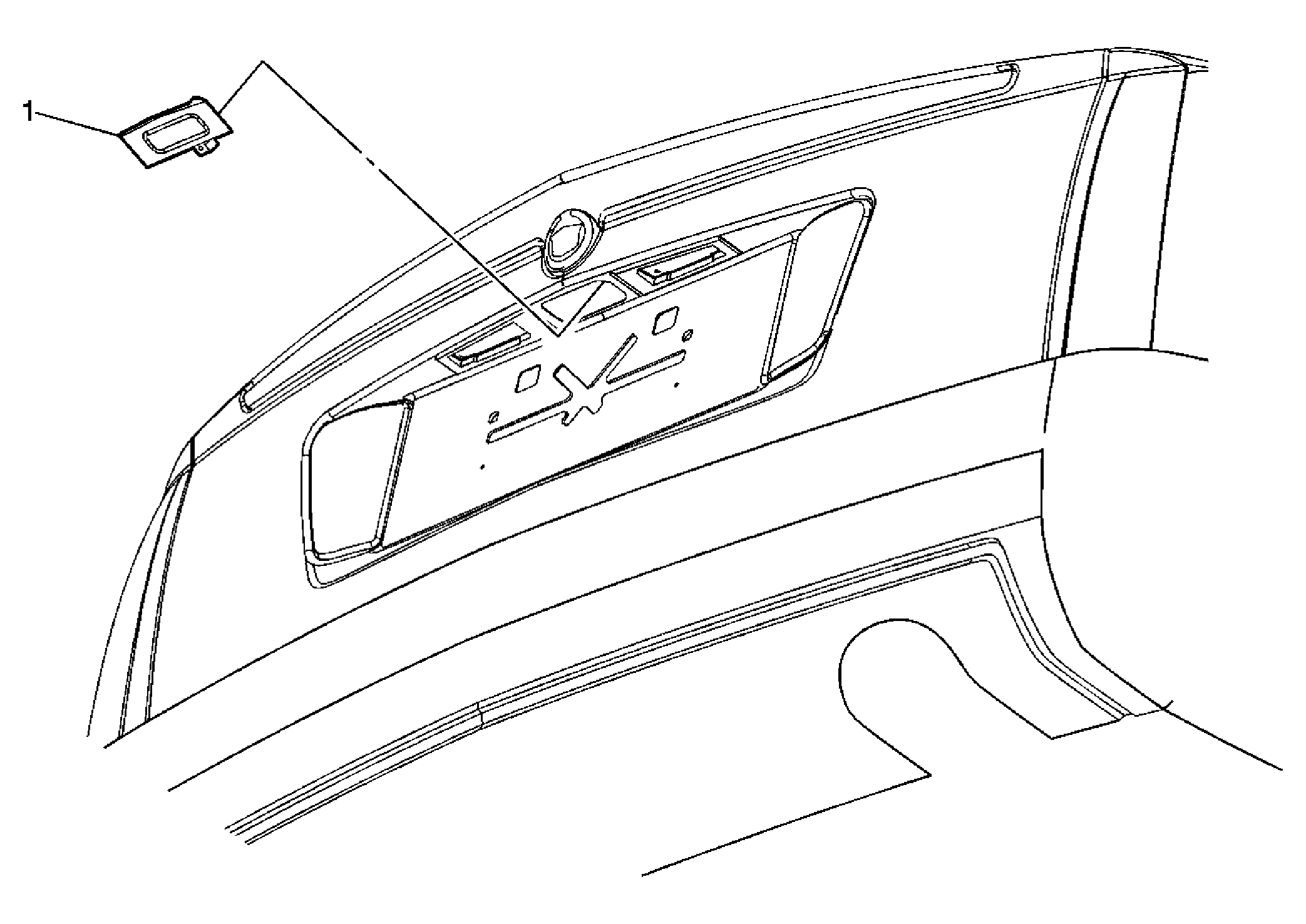

Fig 1: View Of Exterior Rear Compartment Lid Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Switch Assembly, Rear Compartment Release Tip:  Using a flat bladed tool, carefully remove the switch from the outside of the rear compartment lid. Disconnect the electrical connector to remove and reconnect when replacement is complete.
